Dahua
IP видеорекордер Dahua NVR4232-4KS3
Артикул №: 1000132596
Категория:
Видеонаблюдение и аларми
333,99 €
✓ Налично във външен склад

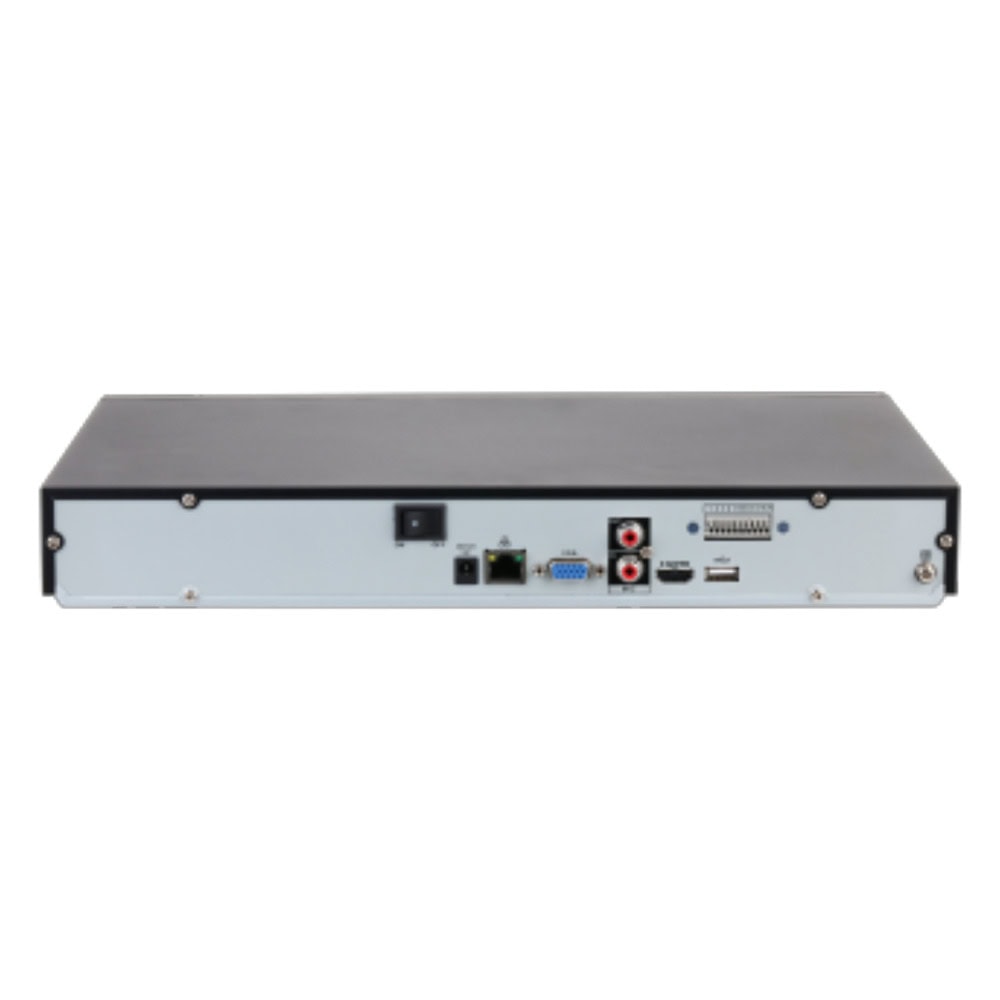

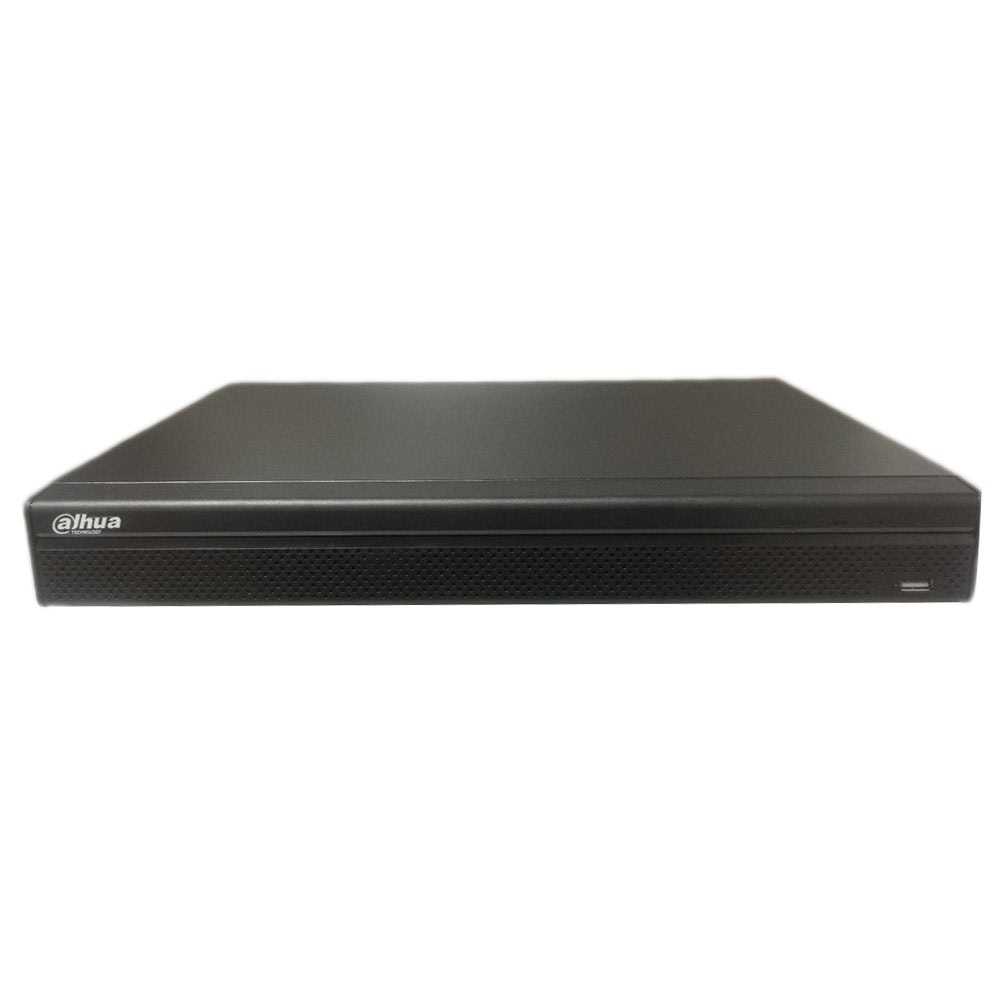

Dahua NVR4232-4KS3
32CH 1U 2HDDs Lite Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
> Max. 160/128/60 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 12 MP.
> AI by Recorder supports 2-channel SMD Plus.
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map.
> Supports EPTZ, and one-click arming and disarming.
Характеристики
| Main ProcessorIndustrial-grade processor | Да |
| Operating SystemEmbedded Linux | Да |
| Operating InterfaceWeb, Local GUI | Да |
| AI | Да |
| AI by RecorderSMD Plus | Да |
| Perimeter Protection | Да |
| Face Detection | Да |
| Face Recognition | Да |
| SMD Plus | Да |
| SMD Plus by Recorder4 channels | Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera6 channels | Да |
| Audio and Video | Да |
| Access Channel32 channels | Да |
| Network BandwidthAI disabled | 160 Mbps incoming, 128 Mbps recording and 60 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing |
| Decoding CapabilityAI disabled | 1-channel 12 MP@30 fps; 2-channel 8 MP@30 fps; 3-channel 5 MP@30 fps; 4-channel 4 MP@30 fps; 8-channel 1080p@30 fps AI enabled: 1-channel 12 MP@30 fps; 1-channel 8 MP@30 fps; 2-channel 5 MP@30 fps; 3-channel 4 MP@30 fps; 7-channel 1080p@30 fps |
| Video Output1 HDMI, 1 VGA Simultaneous： HDMI | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous： HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen DisplayAI disabled | Main Screen: 1/4/8/9/16/25/36, Sub Screen: 1/4/8/9/16 AI enabled: Main Screen: 1/4/8/9/16, Sub Screen: 1/4/8/9/16 |
| Compression Standard | Да |
| Video CompressionSmart H.265+; H.265; Smart H.264+; H.264 | Да |
| Audio CompressionG.711a; G.711u; PCM; G726 | Да |
| Network | Да |
| Mobile Phone AccessiOS; Android | Да |
| BrowserChrome; IE; Safari; Edge; Firefox | Да |
| Recording Playback | Да |
| Multi-channel PlaybackUp to | 16 channels |
| Record ModeGeneral, motion detection; intelligent; alarm | Да |
| Backup MethodUSB device and network | Да |
| Капацитет за съхранение | Да |
| Disk GroupYes | Да |
| Alarm | Да |
| Порт | Да |
| Audio Input1-channel RCA | Да |
| Audio Output1-channel RCA | Да |
| Alarm Input4 channels | Да |
| Alarm Output2 channels (1-channel | 12 V 1 A output） |
| USB2 (1 front USB | 2.0 port, 1 rear USB 2.0 port) |
| HDMI1 | Да |
| VGA1 | Да |
| Network Port1 (10/100/1000 Mbps Ethernet port, RJ-45) | Да |
| General | Да |
| Power Supply12 VDC, | 4 A |
| Power ConsumptionTotal output of NVR is | Да |
| Net Weight1.49 kg (3.28 lb) | Да |
| Gross Weight2.77 kg (6.11 lb) | Да |
| Operating Temperature–10 °C to +55 °C (14 °F to +131 °F) | Да |
| Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F) | Да |
| Operating Humidity10%–93% (RH), non-condensing | Да |
