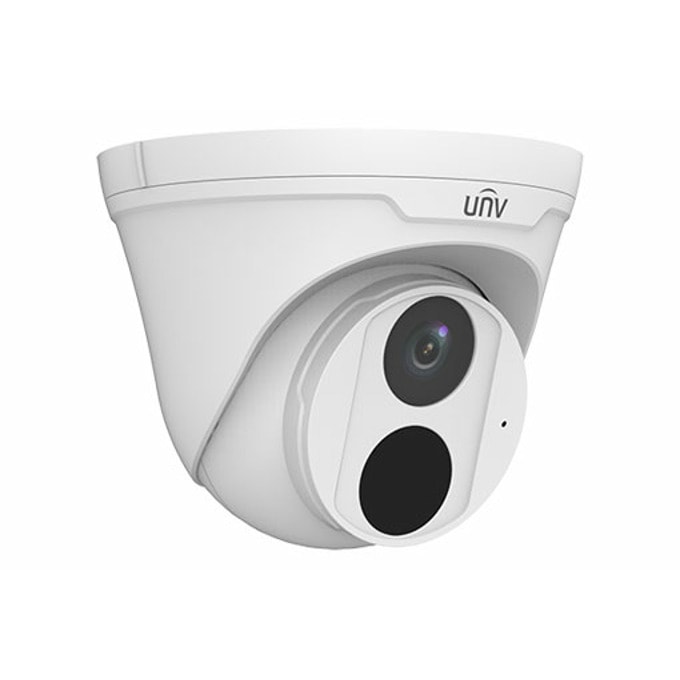

IP камера UNV IPC3615LE-ADF28K-G

UNV IPC3615LE-ADF28K-G

Camera
Sensor
1/2.7", 5.0 megapixel, progressive scan, CMOS

Minimum Illumination
Support Easystar: Colour: 0.003Lux ( F1.6, AGC ON)

0Lux with IR
Day/Night
IR-cut filter with auto switch (ICR)

Shutter
Auto/Manual, 1 ~ 1/100000s

Adjustment angle
Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°

S/N
>56dB

WDR
120dB

Lens
Lens Type: 2.8mm and 4.0mm @1.6, Fixed-focal
Lens Mount: M12
Angle Of View (H): 112.9°
Angle Of View (V): 59.1°
Angle Of View (O): 121.2°

DORI
DORI Distance

Illuminator
IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Supported
9:16 Corridor Mode: Supported
OSD: Up to 4 OSDs
Privacy Mask: Up to 4 areas
ROI: Up to 8 areas
Motion Detection: Up to 4 areas

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting: Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital noise reduction: 2D/3D DNR
Smart IR: Supported
Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog

Audio
Audio Compression: G.711
Suppression: Supported
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 256 GB
Network Storage: ANR,NAS(NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client
EZStation
EZView
EZLive

Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Network: 1 * RJ45 10M/100M Base-TX Ethernet
Built-in Mic: Supported

General
Power: DC 12V±25%, PoE (IEEE 802.3af)
