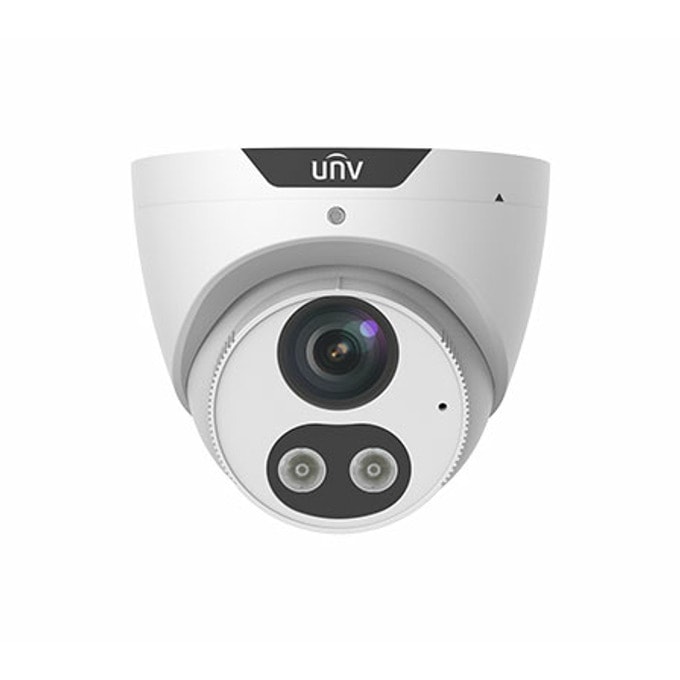

IP камера UNV IPC3614SB-ADF28KMC-I0

UNV IPC3614SB-ADF28KMC-I0

Camera
Sensor: 1/2.7", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination: Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on
Day/Night: IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360°
WDR: 120dB
S/N: >56dB

Lens
Lens type
Angle of view(H) 101.1° 83.7°
Angle of View (V) 55.3° 44.9°
Angle of View (O) 111.1° 89.2°

DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63.0 25.2 12.6 6.3
4.0 90.0 36.0 18.0 9.0

Illuminator
IR Range: Up to 30m (98ft) IR range
Wavelength: 850nm
IR On/Off Control: Auto/Manual

Video
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 code profile: Baseline profile, Main profile, High profile
Frame Rate: Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
U-code Support
ROI: Up to 8 areas
Video Stream: Triple streams
OSD: Up to 8 OSDs
Privacy Mask: Up to 4 areas

White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping: N/A
HLC: Supported
BLC: Supported
Defog: Digital Defog

Audio
Audio Compression: G.711
Audio Bitrate: 64 Kbps
Two-way audio: Supported
Suppression: Supported
Sampling Rate: 8KHZ

Storage
Edge Storage: Micro SD, up to 256 GB
Network Storage: ANR, NAS(NFS)

Network
Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host: Up to 32 users. 2 user levels: administrator and common user
Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZView
EZLive
Web Browser: Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface
Audio I/O: N/A
Alarm I/O: N/A
RS485: N/A
Built-in Mic: Support
Built-in Speaker: Support
WIFI: N/A
Network: 1 RJ45 10M/100M Base-TX Ethernet
Video Output: N/A

General
Power: DC 12V±25%, PoE (IEEE 802.3af)
