UniVIEW

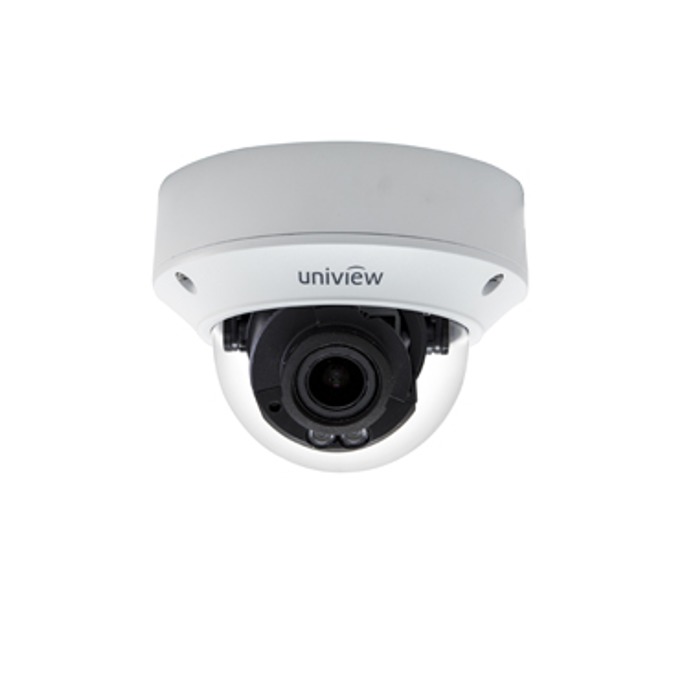

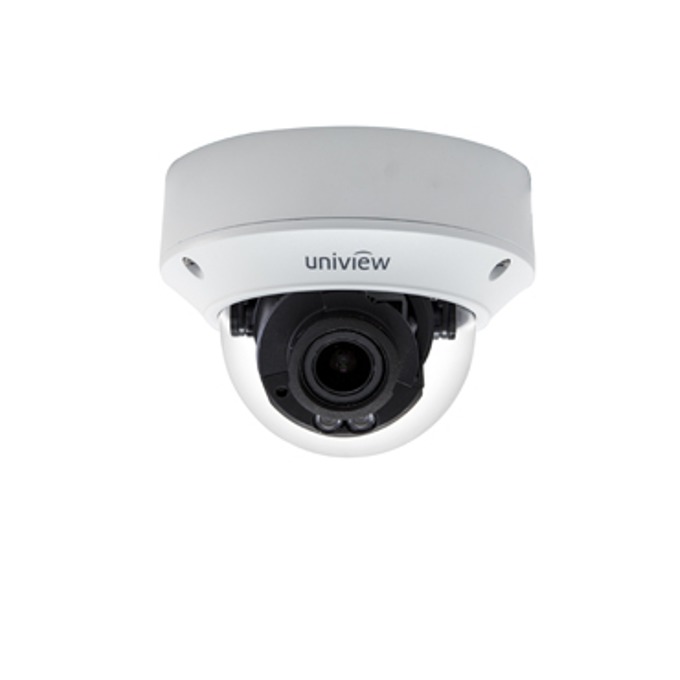

IP камера UNV IPC3232ER-VS
Артикул №: 1000008588
Категория:
Цифрови IP камери
170,99 €
✓ Налично във външен склад
Характеристики:
1/2.9", 2 Megapixel, progressive scan CMOS
Shutter
Auto/Manual, 1/25~1/100,000 s
Lens
2.8~12 ; Angle of View (H): 100.0° (wide) ~30° (tele)
Zoom/Focus
Manual
Min. Illumination
Colour: 0.03 Lux (F1.4, 50IRE)
Black & White: 0.01Lux (F1.4, 50IRE)
Day/Night
IR-cut filter with auto switch (ICR)
IR Range
Up to 30m (98 ft) IR range
S/N
>52dB
WDR
Digital WDR
Max. Resolution
1920 × 1080
Video Compression
H.264,MJPEG
Frame Rate
1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
9:16 Corridor Mode
Supported
ROI
Supported
Video Streaming
Triple
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
Audio Compression
N/A
Two-way audio
N/A
Edge Storage
Micro SD, up to 128 GB
Network
Protocols
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration
ONVIF, API
Audio I/O
N/A
Alarm I/O
N/A
Network
1 RJ45 10M/100M Base-TX Ethernet
Video output
N/A
Reset
one reset button
Power Output
DC12V Power Output With PoE
Power
12 V DC, or PoE (IEEE802.3 af)
Power consumption: max.6.6 W (PoE :max.7.2 W)
Dimensions (Ø x H)
Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight
0.75 kg (1.7 lb)
Working Environment
-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Vandal Resistant
IK10
Ingress Protection
IP66
1/2.9", 2 Megapixel, progressive scan CMOS
Shutter
Auto/Manual, 1/25~1/100,000 s
Lens
2.8~12 ; Angle of View (H): 100.0° (wide) ~30° (tele)
Zoom/Focus
Manual
Min. Illumination
Colour: 0.03 Lux (F1.4, 50IRE)
Black & White: 0.01Lux (F1.4, 50IRE)
Day/Night
IR-cut filter with auto switch (ICR)
IR Range
Up to 30m (98 ft) IR range
S/N
>52dB
WDR
Digital WDR
Max. Resolution
1920 × 1080
Video Compression
H.264,MJPEG
Frame Rate
1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
9:16 Corridor Mode
Supported
ROI
Supported
Video Streaming
Triple
OSD
Up to 8 OSDs
Privacy Mask
Up to 4 areas
Audio Compression
N/A
Two-way audio
N/A
Edge Storage
Micro SD, up to 128 GB
Network
Protocols
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration
ONVIF, API
Audio I/O
N/A
Alarm I/O
N/A
Network
1 RJ45 10M/100M Base-TX Ethernet
Video output
N/A
Reset
one reset button
Power Output
DC12V Power Output With PoE
Power
12 V DC, or PoE (IEEE802.3 af)
Power consumption: max.6.6 W (PoE :max.7.2 W)
Dimensions (Ø x H)
Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight
0.75 kg (1.7 lb)
Working Environment
-40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Vandal Resistant
IK10
Ingress Protection
IP66
Характеристики
| Auto/Manual, | 1/25~1/100,000 s |
| 2.8~12 mm@F1.4; Angle of View (H) | 100.0° (wide) ~30° (tele) |
| Цвят | 0.03 Lux (F1.4, 50IRE) |
| Black & White | 0.01Lux (F1.4, 50IRE) |
| до | 30m (98 ft) IR range |
| 1080P (1920×1080) | Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps |
| 9 | 16 Corridor Mode |
| до | 8 OSDs |
| до | 4 areas |
| Micro SD, up to | 128 GB |
| RJ45 10M/100M Base-TX Ethernet | 1 |
| V DC, or PoE (IEEE802.3 af) | 12 |
| Консумация на енергия | max.6.6 W (PoE :max.7.2 W) |
| Φ148 x | 111.3 mm (Ø5.8” x 4.4”) |
| Kg (1.7 lb) | 0.75 |
