UniVIEW

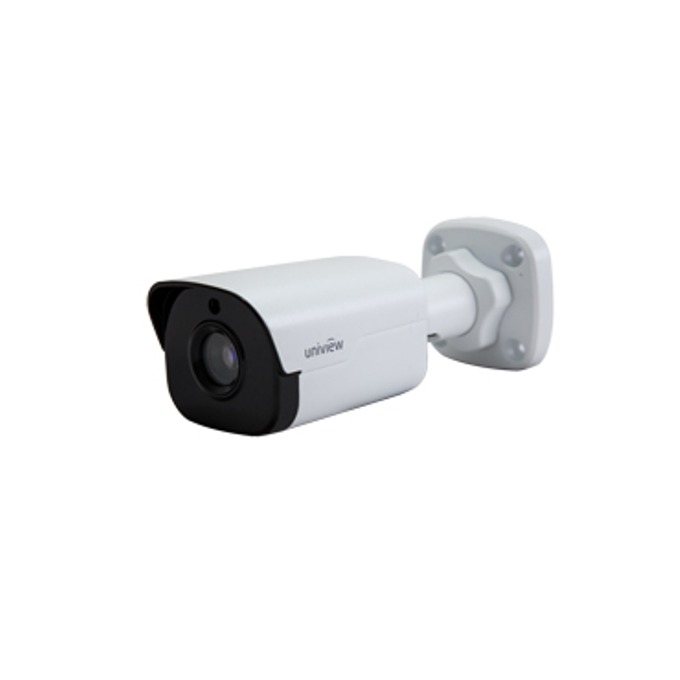

IP камера UNV IPC2122SR3-PF60
Артикул №: 1000010090
Категория:
Цифрови IP камери
92,99 €
✓ Налично във външен склад
Характеристики:
1/2.8", 2.0 megapixel, progressive scan, CMOS
Angle of view(H): 53°
Auto/Manual, 1/6~1/8000 s
Min. Illumination
Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
IR Range
Up to 30m (98 ft) IR range
S/N
>52dB
WDR
Digital
Noise Reduction
2D/3D
Video
Max. Resolution
1920×1080
Video Compression
H.264/MJPEG
Frame Rate
1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps
Video Streaming
Triple
9:16 Corridor Mode
Supported
ROI
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS
Compatible Integration
ONVIF, API
Interface
Network
1 RJ45 10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H)
157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight
0.45 kg (0.99 lb)
Working Environment
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection
IP66
1/2.8", 2.0 megapixel, progressive scan, CMOS
Angle of view(H): 53°
Auto/Manual, 1/6~1/8000 s
Min. Illumination
Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR on
Day/Night
IR-cut filter with auto switch (ICR)
IR Range
Up to 30m (98 ft) IR range
S/N
>52dB
WDR
Digital
Noise Reduction
2D/3D
Video
Max. Resolution
1920×1080
Video Compression
H.264/MJPEG
Frame Rate
1080P (1920*1080): Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps
Video Streaming
Triple
9:16 Corridor Mode
Supported
ROI
Supported
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, SIP, QoS
Compatible Integration
ONVIF, API
Interface
Network
1 RJ45 10M/100M Base-TX Ethernet
General
Power
12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 6.4 W
Dimensions (L × W × H)
157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight
0.45 kg (0.99 lb)
Working Environment
-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 95% RH(non-condensing)
Ingress Protection
IP66
Характеристики
| Angle of view(H) | 53° |
| Auto/Manual, | 1/6~1/8000 s |
| Цвят | 0.02 Lux (F1.8, AGC ON) |
| Lux with IR on | 0 |
| до | 30m (98 ft) IR range |
| 1080P (1920*1080) | Max. 30 fps; 720P (1280*720): Max. 30 fps; D1 (720*576): Max. 25 fps |
| 9 | 16 Corridor Mode |
| до | 8 OSDs |
| до | 2 areas |
| до | 4 areas |
| RJ45 10M/100M Base-TX Ethernet | 1 |
| V DC, or PoE (IEEE802.3 af) | 12 |
| Консумация на енергия | Max 6.4 W |
| Kg (0.99 lb) | 0.45 |
