UniVIEW

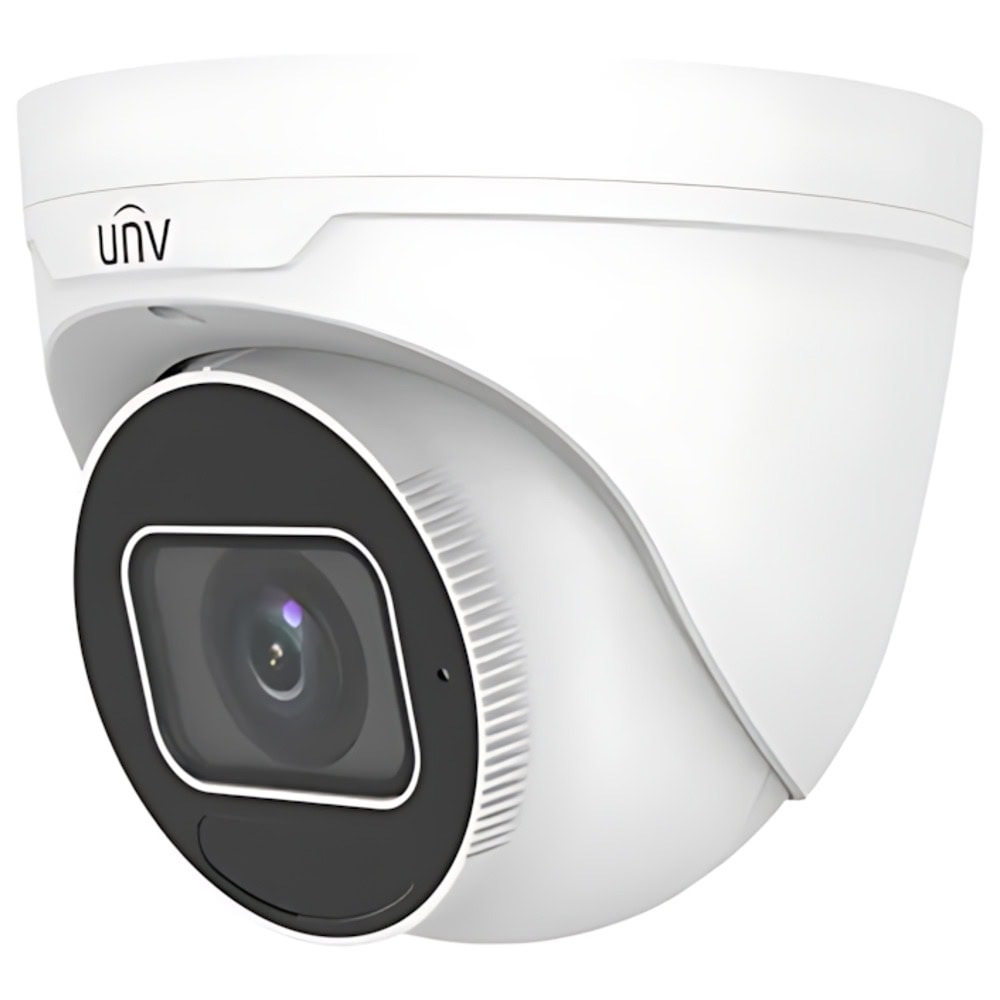

IP камера UniVIEW IPC3632LB-ADZK-H
Артикул №: 1000032822
Категория:
Цифрови IP камери
183,99 €
✓ Налично във външен склад
IP camera with efficient H.265 / H.264 image compression algorithm for clear and smooth video streaming at maximal resolution of 1080p.
PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install. The range of IR illumination according to the manufacturer data, depends on outer conditions (visibility - air transparency, environment, wall colors ie. scene reflectance).
The Uniview series product has been designed to minimize costs while maintaining high quality and ease of use.
Характеристики
| Standard | TCP/IP |
| Sensor | 1/2.7 " Progressive Scan CMOS |
| Matrix size | 2.1 Mpx |
| Резолюция | 1920 x 1080 - 1080p , 1280 x 720 - 720p |
| Lens | 2.8 ... 12 mm - Motozoom AutoFocus |
| View angle | 104 ° ... 33 ° |
| Range of IR illumination | 40 m |
| RS-485 interface | Не |
| Memory card slot | Micro SD memory cards up to 256GB support (possible local recording) |
| Image compression method | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs / outputs | Не |
| Аудио | Microphone built-inAudio transmission via networkAudio detection |
| Main stream frame rate | 25 fps @ 1080p |
| Network interface | 10/100 Base-TX (RJ-45) |
| WEB Server | Built-in |
| Max. number of on-line users | 32 |
| ONVIF | Да |
| Mobile phones support | Access by a cloud (P2P)Android: Free application iOS (iPhone): Free application |
| Default IP address | DHCP or 192.168.1.13 |
| Default admin user / password | admin / 123456 |
| Web browser access ports | 80, 554 |
| PC client access ports | Port no.: 80 or access by a cloud (P2P) - PC: Free application |
| Mobile client access ports | 80 |
| Port ONVIF | 80 |
| RTSP URL | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Sub stream |
| Main features | WDR - 120 dB - Wide Dynamic Range2D-DNR, 3D-DNR - Digital Noise ReductionF-DNR (Defog) - Reduction of image noise caused by precipitationROI - improve the quality of selected parts of imageANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize itsNAS - Network Attached Storage supportCorridor mode - useful for monitoring corridors, entrance gates and narrow roomsBLC/HLC - Back Light / High Light CompensationICR - Movable InfraRed filterDay/night modeImage rotation and mirrorMotion detection with human/vehicle silhouette recognitionPrivacy zones - max. 4Tamper signalingIntelligent image analysis : intrusion, crossing the line (tripwire) (human silhouette) |
| Захранване | PoE (802.3af),12 V DC / 630 mA |
| Консумация на енергия | ≤ 7.5 W |
| Housing | Dome - Metal |
| Цвят | Бял |
| Index of Protection" | IP67 |
| Vandal-proof | Не |
| Operation temp | -30 °C ... 60 °C |
| Тегло | 0.66 kg |
| Размери | Ø 129 x 110 mm |
