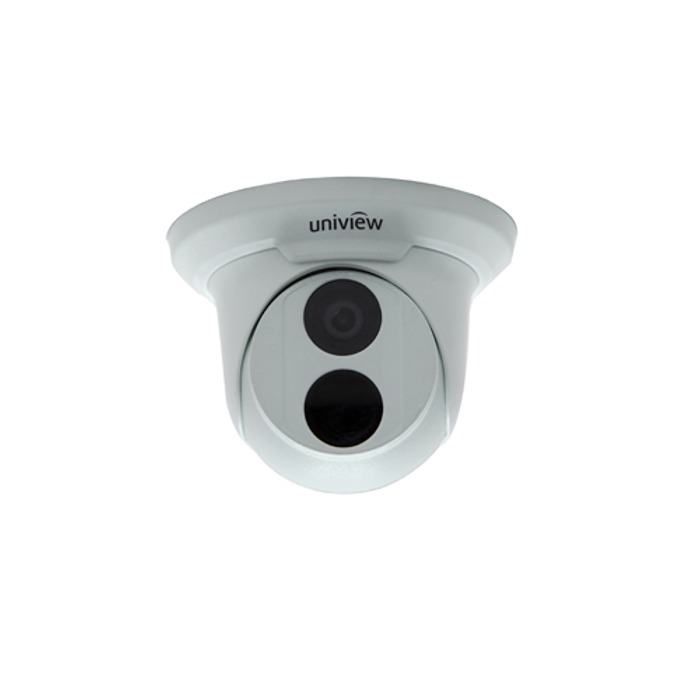

IP камера UniView IPC3612SR3-PF60

Optics:

Day/night functionality

Optical glass window with higher light transmittance

IR anti-reflection window to increase the infrared transmittance

Up to 30 m (98 ft) IR distance

3D noise reduction

Compression:

H.264/MJPEG

Triple streams

9:16 corridor mode

Network:

ONVIF Conformance

Structure:

Support PoE power supply (optional)

Wide temperature range: -35°C to 60°C (-31°F to 140°F)

Wide voltage range of ±25%

4 KV surge protection designed for network interface

IP66

Camera:

Sensor- 1/3", 2megapixel, progressive scan, CMOS

Lens-

Angle of view(H)- 41.5°

Shutter- Auto/Manual, 1/6~1/100000 s

Min. Illumination:
Colour: 0.06 Lux (F1.8, AGC ON)
0 Lux with IR

IR- 30m (98ft) IR range

Day/Night- IR-cut filter with auto switch (ICR)

WDR- Supported

AWB(Auto white balance)- Auto/manual

Gain Control- Auto/manual

Noise Reduction- 2D/3D

Video:
Max. Resolution- 1920×1080

Video Compression- H.264/MJPEG

Frame Rate- 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps;D1 (720×576): Max. 25 fps

Video Streaming Triple

9:16 Corridor Mode- Supported

OSD- Up to 8 OSDs

Motion Detection- Up to 2 areas

Privacy Mask- Up to 4 areas

Network:

Protocols- IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,Qos,DNS,DDNS,NTP,FTP,UPnP,HTTP

Compatible Integration ONVIF, API

Interface:
Network- 10M/100M Base-TX Ethernet

General:
Power- 12 V DC, or PoE (IEEE802.3 af)
