UniVIEW

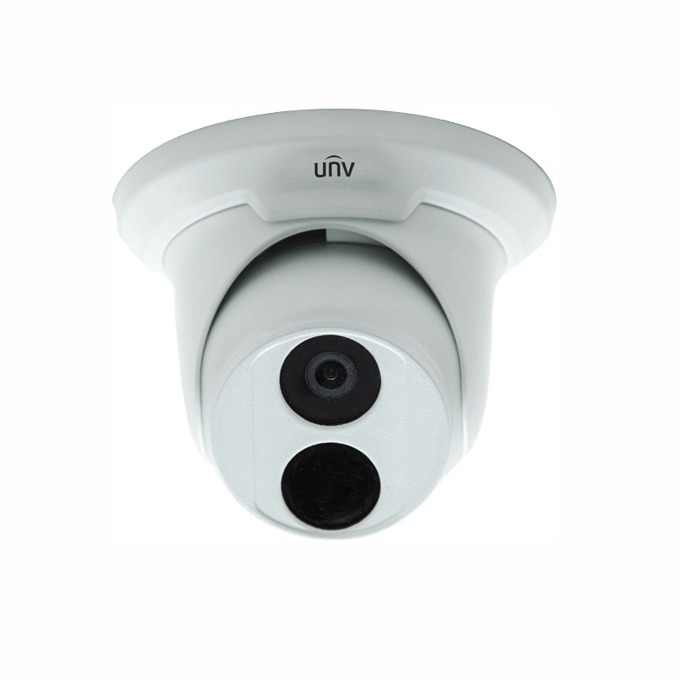

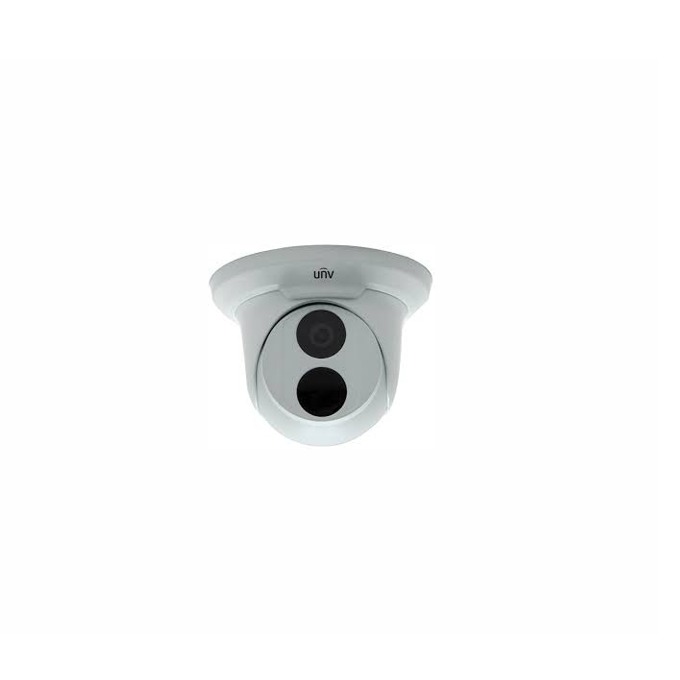

IP камера UNIVIEW IPC3611SR3-F28
Артикул №: 1000011782
Категория:
Цифрови IP камери
75,99 €
✓ Налично във външен склад
Uniview IPC3611SR3-F28
Sensor
1/3", 1.3 megapixel, progressive scan, CMOS
Lens
(3.6mm, 6mm optional)
Angle of view(H): 99.1° (76.7° / 46.9°)
Shutter
Auto/Manual, 1/6~1/8000 s
Day/Night
IR-cut filter with auto switch (ICR)
IR
30m (98 ft) IR range
AWB(Auto white balance)
Auto/manual
Gain Control
Auto/manual
WDR
Digital
Noise Reduction
2D/3D
Video
Max. Resolution
1280×960
Video Compression
H.264/MJPEG
Frame Rate
960P (1280×960): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
Video Streaming
Triple
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,Qos,DNS,DDNS,NTP,FTP,UPnP,HTTP
Compatible Integration
ONVIF
Interface
Network
10M/100M Base-TX Ethernet
General
Power
12 V DC
12 V DC, or PoE (IEEE802.3 af)
Sensor
1/3", 1.3 megapixel, progressive scan, CMOS
Lens
(3.6mm, 6mm optional)
Angle of view(H): 99.1° (76.7° / 46.9°)
Shutter
Auto/Manual, 1/6~1/8000 s
Day/Night
IR-cut filter with auto switch (ICR)
IR
30m (98 ft) IR range
AWB(Auto white balance)
Auto/manual
Gain Control
Auto/manual
WDR
Digital
Noise Reduction
2D/3D
Video
Max. Resolution
1280×960
Video Compression
H.264/MJPEG
Frame Rate
960P (1280×960): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
Video Streaming
Triple
OSD
Up to 8 OSDs
Motion Detection
Up to 2 areas
Privacy Mask
Up to 4 areas
Network
Protocols
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,Qos,DNS,DDNS,NTP,FTP,UPnP,HTTP
Compatible Integration
ONVIF
Interface
Network
10M/100M Base-TX Ethernet
General
Power
12 V DC
12 V DC, or PoE (IEEE802.3 af)
Характеристики
| Мощност | 12 V DC |
| 12 V DC, or PoE (IEEE802.3 af) | Power consumption: 3.5 W (5.5W with IR on) |
| Dimensions (Ø x H) | Φ126 x 94 mm (Ø5.0” x 3.7”) |
| Тегло | 0.33 kg (0.73 lb) |
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
| Ingress Protection | IP66 |
