UniVIEW

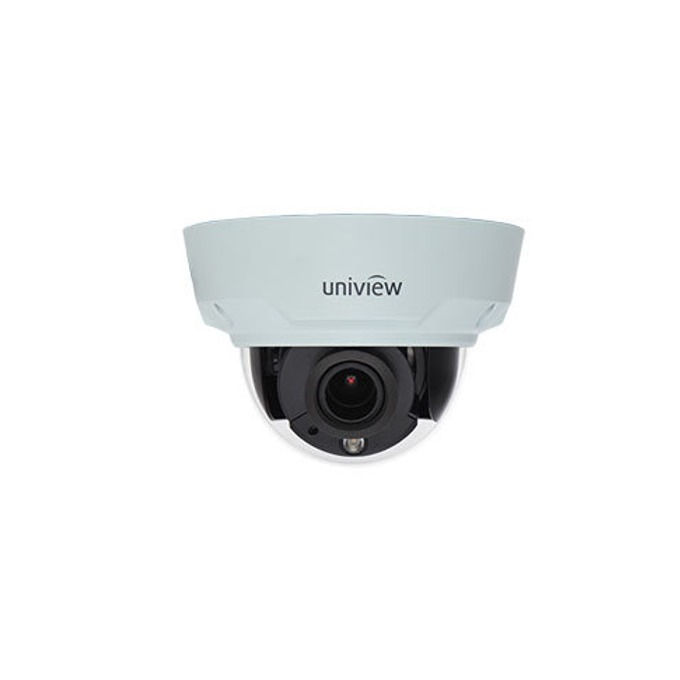

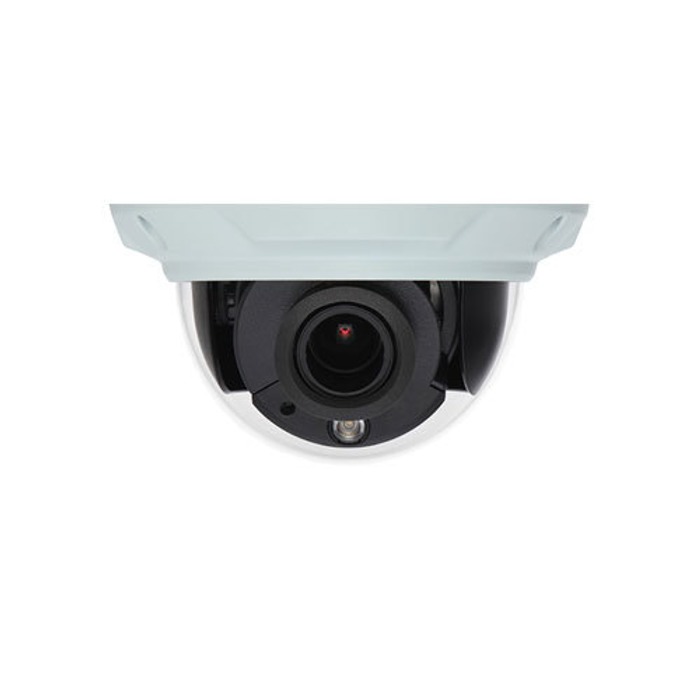

IP камера UniView IPC342E-VIR-Z-IN
Артикул №: 1000009093
Категория:
Цифрови IP камери
366,99 €
✓ Налично във външен склад
Optics
Day/night functionality
3D DNR (Digital Noise Reduction)
SmartIR, up to 30 m (98 ft) IR distance
Built-in motorized lens for remote zoom and autofocus(-Z model support)
Compression
H.264 High Profile
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
Built-in PoE splitter that outputs DC 12V
Wide voltage range of ±25%
IK10 vandal resistant
IP66
Camera:
Sensor- 1/2.8", 2 megapixel, progressive scan, low illumination CMOS
Shutter- Auto/Manual, 1/6~1/8000 s
Lens- 3 to 10.5 mm, F1.4
Zoom/Focus- Motor drive
Angle of View (H)- 102.4° (wide) to 27.4° (tele)
Min. Illumination- Colour: 0.03 Lux (F1.4, 50IRE)
Black & White- 0.01Lux (F1.4, 50IRE)
Day/Night- IR-cut filter with auto switch (ICR)
S/N- >52dB
IR- Smart-IR , up to 30m (98 ft) IR range
Video:
Maximum Resolution- 1920 × 1080
Video Compression- H.264,MJPEG
Frame Rate- 1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
9:16 Corridor Mode- Supported
ROI(Region of Interest)- Supported
Video Streaming Triple:
OSD- Up to 8 OSDs
Privacy Mask- Up to 8 areas
Audio:
Audio Compression- G.711
Two-way audio- Supported
Storage:
Edge Storage- Micro SD, Up to 64 GB
Network:
Protocols- L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration ONVIF, IMOS,API
Interface:
Audio I/O:
3.5 mm audio interface
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O- 2 / 1
Serial Port- 1 RS485
Network- 10M/100M Base-TX Ethernet
Video Output- 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General:
Power:
12 V DC, or PoE (IEEE802.3 af)
Day/night functionality
3D DNR (Digital Noise Reduction)
SmartIR, up to 30 m (98 ft) IR distance
Built-in motorized lens for remote zoom and autofocus(-Z model support)
Compression
H.264 High Profile
Triple streams
ROI (Region of Interest)
9:16 corridor mode
Customized OSD
Network
ONVIF Conformance
Structure
Built-in PoE splitter that outputs DC 12V
Wide voltage range of ±25%
IK10 vandal resistant
IP66
Camera:
Sensor- 1/2.8", 2 megapixel, progressive scan, low illumination CMOS
Shutter- Auto/Manual, 1/6~1/8000 s
Lens- 3 to 10.5 mm, F1.4
Zoom/Focus- Motor drive
Angle of View (H)- 102.4° (wide) to 27.4° (tele)
Min. Illumination- Colour: 0.03 Lux (F1.4, 50IRE)
Black & White- 0.01Lux (F1.4, 50IRE)
Day/Night- IR-cut filter with auto switch (ICR)
S/N- >52dB
IR- Smart-IR , up to 30m (98 ft) IR range
Video:
Maximum Resolution- 1920 × 1080
Video Compression- H.264,MJPEG
Frame Rate- 1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps
9:16 Corridor Mode- Supported
ROI(Region of Interest)- Supported
Video Streaming Triple:
OSD- Up to 8 OSDs
Privacy Mask- Up to 8 areas
Audio:
Audio Compression- G.711
Two-way audio- Supported
Storage:
Edge Storage- Micro SD, Up to 64 GB
Network:
Protocols- L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration ONVIF, IMOS,API
Interface:
Audio I/O:
3.5 mm audio interface
Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]
Alarm I/O- 2 / 1
Serial Port- 1 RS485
Network- 10M/100M Base-TX Ethernet
Video Output- 1 BNC, impedance 75 Ω; amplitude 1 V [p-p]
General:
Power:
12 V DC, or PoE (IEEE802.3 af)
Технически характеристики
| 9 | 16 corridor mode |
| Min. Illumination- Colour | 0.03 Lux (F1.4, 50IRE) |
| 9 | 16 Corridor Mode- Supported |
| Input | impedance 35 kΩ; amplitude 2 V [p-p] |
| Output | impedance 600 Ω; amplitude 2 V [p-p] |
| Консумация на енергия | 4.5 W (8.7W with IR on) |
