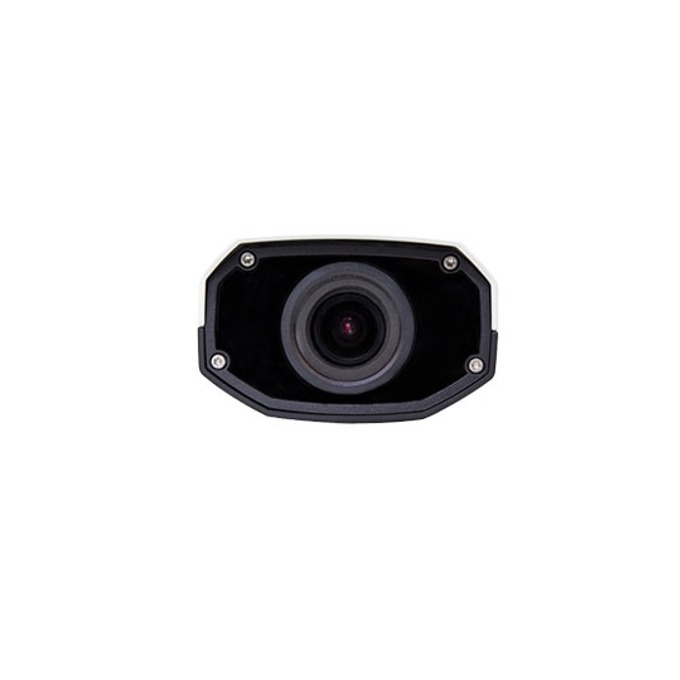

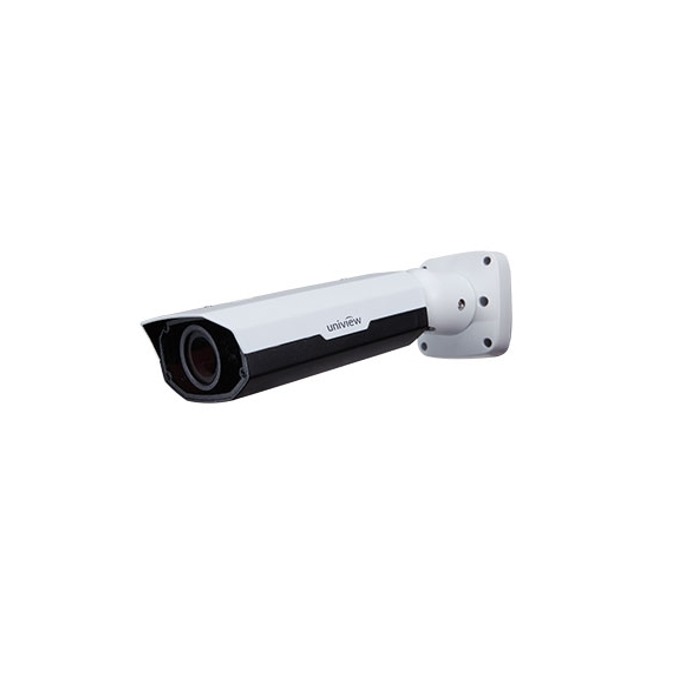

IP камера UNIVIEW IPC241ER5-DL

UNIVIEW IPC241ER5-DL

Uniview IPC241ER5-DL е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.

Optics

* Lowlight surveillance

* Smart IR, up to up to 50m (164 ft) IR distance

* Up to 120 dB WDR (Wide Dynamic Range)

* Optical glass window with higher light transmittance

* IR anti-reflection window to increase the infrared transmittance
Compression

* Triple streams

* ROI (Region of Interest)

* 9:16 corridor mode

* Customized OSD
Network

* ONVIF Conformance
Structure

* AC 24V /DC 12 V/PoE with uninterruptible power supply

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* 6 KV surge protection designed for network interface

* IP66

Camera

Sensor
1/3", 1.3 megapixel, progressive scan CMOS

Shutter
Auto/Manual, 1/6~1/8000 s

Lens
7~22 ; Angle of View (H): 38° ~ 12°

Zoom/Focus
Manual

Min. Illumination
Colour: 0.02 Lux (F1.4, 50IRE)
Black & White: 0.008Lux (F1.4, 50IRE)

Day/Night
IR-cut filter with auto switch (ICR)

S/N
>50dB

WDR
120 dB

IR
Smart-IR ,up to 50m (164 ft) IR range

Video
Max. Resolution
1280 × 960

Video Compression
H.264,MJPEG

Frame Rate
960P (1280*960) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps

9:16 Corridor Mode
Supported

ROI
Supported

Video Streaming
Triple

OSD
Up to 8 OSDs

Privacy Mask
Up to 4 areas

Audio
Audio Compression
G.711

Two-way audio
Supported

Storage

Edge Storage
Micro SD, up to 64 GB

Network

Protocols
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP
Compatible Integration
ONVIF, IMOS,API

Interface

Audio I/O
3.5 mm audio interface

Input: impedance 35 kΩ; amplitude 2 V [p-p]

Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O
2 / 1

Serial Port
1 RS485

Network
10M/100M Base-TX Ethernet

Video Output
1 BNC, impedance 75 Ω; amplitude 1 V [p-p]

General

Power
12 V DC, 24 V AC or PoE (IEEE802.3 af)
