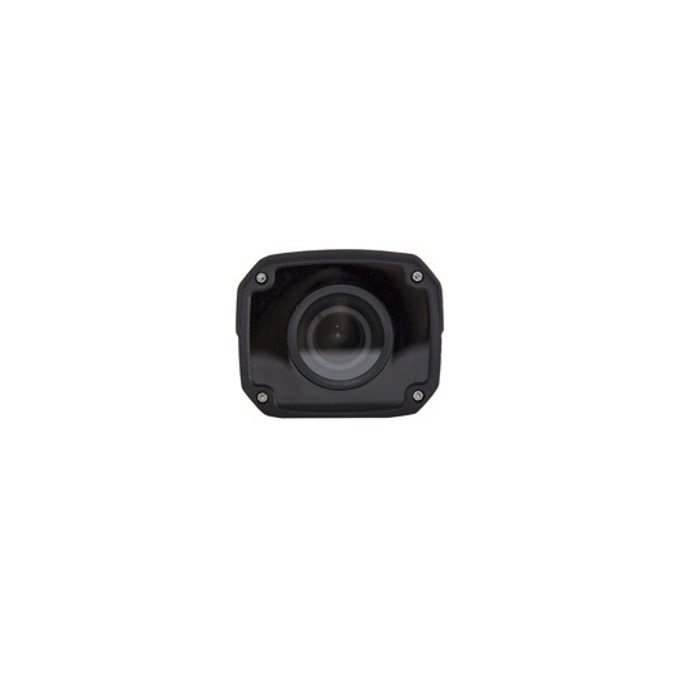

IP камера UNIVIEW IPC2322EBR-P

Uniview IPC2322EBR-P

Uniview IPC2322EBR-P е мрежова инфрачервена камера с висока резолюция, която е създадена за денонощно видеонаблюдение. Това Ви позволява ефективно да следите сигурността по всяко време.

Camera

Sensor
1/2.7", 2 Megapixel, progressive scan CMOS

Lens
2.8~12

Angle of View(H)
90° ~ 28°

Zoom/Focus
Manual

Shutter
Auto/Manual, 1/6~1/8000s

Min. Illumination

Colour: 0.06 Lux (F1.4, 50IRE)
Black & White: 0.03Lux (F1.4, 50IRE)

Day/Night
IR-cut filter with auto switch (ICR)

S/N
>52dB

Video

Max. Resolution
1920 × 1080

Video Compression
H.264,MJPEG

Frame Rate
1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps

Video Streaming

Triple
9:16 Corridor Mode

Supported

ROI
Supported

OSD
Up to 8 OSDs

Privacy Mask
Up to 4 areas

Audio

Audio Compression
G.711

Two-way audio
Supported

Storage

Edge Storage
Micro SD, up to 128 GB

Network

Protocols
L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP, NTP,FTP,HTTP

Compatible Integration
ONVIF, API

Interface

Audio I/O

Audio cable

Input: impedance 35 kΩ; amplitude 2 V [p-p]
Output: impedance 600 Ω; amplitude 2 V [p-p]

Alarm I/O
1 / 1

Network
10M/100M Base-TX Ethernet

General

Power

12 V DC, or PoE (IEEE802.3 af)
