TP-Link
IP камера TP-Link VIGI InSight S445ZI
Артикул №: 1000036805
Категория:
Цифрови IP камери
401,99 €
✓ Налично във външен склад
InSight S445ZI
VIGI 4MP IR Motorized Varifocal Turret Network Camera

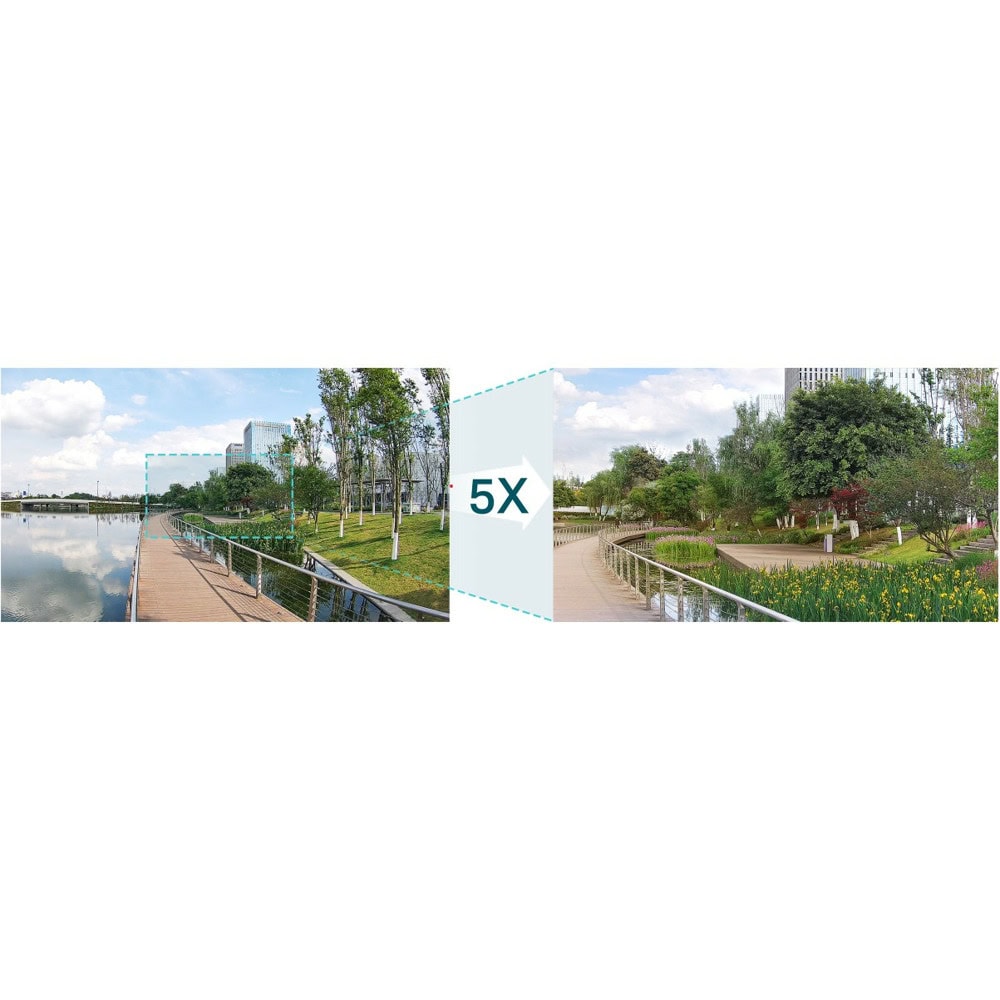

- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology

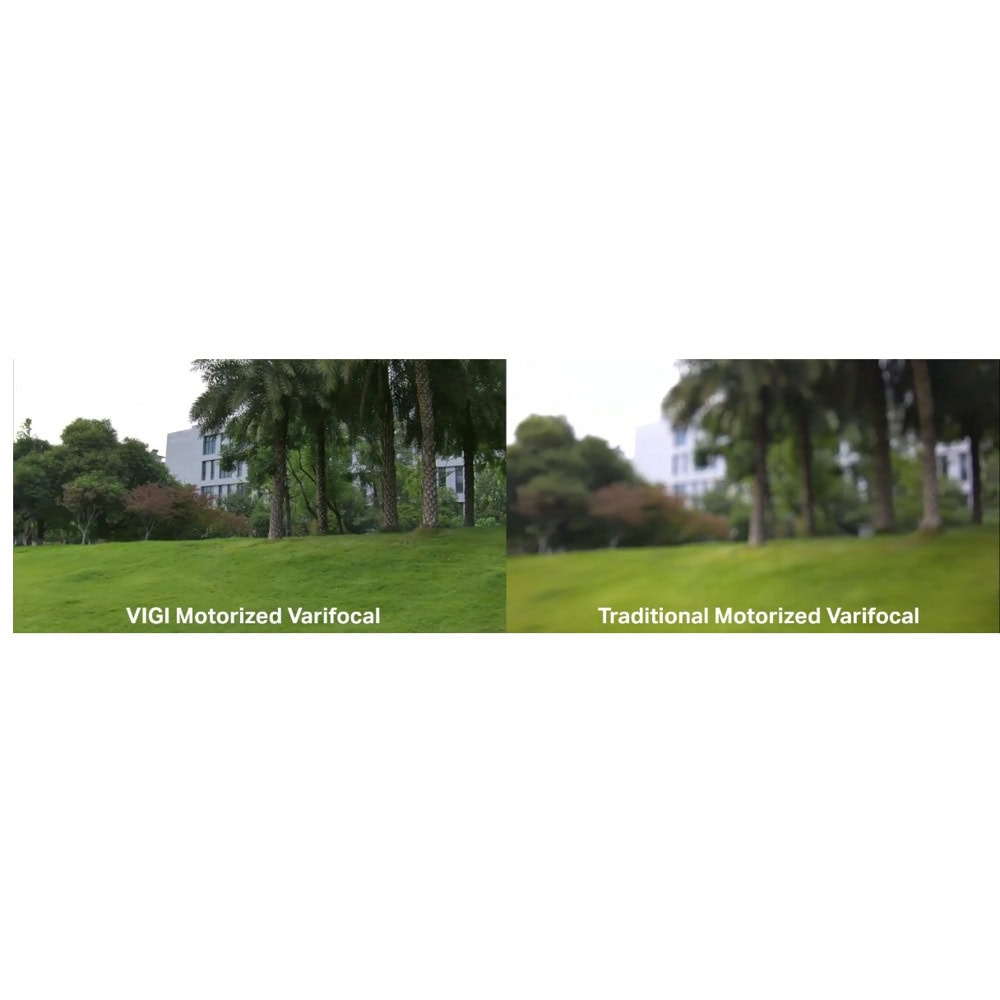

Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

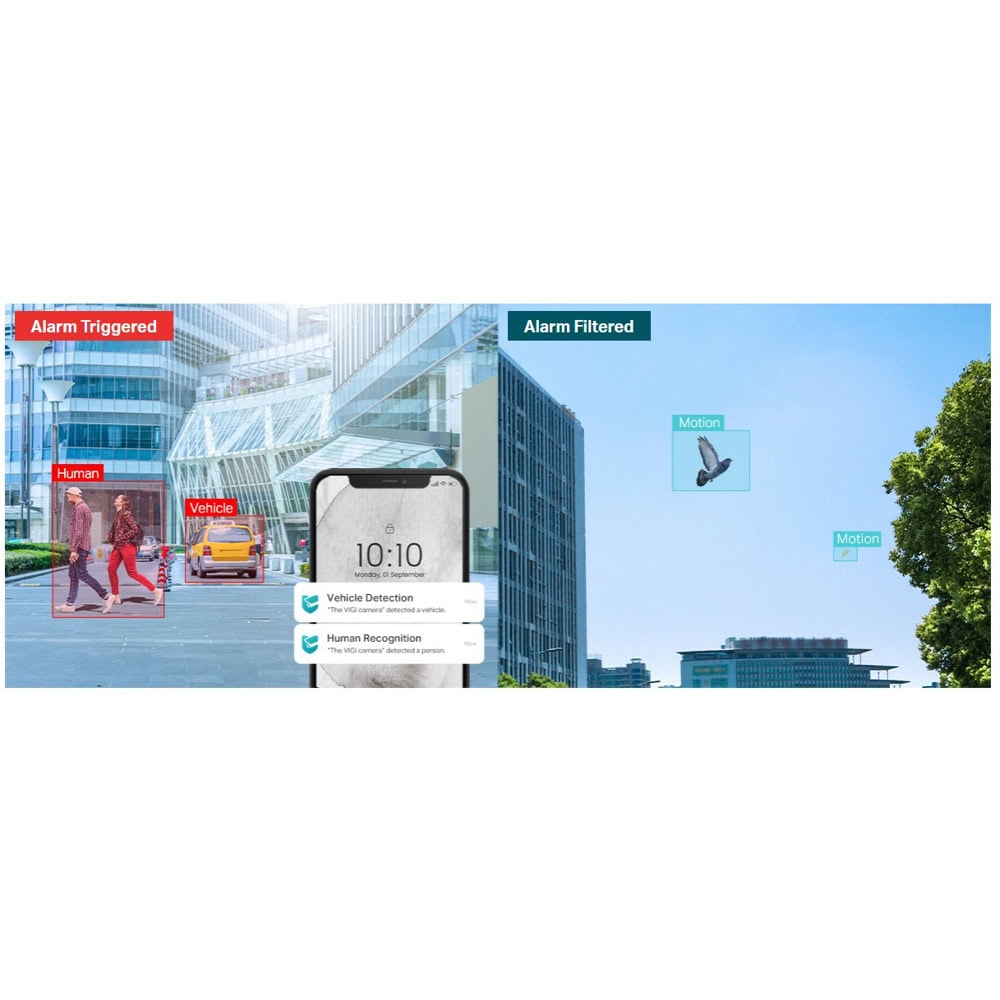

Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
CAMERA
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Да |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS
| Тип | Motorized Varifocal Lens |
| Focal Length | 2.7-13.5 mm (5X Optical Zoom) |
| Aperture | F1.6 |
| FOV | 2.7-13.5 mm: · • Horizontal FOV: 29.6°-102.0° · • Vertical FOV: 16.8°-53.8° · • Diagonal FOV: 34.1°-122.8° |
| Lens Mount | Φ14 |
| DORI Distance | 2.7-13.5 mm: · • Detect: 66-207 m (217-579 ft) · • Observe: 28-86 m (92-282 ft) · • Recognize: 13-41 m (43-135 ft) · • Identify: 7-21 m (23-69 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°, Tilt: 0° to 77°, Rotation: 0° to 360° |
ILLUMINATOR
| IR LED | • Quantity: 4 · • Range: 60m (197ft) · • Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO
| Max. Resolution | 2688 x 1520 |
| Main Stream | • Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · • Resolution: · 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080 · · Note: · • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Sub-Stream | • Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · • Resolution: · 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 · · • Note: · If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 · • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps · • Sub-Stream: 512 Kbps to 1024 Kbps |
| Image Settings | • Mirror · • Brightness · • Contrast · • Saturation · • Sharpness · • Exposure · • WDR · • White Balance · • Prevent Overexposure to Infrared Light · • HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Да |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Да |
Аудио
| Audio Communication | One-Way Audio |
| Audio Input | Да |
| Audio Output | Да |
| Audio Compression | Да |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Да |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
NETWORK
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Да |
| API | Open Network Video Interface (Profile S/T/G) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | • Google Chrome® 57 and above · • Firefox® 52 and above · • Safari® 11 and above · • Microsoft® Edge 91 and above |
| Cloud | Да |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT
| Smart Event | • Intrusion Detection · • Line-Crossing Detection · • Region Entering Detection · • Region Exiting Detection · • Object Abandoned Detection · • Object Removal Detection · • Loitering Detection · • People Detection · • Vehicle Detection · • Abnormal Sound Detection · • Scene Change Detection |
| Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) · • Video Tampering Detection · • Exception ( Illegal Login) |
| Alarm Linkage | • Memory Card Video Recording · • Message Push · • Audible Warning · • Email Alarm · • Upload Capture to FTP · • Alarm Out Device |
| Output Notification | • Message Push · • Email Alarm · • Upload Capture to FTP |
INTERFACES
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | 1 Alarm In, 1 Alarm Out |
| Reset Button | Да |
| Мощност | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB* |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Аудио | 1 Audio In, 1 Audio Out |
GENERAL
| Работна температура | -30–60 °C |
| Температура на съхранение | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Съдържание на пакета | • VIGI Network Camera · • Quick Start Guide · • Waterproof Cable Attachments · • Mounting Accessories |
| Материал | Metal |
| Нето тегло | 0.71 Kg |
| Бруто тегло | 0.96 Kg |
| Захранване | • 12V DC ± 5%, Max.10.8 W, 5.5 mm Coaxial Power Plug · • PoE: 802.3af/at, class 0, Max.12 W |
| Защита | IP67 Weatherproof, IK10 Vandal Proof |
| Product Dimensions (L x W x H) | Φ4.4 × 3.6 in (Φ112.3 × 92.5 mm) |
