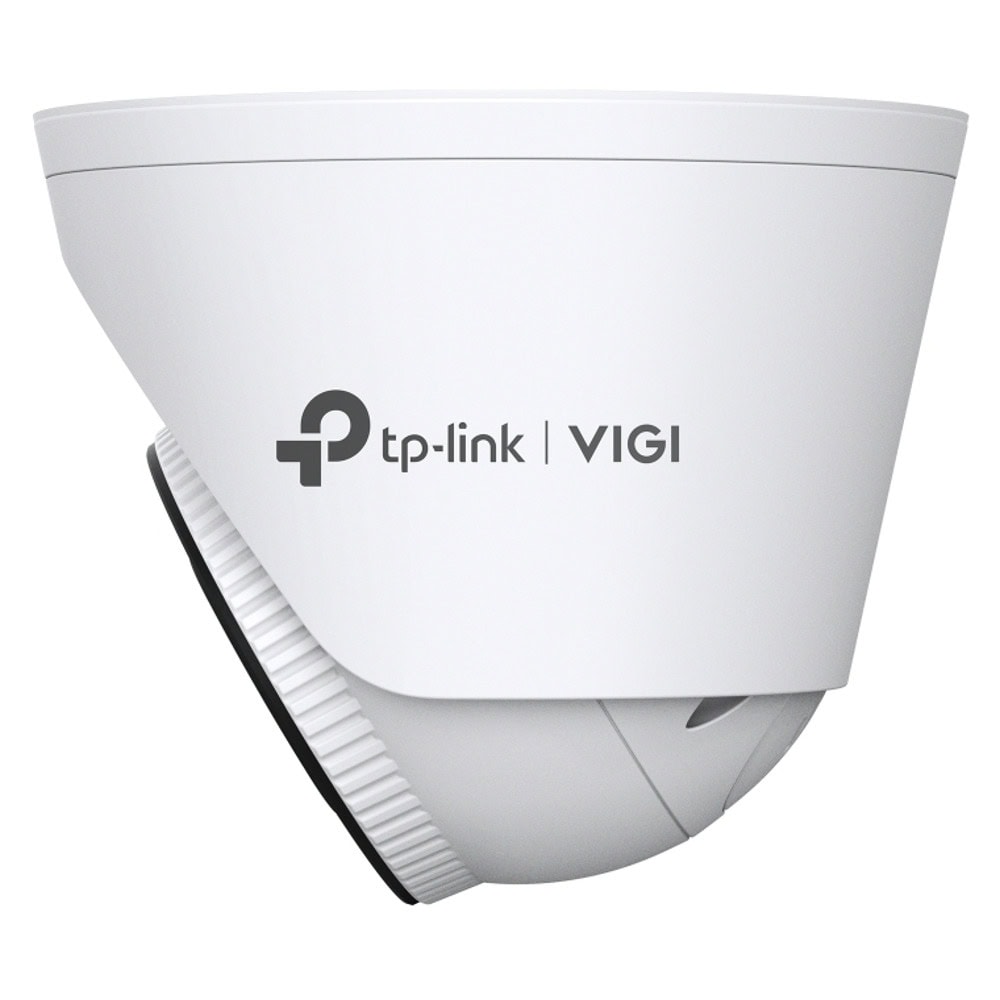

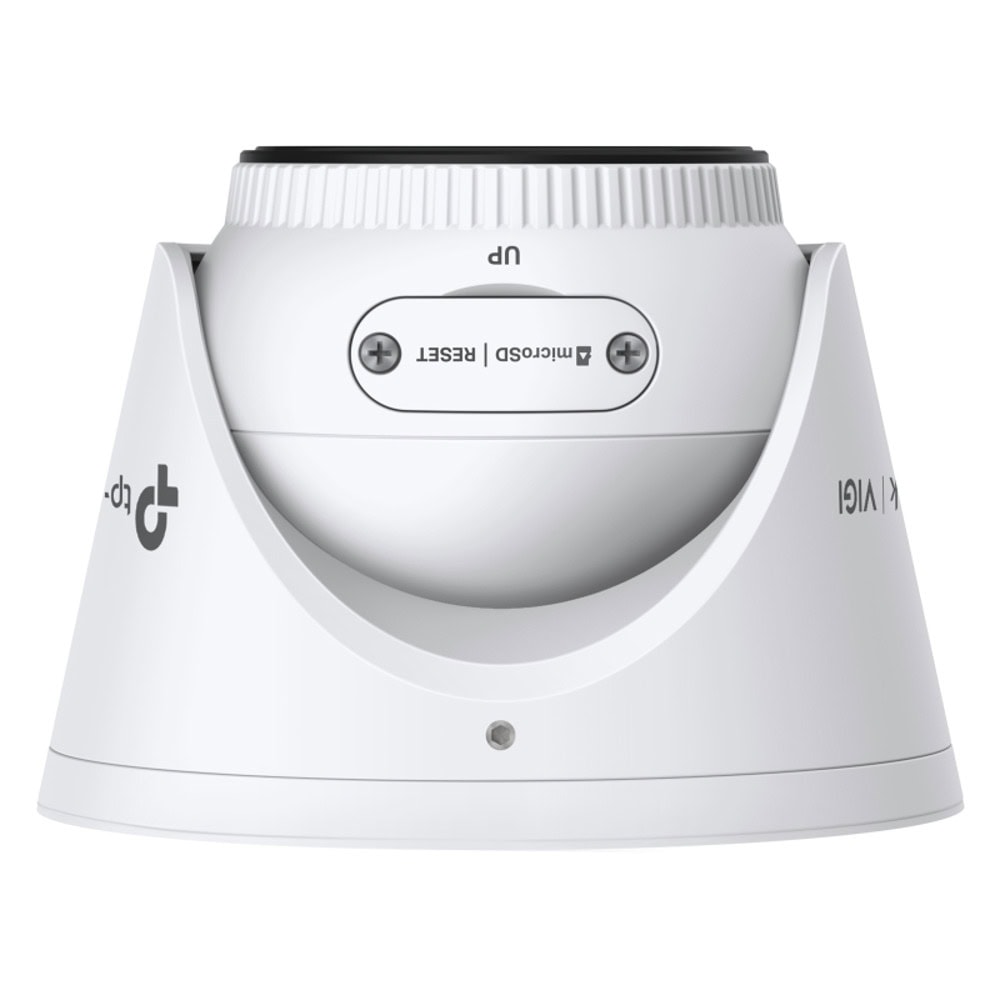

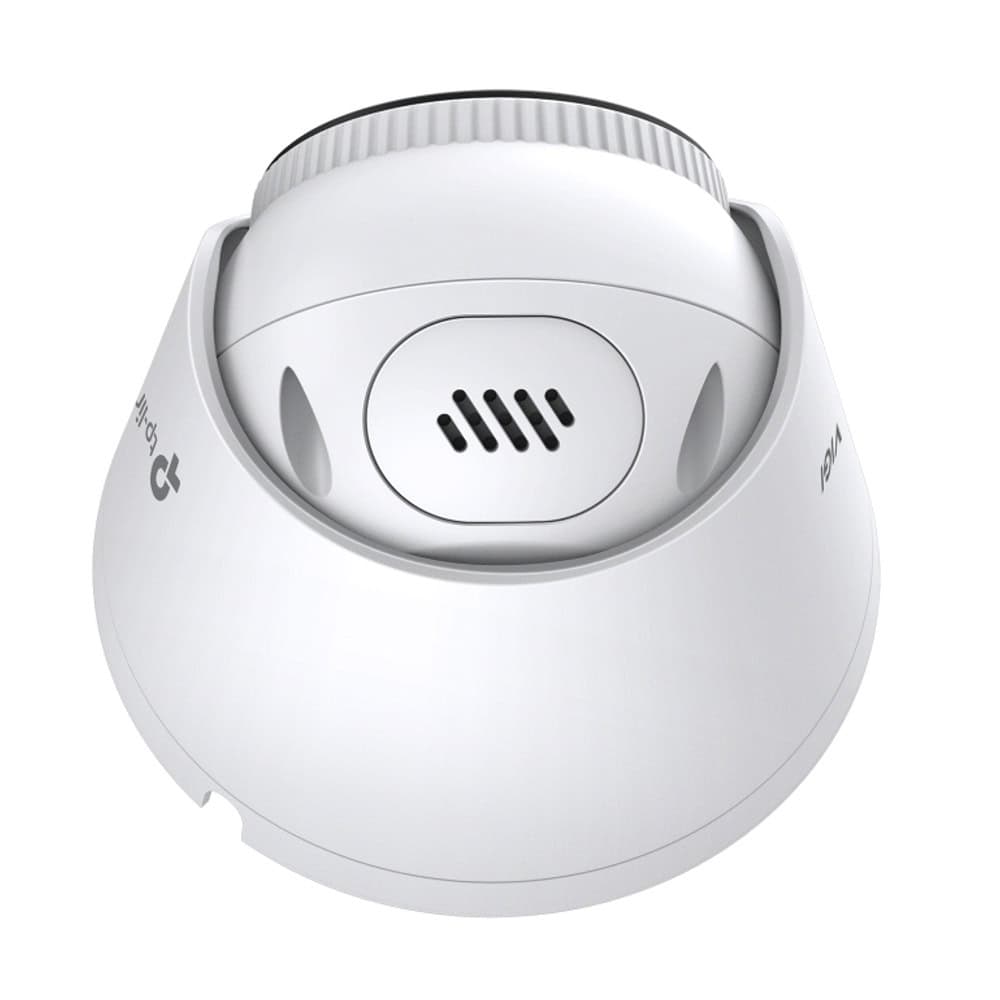

IP камера TP-Link VIGI InSight S445(4mm)

TP-Link VIGI InSight S445

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

Surveillance Camera Specifications

Category:

Camera

Image Sensor1/2.7” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Minimum Illumination0.005 Lux; 0 Lux with IR/White light

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified / Scheduled / Auto

Lens

TypeFixed Focal Lens

Focal Length4 mm

ApertureF1.6

FOV4 mm: Horizontal 80.4°, Vertical 41.8°, Diagonal 98.7°

Lens MountM12*P 0.5

DORI Distance4 mm: Detect 80 m, Observe 33 m, Recognize 16 m, Identify 8 m

Angle AdjustmentPan: 0°–360°, Tilt: 0°–75°, Rotation: 0°–360°

Illuminator

IR LED4 LEDs, 30 m Range, 850 nm Wavelength

White LED4 LEDs, 30 m Range

Illuminator ControlAuto / Scheduled / Always On / Always Off

Video

Max Resolution2688 x 1520

Main StreamFrame Rate (50Hz): 1–25 fps Frame Rate (60Hz): 1–30 fps Resolutions: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-StreamFrame Rate (50Hz/60Hz): 1–30 fps Resolutions: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

NoteFrame rate limited to 20fps at 90° or 270° rotation

Bit Rate ControlCBR, VBR

Video CompressionMain Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264

H.264 TypeHigh Profile

H.265 TypeMain Profile

Video Bit RateMain: 256 Kbps – 6 MbpsSub: 64 Kbps – 512 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure Prevention, HLC

Image EnhancementBLC, 3D DNR, HLC, SmartIR

Wide Dynamic Range120 dB (DWDR only when People/Vehicle Analytics enabled)
