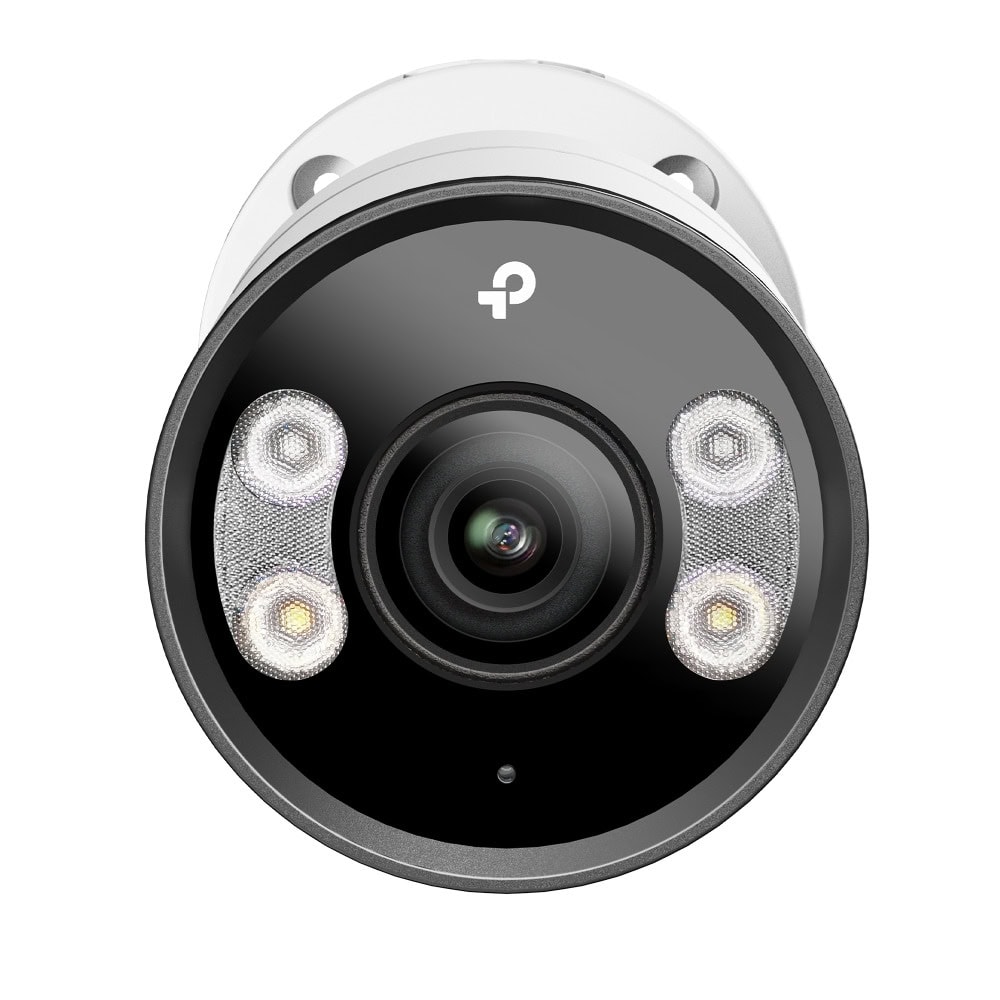

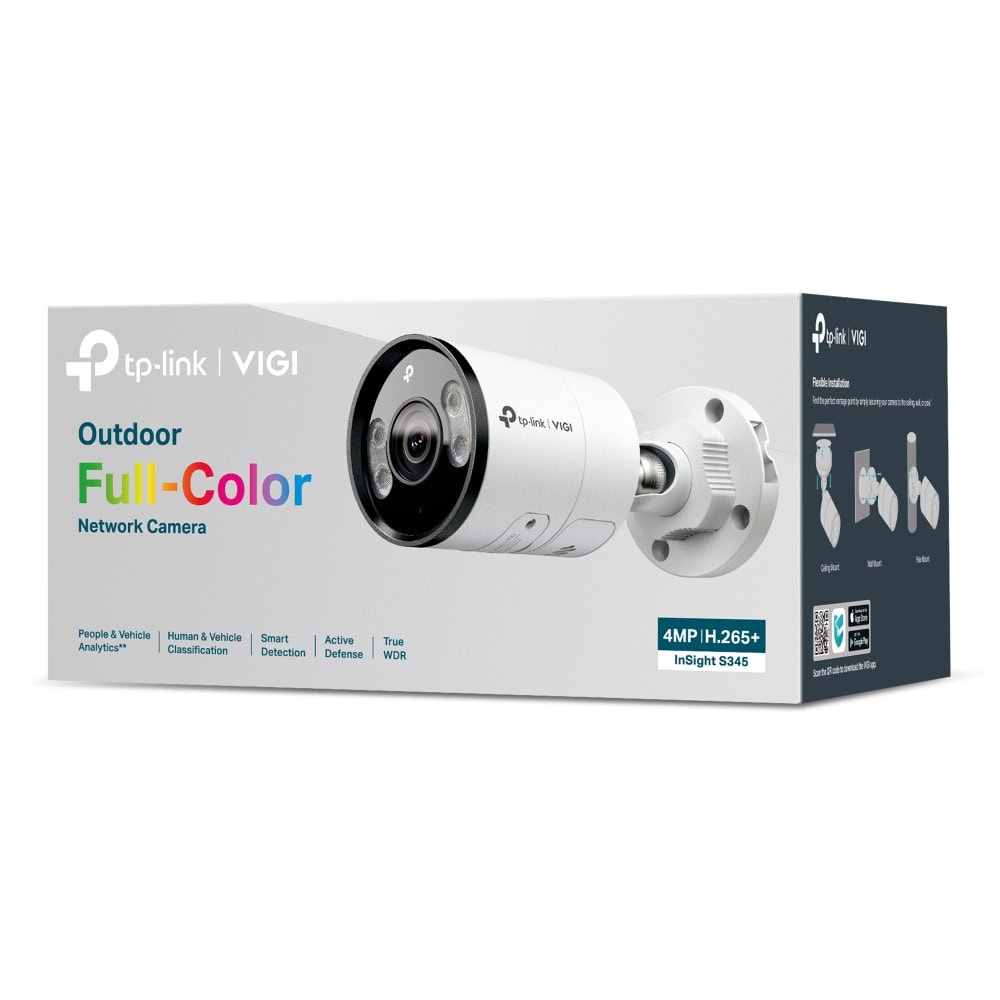

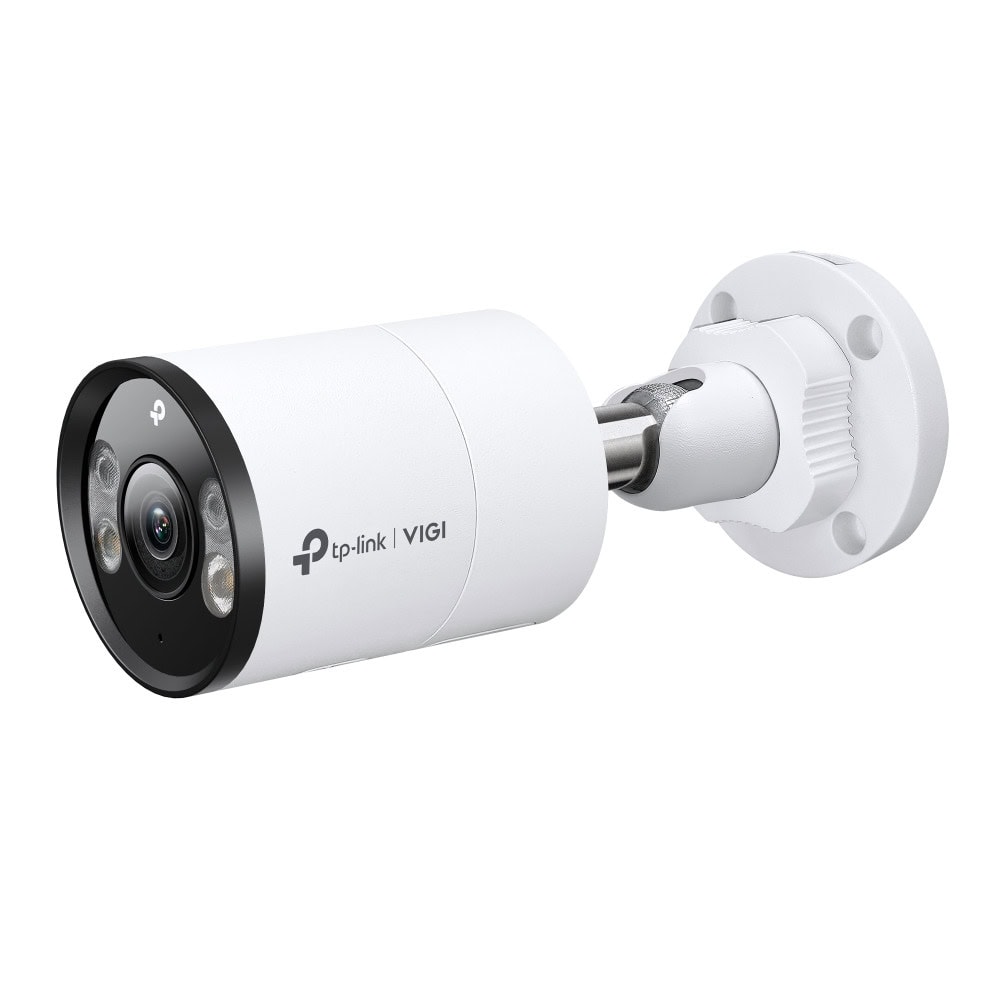

IP камера TP-Link VIGI InSight S345(6mm)

TP-Link VIGI InSight S345

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof
• H.265+ Compression Technology

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Category:

Camera

Sensor1/2.7” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Minimum Illumination0.005 Lux; 0 Lux with IR/White light

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified/ Scheduled/ Auto

Lens

TypeFixed Focal Lens

Focal Length6 mm

ApertureF1.6

FOV (Field of View)6 mm: Horizontal: 52.7°, Vertical: 29°, Diagonal: 60.8°

Lens MountM12*P 0.5

DORI Distance6 mm: Detect: 120 m (394 ft), Observe: 50 m (164 ft), Recognize: 24 m (79 ft), Identify: 12 m (39 ft)

Angle Adjustment (Manual)Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Illuminator

IR LEDQuantity: 2, Range: 30m, Wavelength: 850nm

White LEDQuantity: 2, Range: 30m

Illuminator ControlAuto/Scheduled/Always on/Always off

Video

Max. Resolution2688 x 1520

Main Stream Frame Rate50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Main Stream Resolution2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Sub-Stream Frame Rate50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Sub-Stream Resolution848x480, 704x576, 640x480, 640x360, 352x288, 320x240

Bit Rate ControlCBR, VBR

Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264

H.264 TypeHigh Profile

H.264+Main Stream Supported

H.265 TypeMain Profile

H.265+Main Stream Supported

Video Bit RateMain Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software

Image EnhancementBLC/3D DNR/HLC/SmartIR
