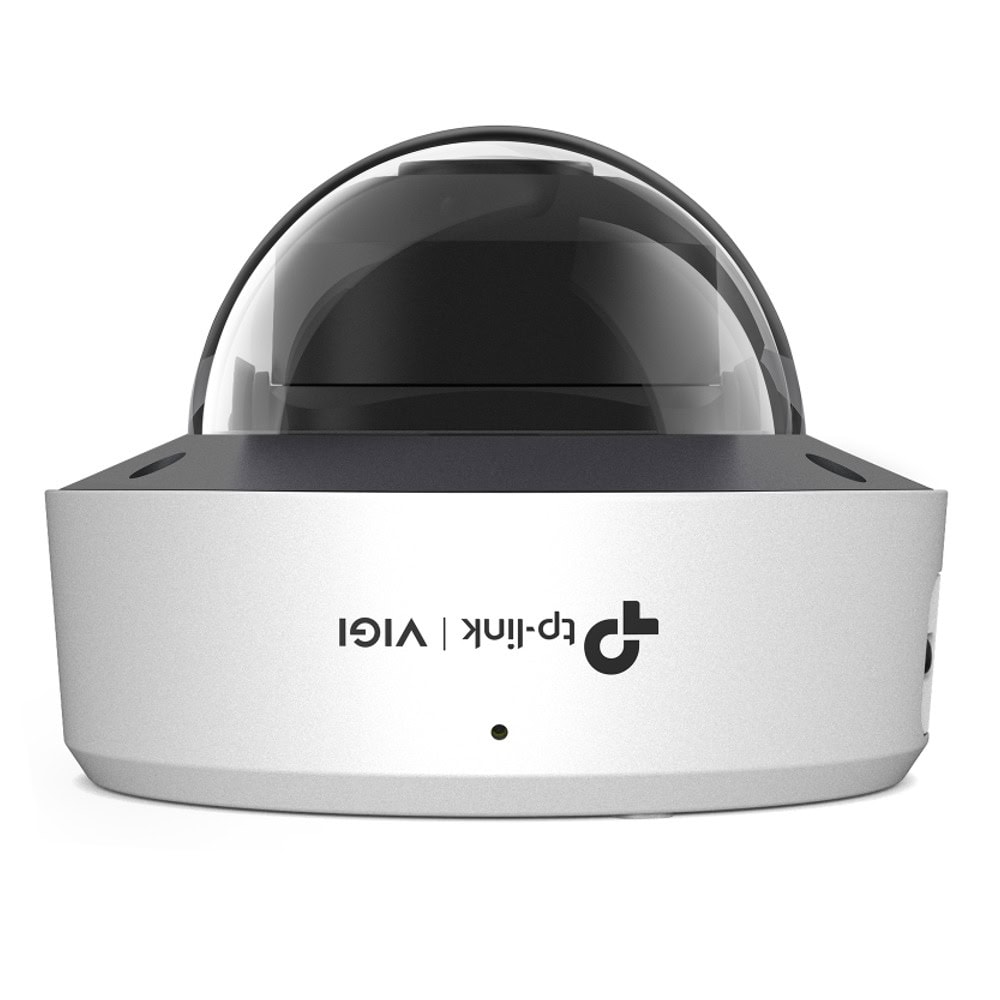

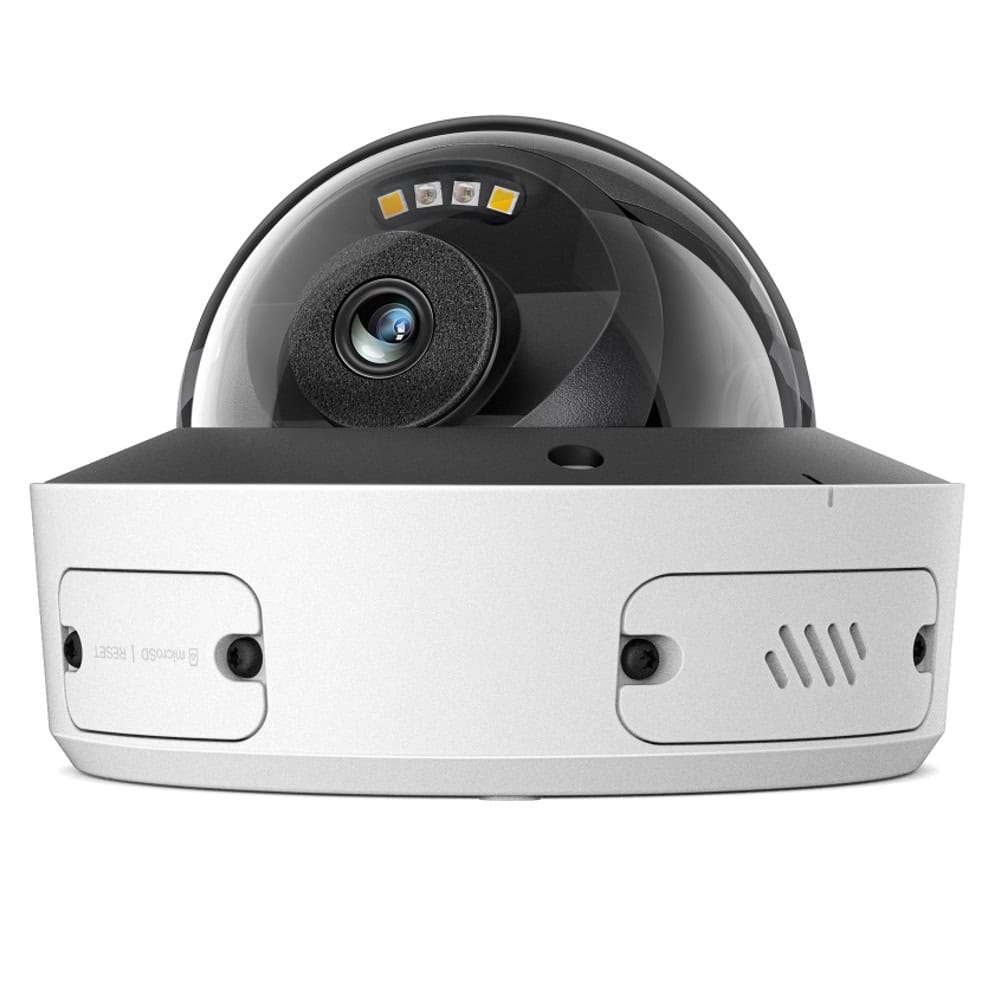

IP камера TP-Link VIGI InSight S285(2.8mm)

InSight S285

VIGI 8MP Full-Color Dome Network Camera

• 8MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof and IK10 Vandal Proof
• H.265+ Compression Technology

People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Category:

CAMERA

Image Sensor1/2.7” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Minimum Illumination0.005 Lux; 0 Lux with IR/White light

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified / Scheduled / Auto

LENS

TypeFixed Focal Lens

Focal Length2.8 mm

ApertureF1.6

FOV (2.8 mm)H: 110°, V: 58.1°, D: 133.5°

Lens MountM12*P 0.5

DORI Distance (2.8 mm)Detect: 85 m, Observe: 35 m, Recognize: 17 m, Identify: 8 m

Angle AdjustmentPan: 0–346°, Tilt: 0–75°, Rotation: 0–355°

ILLUMINATOR

IR LED2 pcs, 30 m range, 850 nm

White LED2 pcs, 30 m range

Illuminator ControlAuto / Scheduled / Always on / Always off

VIDEO

Max. Resolution3840 x 2160

Main Stream Frame Rates1–25 fps (50Hz), 1–25 fps (60Hz); up to 20 fps if rotated or HDR enabled

Main Stream Resolutions3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720

Sub-Stream Frame RatesSame as main stream

Sub-Stream Resolutions848×480, 704×576, 640×480, 640×360, 352×288, 320×240

Bit Rate ControlCBR, VBR

Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264

H.264 TypeHigh Profile

H.264+ / H.265+Supported (Main Stream)

Video Bit RateMain: 256 Kbps – 8 Mbps; Sub: 64 Kbps – 512 Kbps


Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure, HLC

Image EnhancementBLC, 3D DNR, HLC, Smart IR

Wide Dynamic Range120 dB (DWDR only if analytics enabled)
