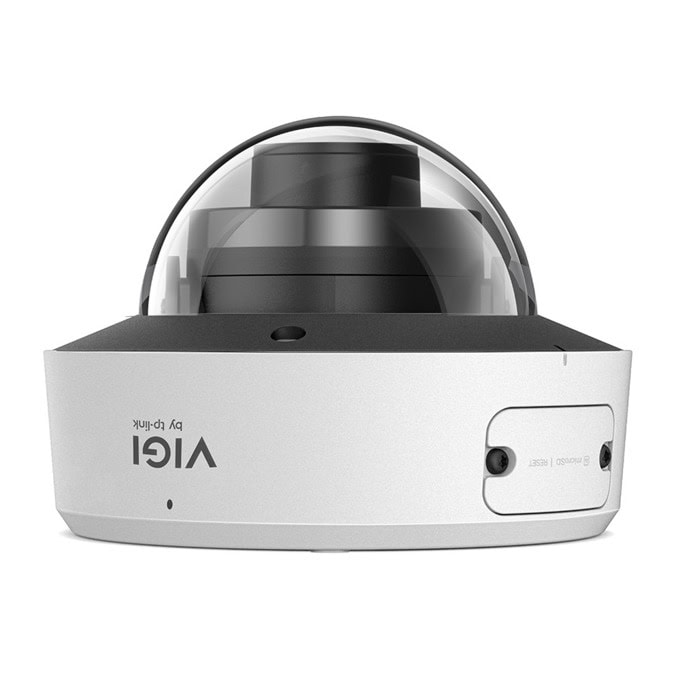

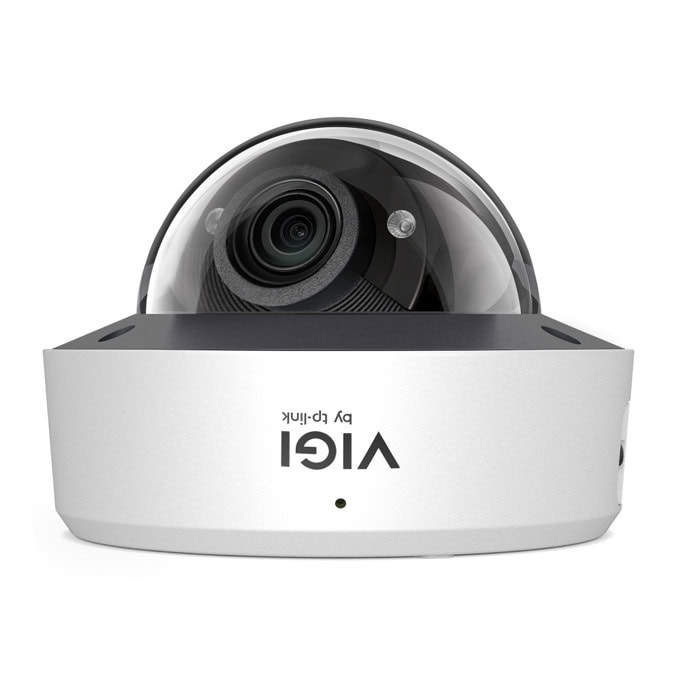

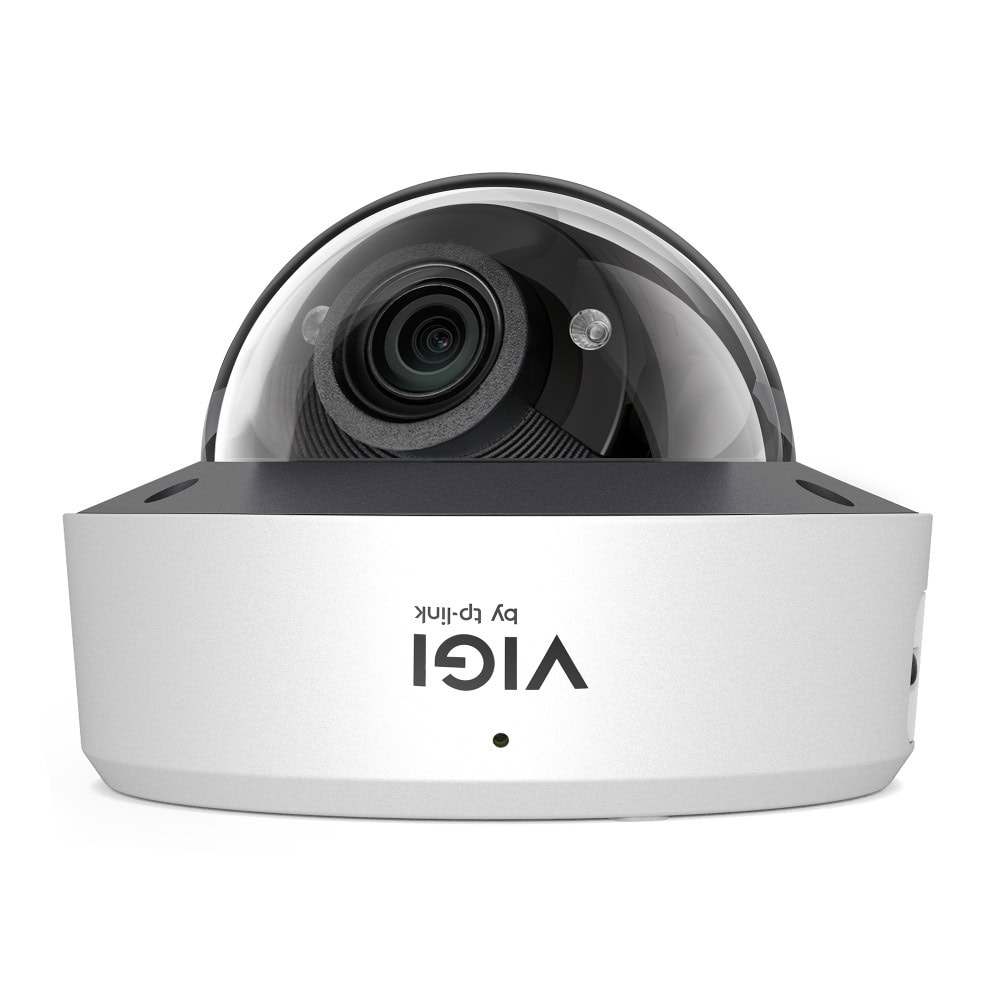

IP камера TP-Link VIGI InSight S245ZI

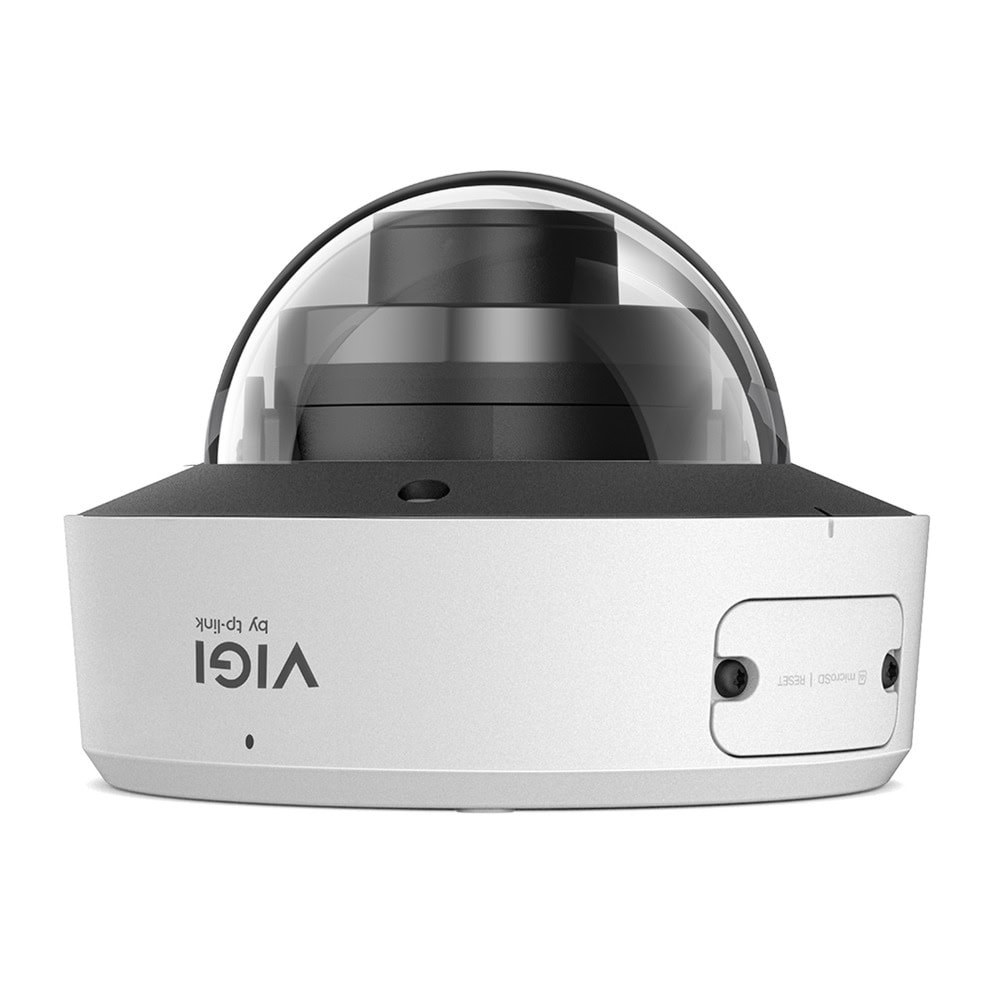

TP-Link VIGI InSight S245ZI

VIGI 4MP IR Motorized Varifocal Dome Network Camera

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H.265+ Compression Technology

Motorized Varifocal

By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Category:

Камера

Sensor Type1/2.9” Progressive Scan CMOS

Shutter Speed1/3 to 1/10000 s

Slow ShutterYes

Minimum Illumination0.005 Lux; 0 Lux with IR Light

Day/Night MechanismIR Cut Filter

Day/Night SwitchUnified / Scheduled / Auto

LENS

TypeMotorized Varifocal Lens

Focal Length2.7-13.5 mm (5X Optical Zoom)

ApertureF1.6

FOVHorizontal: 29.6°-102.0°; Vertical: 16.8°-53.8°; Diagonal: 34.1°-122.8°

Lens MountΦ14

DORI DistanceDetect: 62-200 m; Observe: 27-84 m; Recognize: 13-40 m; Identify: 7-21 m

Angle Adjustment (Manual)Pan: 0° to 350°; Tilt: 0° to 75°; Rotate: 0° to 344°

ILLUMINATOR

IR LEDQuantity: 4; Range: 60 m; Wavelength: 850 nm

Illuminator ControlAuto / Scheduled / Always on / Always off

VIDEO

Max Resolution2688x1520

Main Stream Frame Rate50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fps

Main Stream Resolution2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080

Sub-Stream Frame Rate50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fps

Sub-Stream Resolution1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

Frame Rate NoteIf rotation is 90° or 270°, max frame rate is 20fps

Bit Rate ControlCBR, VBR

Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264

H.264 TypeHigh Profile

H.264+Supported (Main Stream)

H.265 TypeMain Profile

H.265+Supported (Main Stream)

Video Bit RateMain: 256 Kbps to 6 Mbps; Sub: 64 Kbps to 1024 Kbps


SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Protection, HLC

EnhancementBLC, 3D DNR, HLC, SmartIR
