TP-Link
IP камера TP-Link VIGI C540V
Артикул №: 1000029612
Категория:
Цифрови IP камери
133,99 €
✓ Налично във външен склад
VIGI C540V

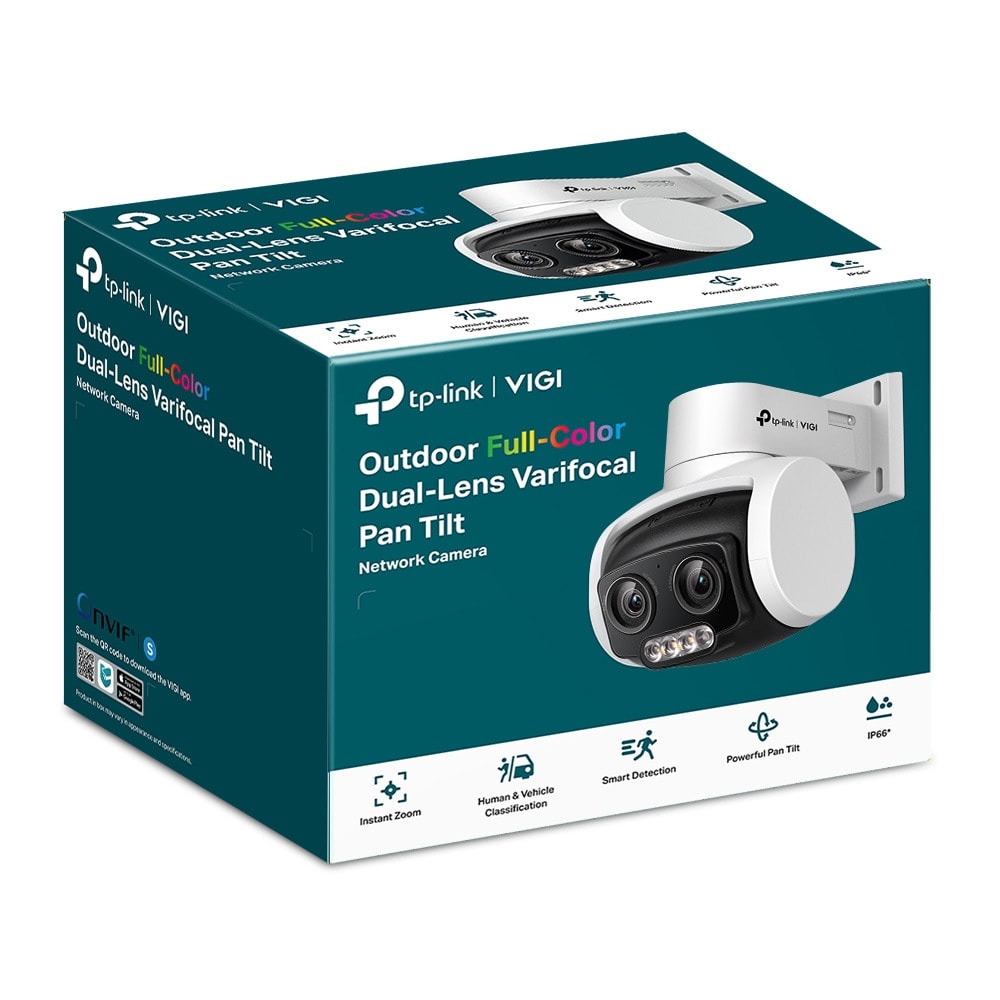

VIGI 4MP Outdoor Full-Color Dual-Lens Varifocal Pan Tilt Network Camera
4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
3× Zoom: Allows for closer viewing of objects in expansive areas.

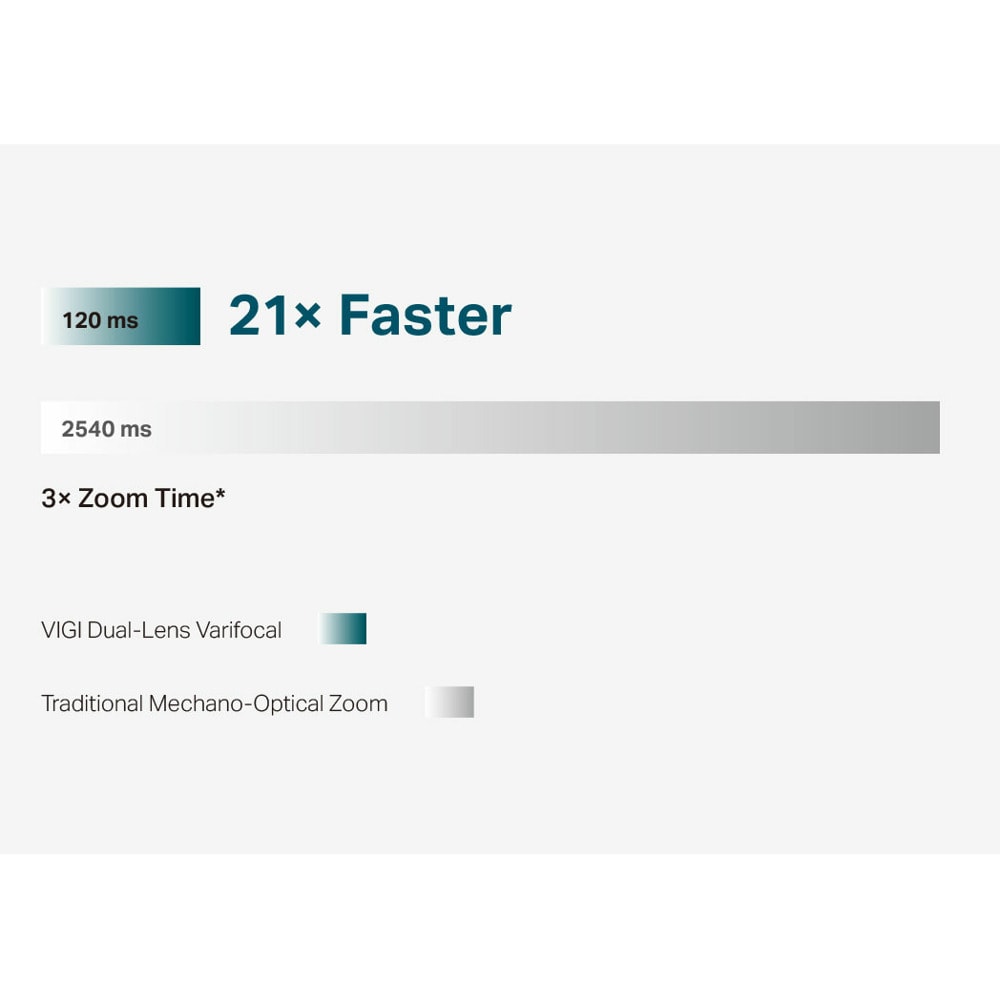

Instant Zoom: Zooming is instant without suffering from delays and image dragging.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
- Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- IP66 Waterproof: Reliable IP66 for stable outdoor performance.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
Automatic Tracking
Continues following specified moving persons or vehicles with Pan Tilt cameras intelligently analyzing the image. Track the path efficiently when there should be little movement in the area.
Камера
| Светлочувствителен сензор | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Да |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Zoom | 3x Mixed Zoom |
LENS
| Focal Length | 4-12 mm (Mixed Zoom) |
| Aperture | F1.6 |
| FOV | Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 4 mm · Detect: 80 m (262 ft) · Observe: 33 m (109 ft) · Recognize: 16 m (52 ft) · Identify: 8 m (26 ft) |
PTZ
| Pan/tilt Range | Pan: 0° to 332°, Tilt: 0° to 120° |
| Pan/tilt Speed | Pan Speed: · Configurable from 8° to 44°/s; Preset Speed: 44°/s · · Tilt Speed: · Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; · Auto restore to previous PTZ and lens status after power failure |
| Park Action | Yes; · Preset; Patrol Scan |
| 3D Positioning | Да |
Angle Adjustment (Manual)
| Range | Pan: 0° to 332°, Tilt: 0° to 120° |
ILLUMINATOR
| IR LED | Quantity: 1 · Range: 30m · Wavelength: 850nm |
| White LED | Quantity: 3 · Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720 |
| Sub-Stream | Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 640x480, 352x288, 320x240 |
| Bit Rate Control | CBR, VBR |
| Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps · Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Да |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Да |
АУДИО
| Аудио комуникация | Two-Way Audio |
| Аудио вход | Да |
| Аудио изход | Да |
| Audio Compression | Да |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Да |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
МРЕЖА
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Да |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above |
| Cloud | Да |
| Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
ИНТЕРФЕЙСИ
| Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Reset Button | Да |
| Мощност | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Да |
ОБЩИ ХАРАКТЕРИСТИКИ
| Околна температура при работа | -30–60 °C |
| Температура на съхранение | -40–60 °C |
| Околна влажност при работа | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Съдържание на пакета | VIGI Network Camera · Quick Start Guide · Waterproof Cable Attachments · Mounting Accessories |
| Материал | Plastic |
| Нето тегло | 0.43 Kg |
| Бруто тегло | 0.66 Kg |
| Захранване | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug · PoE: 802.3at, class 4, Max. 16 W |
| Защита | IP66 |
| Product Dimensions (L x W x H) | 107× 136× 139 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
