TP-Link
IP камера TP-Link VIGI C450(4mm)
Артикул №: 1000031942
Категория:
Цифрови IP камери
93,99 €
✓ Налично във външен склад
VIGI C450

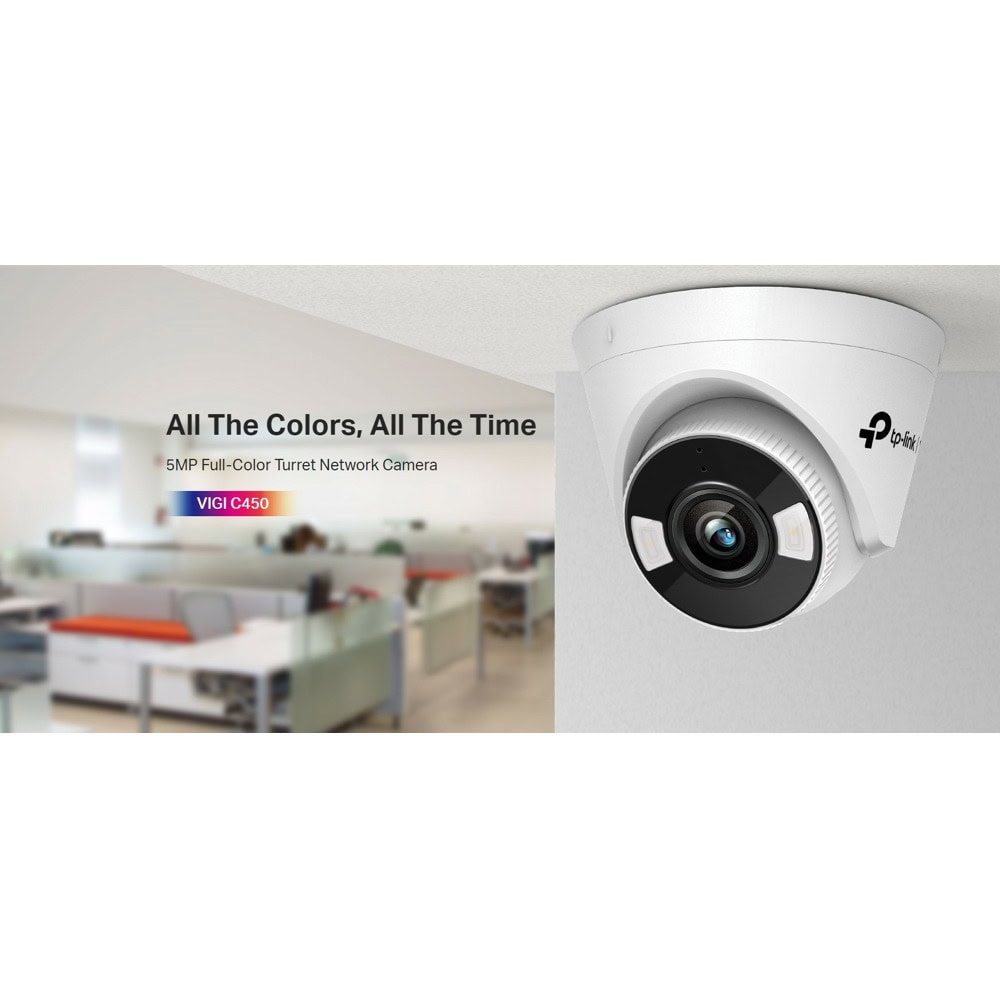

VIGI 5MP Full-Color Turret Network Camera
- 5MP Super-High Definition: The camera comes with 5MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

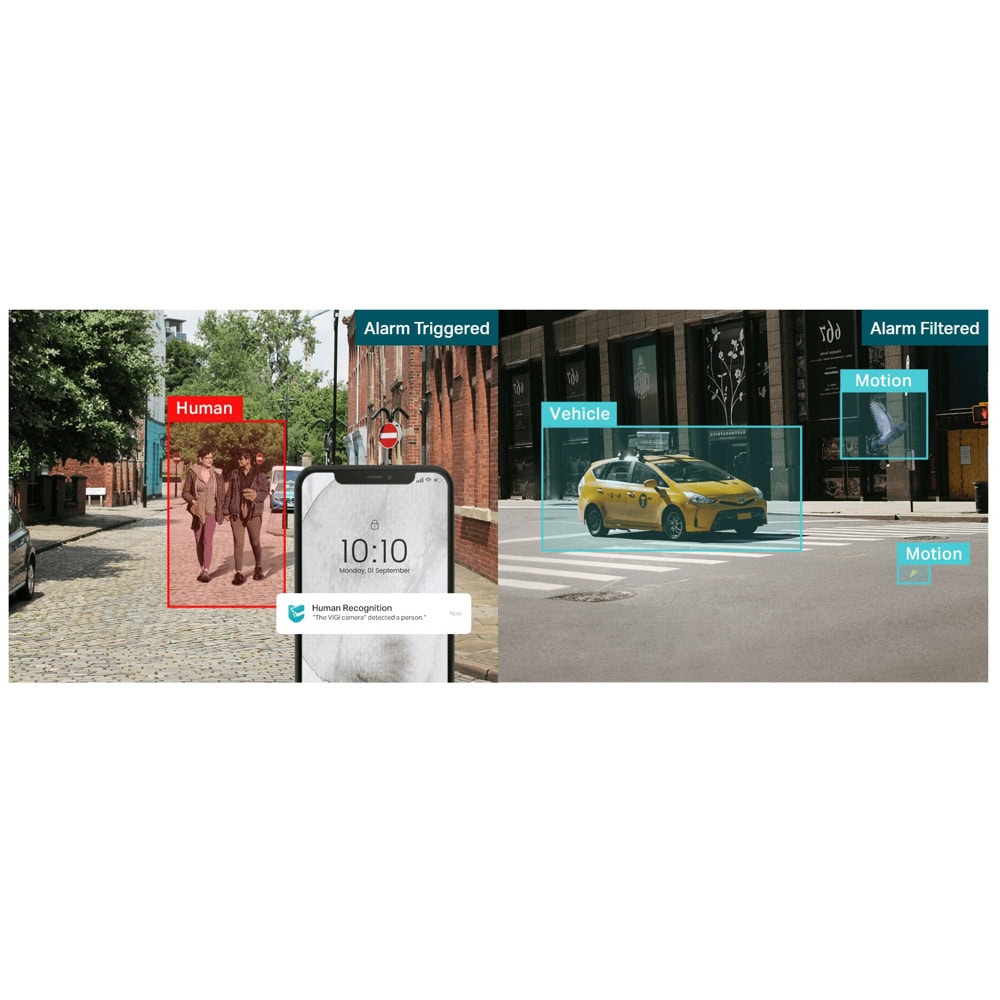

- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
- People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.
- Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
- H.265+△: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, True WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot* (up to 512 GB).
24/7 Stunning Visual Experience
5MP Super-High Definition

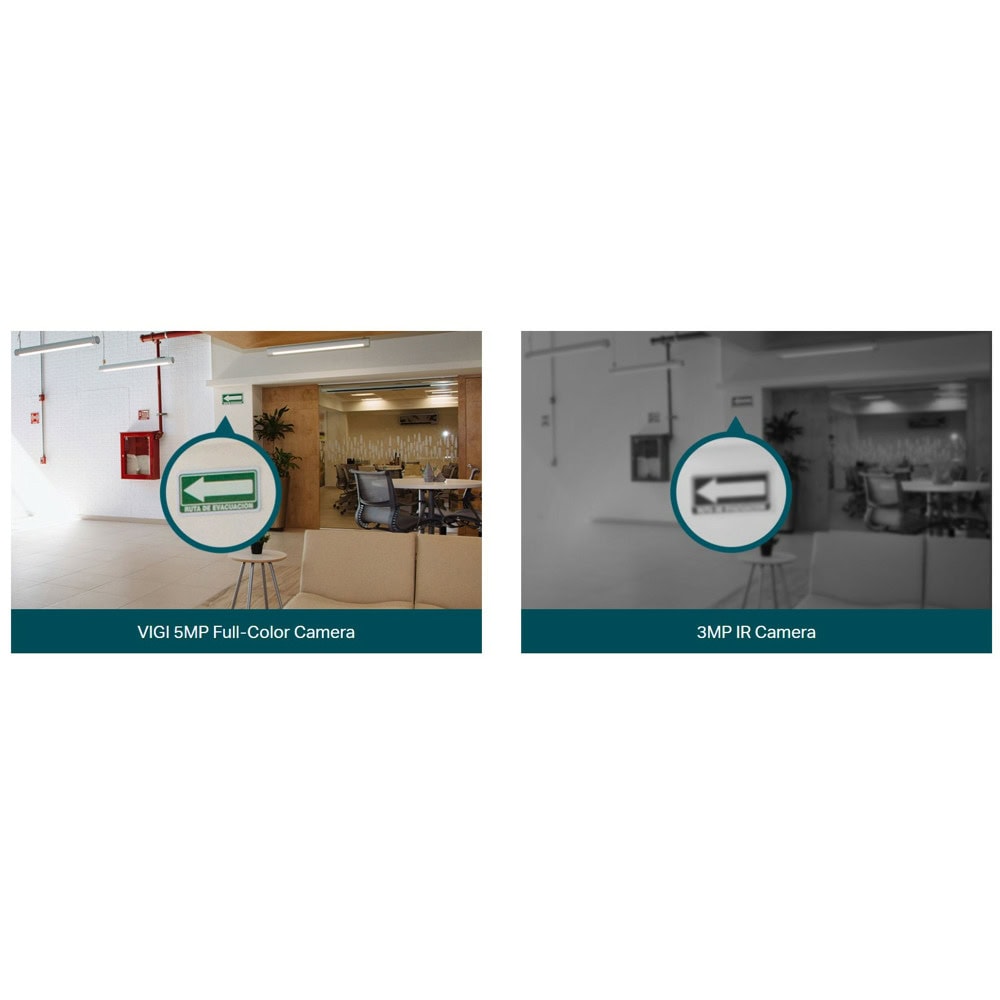

Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

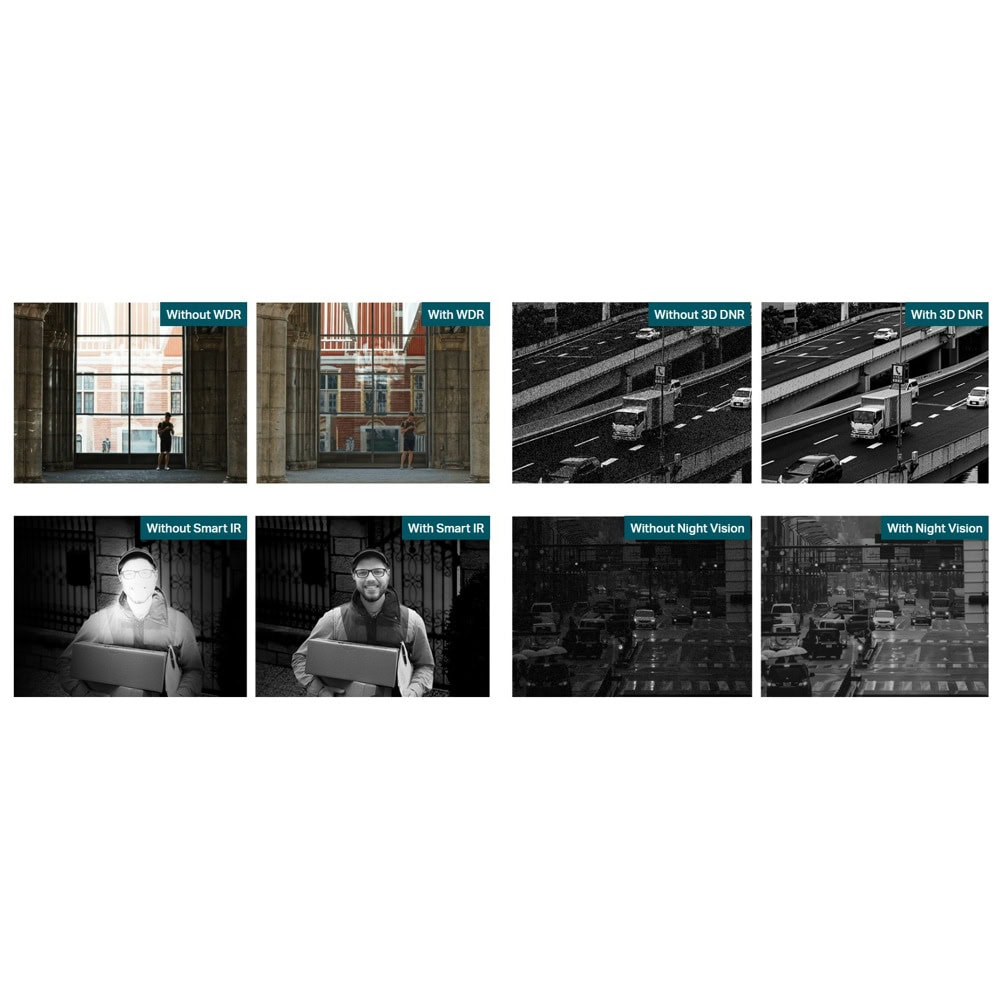

SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events
Two-Way Audio
With voice intercom support, carry two-way conversations while watching your feed from anywhere.
Камера
| Светлочувствителен сензор | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Да |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/white light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS
| Тип | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | 4 mm: F1.6 |
| FOV | 4mm: · Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 4 mm · Detect: 80 m (262 ft) · Observe: 33 m (109 ft) · Recognize: 16 m (52 ft) · Identify: 8 m (26 ft) |
Angle Adjustment (Manual)
| Range | Pan: 0° to 360°, Tilt: 0° to 85° |
ILLUMINATOR
| IR LED | Quantity: 2 · Range: 30m · Wavelength: 850nm |
| White LED | Quantity: 2 · Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO
| Max. Resolution | 2880 X 1620 |
| Main Stream | Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Sub-Stream | Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 704x576,640x480, 352x288, 320x240 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Bit Rate Control | CBR, VBR |
| Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps · Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | 120 dB · · Note: When People & Vehicle Analytics is enabled, only DWDR is supported |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Да |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Да |
АУДИО
| Аудио комуникация | Two-Way Audio |
| Аудио вход | Да |
| Аудио изход | Да |
| Audio Compression | Да |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Да |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
МРЕЖА
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| ONVIF | Да |
| AP | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| КлиентClient | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above |
| Cloud | Да |
| Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, Abnormal Sound Detection, Scene Change Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
Deep Learning Function
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier |
| Multi-Target-Type Detection | Supports Simultaneous Detection and Capture of Human Body and Vehicle |
ИНТЕРФЕЙСИ
| Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Reset Button | Да |
| Мощност | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Да |
ОБЩИ ХАРАКТЕРИСТИКИ
| Околна температура при работа | -30–60 °C |
| Температура на съхранение | -40–60 °C |
| Околна влажност при работа | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |

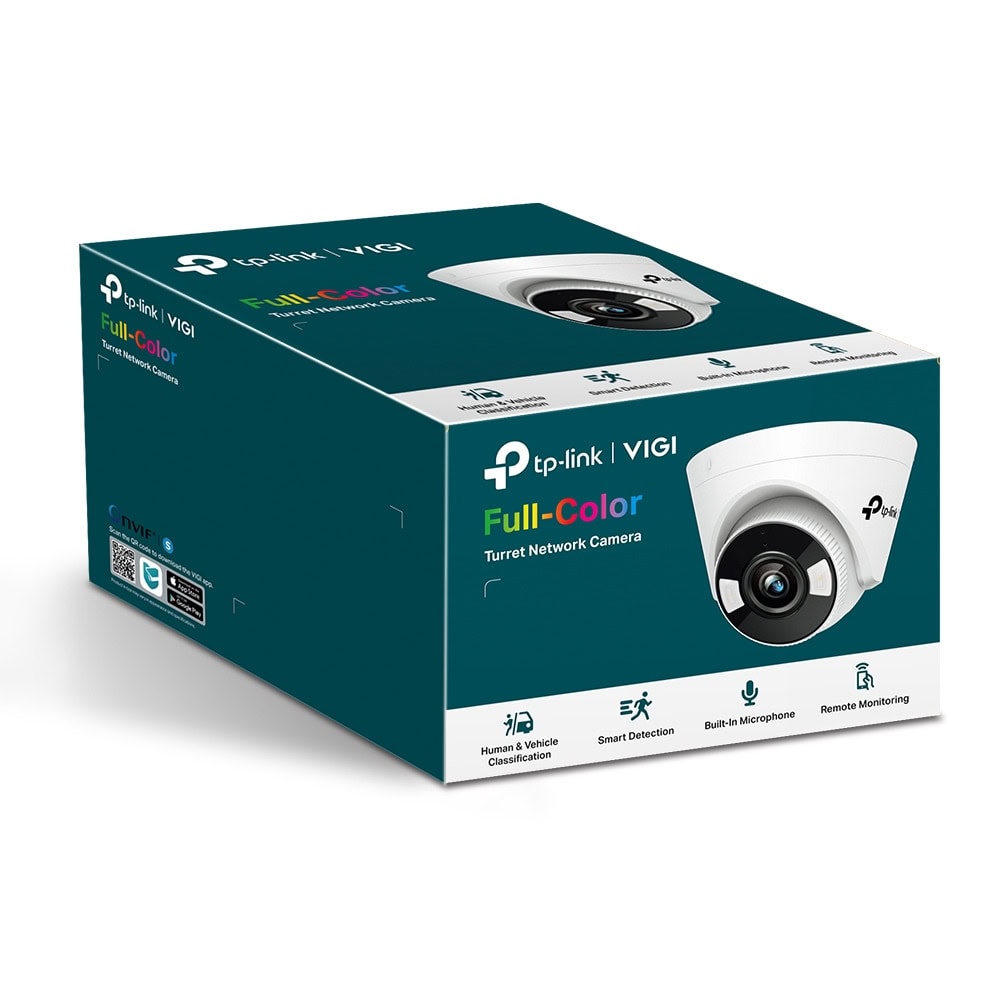

| Съдържание на пакета | VIGI Network Camera · Quick Start Guide · Mounting Accessories |
| Материал | Plastic |
| Нето тегло | 0.24 Kg |
| Бруто тегло | 0.4 Kg |
| Захранване | 12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug · PoE: 802.3af/at, class 0, Max. 10.5 W |
| Product Dimensions (L x W x H) | Φ123x84 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
