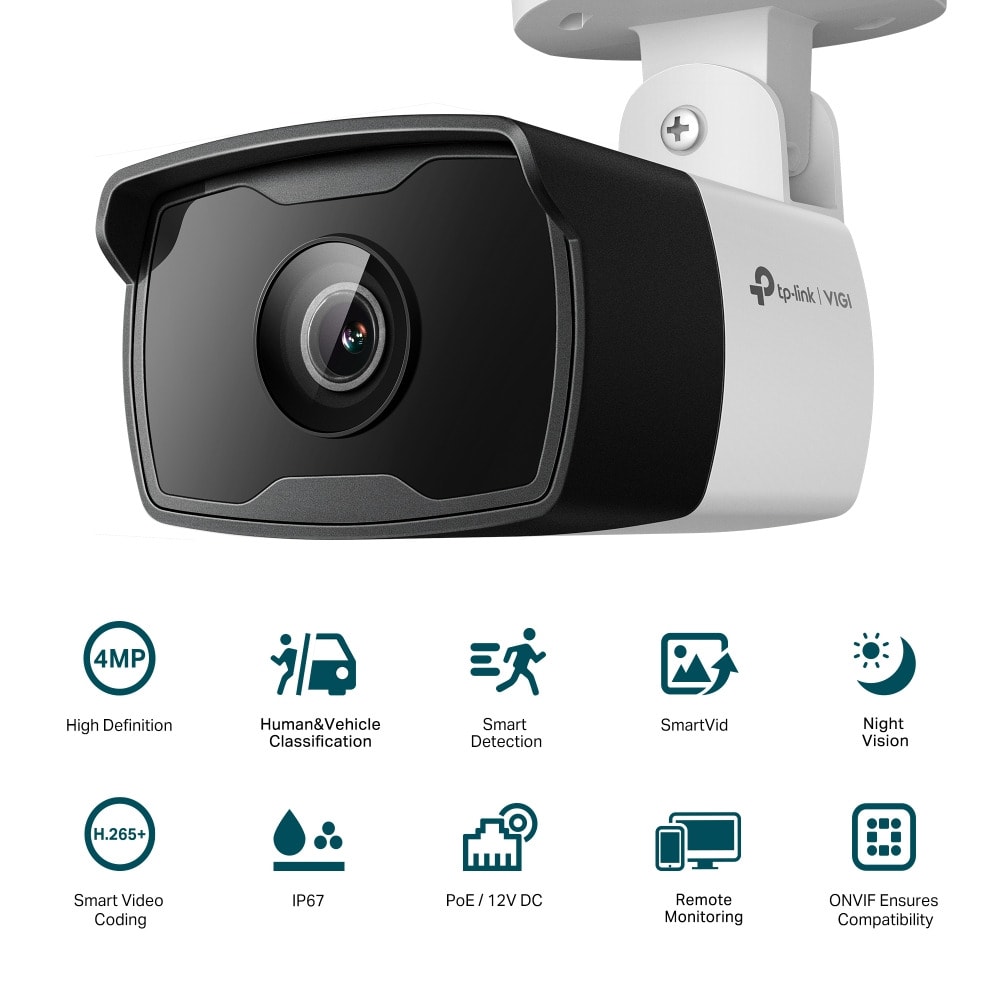

IP камера TP-Link VIGI C340I(2.8mm)
VIGI 4MP Outdoor IR Bullet Network Camera
4MP Super-High Definition: The VIGI C340I camera comes with 4MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

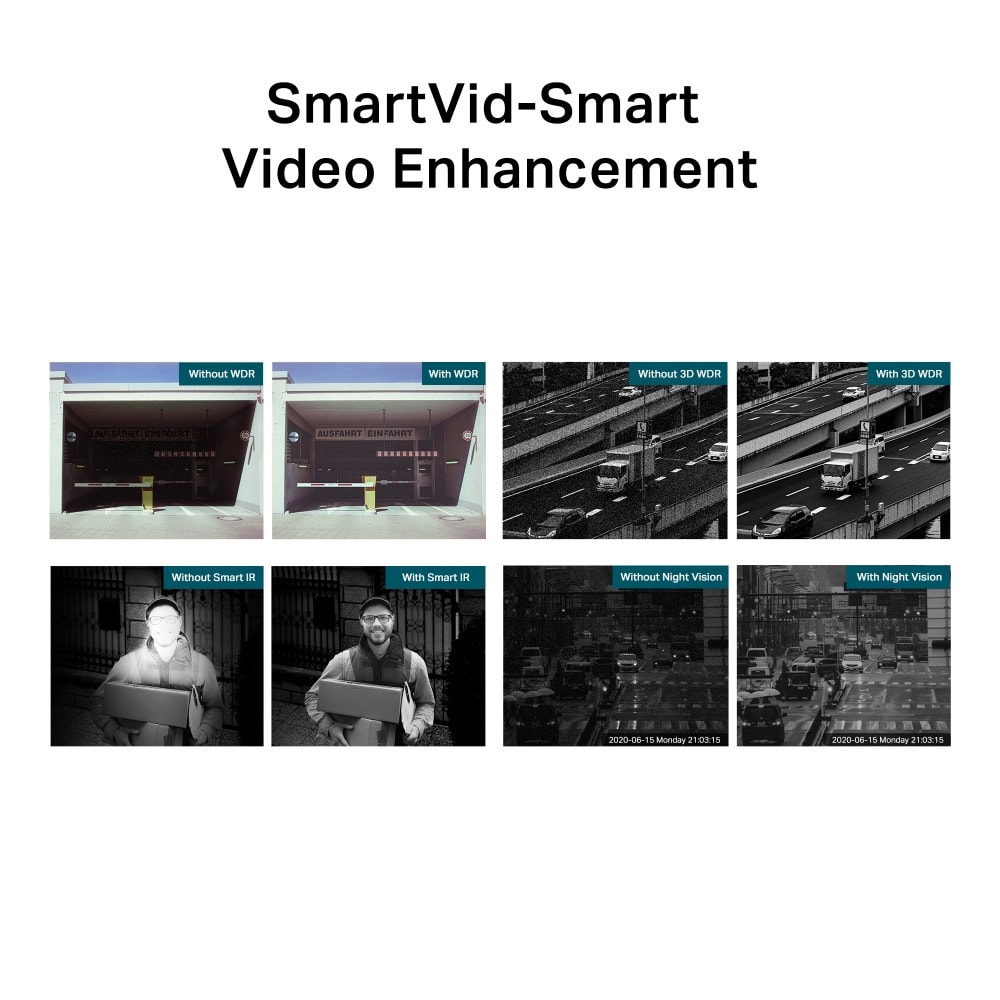

Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Waterproof: Reliable IP67 for stable outdoor performance.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C340I comes with three different lens types to better suit your security needs.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Looking for a higher resolution? It's right here.
4MP Super-High Definition
The VIGI C340I camera comes with 4MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

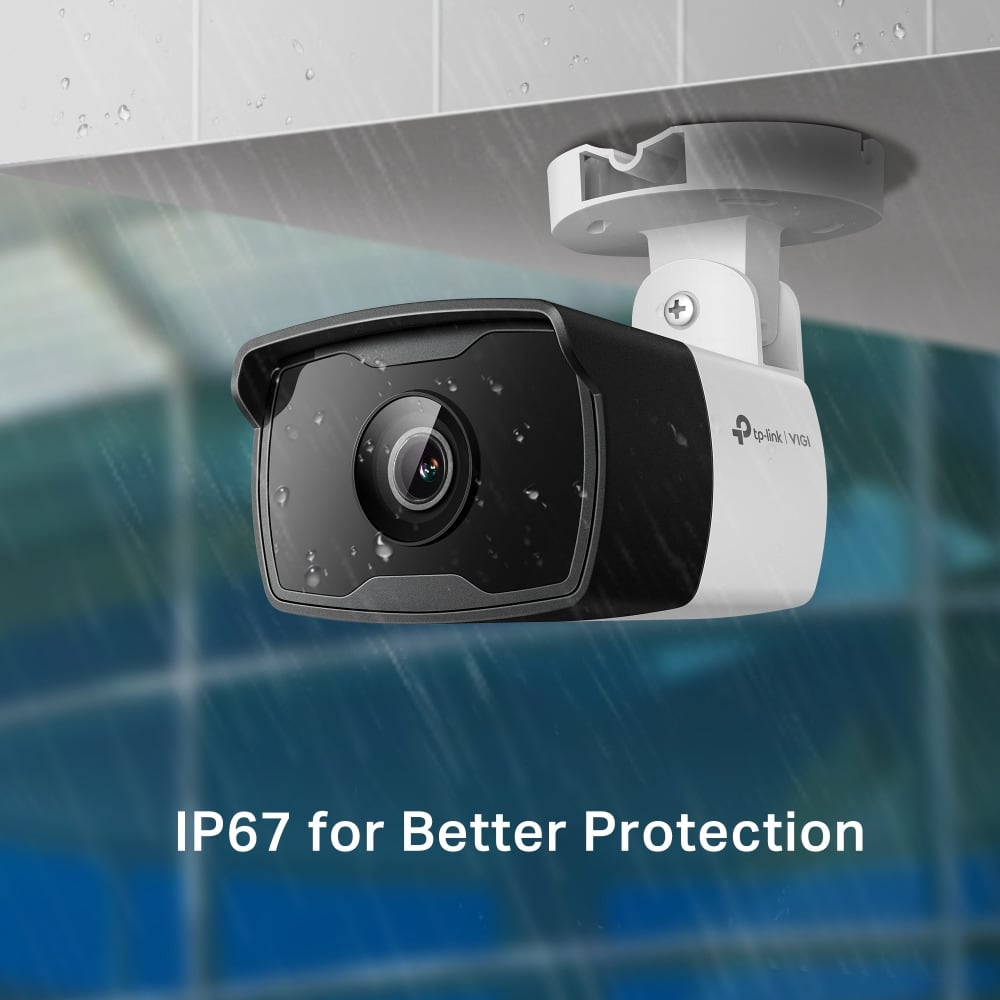

IP67 for Better Protection
Capable of withstanding temperatures from -30–60 °C
(-22–140 °F), VIGI performs well even in harsh
environments with rain and dust.
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Камера
| Светлочувствителен сензор | 1/3” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Да |
| Minimum Illumination | Color: 0.01 Lux; 0 Lux with IR |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
LENS
| Тип | Fixed Focal Lens |
| Focal Length | 2.8 mm/4 mm/6 mm |
| Aperture | 2.8 mm: F2. 2 · 4 mm: F2.2 · 6 mm: F2.0 |
| FOV | 2.8 mm: · Horizontal FOV: 88.8°, Vertical FOV: 48.9°, Diagonal FOV: 106.5° · · 4 mm: · Horizontal FOV: 75.1°, Vertical FOV: 41.5°, Diagonal FOV: 88.7° · · 6 mm: · Horizontal FOV: 47.7°, Vertical FOV: 26.5°, Diagonal FOV: 56° |
| Lens Mount | M12 |
| DORI Distance | 2.8 mm: · Detect: 60 m (197 ft) · Observe: 25 m (82 ft) · Recognize: 12 m (39 ft) · Identify: 6 m (20 ft) · · 4 mm: · Detect: 80 m (262 ft) · Observe: 33 m (109 ft) · Recognize: 16 m (52 ft) · Identify: 8 m (26 ft) · · 6 mm: · Detect: 120 m (394 ft) · Observe: 50 m (164 ft) · Recognize: 24 m (79 ft) · Identify: 12 m (39 ft) |
VIDEO
| Max. Resolution | 2560 × 1440 |
| Main Stream | Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Sub-Stream | Frame Rate： · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 640x480, 352x288, 320x240 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps |
| Bit Rate Control | CBR, VBR |
| Видео компресия | Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps · Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Да |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Да |
ILLUMINATOR
| IR LED | Quantity: 2 · Range: 30m · Wavelength: 850nm |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Angle Adjustment (Manual)
| Range | Pan: -90° to 90° · Tilt: -90° to 90° |
МРЕЖА
| Защита | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above |
| Cloud | Да |
| ONVIF | Да |
ИНТЕРФЕЙСИ
| Мрежов интерфейс | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Мощност | DC Power Port |
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Message Push |
| Output Notification | Message Push |
ОБЩИ ХАРАКТЕРИСТИКИ
| Съдържание на пакета | VIGI Network Camera · Quick Start Guide · Waterproof Cable Attachments · Mounting Accessories |
| Околна температура при работа | -30–60 °C |
| Температура на съхранение | -40–60 °C |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Околна влажност при работа | 95% or Less (Non-Condensing) |
| Материал | Plastic |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Нето тегло | 0.2 Kg |
| Бруто тегло | 0.35 Kg |
| Захранване | 12V DC ± 5%, Max. 5 W, 5.5mm Coaxial Power Plug · PoE: 802.3af/at, class 0, Max. 5.5 W |
| Защита | IP67 |
| Product Dimensions (L x W x H) | 73× 174 × 71 mm |
