TP-Link
IP камера TP-Link VIGI C320I(4mm)
Артикул №: 1000128599
Категория:
Видеонаблюдение и аларми
54,99 €
✓ Ограничена наличност
TP-Link VIGI C320I(4mm)
VIGI 2MP Outdoor IR Bullet Network Camera
- 2MP Full-High Definition: The VIGI C320I camera comes with 2MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Smart Video Enhancement: VIGI' s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Waterproof: Reliable IP67 for stable outdoor performance.
- Simplified Deployment with PoE: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
- 2.8/4/6 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C320I comes with three different lens types to better suit your security needs.
- Flexible Management : Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manager.
2MP Full-High Definition
The VIGI C320I camera comes with 2MP—more than enough pixels to pick up some of the more discrete details.
SmartVid-Smart Video Enhancement
VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

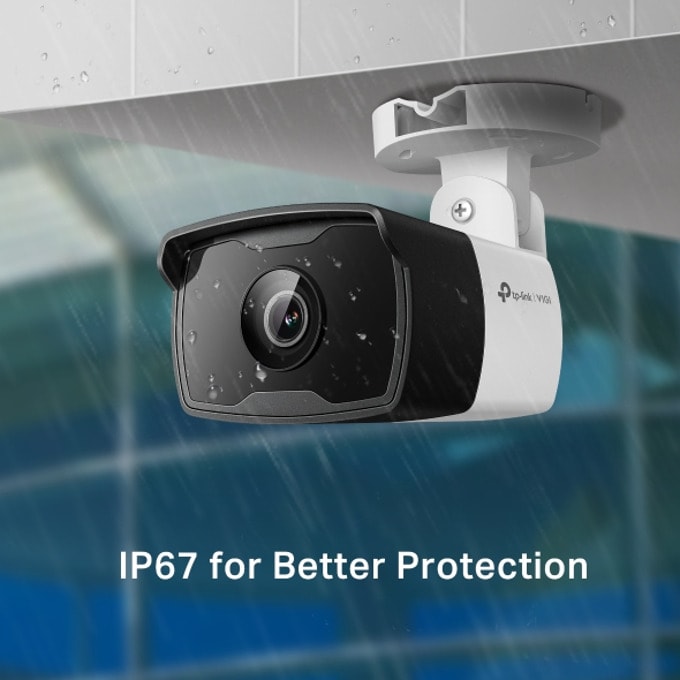

IP67 for Better Protection
Capable of withstanding temperatures from -30–60 °C
(-22–140 °F), VIGI performs well even in harsh
environments with rain and dust.
Характеристики
| LENS | Type: Fixed Focal Lens Focal Length: 4 mm Aperture: 4 mm: F2.0 FOV: 4 mm: · Horizontal FOV: 74.6°, Vertical FOV: 41.3°, Diagonal FOV: 88.1° Lens Mount: M12 DORI Distance: 4 mm: · Detect: 60 m (198 ft) · Observe: 25 m (83 ft) · Recognize: 12 m (40 ft) · Identify: 6 m (20 ft) |
| VIDEO | Max. Resolution: 1920 × 1080 Main Stream: Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 1920x1080, 1280x960, 1280x720 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream: Frame Rate: · 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps · 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · · Resolution: · 704x576, 640x480, 352x288, 320x240 · · Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control: CBR, VBR Видео компресия: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 H.264 Type: Main Profile/High Profile H.264+: Main Stream Supported H.265 Type: Main Profile H.265+: Main Stream Supported Video Bit Rate: Main Stream: 256 Kbps to 4 Mbps · Sub-Stream: 64 Kbps to 512 Kbps |
| ILLUMINATOR | IR LED: Quantity: 2 · Range: 30m · Wavelength: 850nm White LED: N/A Illuminator On/Off Control: Auto/Scheduled/Always on/Always off |
| Angle Adjustment (Manual) | Range: Pan: -90° to 90° · Tilt: -90° to 90° |
| Image | Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement: BLC/3D DNR/HLC/SmartIR Wide Dynamic Range: DWDR SNR: ≥ 52 dB Image Parameters Switch: Yes Privacy Mask: Up to 4 Masks ROI: 1 Region OSD Setting: Yes |
| АУДИО | Аудио комуникация: N/A Аудио вход: N/A Аудио изход: N/A Audio Compression: N/A Audio Sampling Rate: N/A Environment Noise Filtering: N/A Audio Bit Rate: N/A |
| МРЕЖА | Защита: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Network Storage: NAS (NFS, SMB/ CIFS) Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS API: ONVIF Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, VIGI Security Manager, VIGI NVR Web Browser: Google Chrome® 57 and above · Firefox® 52 and above · Safari® 11 and above · Microsoft® Edge 91 and above Cloud: Yes ONVIF: Yes |
| ИНТЕРФЕЙСИ | Мрежов интерфейс: 1 RJ45 10/100M Self-Adaptive Ethernet Port Alarm: N/A Reset Button: N/A Power: DC Power Port Бутони: - Video Output: - On-board Storage: N/A Built-in Microphone: N/A Built-in Speaker: N/A Audio: N/A |
| УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА | Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login) Alarm Linkage: Message Push Linkage Method: N/A Output Notification: Message Push |
| ОБЩИ ХАРАКТЕРИСТИКИ | Съдържание на пакета: VIGI Network Camera · Quick Start Guide · Waterproof Cable Attachments · Mounting Accessories Околна температура при работа: -30–60 °C Storage Temperature: -40–60 °C Storage Humidity: 95% or Less (Non-Condensing) Околна влажност при работа: 95% or Less (Non-Condensing) Размери: 174 × 74 × 71 mm Material: Plastic General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Net Weight: 0.2 Kg Gross Weight: 0.35 Kg Power Consumption: Maximum: 5 W · Typical (Day Mode): 1.32 W · Typical (Night Mode with IR LED): 2.68 W Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug · PoE (802.3af/at, class 0) Protection: IP67 Product Dimensions (L x W x H): 73× 174 × 71 mm Certifications: CE/BSMI/VCCI/ONVIF |
| ВИДЕО/СНИМКА | Видео компресия: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 Кадрова скорост и резолюции: Main Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 1920x1080, 1280x960, 1280x720 · Sub-Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 704x576, 640x480, 352x288, 320x240 Max. Resolution: 2MP (1920 × 1080) Видео стрийминг: Main Stream · Sub-Stream Настройки на изображението: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement: BLC/3D DNR/HLC/SmartIR Video Bit Rate: 64 Kbps to 4 Mbps Day/Night Switch: Day/Night/Auto/Schedule |
| SMART FEATURE-SET | Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login) Linkage Method: Trigger Notification: ONVIF, HTTPS Region of Interest: 1 Region |
| Камера | Светлочувствителен сензор: 1/3” Progressive Scan CMOS Shutter Speed: 1/3 to 1/10000 s Slow Shutter: Yes Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR Day/Night Mechanism: IR Cut Filter Day/Night Switch: Day/Night/Auto/Schedule-Switch Обектив: 2.8 mm/ 4 mm/ 6 mm Aperture: 2.8 mm: F2.2 · 4 mm: F2.0 · 6 mm: F2.0 Lens Mount: M12 Зрителен ъгъл: 2.8mm: 88.2°/48.7°/106.5°(H/V/D) · 4mm: 74.6°/41.3°/88.1°(H/V/D) · 6mm: 47.7°/26.5°/56°(H/V/D) IR Working Distance: 30m Digital Noise Reduction: 3D DNR WDR: DWDR Weatherproof Rating: IP67 |
