IP камера TP-Link VIGI C230I(4mm)

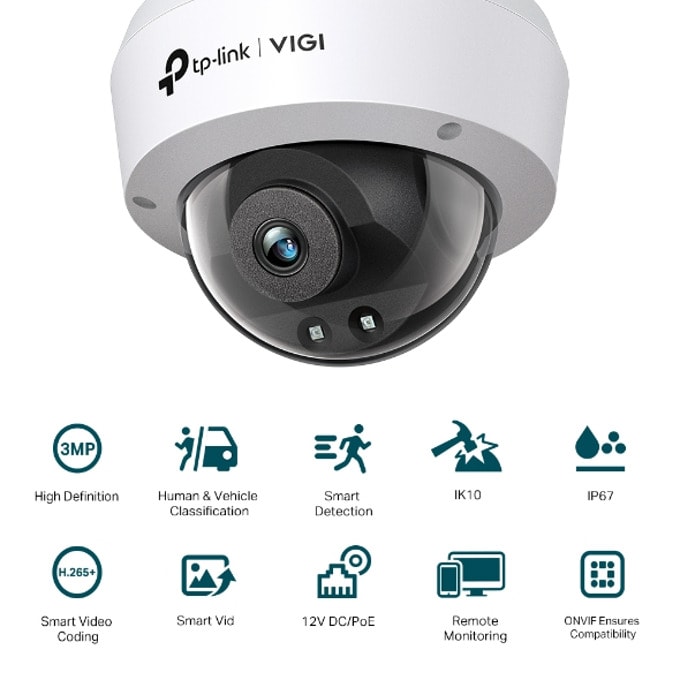

VIGI 3MP IR Dome Network Camera
- 3MP Super-High Definition: The VIGI C230I camera comes with 3MP — more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
- 2.8/4 mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C230I comes with two different lens types to better suit your security needs.
- Flexible Management : Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger.
Looking for a higher resolution? It's right here.
3MP Super-High Definition
The VIGI C230I camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

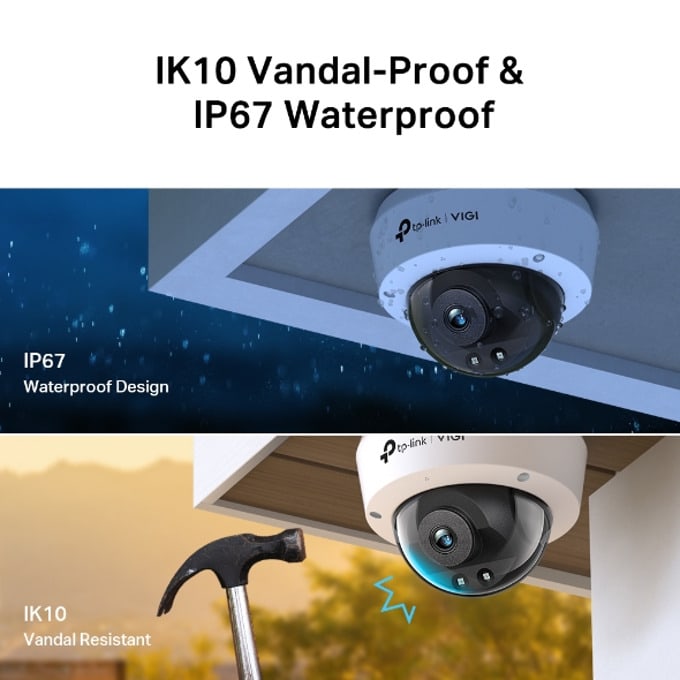

IK10 Vandal-Proof & IP67 Waterproof
With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
**Calculations based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.
Характеристики
| МРЕЖА | Защита: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS API: ONVIF Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, VIGI Security Manager, VIGI NVR, Web |
| ОБЩИ ХАРАКТЕРИСТИКИ | Съдържание на пакета: VIGI Network Camera · Quick Start Guide · Waterproof Cable Attachments · Mounting Accessories Околна температура при работа: -30–60 °C Certifications: CE/BSMI/VCCI/ONVIF Размери: 115 × 115 × 86 mm Material: Plastic General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug · PoE (802.3af/at, class 0) Power Consumption: 12V DC: Max 5W · PoE: Class 0 Vandal Resistant: IK10 |
| ВИДЕО/СНИМКА | Видео компресия: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 Кадрова скорост и резолюции: Main Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 · Sub-Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 704x576, 640x480, 352x288, 320x240 Max. Resolution: 3MP (2304 × 1296) Видео стрийминг: Main Stream · Sub-Stream Настройки на изображението: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement: BLC/3D DNR/HLC/SmartIR Video Bit Rate: 64 Kbps to 4 Mbps Day/Night Switch: Day/Night/Auto/Schedule |
| SMART FEATURE-SET | Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login) Linkage Method: Trigger Notification: ONVIF, HTTPS Region of Interest: 1 Region |
| ИНТЕРФЕЙСИ | Мрежов интерфейс: 1 RJ45 10/100M Self-Adaptive Ethernet Port Бутони: - Video Output: - |
| Камера | Светлочувствителен сензор: 1/2.8” Progressive Scan CMOS Обектив: 2.8 mm/ 4 mm Aperture: 2.8 mm: F2.2 · 4 mm: F2.0 Lens Mount: M12 Зрителен ъгъл: 2.8mm: 97.8°/52.9°/117.9°(H/V/D) · 4mm: 82.5°/44.9°/99.3°(H/V/D) Day/Night Mechanism: IR Cut Filter IR Working Distance: 30m Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR Weatherproof Rating: IP67 Digital Noise Reduction: 3D DNR WDR: DWDR |
