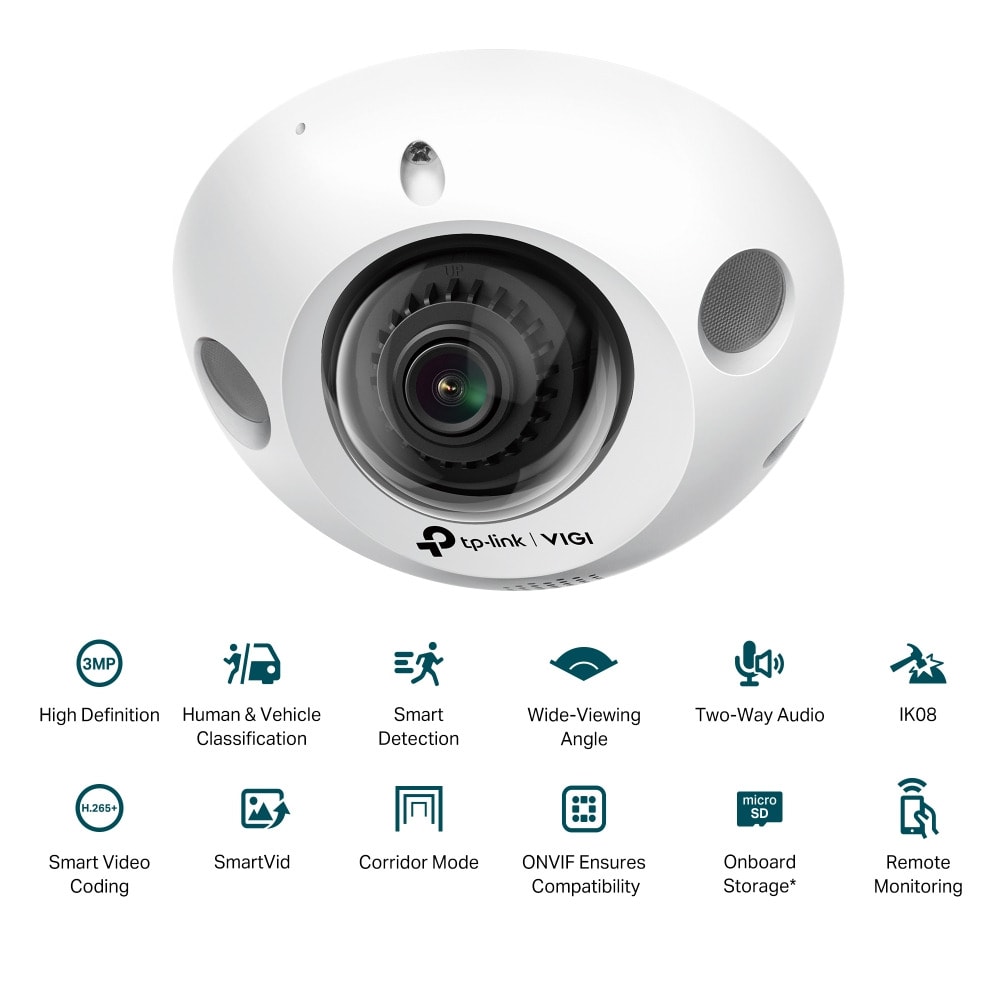

IP камера TP-Link VIGI C230I Mini(2.8mm)
3MP IR Mini Dome Network Camera
- 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
- Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
- Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
- Small but compact with wide views : With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
- IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
- Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.
Looking for a higher resolution? It's right here.
3MP Super-High Definition
The VIGI C230I Mini Camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Small but compact with wide views
With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini Camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.
Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
IK08 Vandal-Proof
Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
Corridor Mode
Corridor mode allows you to change the image aspect ratio from 16:9 to 9:16. This helps to monitor long and narrow areas and provides a more pleasant viewing experience.
Характеристики
| МРЕЖА | Защита: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, · RTSP, NTP, UPnP UDP, SSL/TLS API: ONVIF Simultaneous Live View: 3 Main Streams & 3 Sub-Streams Client: VIGI App, VIGI Security Manager, VIGI NVR, Web |
| ОБЩИ ХАРАКТЕРИСТИКИ | Съдържание на пакета: VIGI Network Camera · Quick Start Guide · Mounting Accessories · Mounting Template Околна температура при работа: -30–60 °C Certifications: CE/VCCI/BSMI/KC/ONVIF Размери: 114 × 114 × 58 mm Material: Plastic General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug · PoE (802.3af/at, class 0) Power Consumption: 12V DC: Max 7.5W · PoE: Class 0 Vandal Resistant: IK08 |
| ВИДЕО/СНИМКА | Видео компресия: Main Stream: H.265+/H.265/H.264+/H.264 · Sub-Stream: H.265/H.264 Кадрова скорост и резолюции: Main Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720 · Sub-Stream: · Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps · Resolution: 704x576, 640x480, 352x288, 320x240 Max. Resolution: 3MP (2304 × 1296) Видео стрийминг: 3 Main Streams · 3 Sub-Streams Настройки на изображението: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°) Image Enhancement: BLC/3D DNR/HLC/SmartIR Video Bit Rate: 64 Kbps to 4 Mbps Day/Night Switch: Day/Night/Auto/Schedule |
| SMART FEATURE-SET | Smart Event: Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection Basic Event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login) Linkage Method: Trigger Notification: ONVIF, HTTPS Region of Interest: 1 Region |
| ИНТЕРФЕЙСИ | Мрежов интерфейс: 1 RJ45 10/100M Self-Adaptive Ethernet Port Бутони: Reset Button Video Output: - On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB Built-in Microphone: Yes Built-in Speaker: Yes |
| Камера | Светлочувствителен сензор: 1/2.8” Progressive Scan CMOS Обектив: 2.8 mm Aperture: F1.6 Lens Mount: M12 Зрителен ъгъл: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9° Day/Night Mechanism: IR Cut Filter IR Working Distance: 30m Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR Digital Noise Reduction: 3D DNR WDR: DWDR |
