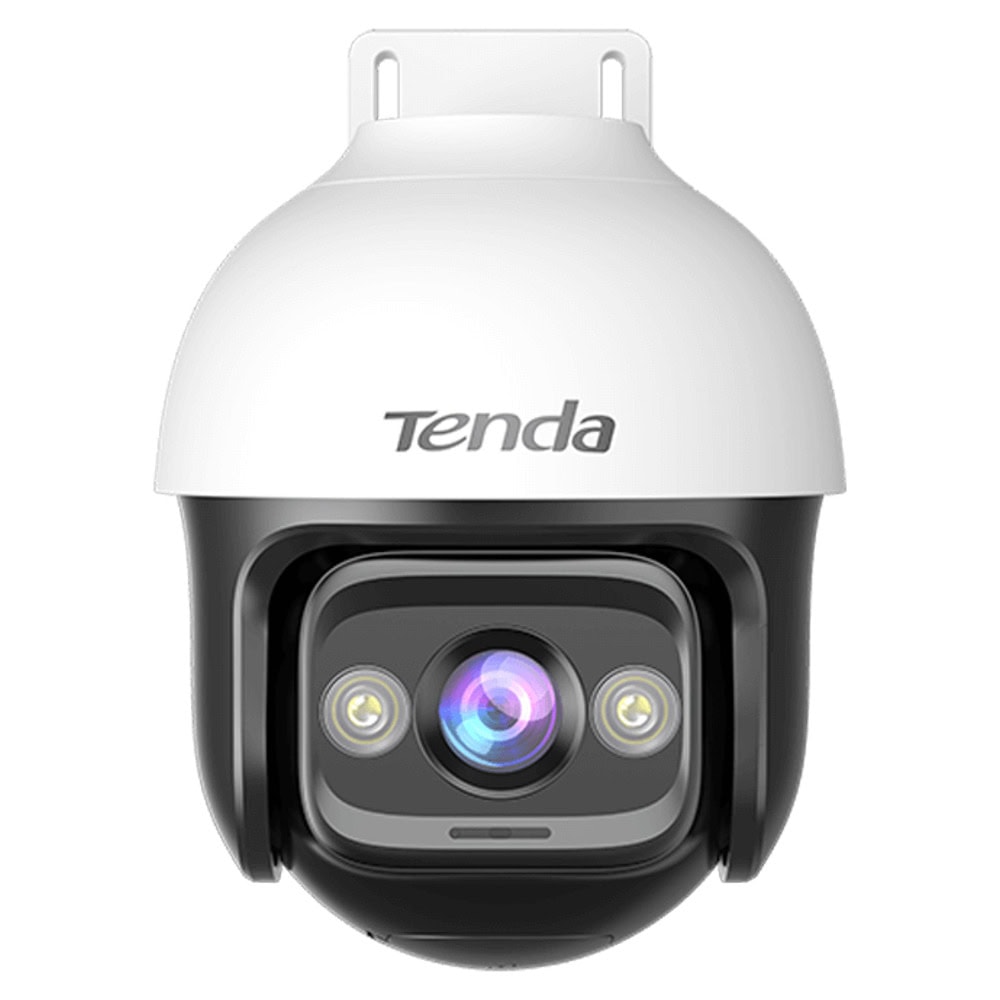

IP камера Tenda RH3-WCA

Human and Vehicle Detection with Deep-Learning Algorithms

Empowered by an NPU module and a high-performance SOC boasting advanced deep-learning technology, the camera can accurately detect humans and vehicles, thus minimizing false alarms.

Next-level Wi-Fi6 Technology, Stable and Smooth Video

With the latest Wi-Fi6 technology, built-in special antenna for signal enhancement,it offers better anti-interference performance and lower latency compared to Wi-Fi4, allowing your security range wider.

360° Panoramic Coverage Omnidirectional Protection

Being able to pan and tilt to take in a 360-degree field-of-view, providing all-around protection, you can adjust the angle through the TDSEE APP to view every corner in real time.

• Camera Image Sensor 1/3 Progressive Scan CMOS sensor Day and Night ICR type
• Lens Focal Length 4 mm Aperture F1.6 FOV Horizontal FOV: 83.3°, Vertical FOV: 53.1°, Diagonal FOV: 91°
• Illuminator Supplementary Light 2 IR Lights, 2 Spotlights Supplementary Light Distance Up to 30 m/100 ft (depending on environment) IR Wavelength 850nm Night Vision Mode Smart Mode, Full Color Mode, Black & White Mode
• Video Video Encoding Format H.265, H.264 Main Stream Resolution 2304 ×1296, 1920 × 1080, 1280 × 720 Sub Stream Resolution 640 × 360, 352 × 288 Frame Rate 1-30fps, Default 20fps Bit Rate 512kbps -- 4096kbps Bit Rate Control CBR,VBR
• Audio Audio Encoding Format G.711A, G.711U, AAC Audio Sampling Rate 8 kHz Audio Communication Two-way Audio, Voice Input
• Image Image Enhancement DWDR, BLC, HLC, 3D DNR Privacy Mask CBR,VBR
• Network Ethernet Port 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port ONVIF Support Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets Web Browser Plug-in free live view: Chrome, Edge, Opera
• Pan&Tilt Pan Movement Range 0°--355° Tilt Movement Range 0°--90° Preset 6 Patrol Panoramic Patrol, Preset Patrol
• Wi-Fi Antenna Internal antenna Wireless Standard IEEE 802.11 b/g/n/ax Transmission Rate Up to 287Mbps Channel Width 20/40 MHz Modulation DSSS/OFDM/OFDMA Frequency Band 2.4GHz: 2412MHz-2472MHz(CH1-CH13) Transmit Power 2.4GHz: Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Alarm Smart Detection Motion Detection, Tempering Detection, Human Detection, Vehicle Detection Smart Linkage Sound&light Alert, Human Tracking DIY Audio 3 Customized Audios
• Interface Audio Input Built-in MIC, adjustable microphone volume Audio Output Built-in Speaker, 79 dBA (Alarm sound at 1 meter), adjustable sound level Storage Built-in Micro SD Card Slot, Up to 512 GB Reset Button Support LED Indicator Dual Color (red & blue) LED Indicator
• General Power 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug Material Plastic Smart Integration Amazon Alexa Product Dimension 120mm x 120mm x 146mm (4.7'' × 4.7'' × 5.7'') Package Dimension 167 mm x 131 mm x 251 mm (6.6'' × 5.2'' × 9.9'') Product Weight 367g (0.81lb) With Package Weight 860g (1.89lb) Protection Level IP65 Installation Method Wall Mounting, Ceiling Mounting, Pole Mounting Certification CE, RoHS, FCC, RCM, UKCA Temperature Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) Humidity Operating Humidity: 10% ~ 95% RH (non-condensing) Storage Humidity: 3% ~ 95% RH (non-condensing)
