Dahua

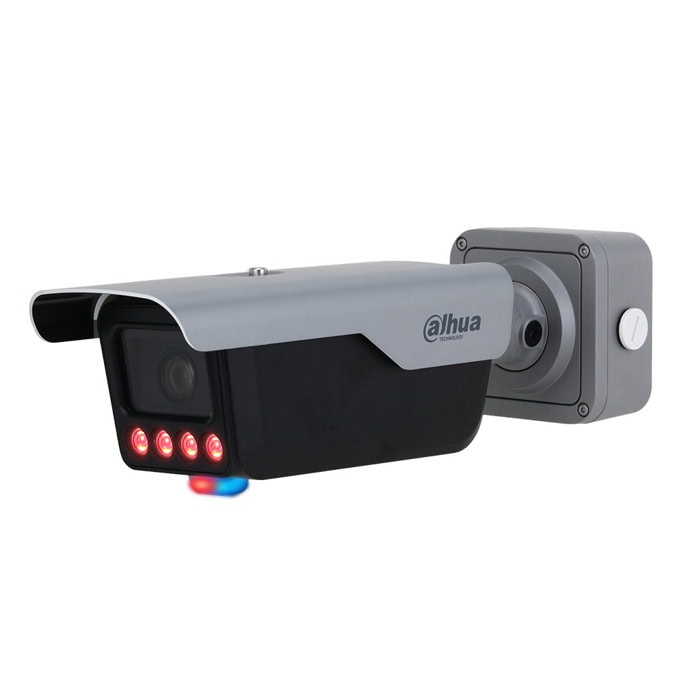

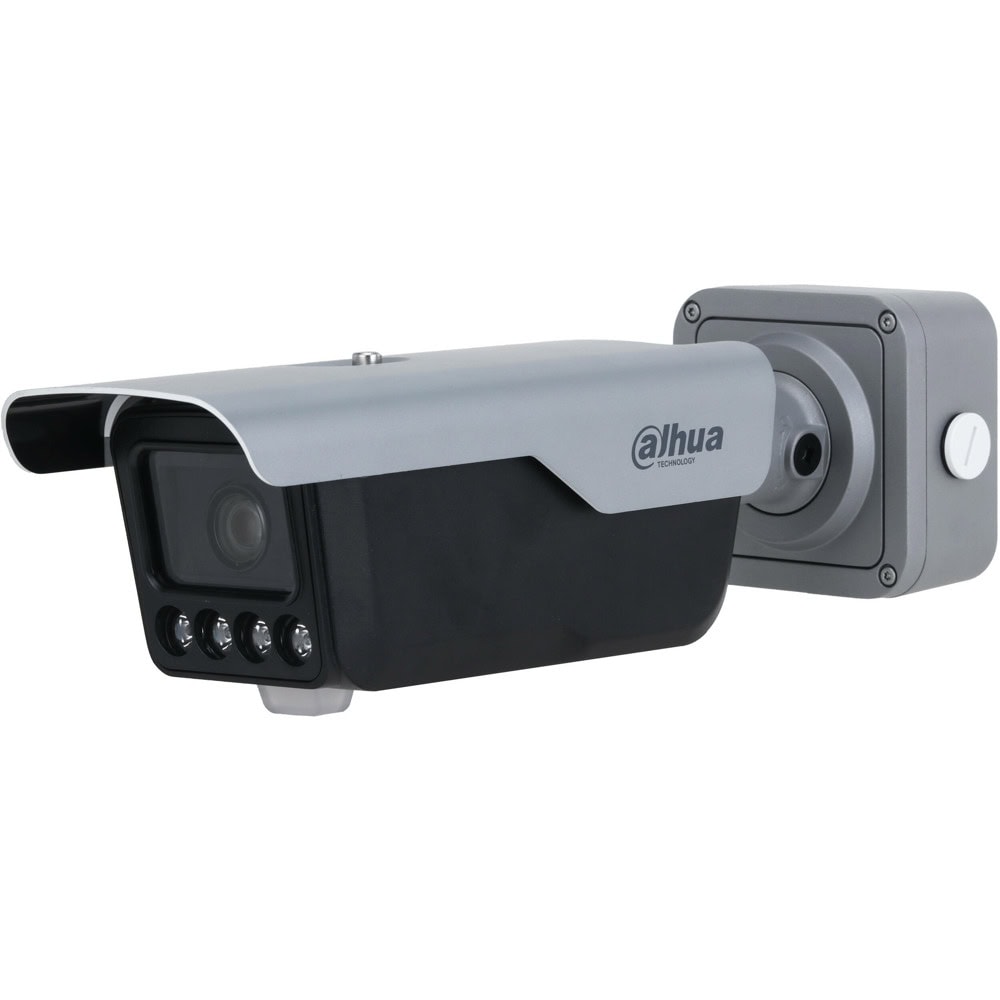

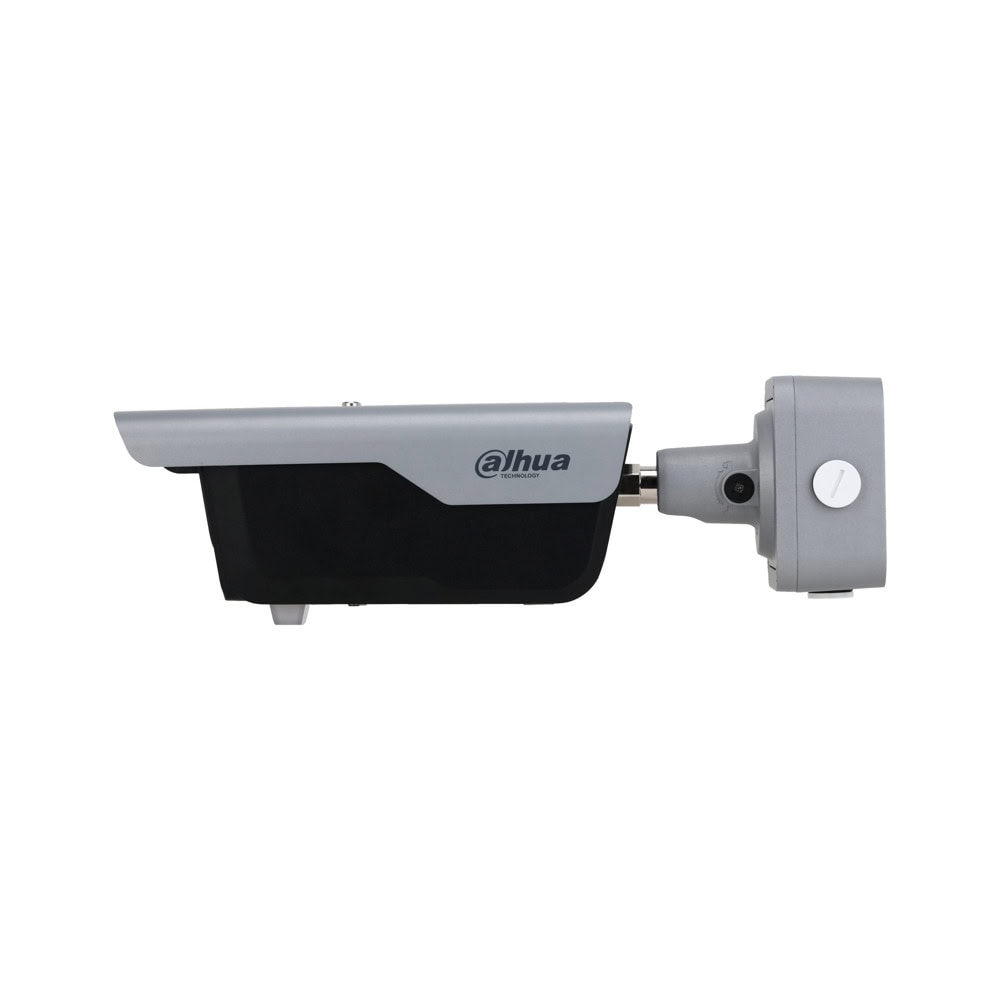

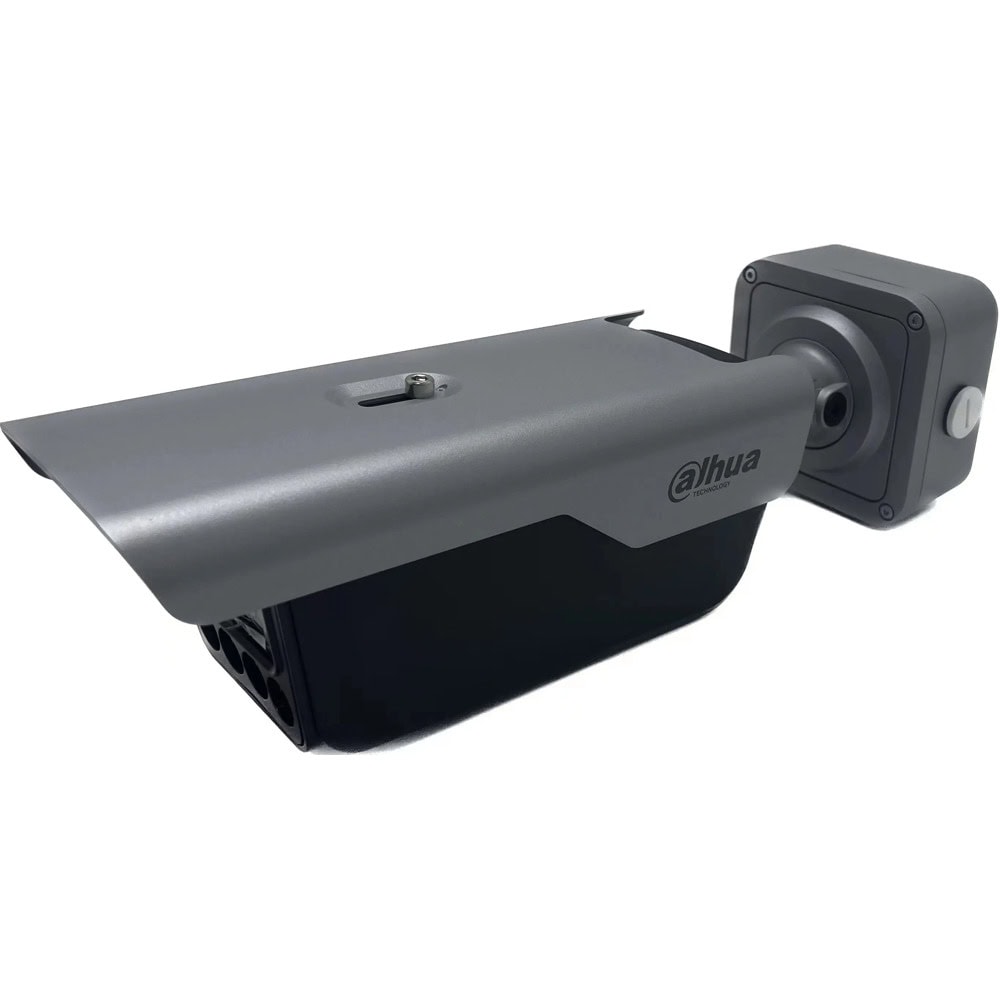

IP камера Dahua ITC413-PW4D-Z3
Артикул №: 1000030562
Категория:
Цифрови IP камери
1 000,99 €
✓ Налично във външен склад
ITC413-PW4D Series
Dahua Access ANPR Camera
> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
> Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
> Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
> Built-in LED for simplified installation and commissioning.
> All-in-one structure with junction box and bracket, and it is also low power consumption.
> IP67 and IK10 rated.
> Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
> Easily adapts to scenarios through its motorized vari-focal lens.
ITC413-PW4D Series
| Image Resolution2688 × | 1520 |
| Electronic Shutter SpeedAuto/Manual | 1/25 s–1/100,000 s |
| Max. Detection SpeedDHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3 | 120 km/h |
| Min. IlluminationDHI-ITC413-PW4D-Z3,DHI-ITC413-PW4D-IZ3 | 0.001 Lux@F1.6 (Color, 30 IRE) 0.0002 Lux@F1.6 (B/W, 30 IRE) 0 Lux (Illuminator on) |
| Field of ViewDHI-ITC413-PW4D-Z3 H | 39.9° (W)—15.1° (T) V: 21.8° (W)—8.5° (T) D: 46.6° (W)—17.4° (T) |
| Max. ApertureDHI-ITC413-PW4D-Z3 | 1.6 |
| W | (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)160.0 m (524.93 ft)64.0 m (209.97 ft)32.0 m (104.99 ft)16.0 m (52.49 ft) |
| T | (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)406.9 m (1334.97 ft)162.8 m (534.12 ft)81.4 m (267.06 ft)40.7 m (133.53 ft) |
| Illuminator TypeDHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3 | Dual Illuminators (730 nm IR/warm light) |
| Illumination DistanceDHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3 | ANPR: 30 m (98.43 ft) Video monitoring: 60 m (196.85 ft) |
| Infrared WavelengthDHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3 | 730 nm |
| Video ResolutionMain stream | 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720) Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240) |
| StreamPAL | Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps); NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps) |
| Video Bit RateH.264B | 2,179 kbps–13,074 kbps H.264M: 2,179 kbps–13,074 kbps H.264H: 2,179 kbps–13,074 kbps H.265: 2,179 kbps–13,074 kbps MJPEG: 6,537 kbps–39,223 kbps |
| Region of Interest (RoI)Yes, | 3 |
| Restricted List/Trusted ListAllowlist | 110,000 Blocklist: 110,000 |
| Capture DistanceDHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3 | 8 m–30 m (26.25 ft–98.43 ft) |
| Detected WidthDHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3 | 6 m–8 m (19.69 ft–26.25 ft) |
| BrowserPlug in | IE 9, 10, 11. Chrome 52 and earlier versions Firefox 42 and earlier versions No plug in: Chrome 92 and later versions |
| Day/NightIR filter, support three modes | color/B/W/auto |
| Built-in MICYes; Pick-up distance | 3 m (9.84 ft), Sampling Rate: 48 k. |
| Built-in SpeakerYes; Power | 2 W |
| Alarm Input2, optocoupler input (wet node on-off value | 5 V) |
| Wiegand1 channel, SHA-1 | 26 bit |
| Vehicle BrandRecognizes | 147 vehicle logos |
| Vehicle ColorRecognizes 12 colors | Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow. |
| Vehicle Type RecognitionRecognizes 10 vehicle types | Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup |
| Country and Region Supported by ANPRBaseline support | GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon) Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia) Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan) SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana) North America (United States, Canada) Can be customized: Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa, Mauritius |
| Communication Band433 MHz; | 868 MHz |
| Power Supply12 VDC, 2 A and POE | 802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W |
| Power ConsumptionPower consumption in different conditions | No lighting |
