Dahua

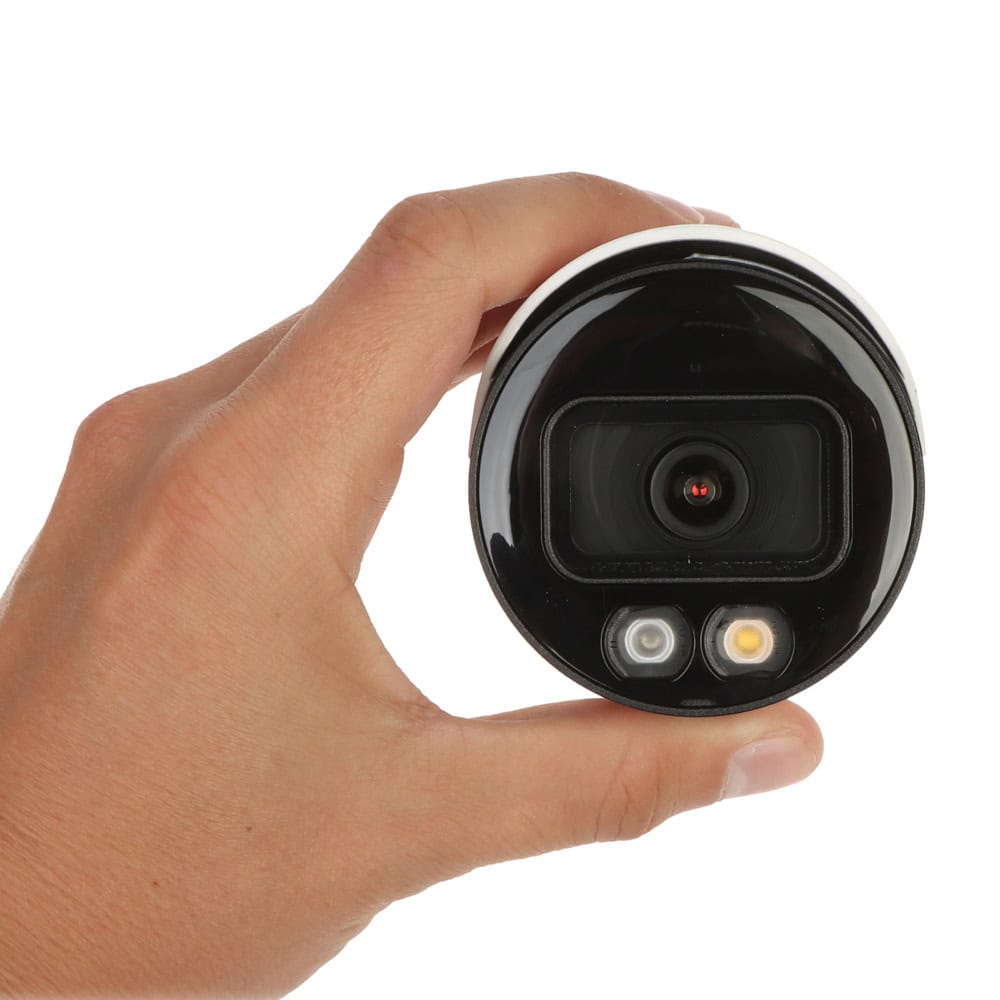

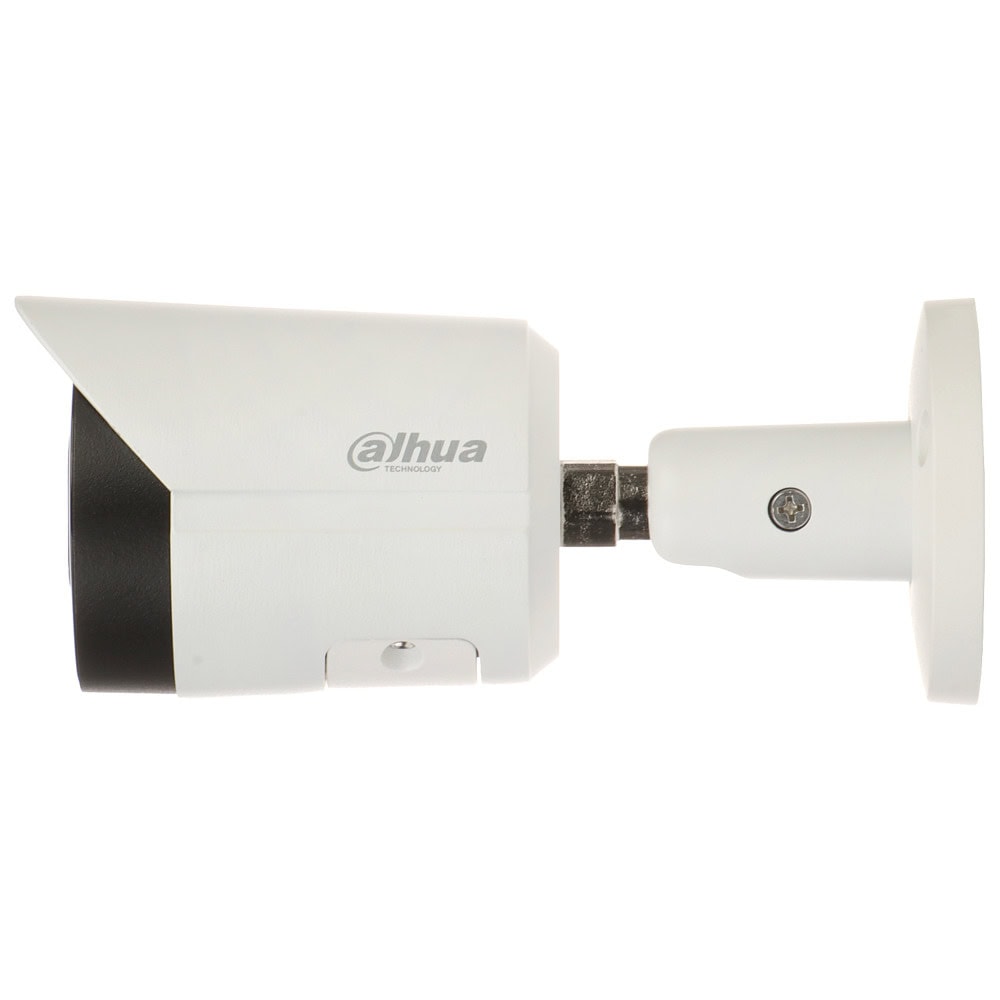

IP камера Dahua IPC-HFW2549S-S-IL-0360B
Артикул №: 1000135877
Категория:
Видеонаблюдение и аларми
216,99 €
✓ Налично във външен склад
Характеристики
| Standard | TCP/IP |
| Sensor | 1/2.7 " Progressive Scan CMOS |
| Matrix size | 5 Mpx |
| Резолюция | 2960 x 1668 - 5 Mpx , 2880 x 1620 - 4.6 Mpx , 2688 x 1520 - 4 Mpx , 2048 x 1536 - 3 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Scanning system | Progressive |
| Lens | 3.6 mm |
| View angle | 92 ° (manufacturer data)88 ° (our tests result) |
| Range of IR illumination | 30 m |
| White light LED illuminator range | 30 m |
| Min. illumination | 0.007 Lux / F1.0 (color) |
| RS-485 interface | Не |
| Memory card slot | Micro SD memory cards up to 256GB support (possible local recording) |
| Image compression method | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs / outputs | Не |
| Аудио | Microphone built-inAudio transmission via networkAudio detectionCompliance with the AAC standard |
| Main stream frame rate | 20 fps @ 5 Mpx 25 fps @ 4 Mpx |
| Network interface | 10/100 Base-T (RJ-45) |
| Network protocols | IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour |
| WEB Server | Built-in |
| Max. number of on-line users | 20 |
| ONVIF | 21.12 |
| Mobile phones support | Port no.: 37777 or access by a cloud (P2P)Android: Free application DMSSiOS (iPhone): Free application DMSS |
| Default IP address | 192.168.1.108 |
| Default admin user / password | admin / - The administrator password should be set at the first start |
| Web browser access ports | 80, 37777 |
| PC client access ports | 37777 |
| Mobile client access ports | 37777 |
| Port ONVIF | 80 |
| RTSP URL | rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Main features | WDR - 120 dB - Wide Dynamic Range3D-DNR - Digital Noise ReductionROI - improve the quality of selected parts of imageBLC/HLC - Back Light / High Light CompensationPossibility to change the resolution, quality and bit rateMotion DetectionConfigurable Privacy ZonesMirror - Mirror imageSMD PLUS - searching for an object classified as: human, motor vehicleIVS analysis : intrusion, crossing the line (tripwire) - classification of people and vehicles video tampering |
| Захранване | PoE (802.3af),12 V DC / 380 mA |
| Консумация на енергия | ≤ 4.6 W @ 12 V DC≤ 5.5 W @ PoE |
| Housing | Compact - Metal |
| Цвят | White + Black |
| Index of Protection" | IP67 |
| Vandal-proof | Не |
| Operation temp | -40 °C ... 60 °C |
| Тегло | 0.47 kg |
| Размери | 166 x 70 x 70 mm |
