Dahua

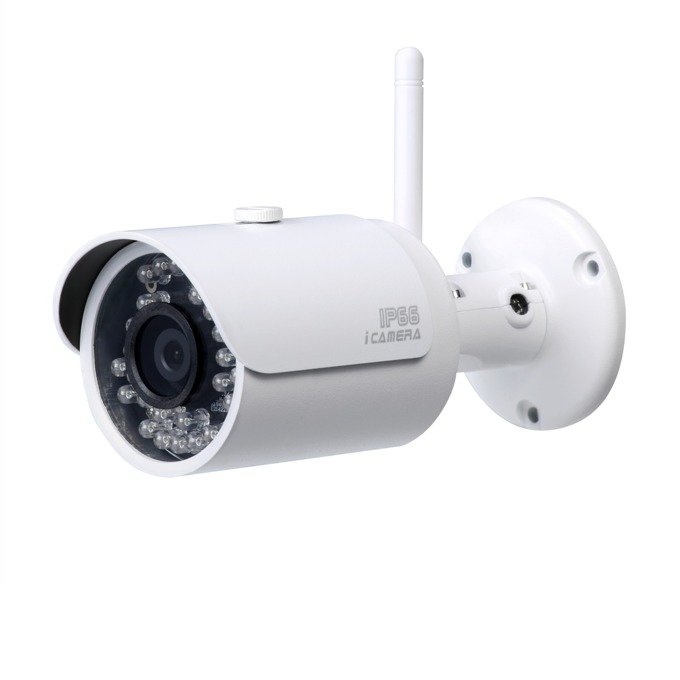

IP камера Dahua IPC-HFW1000SP-W
Артикул №: 1000002695
Категория:
Цифрови IP камери
80,99 €
✓ Налично във външен склад
Dahua IPC-HFW1000SP-W
Features
1/4” 1 Megapixel progressive scan CMOS
H.264 & MJPEG dual-stream encoding
Max 25/30fps@720P(1280× 720)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3.6mm fixed lens (6mm optional)
Max. IR LEDs Length 30m
Wi-Fi support
IP66，DC12V
Camera
Image Sensor 1/4” 1Megapixel progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination Color: 0. 01Lux/F1.8 ; 0Lux (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC /HLC /DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (6mm optional)
Max Aperture F1.8(F1.8)
Focus Control Manual
Angle of View H: 59°(37°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264B/H.264/MJPEG
Resolution 720P(1280× 720)/D1(704× 576/704× 480) /CIF(352× 288/352× 240)
Frame Rate
Main Stream 720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
Wi-Fi Range 50m(open field)
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
General
Power Supply DC12V
Power Consumption < 6.5W
Working Environment -30°C~+50°C, Less than 95%RH
Ingress Protection IP66
Vandal Resistance N/A

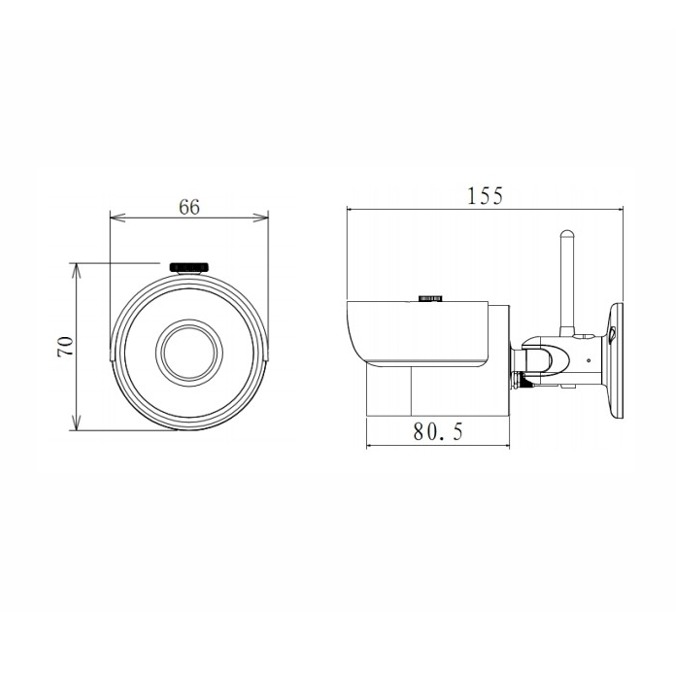

Dimensions Φ70mm× 66mm× 155mm
Weight 0.42Kg
Features
1/4” 1 Megapixel progressive scan CMOS
H.264 & MJPEG dual-stream encoding
Max 25/30fps@720P(1280× 720)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3.6mm fixed lens (6mm optional)
Max. IR LEDs Length 30m
Wi-Fi support
IP66，DC12V
Camera
Image Sensor 1/4” 1Megapixel progressive scan CMOS
Effective Pixels 1280(H)x720(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3(4)~1/10000
Min. Illumination Color: 0. 01Lux/F1.8 ; 0Lux (IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC /HLC /DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6mm (6mm optional)
Max Aperture F1.8(F1.8)
Focus Control Manual
Angle of View H: 59°(37°)
Lens Type Fixed lens
Mount Type Board-in Type
Video
Compression H.264B/H.264/MJPEG
Resolution 720P(1280× 720)/D1(704× 576/704× 480) /CIF(352× 288/352× 240)
Frame Rate
Main Stream 720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 448K ~ 8192Kbps
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
Wi-Fi Range 50m(open field)
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,
SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
General
Power Supply DC12V
Power Consumption < 6.5W
Working Environment -30°C~+50°C, Less than 95%RH
Ingress Protection IP66
Vandal Resistance N/A
Dimensions Φ70mm× 66mm× 155mm
Weight 0.42Kg
Характеристики
| Mount Type Board-in Type | Video |
| Compression H.264B/H.264/MJPEG | Resolution 720P(1280× 720)/D1(704× 576/704× 480) /CIF(352× 288/352× 240) |
| Frame Rate | Main Stream 720P(1 ~ 25/30fps) |
| Sub Stream D1/CIF(1 ~ 25/30fps) | Bit Rate H.264: 448K ~ 8192Kbps |
| Network | Ethernet RJ-45 (10/100Base-T) |
| Wi-Fi Wi-Fi(IEEE802.11b/g/n) | Wi-Fi Range 50m(open field) |
