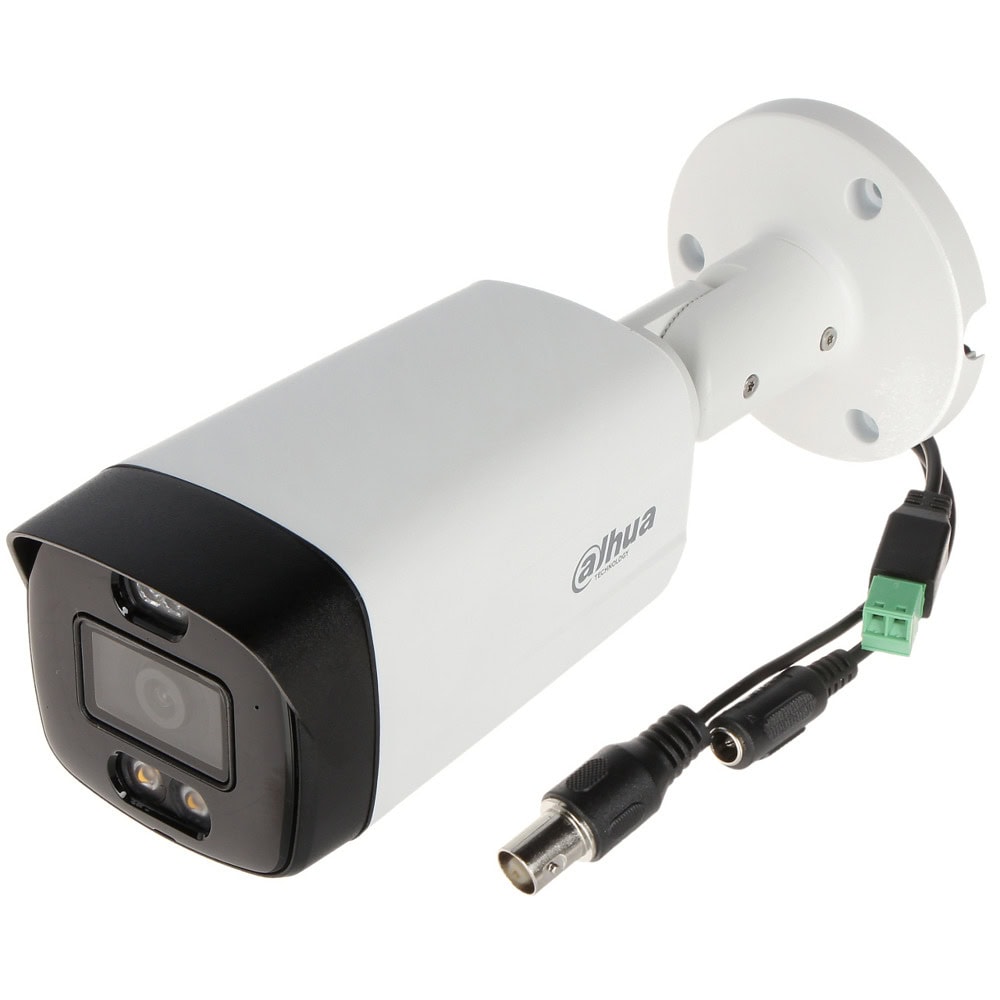

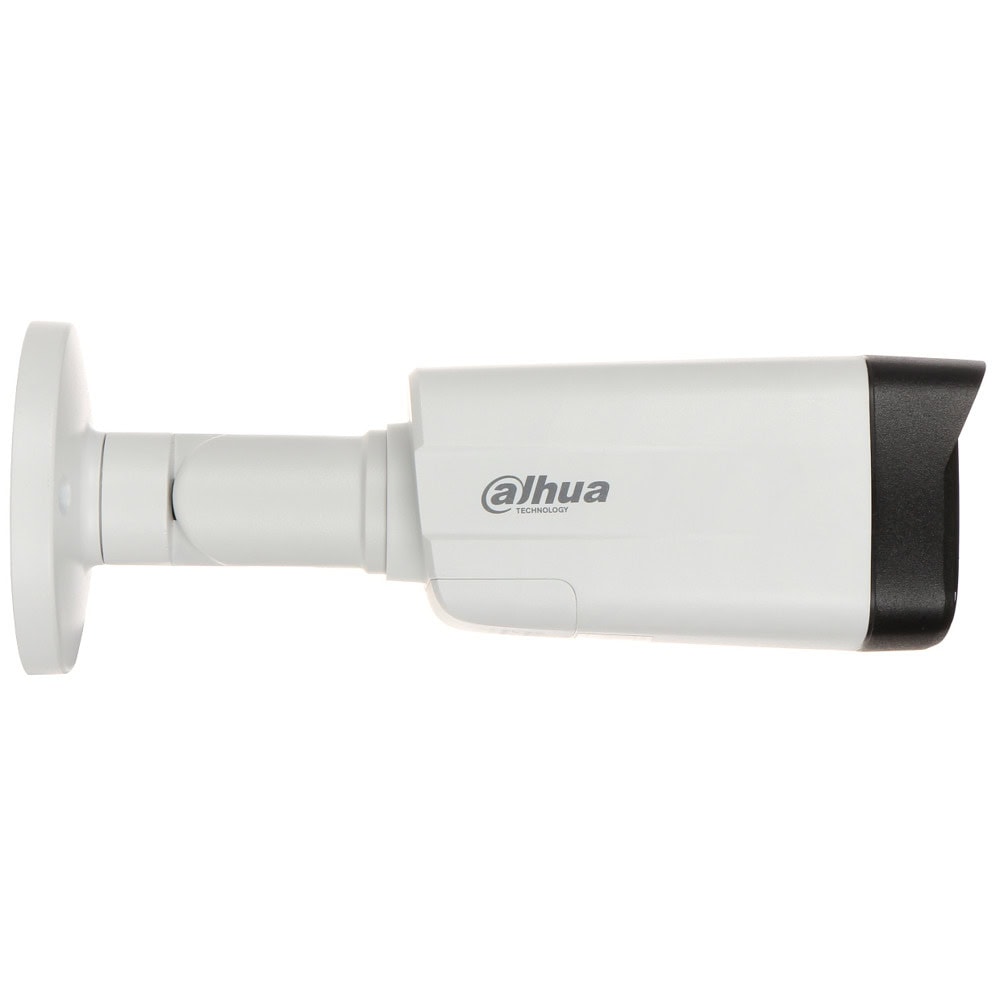

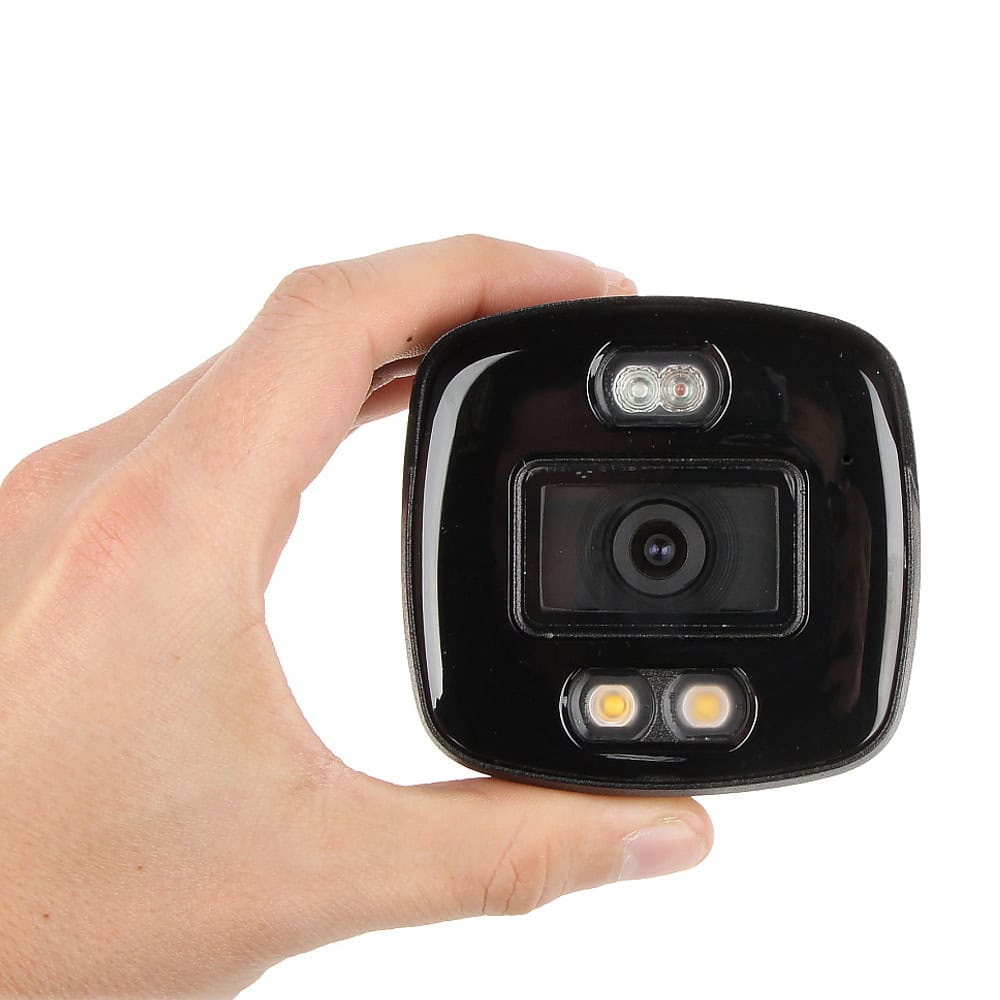

HDCVI камера Dahua HAC-ME1509TH-A-PV-0360B-S2
Dahua HAC-ME1509TH-A-PV-0360B-S2
Megapixel camera with 1/2.7" CMOS sensor and AHD / HD-CVI / HD-TVI / PAL.
The device is equipped with Smart Dual Illumination technology, thanks to which the user has a choice of white light mode and IR (infrared) mode. When Smart Dual Illumination is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves the image quality.
The AHD / HD-CVI / HD-TVI interface allows to transmission of analog video signal via coaxial cable in max. 8 Mpx (4K UHD) resolution. During transmission there are no delays and is maintained the original, high quality image.
In the case of video transmission using a twisted pair cable and matching transformers (balun), be aware of the possibility of signal reflections and interfering signals.
Camera is according to IP67 Index of Protection norm.
In addition, the camera has the function of active deterrence of intruders using flashing red and blue light and siren sound.
Характеристики
| Standard | AHD, HD-CVI, HD-TVI, CVBS |
| Sensor | 1/2.7 " Progressive Scan CMOS |
| Matrix size | 5 Mpx |
| Резолюция | 2880 x 1620 - 5 Mpx @ HD-CVI @ 25 fps - Aspect Ratio 16 : 9,2560 x 1440 - 3.7 Mpx @ AHD / HD-CVI / HD-TVI @ 25 fps,1920 x 1080 - 1080p @ HD-CVI @ 25 fps,960 x 576 - 960H @ PAL |
| Lens | 3.6 mm |
| View angle | 89 ° (manufacturer data)84 ° (our tests result) |
| Range of IR illumination | 40 m |
| White light LED illuminator range | 40 m |
| Video output | AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω |
| Аудио | Microphone built-inAudio support via coaxial cable - HD-CVI onlySpeaker built-in / Alarm siren |
| Alarm inputs / outputs | 0 / 1 |
| OSD menu | OSD menu available via DAHUA recorder |
| Main features | Active deterrence function : Alternately flashing LEDs: red and blue - frequency configuration, Siren sound - 3 volume levelsPossibility to turn off the LED illuminatorWDR - 120 dB - Wide Dynamic Range3D-DNR - Digital Noise ReductionF-DNR (Defog) - Reduction of image noise caused by precipitationD-ZOOM - Digital Zoom : 4x Auto White BalanceAGC - Automatic Gain ControlBLC/HLC - Back Light / High Light CompensationMirror - Mirror imagePrivacy zonesSharpness - sharper image outlines |
| Index of Protection" | IP67 |
| Захранване | 12 V DC / 870 mA |
| Консумация на енергия | ≤ 10.5 W |
| Housing | Compact, Plastic + Metal |
| Vandal-proof | Не |
| Цвят | White + Black |
| Operation temp | -40 °C ... 60 °C |
| Тегло | 0.48 kg |
| Размери | 241 x 91 x 91 mm |
