Dahua

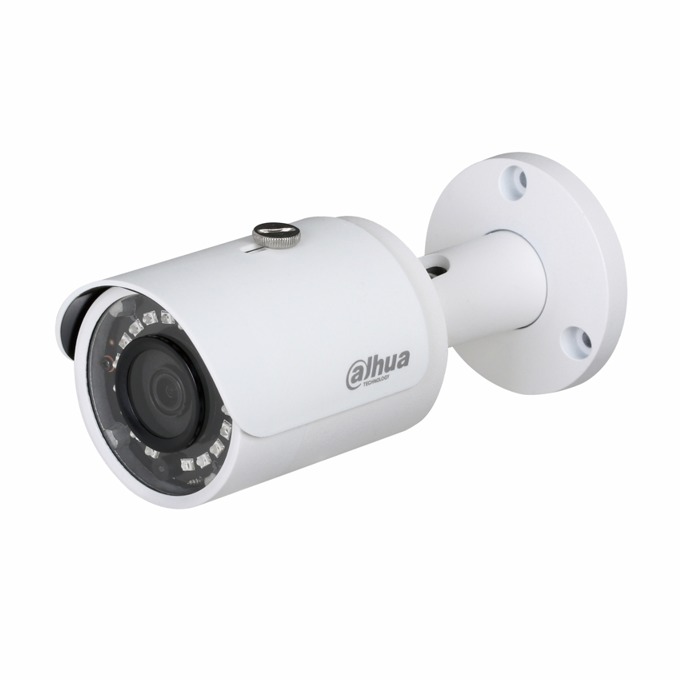

HDCVI камера Dahua HAC-HFW1230SP-0360B
Артикул №: 1000113008
Категория:
Видеонаблюдение и аларми
57,99 €
✓ Налично във външен склад
Starlight
Max. 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (2.8mm, 6mm optional)
Max. IR length 30m, Smart IR
IP67, DC12V
Характеристики
| Image Sensor | 1/2.8" CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s |
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 18 |
| Lens | Да |
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm, 6mm Optional) |
| Max Aperture | F1.6 |
| Angle of View | H: 86.9° (106.0°/52.9°) |
| Focus Control | — |
| Close Focus Distance | 1200mm (600mm/2400mm) 47.2'' (23.6''/94.5'') |
| Pan / Tilt / Rotation | Да |
| Pan | 0° ~ 360° |
| Наклон | 0° ~ 90° |
| Rotation | 0° ~ 360° |
| Video | Да |
| Резолюция | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | Да |
| CE (EN55032, EN55024, EN50130-4) | Да |
| FCC (CFR | 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | Да |
| Интерфейс | Да |
| Audio Interface | — |
| Electrical | Да |
| Захранване | 12V DC ±30% |
| Консумация на енергия | Max 4.5W (12V DC, IR on) |
| Environmental | Да |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Start up should be done at above -40°C (-40°F) | Да |
| Storage Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection & Vandal | Resistance IP67 |
| Construction | Да |
| Casing | Алуминий |
| Размери | 164.7mm×70mm×71.6mm (6.48"×2.76"×2.82") |
| Нето тегло | 0.36kg (0.79lb) |
| Бруто тегло | 0.45kg (0.99lb) |
