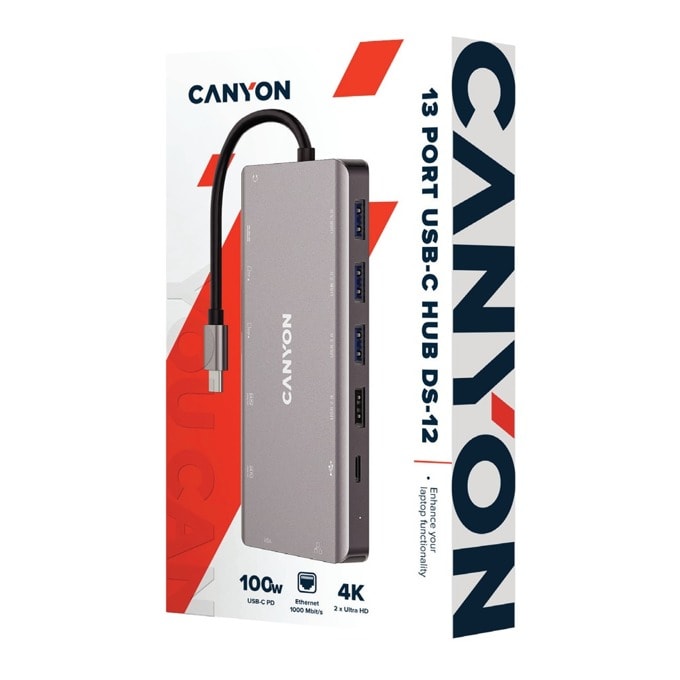

Докинг станция Canyon CNS-TDS12
13 Port USB-C Hub
DS-12
The model DS-12 represents maximum functionality and flexibility in use. You can connect two monitors via HDMI ports or transmit a video signal via a VGA connector. Headphones and speakers are plugged in through a 3.5 mm mini-jack. Three USB-A 3.0 ports and one USB-A 2.0 port are provided to use all the necessary computer peripherals. Two conveniently located SD and Micro SD card reader slots allow you to transfer large amounts of data instantly. The up to 100W USB-C PD charging port automatically detects an optimal charging speed for a connected device. If necessary, you can connect to the web directly via Gigabit Ethernet. In addition to all of the above, the hub is compatible with Samsung DEX and Nintendo Switch. All this functionality is enclosed in a durable aluminum housing that suppresses interference in signal transmission. The device is “Plug and Play,” so you don’t need additional software to start using the hub. Increase the functionality of your device by connecting everything you need!
- 13 ports
- USB-C PD charging, 100W
- Gigabit Ethernet
- 2 x 4K Ultra HD ports
- Connects 2 monitors simultaneously
- 3 х USB-A 3.0
- 1 х USB-A 2.0
- Audio 3.5 mm
- USB-C data transfer
- VGA data transmission
- SD, Micro SD card readers
- Aluminum housing
- Supports Samsung DEX and Nintendo Switch
- Compatible with computers, tablets and smartphones
- “Plug and Play”
Article
CNS-TDS12Dark Gray
Характеристики
| PortsVGA, USB, Gigabit Ethernet, Audio-In, HDMI | Да |
| Card readersSD, Micro SD | Да |
| Housing materialAluminum | Да |
| Ethernet output1000 Mbps | Да |
| Charging portUSB-C PD, max. | 100 W |
| Cable length0.18 m | Да |
| Connection method“Plug and Play”, “Hot Swap” mode | Да |
| CompatibilityComputer, tablet, smartphone | Да |
| SupportSamsung DEX and Nintendo Switch | Да |
| INTERFACES | Да |
| HDMIх2 HDMI (Type A), | 4K*30 Hz / 1080P*60 Hz |
| LANх1 RJ-45 | Да |
| USBх2 USB Type-C, transfer rate max. | 480 Mbps |
| USB | 3.0x2 USB 3.0 (Type A), transfer rate max. 5 Gbps |
| USB | 2.0х1 USB 2.0 (Type A), transfer rate max. 480 Mbps |
| Audio interfaceх1 | 3.5-mm minijack |
| Gigabit EthernetNetwork support | 10/100/1000 Mbps |
| VGAх1 | 15-pin D-sub, 1080P*60 Hz |
| SDx1 Max. data transfer rate up to | 480 Mbps |
| Micro SDx1 Max. data transfer rate up to | 480 Mbps |
| DIMENSIONS & WEIGHT | Да |
| Width15 mm | Да |
| Height57.5 mm | Да |
| Depth130 mm | Да |
| Rated weight88.5 g | Да |
| Съвместимост | Да |
