Докинг станция ATEN UH3240
Артикул №: 1000144320
Категория:
Аксесоари за лаптопи
105,99 €
✓ Ограничена наличност

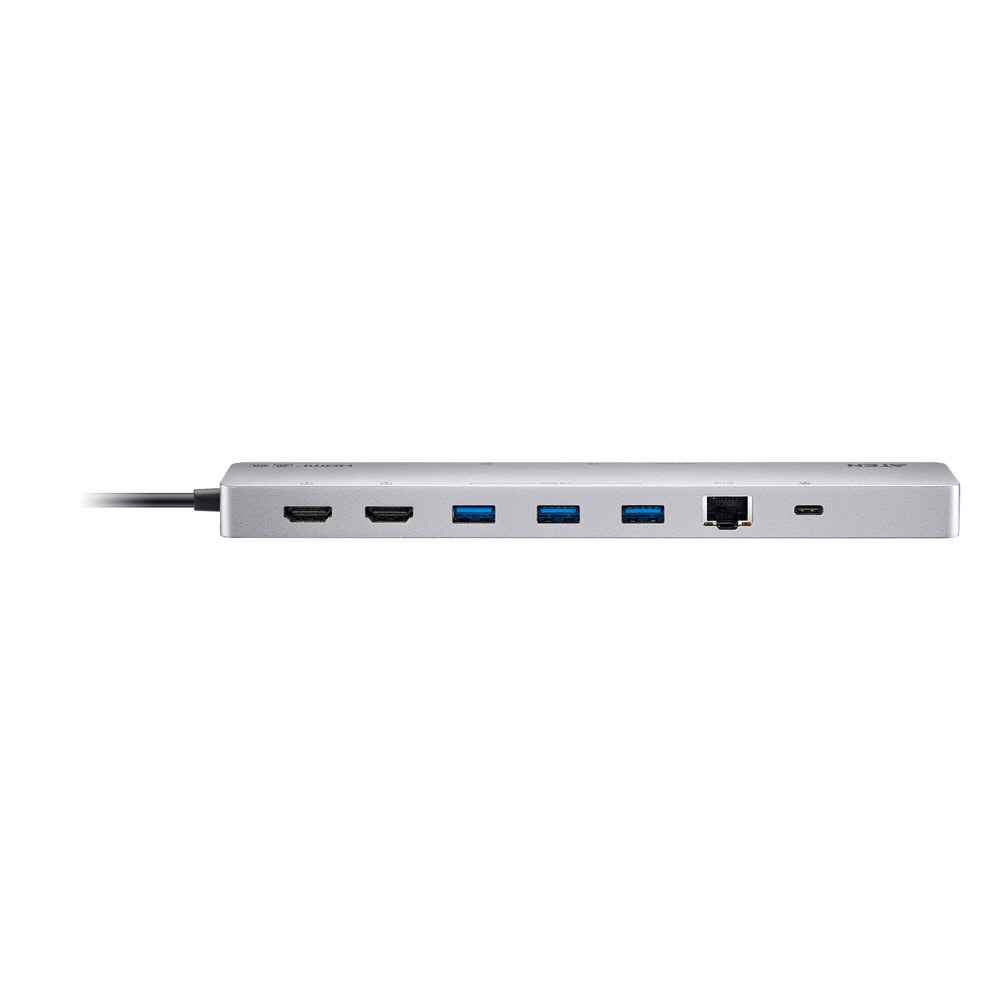

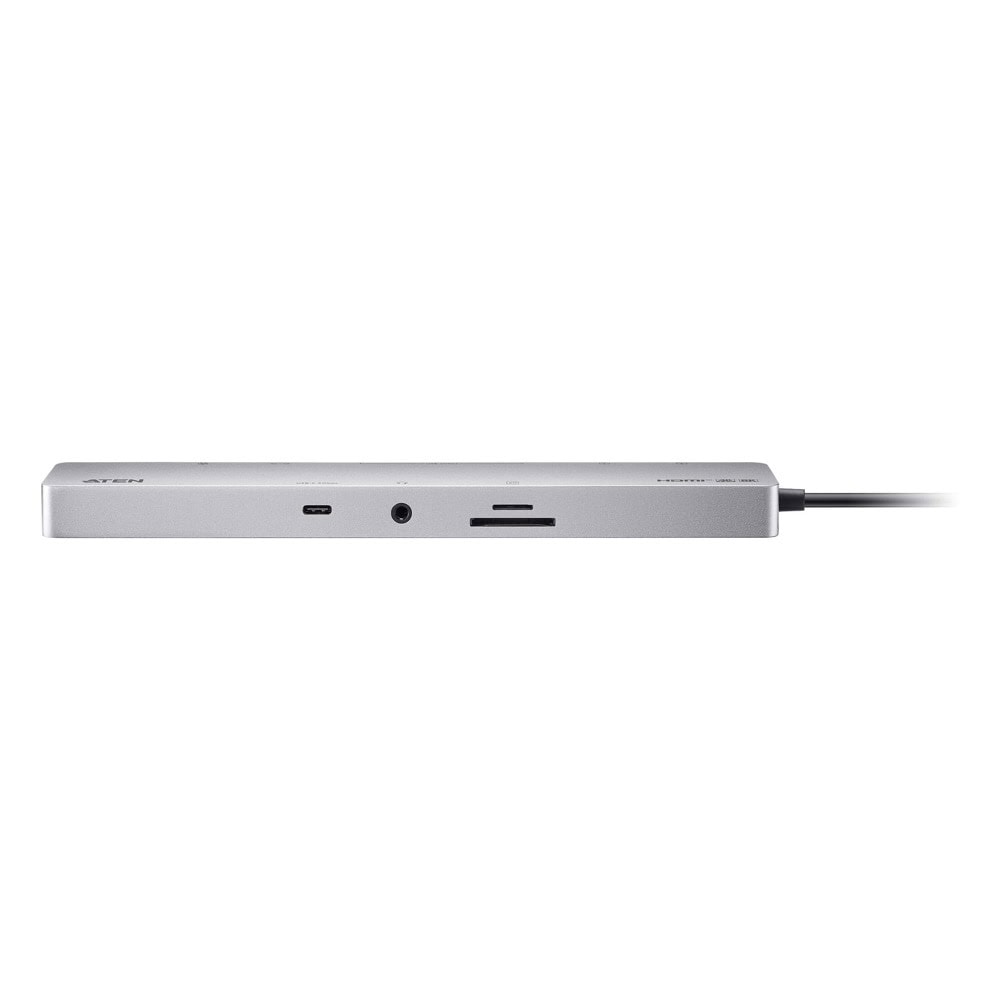

ATEN UH3240
Dual 4K Display
Extend to two 4K Display with Multi-Stream Transport (MST)
Enjoy Impeccable Visual QualityOptimize your screen resolution to befit the task at hand
Vivid & Sharp 8K DisplayEnthralling visual indulgence of entertainment apex

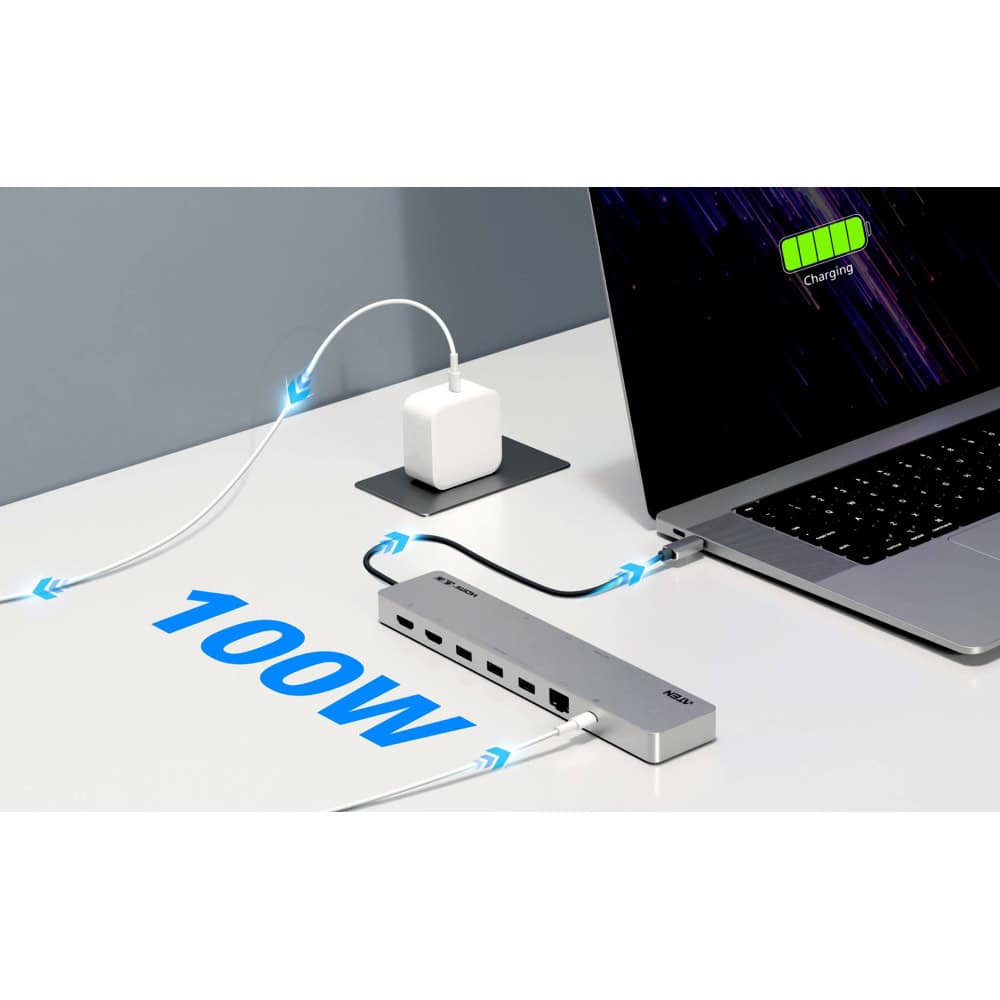

100W Power Delivery with PD 3.0Power on your devices for your multitasking needs
Note: A self-supplied (original USB-C PD power adapter and cable from the source device is highly recommended) USB-C PD power adapter is needed.
11-in-1 USB-C Dock with Power Pass-through
Multiplatform Support
*Relevant compatible devices must be USB-C enabled
Характеристики
| Cable Length40cm | Да |
| Конектори | Да |
| Computer1 x USB-C | 3.2 Gen 1 Male Cable |
| Video Output2 x HDMI Female | Да |
| LAN Ports1 x Gigabit Ethernet Female | Да |
| Audio1 x | 3.5mm stereo 4-pole microphone and headphone jack |
| Power1 x USB Type-C Female* Note | *Supports USB Power Delivery 3.0 for charging up to 100W, power profiles include 5V, 9V, 12V, 15V, and 20V. *The minimum system power requirement for basic USB functions and video output should be at least 5V, 6W. *A self-supplied (original USB-C PD power adapter and cable from the host device is highly recommended) USB-C PD power adapter is needed. |
| Performance | Да |
| Video ResolutionSingle View | 7680 x 4320; 3840 x 2160 @ 120 Hz Dual View: 3840 x 2160 @ 60 Hz Note: *The max. resolution supported for only HDMI 2 is 4K @ 120 Hz. *We recommend using self-supplied HDMI 2.1 cable or our ATEN 2L-7D02H21 HDMI cable for 8K resolution. For system requirement of the host device, it is highly recommended that the Intel 12thGeneration Core Processor is used to achieve 8K resolution. *To get max bandwidth, the host should support standard DP 1.4 Alt mode with DSC3:1 and HBR3. When connecting a DP 1.2 Alt mode supported device, the max resolution of HDMI is 4K @ 30 Hz due to bandwidth limitation. *For extend mode to work, a computer’s graphics card must support MST technology. Mac computers only support single-extended display with identical content on the two connected monitors. *For MST (Extend Mode) – supports up 4K 3840 X 2160 @ 30 Hz; for SST (Mirror Mode) – supports up to 4K 3840 x 2160 @ 60 Hz. |
| Power ConsumptionDC5V | 18WBTU/h Note: ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental | Да |
| Operating Temperature0 – | 40°C |
| Storage Temperature-20 – | 60°C |
| Humidity0 – | 80% RH, Non-condensing |
| Physical Properties | Да |
| HousingAluminum | Да |
| Weight0.18 kg ( | 0.41 lb ) |
