Asus
Дънна платка за сървър Asus Pro WS W790E-SAGE SE
Артикул №: 1000136912
Категория:
Компютърни компоненти
1 016,99 €
✓ Ограничена наличност
Function-first aesthetics
Low-profile professionalism
With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS W790 series presents a professional, low-profile look for content creators.
Thorough thermal design
Massive VRM Heatsinks
Since mass and airflow are critically important, our VRM heatsinks are manufactured with tall and densely packed fins, and are placed on the MOSFETs and chokes to enhance thermal efficiency. Additional fan bracket allows users to install up to three high-speed fans*, drawing heat away from VRM areas to fully unleash the performance of the latest Intel processors.
* Fan size: 40mm x 40mm x 28mm. Fans are purchased separately.
Chipset heatsink
A dedicated and beefy chipset heatsink draws heat away to maintain optimum operating temperatures.
Характеристики
| Supports Intel® Turbo Boost Max Technology | 3.0 |
| Refer to www.asus.com for CPU support list | Да |
| Чипсет | Да |
| Intel® W790 Chipset | Да |
| Памет | Да |
| 8-Channel Memory Architecture | Да |
| Supports Intel® Extreme Memory Profile (XMP) | Да |
| Графика | Да |
| X VGA port from AST2600 | 1 |
| Слотове за разширение | Да |
| Intel® Xeon® W-3400 Series Processors* | Да |
| X PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)** | 7 |
| Intel® Xeon® W-2400 Series Processors* | Да |
| X PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)** | 4 |
| Капацитет за съхранение | Да |
| Intel® Xeon® W-3400 Series Processors | Да |
| Intel® W790 Chipet** | Да |
| SlimSAS_1 port supports PCIe 4.0 | x4 mode NVMe device |
| SlimSAS_2 port supports PCIe 4.0 | x4 mode NVMe device |
| X SATA 6Gb/s ports | 8 |
| Ethernet | Да |
| X Intel® dual 10Gb Ethernet | 1 |
| X Realtek 1Gb Ethernet | 1 |
| ASUS LANGuard | Да |
| USB | Да |
| Rear USB (Total | 8 ports) |
| X USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) | 1 |
| X USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C®) | 5 |
| X USB 2.0 port(s) (2 x Type-A) | 2 |
| Front USB (Total | 7 ports) |
| X USB 3.2 Gen 2 connector (supports USB Type-C® ) | 1 |
| X USB 2.0 header(s) support(s) 4 additional USB 2.0 ports | 2 |
| Аудио | Да |
| Impedance sense for front and rear headphone outputs | Да |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 32-Bit/192 kHz playback* |
| Audio Features | Да |
| Rear optical S/PDIF out port | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |
| Unique de-pop circuit | Да |
| Surround Sound audio | Да |

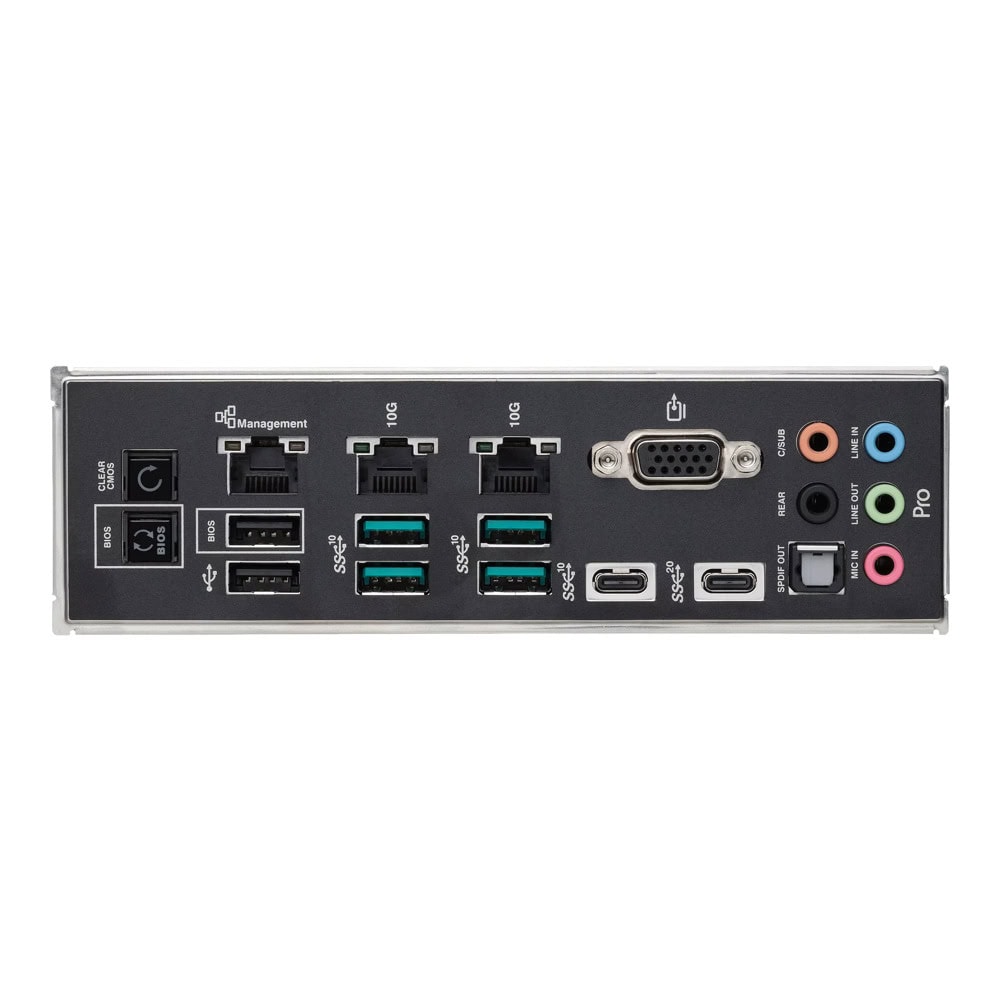

| Back Panel I/O Ports | Да |
| X USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) | 1 |
| X USB 3.2 Gen 2 port(s) (4 x Type-A + 1 x USB Type-C) | 5 |
| X USB 2.0 port(s) (2 x Type-A) | 2 |
| X VGA port | 1 |
| X Intel dual 10Gb Ethernet ports | 2 |
| X Realtek 1Gb Ethernet port | 1 |
| X Audio jacks | 5 |
| X Optical S/PDIF out port | 1 |
| X BIOS FlashBack™ button | 1 |
| X Clear CMOS button | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling related | Да |
| X 4-pin CPU Fan header(s) | 1 |
| X 4-pin CPU OPT Fan header(s) | 1 |
| X 4-pin Chassis Fan header(s) | 5 |
| X W_PUMP+ header(s) | 1 |
| Power related | Да |
| X 24-pin Main Power connector | 2 |
| X 8-pin +12V Power connector | 4 |
| X 8-pin PCIe Power connector | 1 |
| X 6-pin PCIe Power connector | 1 |
| Storage related | Да |
| X M.2 slots (Key M) | 3 |
| X SlimSAS connector(s) | 2 |
| X SATA 6Gb/s ports | 8 |
| X VROC Key connector | 1 |
| USB | Да |
| X USB 3.2 Gen 2 connector (support(s) USB Type-C® ) | 1 |
| X USB 2.0 header(s) support(s) 4 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X COM Port header | 1 |
| X FlexKey button | 1 |
| X Front Panel Audio header (AAFP) | 1 |
| X LN2 Mode jumper | 1 |
| X M.2 slot (Key E) | 1 |
| X ReTry button | 1 |
| X Safe Boot button | 1 |
| X SPI TPM header (14-1pin) | 1 |
| X Start button | 1 |
| X Thermal Sensor header | 1 |
| BMC Related | Да |
| X BMC switch | 1 |
| X VGA switch | 1 |
| X BMC LAN fixed IP switch | 1 |
| X IPMI switch | 1 |
| X Q_PSU switch | 2 |
| X PSU SMBus header | 2 |
| X Front panel location LED header | 1 |
| X Location button header | 1 |
| X VPP_I2C header | 1 |
| X Micro SD card socket | 1 |
| X BMC_T_SENSOR header | 1 |
| X BMC LED | 1 |
| X Location LED | 1 |
| X Message LED header | 1 |
| Special Features | Да |
| Extreme OC Kit | Да |
| FlexKey button | Да |
| LN2 Mode | Да |
| ReTry button | Да |
| Safe boot button | Да |
| Start button | Да |
| Extreme Engine Digi+ | Да |
| 10K Black Metallic Capacitors | Да |
| MicroFine Alloy Choke | Да |
| ASUS | 5X PROTECTION III |
| DIGI+ VRM (- Digital power design with DrMOS) | Да |
| ESD Guards | Да |
| LANGuard | Да |
| Overvoltage Protection | Да |
| Safeslot | Да |
| Stainless-Steel Back I/O | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| Q-Code | Да |
| Q-Connector | Да |
| Q-DIMM | Да |
| Q-Slot | Да |
| ASUS Thermal Solution | Да |
| M.2 heatsink backplate | Да |
| M.2 heatsink | Да |
| Steel backplate | Да |
| VRM heatsink design | Да |
| ASUS EZ DIY | Да |
| BIOS FlashBack™ button | Да |
| BIOS FlashBack™ LED | Да |
| Caterr1 LED | Да |
| Box Headers | Да |
| Clear CMOS button | Да |
| ProCool II | Да |
| Pre-mounted I/O shield | Да |
| SafeSlot | Да |
| SafeDIMM | Да |
| Bespoke Motherboard Design & Business Focused Features | Да |
| 24/7 Reliability | Да |
| Overcurrent Protection | Да |
| Software Features | Да |
| UEFI BIOS | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUSTeK. EzFlash Utility | Да |
| FlexKey | Да |
| BIOS | Да |
| Mb Flash ROM, UEFI AMI BIOS | 512 |
| Manageability | Да |
| WOL by PME, PXE (UEFI mode) | Да |
| Операционна система | Да |
| Windows | 11, Windows 10 64-bit |
| Форм фактор | Да |
| EEB Form Factor | Да |
| 12 inch | x 13 inch (30.5 cm x 33 cm) |
