MSI
Дънна платка MSI PRO Z790-P WIFI
Артикул №: 1000125893
Категория:
Компютърни компоненти
207,99 €
✓ Налично в централен склад

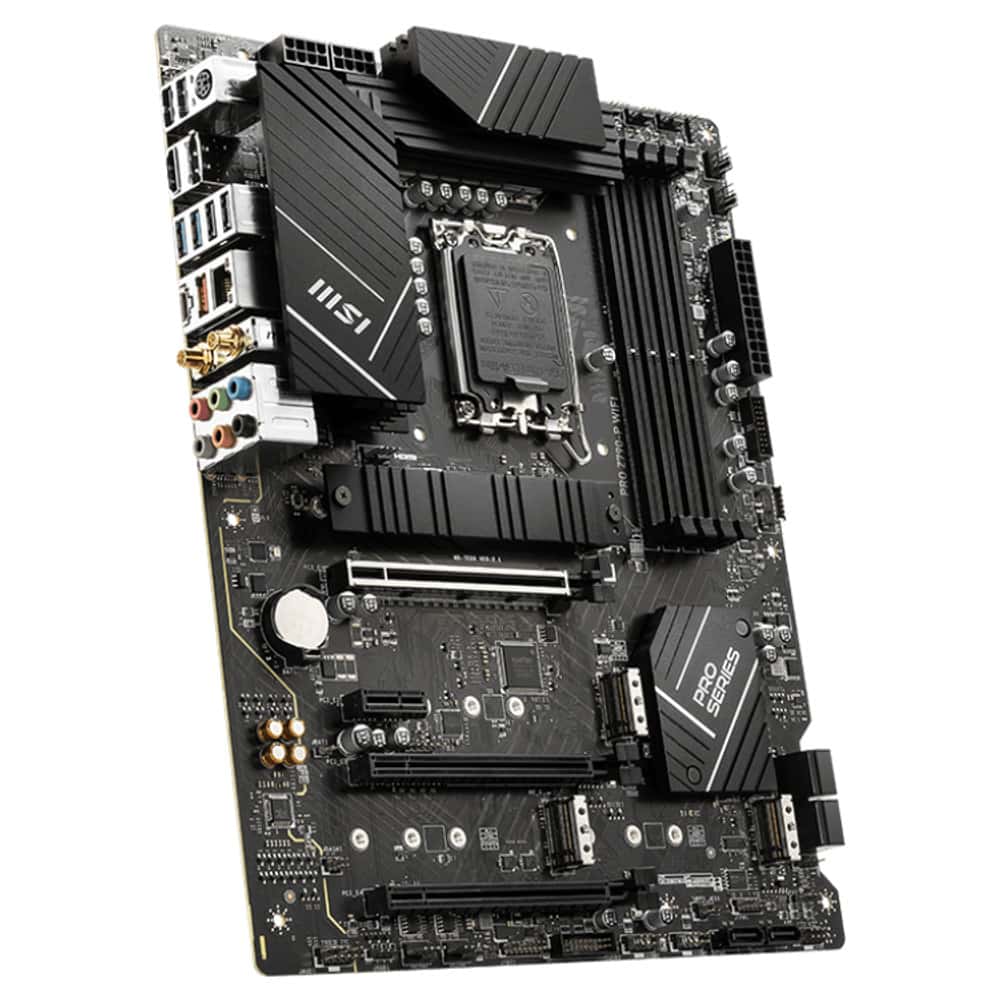

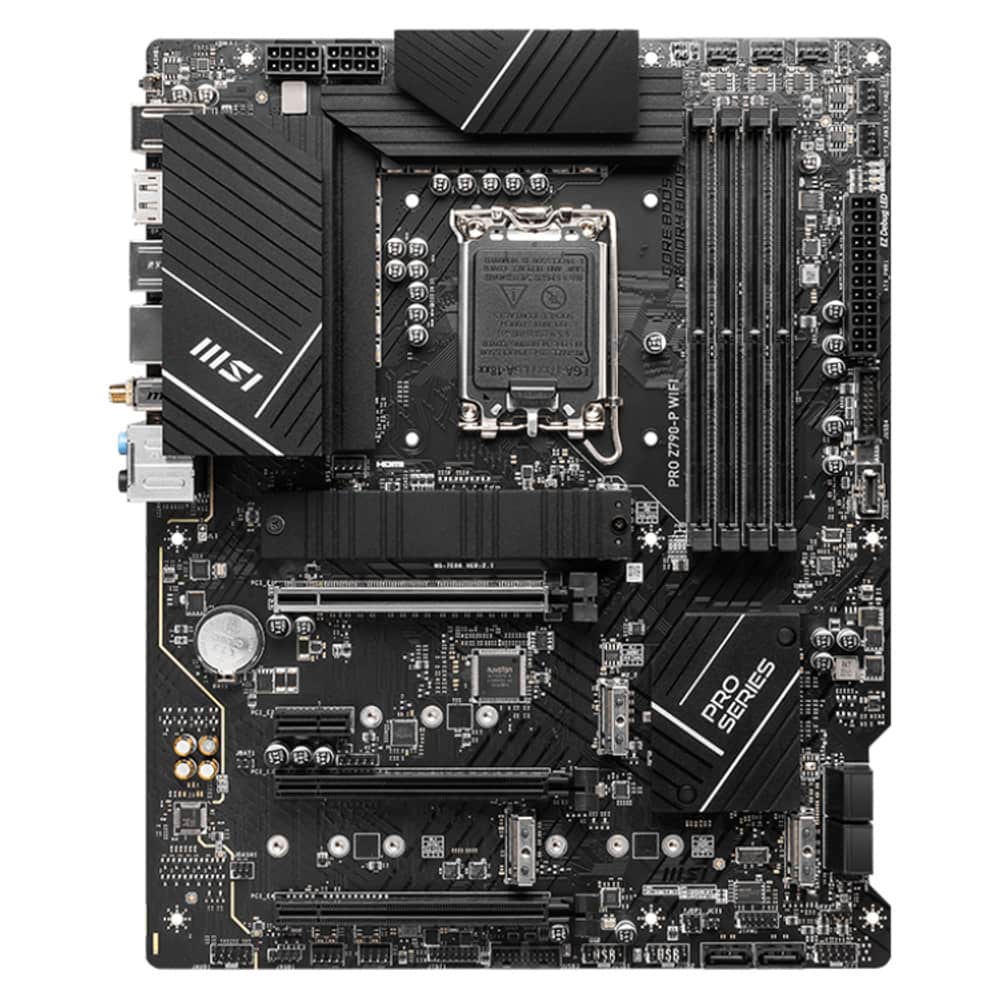

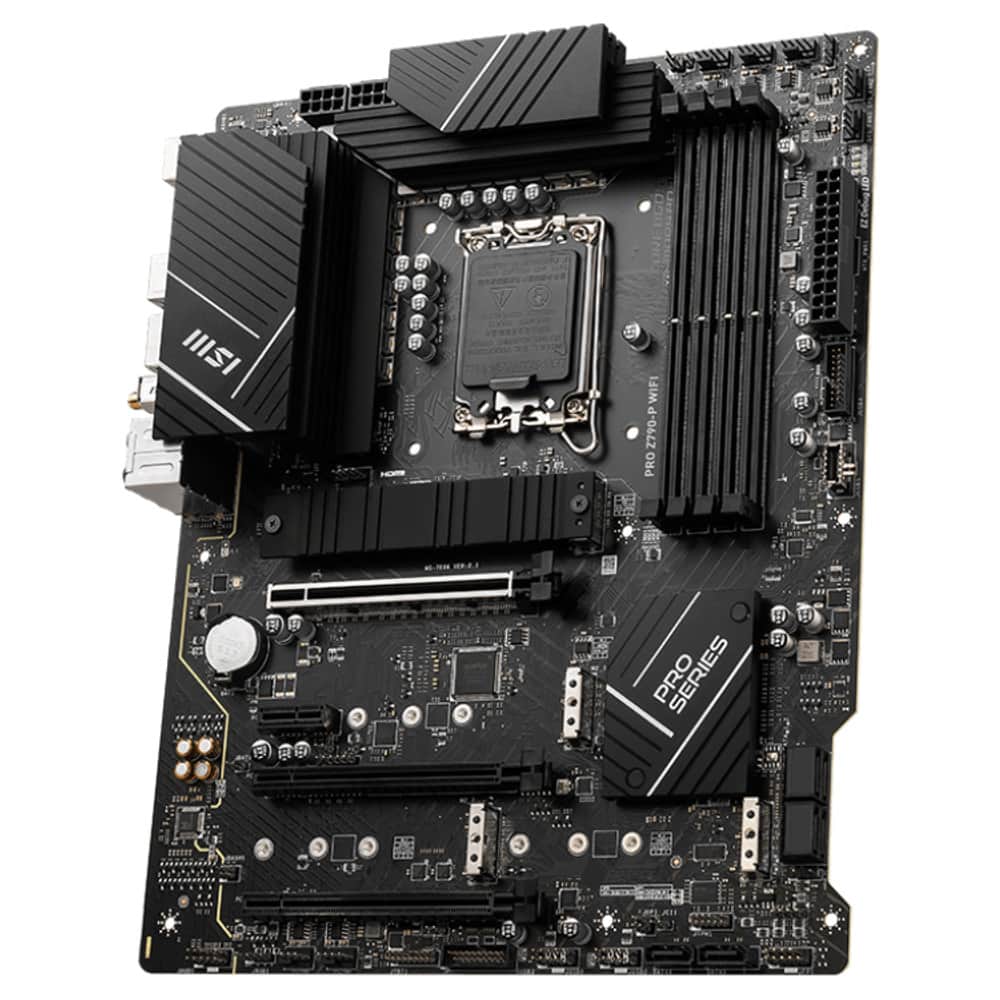

PRO Z790-P WIFI
PRO Z790-P WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
- Supports 12th/13th Gen Intel ® Core™, Pentium ® Gold and Celeron ® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Характеристики
| Чипсет | INTEL Z790 |
| CPU SUPPORT | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors · · LGA 1700 |
| Памет | 4x DDR5, Maximum Memory Capacity 128GB · · Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz · · Max. overclocking frequency: · · • 1DPC 1R Max speed up to 7000+ MHz · · • 1DPC 2R Max speed up to 6600+ MHz · · • 2DPC 1R Max speed up to 6400+ MHz · · • 2DPC 2R Max speed up to 5600+ MHz · · · · Supports Intel® XMP3.0 OC · · Supports Dual-Controller Dual-Channel mode · · Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ · · 1x DisplayPort · · Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* · · Support DP 1.4, maximum resolution of 4K 60Hz* · · *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 3x PCI-E x16 slot · · 1x PCI-E x1 slot · · PCI_E1 PCIe 5.0 supports up to x16 (From CPU) · · PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) · · PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) · · PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
| Капацитет за съхранение | 4x M.2 slot · · M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices · · M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices · · M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · · M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices · · 6x SATA 6G port |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices · · Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices · · |

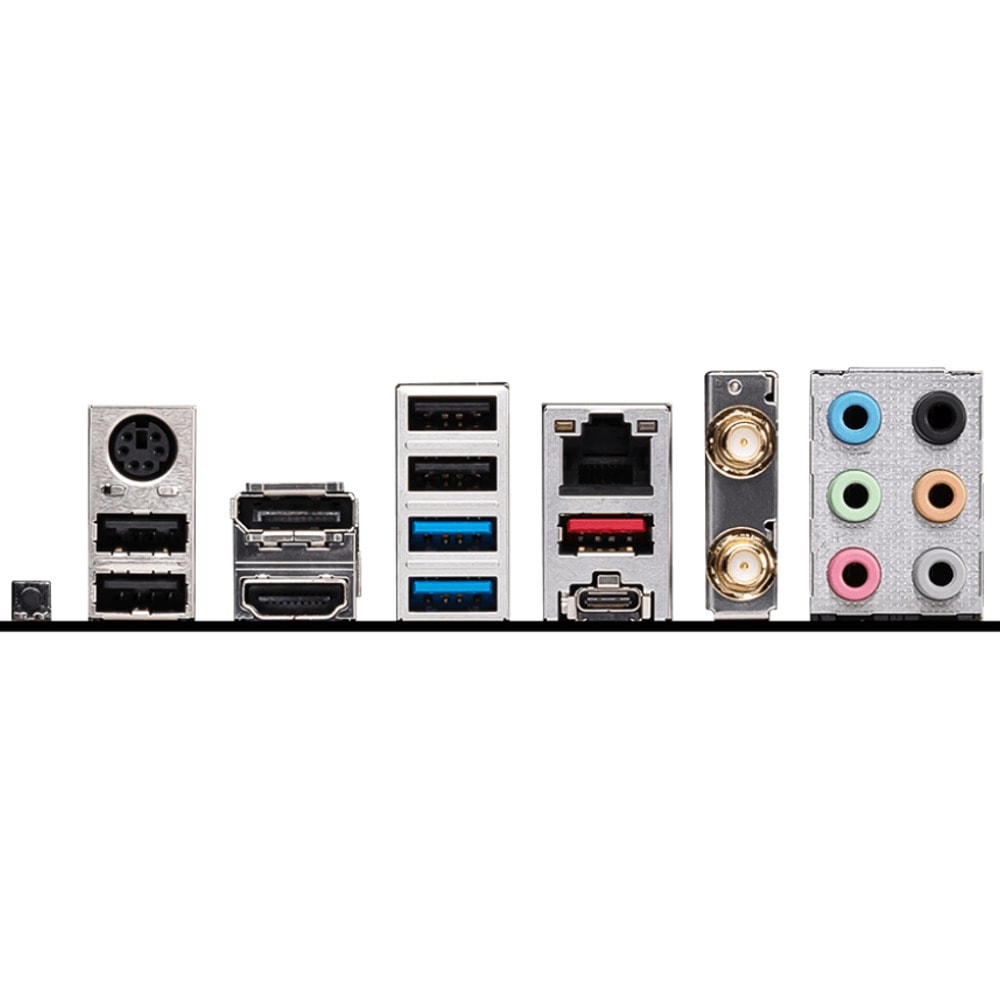

| USB | 4x USB 2.0 (Rear) · · 4x USB 2.0 (Front) · · 2x USB 3.2 Gen1 Type A (Rear) · · 4x USB 3.2 Gen1 Type A (Front) · · 1x USB 3.2 Gen2 Type A (Rear) · · 1x USB 3.2 Gen2 Type C (Front) · · 1x USB 3.2 Gen2x2 Type C (Rear) |
| Мрежова карта | Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6E · · The Wireless module is pre-installed in the M.2 (Key-E) slot · · Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps · · Supports 802.11 a/ b/ g/ n/ ac/ ax · · · · Supports Bluetooth® 5.3, FIPS, FISMA · · · · * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. · · ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| Аудио | Realtek® ALC897 Codec · · 7.1-Channel High Definition Audio |
| Internal I/O | 1x Power Connector(ATX_PWR) · · 2x Power Connector(CPU_PWR) · · 1x CPU Fan · · 1x Pump Fan · · 6x System Fan · · 2x Front Panel (JFP) · · 1x Chassis Intrusion (JCI) · · 1x Front Audio (JAUD) · · 1x TBT connector (JTBT, supports RTD3) · · 1x Tuning Controller connector(JDASH) · · 2x Addressable V2 RGB LED connector (JARGB_V2) · · 1x RGB LED connector(JRGB) · · 1x TPM pin header(Support TPM 2.0) · · 4x USB 2.0 · · 4x USB 3.2 Gen1 Type A · · 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |
| Операционна система | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX · · 243.84mmx304.8mm |
