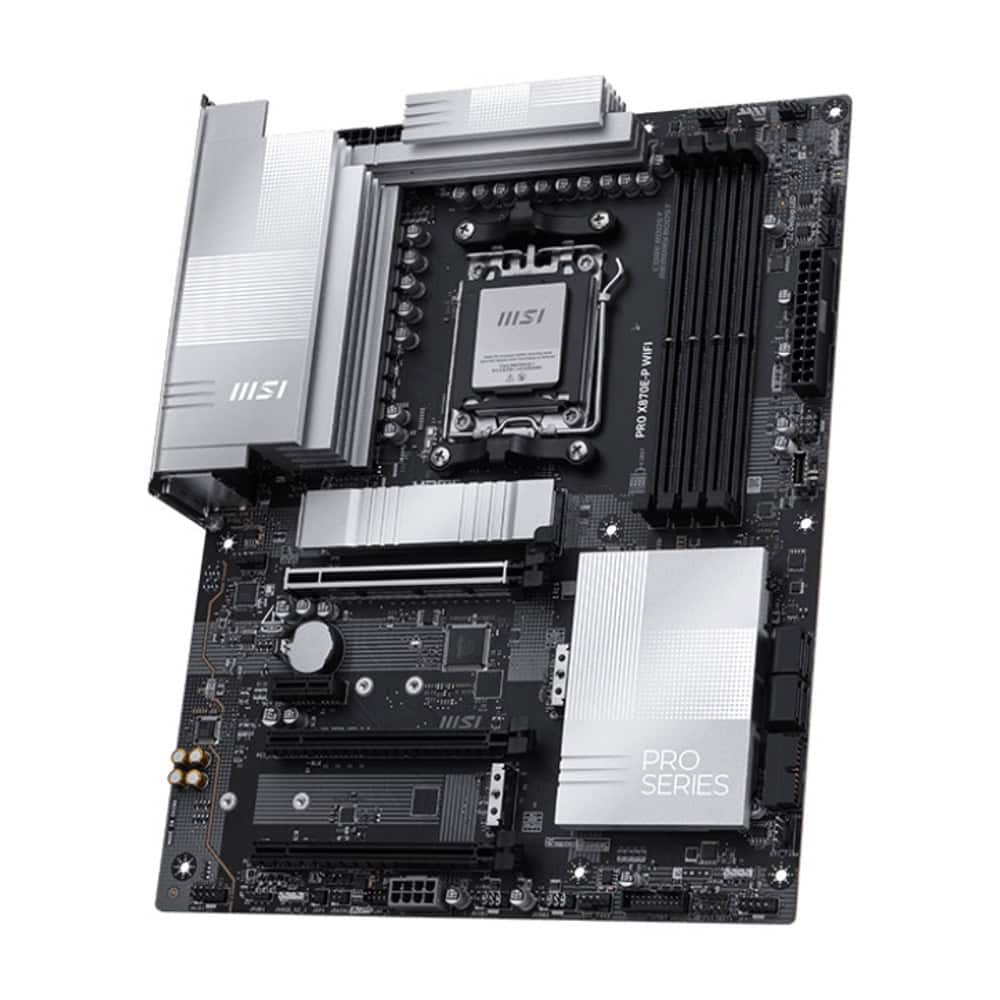

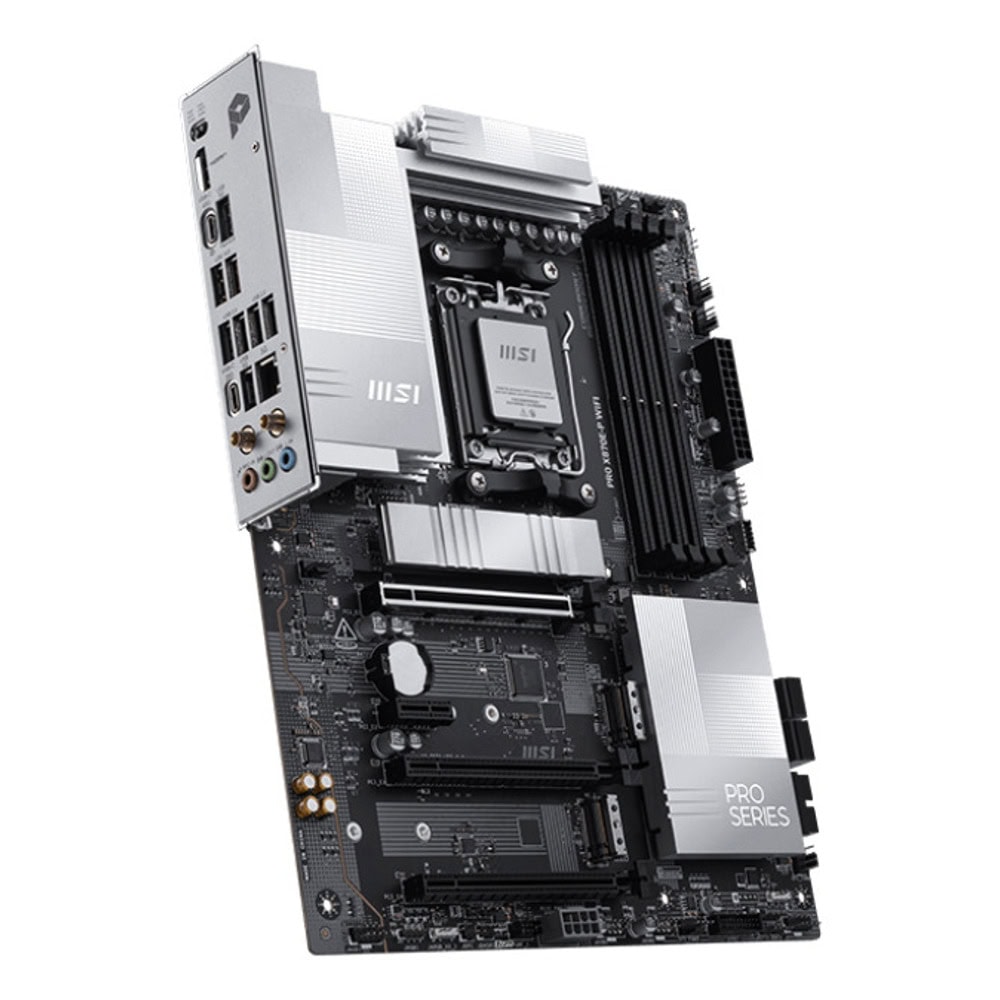

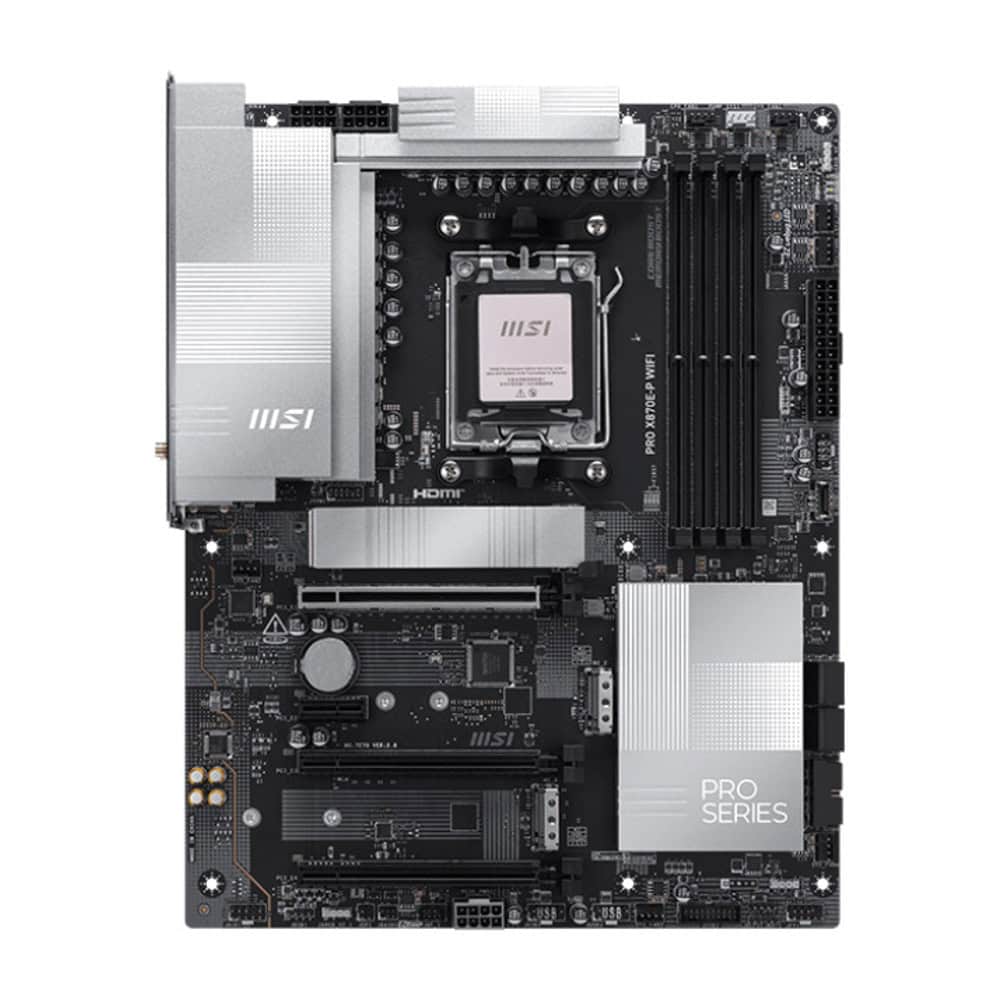

Дънна платка MSI Pro X870E-P WiFi

Lightning USB 40G:
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.

5G Network Solution:
Featuring premium 5G LAN to deliver better network experience.

EZ M.2 Shield Frozr II:
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier

EZ PCIe Clip II:
Allows for easy removal of the graphics card by pressing the tail- like lock with one finger, even in the cramped case spaces.

Lightning Gen 5:
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.

Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

Specifications:

CPU Support
Supports AMD Ryzen 9000 / 8000 / 7000 series Desktop Processors

CPU Socket
AMD Socket AM5

Chipset
AMD X870E Chipset

Expansion Slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot
2 x PCIe 3.0 x1 slots

Display Interface
1 x USB4 port supports USB Type-C display output,
Support 4K@60Hz as specified in HDMI 2.1
- Requires Processor Graphics

Memory Support
4 DIMMs, Dual Channel DDR5 - 8200+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot
2 x M.2 Gen4 x4 64Gbps slots
4 x SATA 6Gbps ports

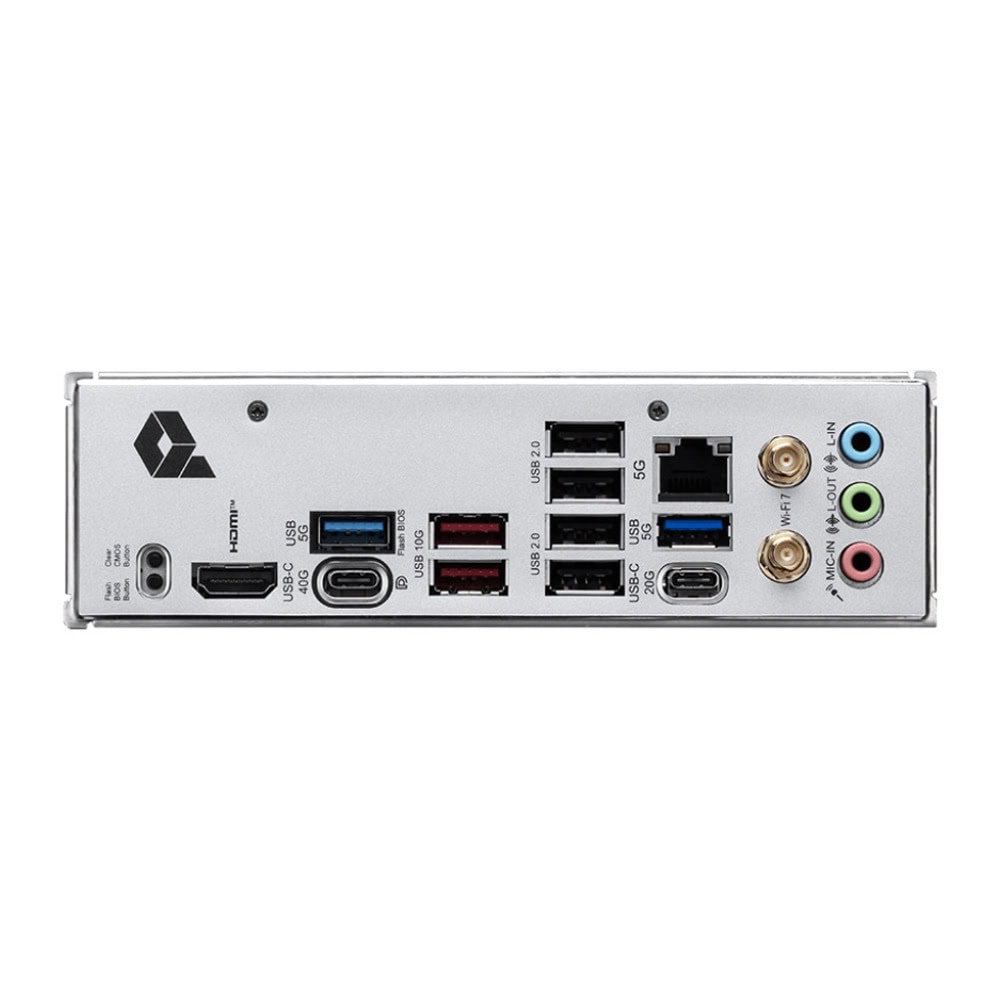

USB ports
1 x USB 40Gbps (1 Type-C)
1 x USB 20Gbps (1 Type-C)
3 x USB 10Gbps (2 Type-A + 1 Type-C)
6 x USB 5Gbps (6 Type-A)
10 x USB 2.0

LAN
Realtek 8126 5G LAN

Wireless / Bluetooth
Wi-Fi 7 Solution, Bluetooth 5.4

RAID Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

Audio
8-Channel (7.1) HD Audio with Audio Boost

PCB Info
ATX
243.84mmx304.8mm
