MSI

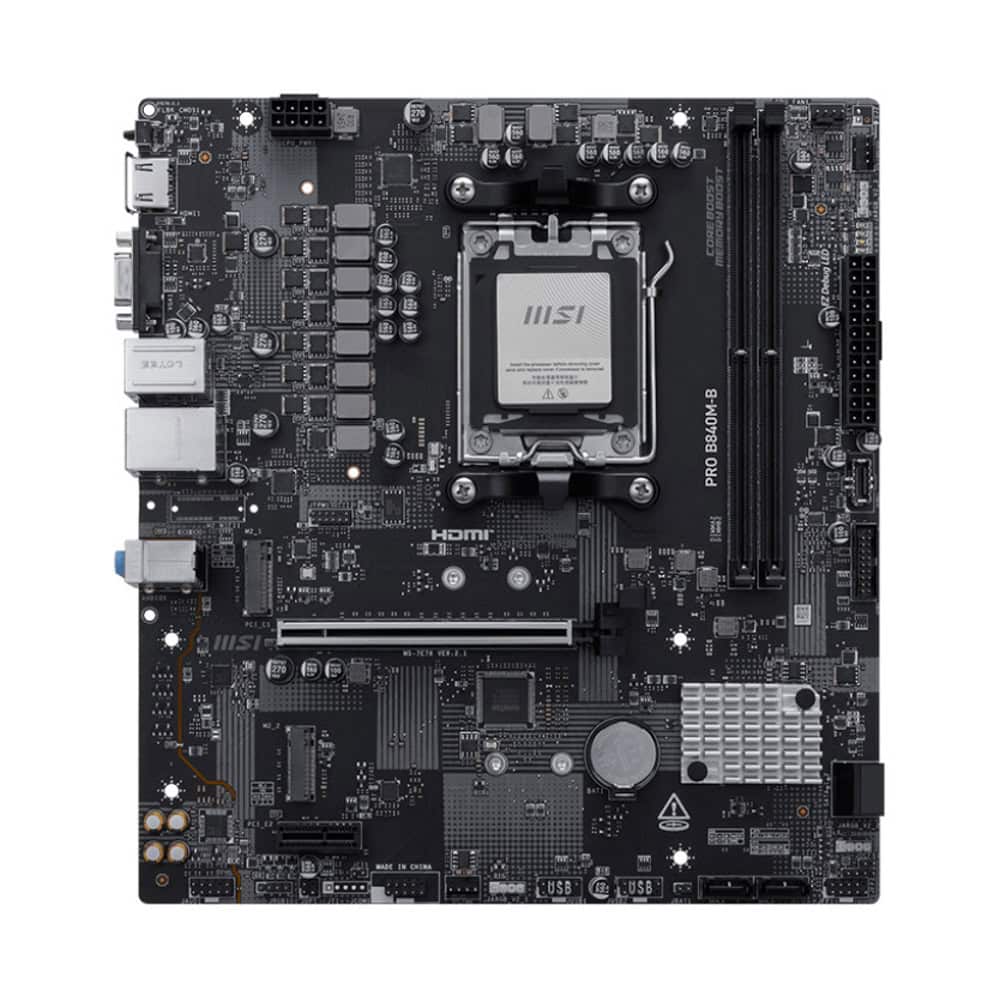

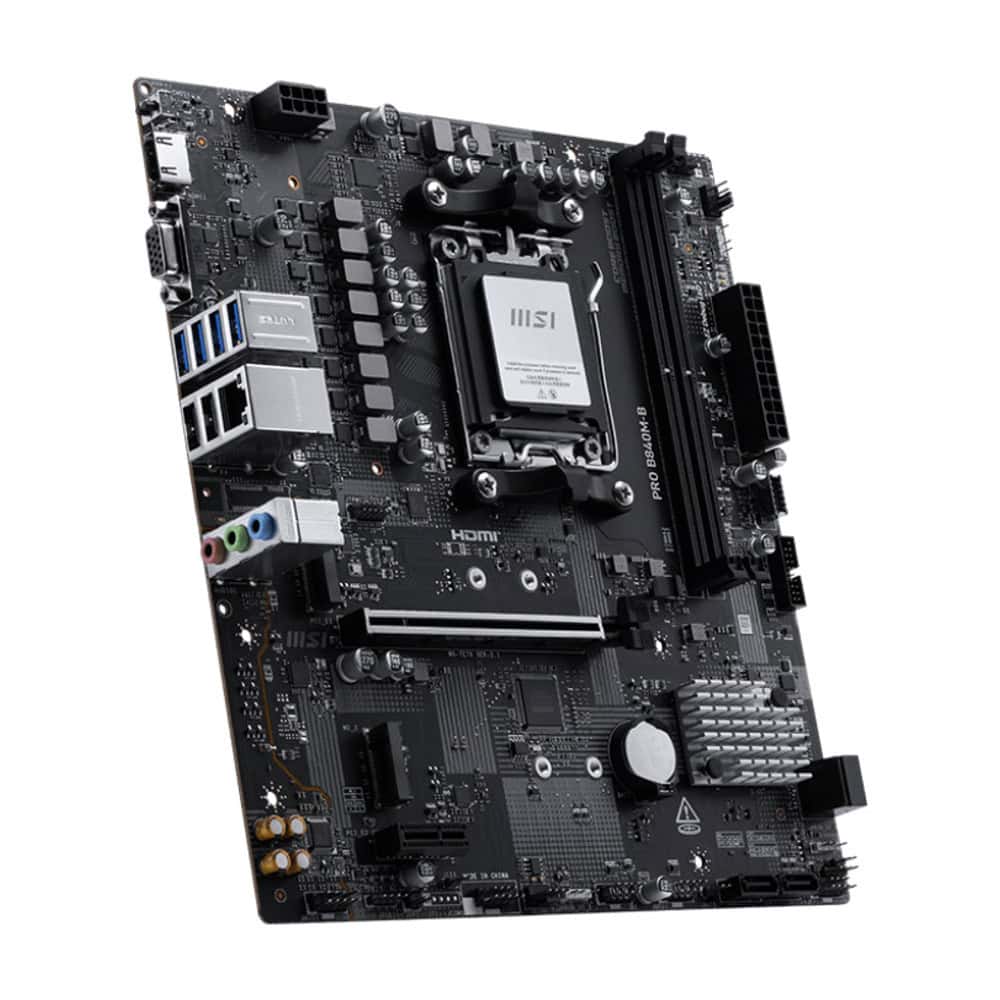

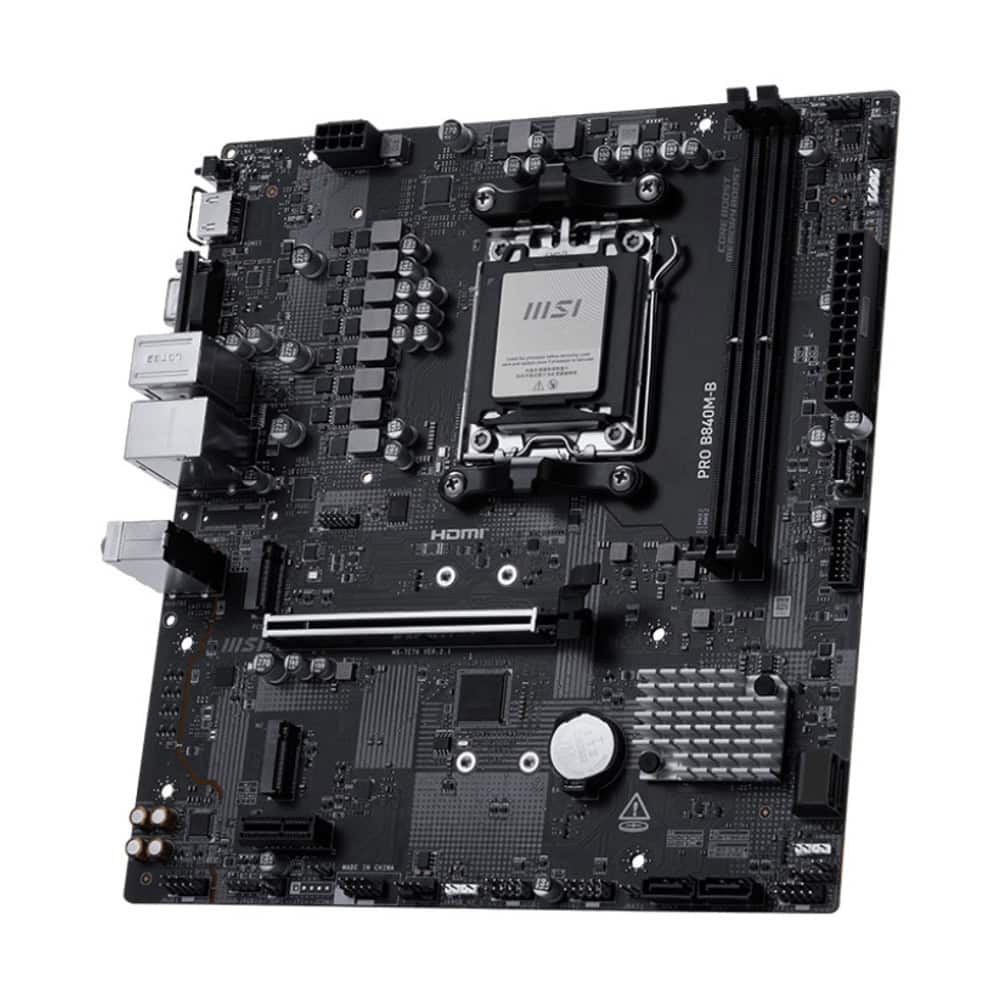

Дънна платка MSI Pro B840M-B
Артикул №: 1000143883
Категория:
Компютърни компоненти
106,99 €
✓ Налично във външен склад
EZ PCIe Clip II:
Allows for easy removal of the graphics card by pressing the tail-
like lock with one finger, even in the cramped case spaces.
Frozr AI Cooling:
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
EZ Debug LED
Easiest way to troubleshoot.
Memory Boost:
Advanced technology to deliver pure data signals for the best
performance, stability and compatibility.
Core Boost:
With premium layout and fully digital power design to support
more cores and provide better performance.
Характеристики
| CPU Socket | Да |
| AMD Socket AM5 | Да |
| Чипсет | Да |
| AMD B840 | Да |
| Слотове за разширение | Да |
| 1 x PCIe 4.0 | x16 slot |
| 1 x PCIe 3.0 | x1 slot |
| Display Interface | Да |
| 1x HDMI | Да |
| Support HDMI | 2.1, maximum resolution of 4K 60Hz* |
| 1x VGA | Да |
| Requires Processor Graphics | Да |
| Памет | Да |
| Поддръжка | 2 DIMMs, Dual Channel DDR5 – 8000+ MT/s (OC) |
| Капацитет за съхранение | Да |
| 2 x M.2 Gen4 | x4 64Gbps slots |
| X SATA 6Gbps ports | 4 |
| RAID | Да |
| Supports RAID | 0, RAID 1 and RAID 10 for SATA storage devices |
| Supports RAID | 0 and RAID 1 for M.2 NVMe storage devices |

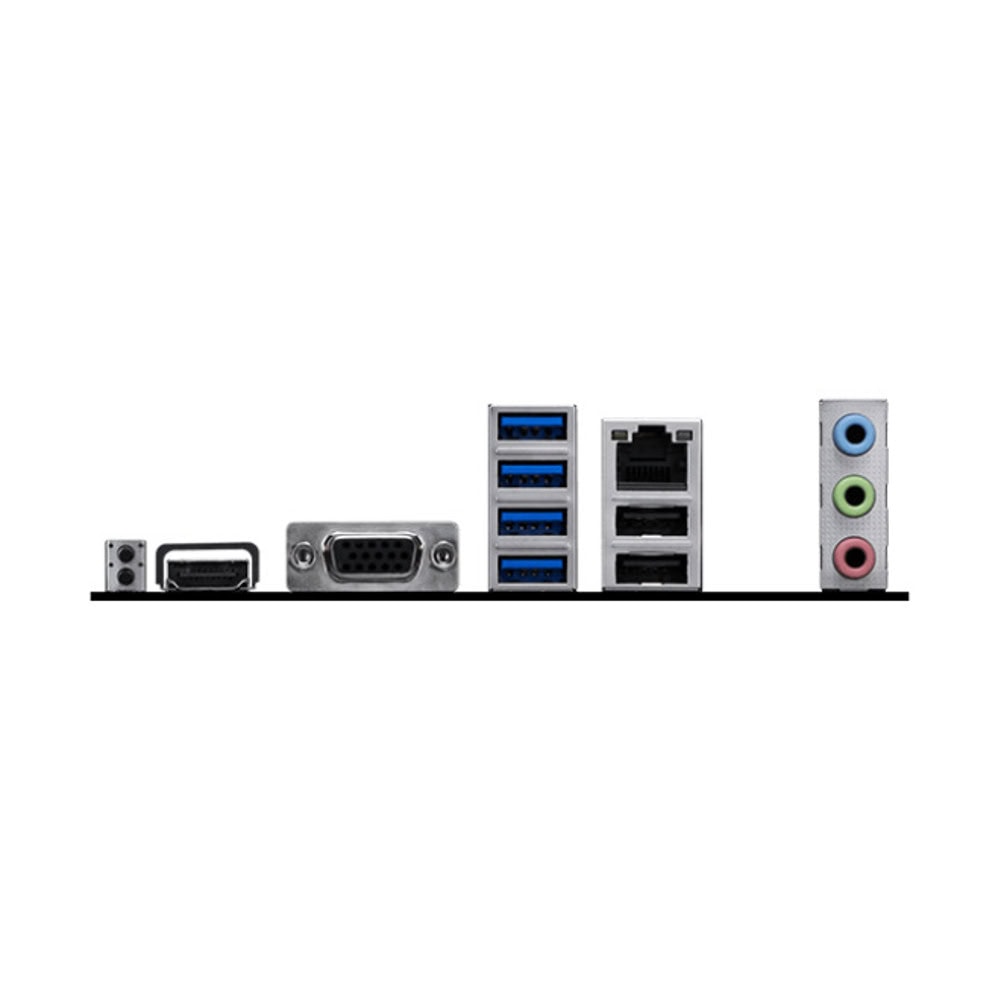

| USB ports | Да |
| X USB 5Gbps Type-A | 4 |
| X USB 2.0 | 2 |
| Мрежова карта | Да |
| Realtek ALC897 (Realtek | 8125D 2.5G LAN) |
| Аудио | Да |
| 8-Channel (7.1) HD Audio with Audio Boost | Да |
| PCB Info | Да |
| mATX | Да |
| 226mmx243.84mm | Да |
