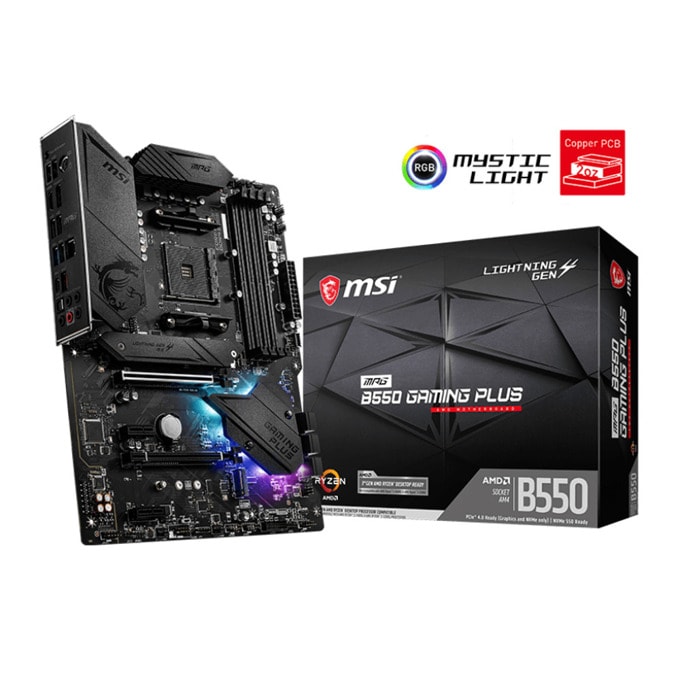

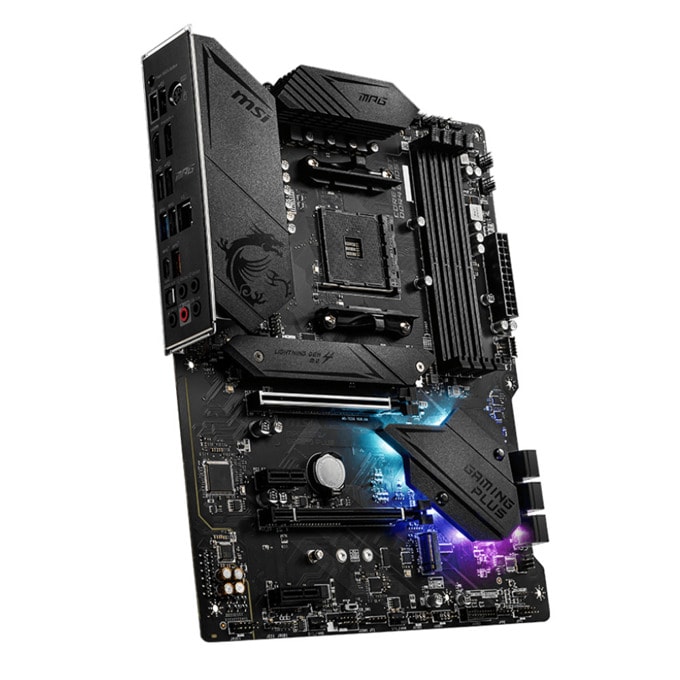

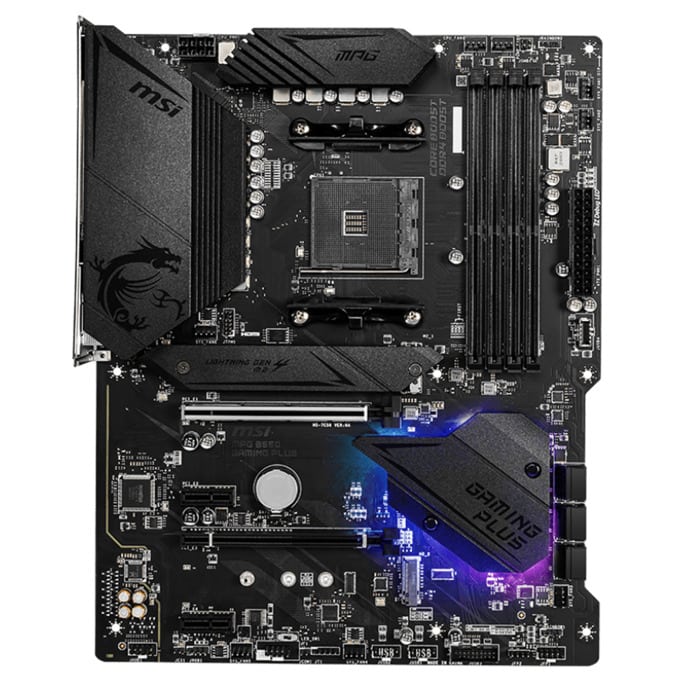

Дънна платка MSI MPG B550 GAMING PLUS

Socket

AM4

Chipset

AMD B550

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

Memory

• 4x DDR4 memory slots, support up to 128GB Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
• Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz
• 1DPC 2R max speed 3866 MHz
• 2DPC 1R max speed 4000 MHz
• 2DPC 2R max speed 3600 MHz
• Dual channel memory architecture
• Supports non-ECC UDIMM memory
• Supports ECC UDIMM memory (non-ECC mode)
• Supports un-buffered memory

Expansion slots

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2

2x PCIe 3.0 x1 slots

• The supported specification depends on installed processor.
• When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.

Onboard Graphics

• 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2 Support HDCP 1.4 & 2.3
• 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
• Maximum shared memory of 16 GB
• Available for the processor with integrated graphics.
• Graphics specifications may vary depending on the CPU installed.

Graphics

1x HDMI™2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2;

Support HDCP 1.4 & 2.3;

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1; Maximum shared memory of 16 GB

Multi-GPU

Supports 2-Way AMD CrossFire™ Technology

Storage

• 6x SATA 6Gb/s ports
• 2x M.2 slots (Key M) M2_1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1
• Supports SATA 6Gb/s
• Supports 2242/ 2260/ 2280/ 22110 storage devices
• M2_2 slot (from AMD B550 chipset) Supports PCIe 3.0x4
• Supports 2242/ 2260/ 2280 storage devices
• The supported specification depends on installed processor.

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

Audio

Realtek® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio
• Supports S/PDIF output

LAN

1x Realtek® 8111H Gigabit LAN controller

Internal connections

• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 6x SATA 6Gb/s connectors
• 2x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps Type-C port
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
