MSI

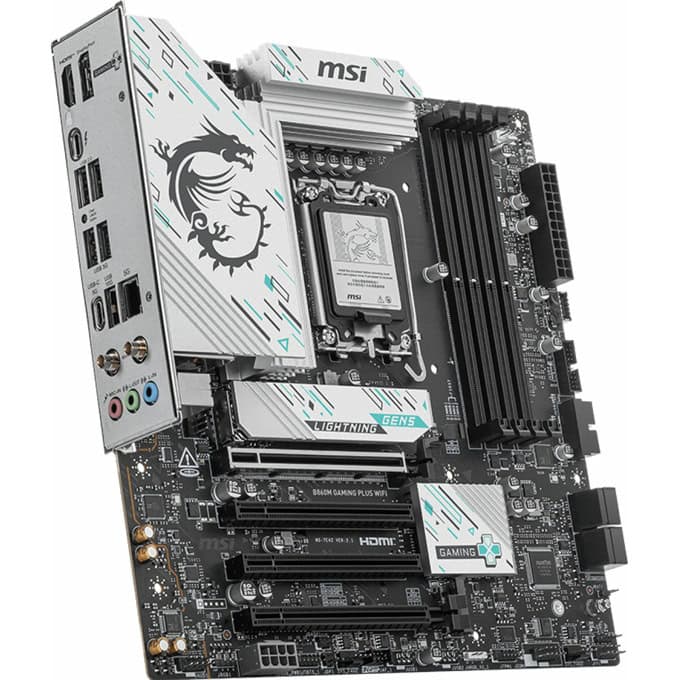

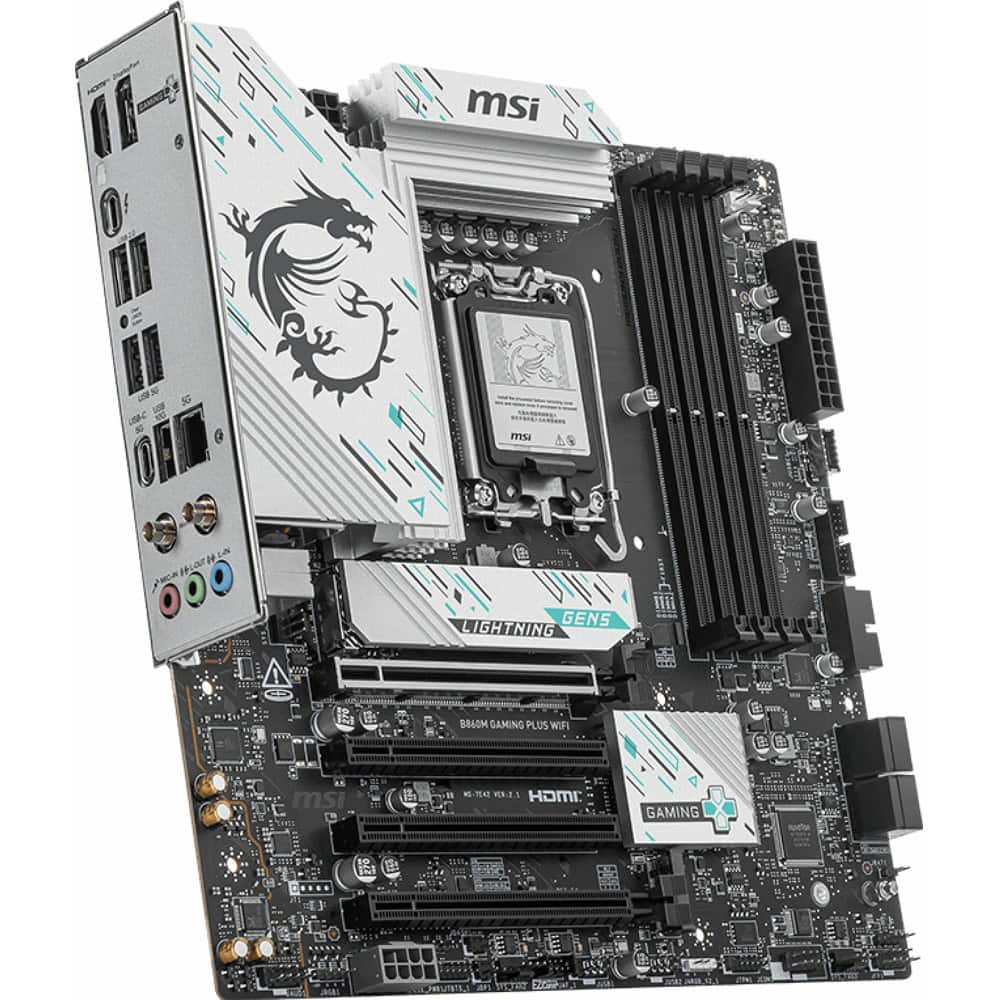

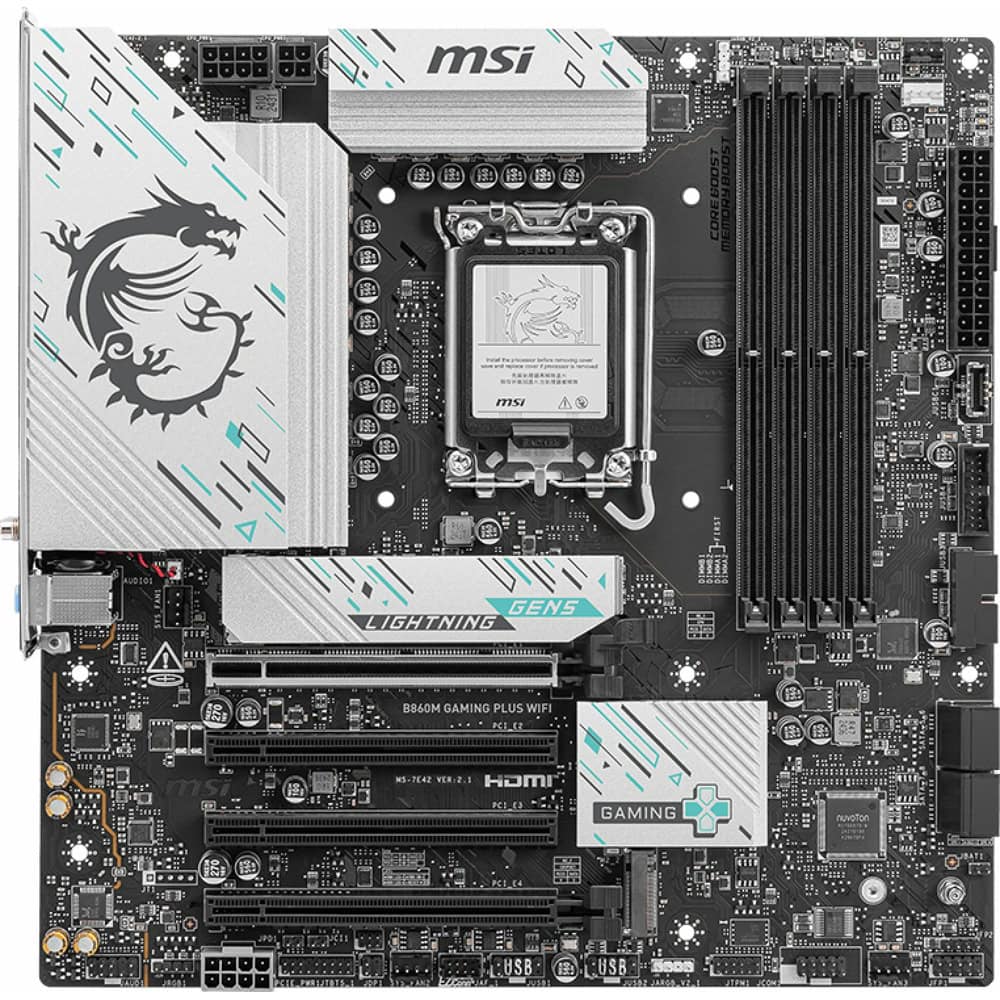

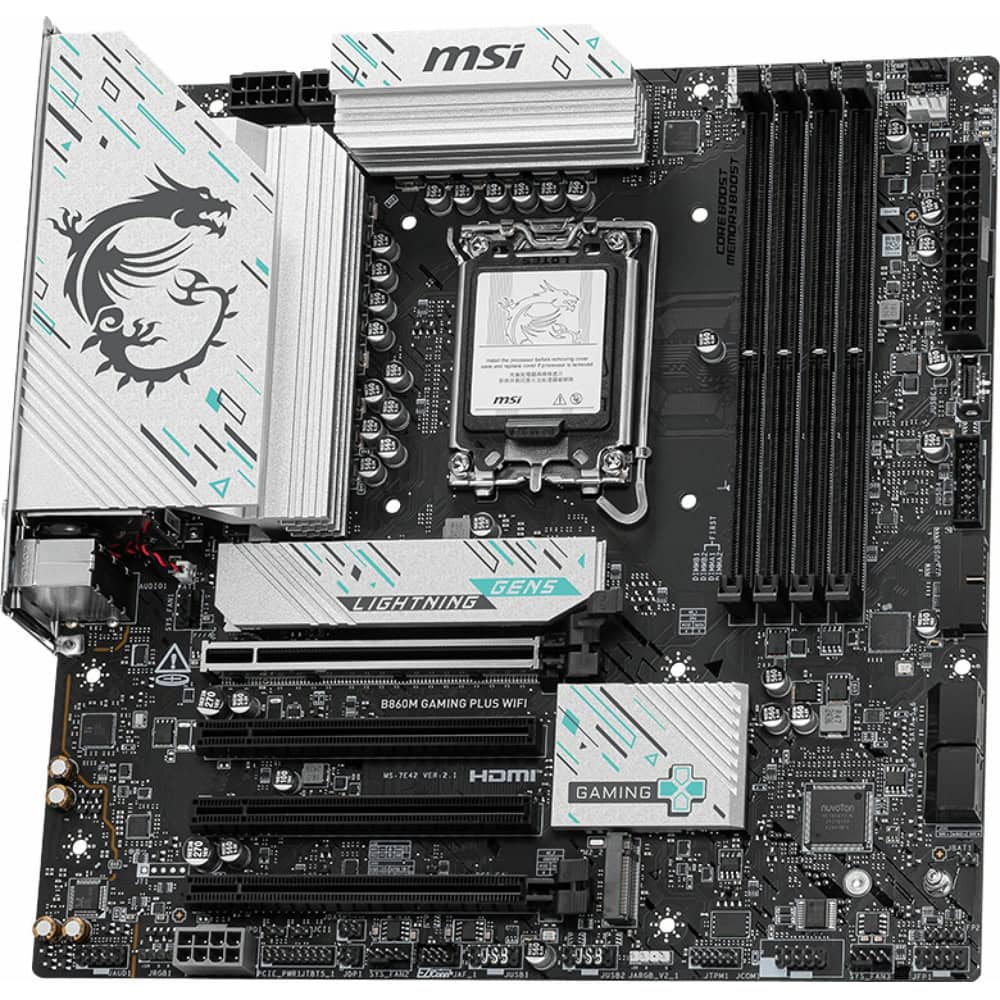

Дънна платка MSI B860M GAMING PLUS WIFI
Артикул №: 1000035928
Категория:
Дънни платки за Intel процесори
187,99 €
✓ Налично във външен склад
MSI B860M GAMING PLUS WIFI
911-7E42-003
Chipset
INTEL B860
CPU
Supports Intel Core Ultra Processors (Series 2)
LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics
911-7E42-003
Chipset
INTEL B860
CPU
Supports Intel Core Ultra Processors (Series 2)
LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
Supports Intel POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.
Onboard Graphics
Технически характеристики
| Процесор сокет | LGA 1851 |
| Чипсет | B860 |
| Поддържана памет | DDR5 |
| Брой слотове за RAM памет | 4 |
| Storage интерфейси | SATA 6Gbit/s, M.2 |
| RAID | Да |
| Безжични мрежи | Wi-Fi 7 (802.11be) |
| Bluetooth | Да |
| Видео слот | PCI-E |
| Видео изход | DP HDMI Thunderbolt 4 |
| Форм фактор | Micro ATX |
