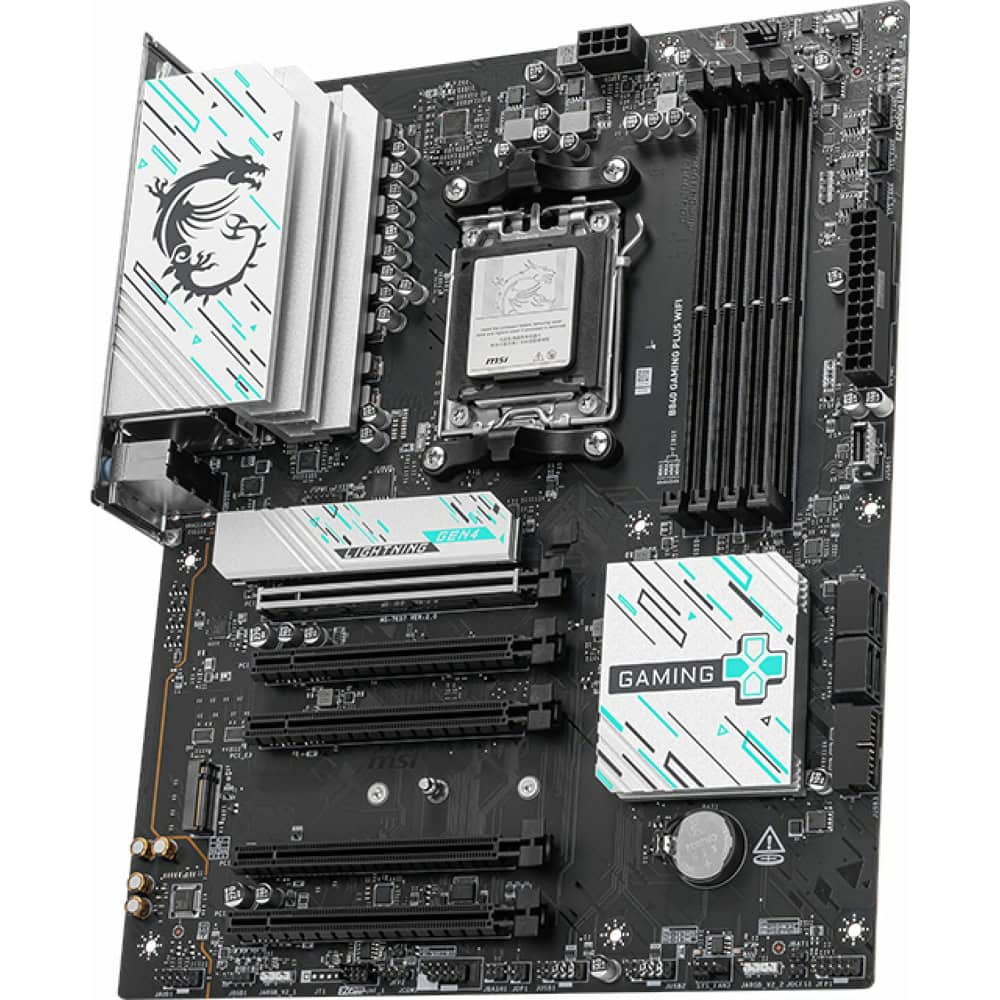

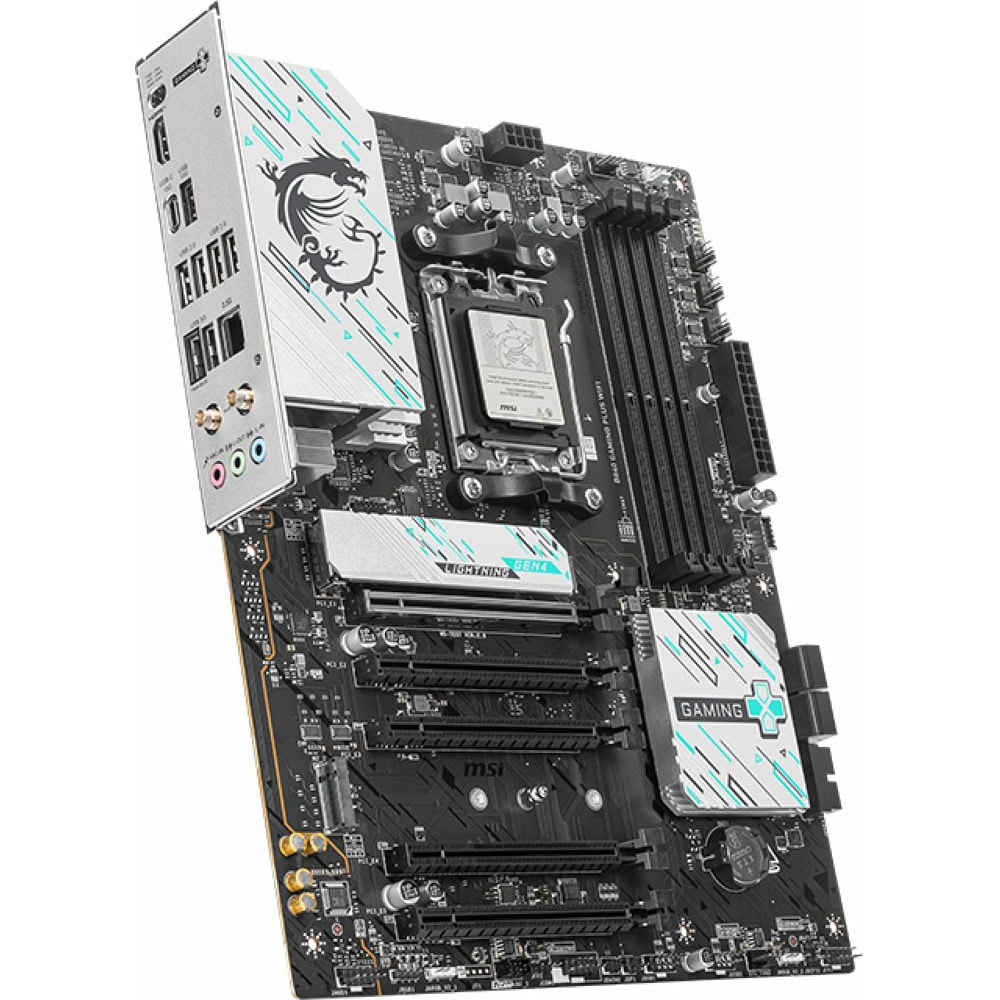

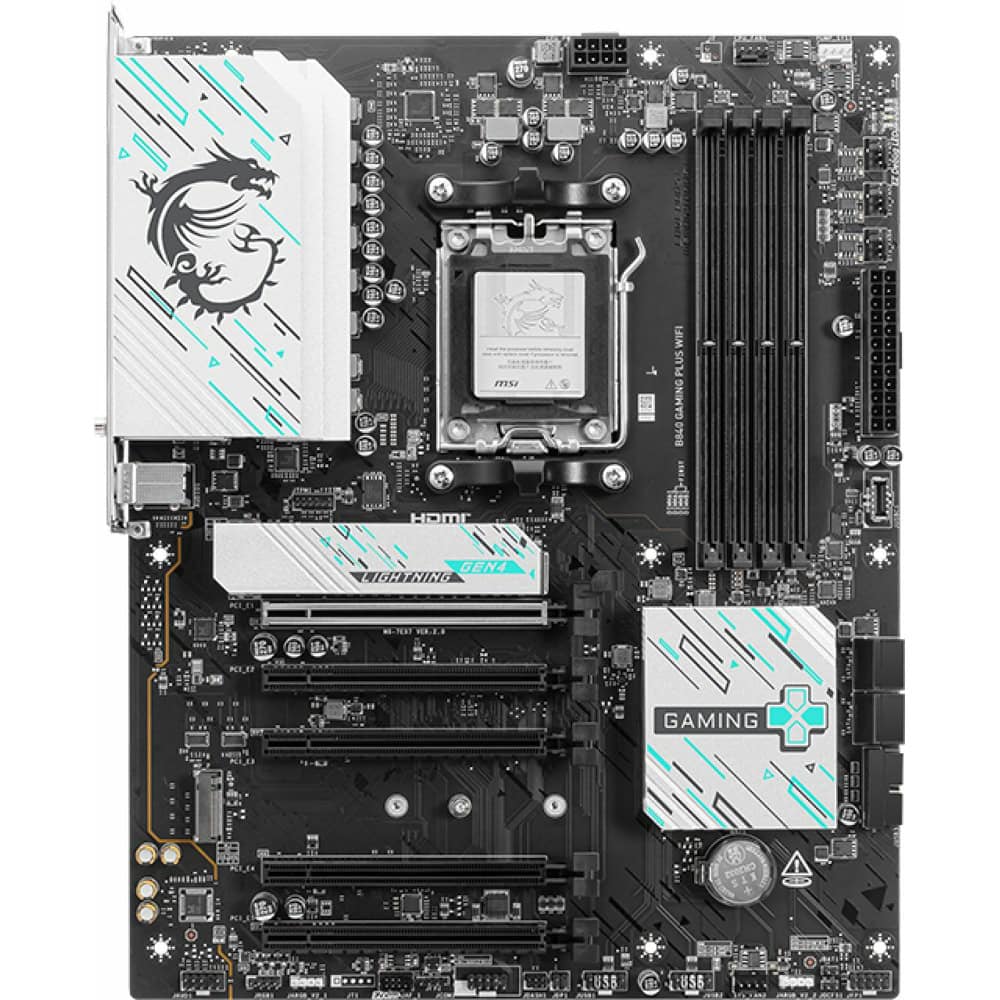

Дънна платка MSI B840 GAMING PLUS WIFI

MSI B840 GAMING PLUS WIFI

911-7E57-002

Chipset

AMD B840

CPU

Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

Ryzen 9000 Series Processors max. overclocking frequency:

• 1DPC 1R Max speed up to 8000+ MT/s

• 1DPC 2R Max speed up to 6400+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed

Supports Memory Overclocking and AMD EXPOTM

Supports Dual-Channel mode

Supports Non-ECC, Un-buffered memory

Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration.

Onboard Graphics

1x HDMI

Support HDMI 2.1, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

5x PCI-E x16 slot

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset)

PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E1 slot

• Supports PCIe 4.0 x16 (For Ryzen 9000/ 7000 Series processors)

• Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)

• Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)

Audio

Realtek ALC897

7.1-Channel High Definition Audio

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260 devices

4x SATA 6G

M2_2 slot

• Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 7000 Series processors)

• Supports up to PCIe 3.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)

• Supports up to PCIe 3.0 x2 (For Ryzen 8500/ 8300 Series processor)
