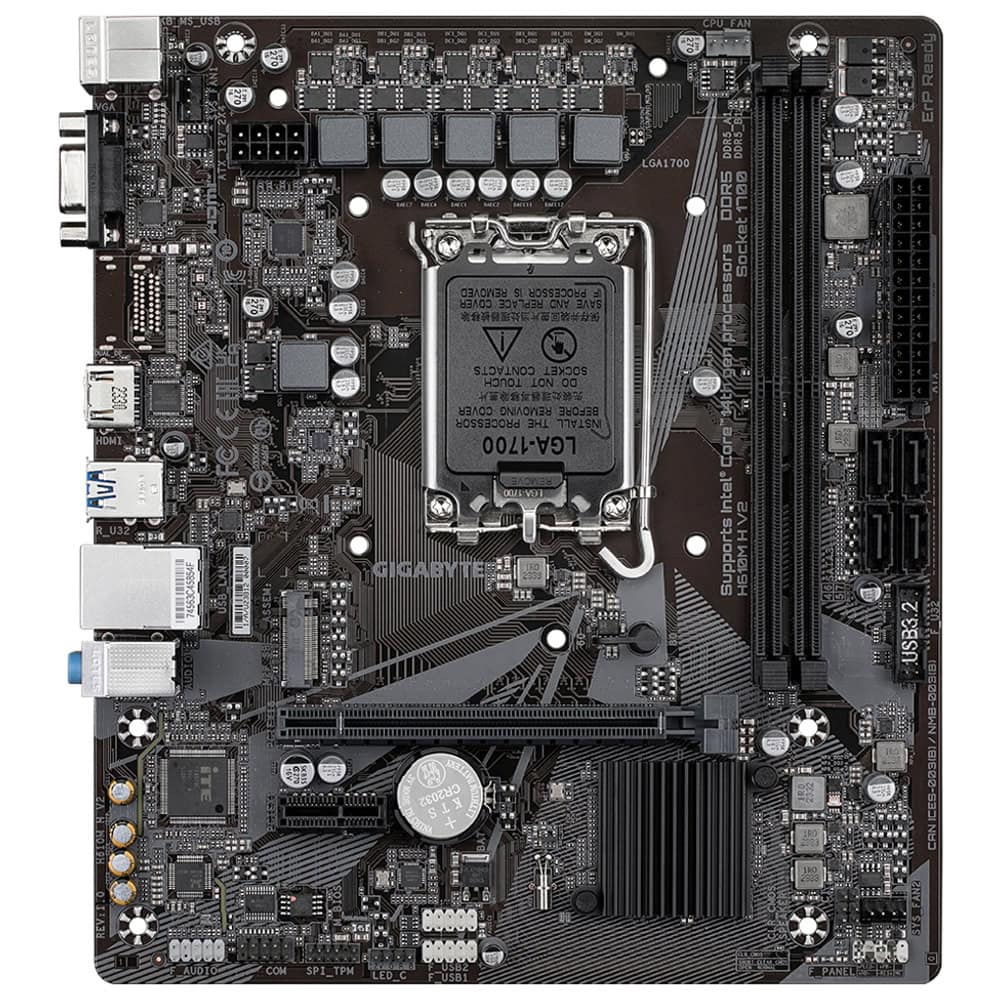

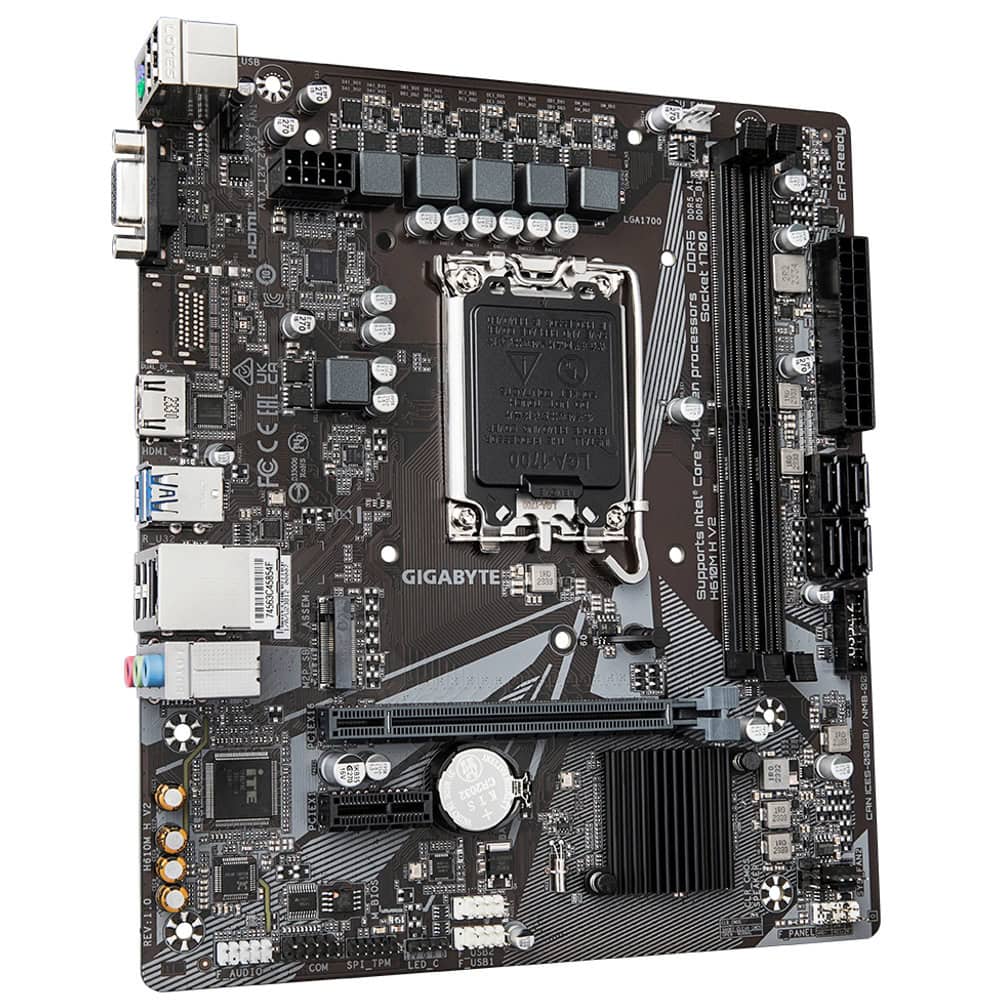

Дънна платка Gigabyte H610M H V2
Gigabyte H610M H V2
Specs:
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel H610 Express Chipset
Memory
14th and 13th Generation Intel Core i9/i7 Pocessors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s memory modules
2x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)
Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
- 1x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots
CPU:
- 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface
Chipset:
- 1x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
- 4x SATA 6Gb/s connectors
USB
Chipset:
- 4x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4x USB 2.0/1.1 ports available through the internal USB headers
Характеристики
| Internal I/O Connectors | 1x 24-pin ATX main power connector |
| 1x 8-pin ATX 12V power connector | 1x CPU fan header |
| 2x system fan headers | 1x M.2 Socket 3 connector |
| 4x SATA 6Gb/s connectors | 1x RGB LED strip header |
| 1x front panel header | 1x front panel audio header |
| 1x speaker header | 1x USB 3.2 Gen 1 header |
| 2x USB 2.0/1.1 headers | 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) |
| 1x serial port header | 1x Clear CMOS jumper |

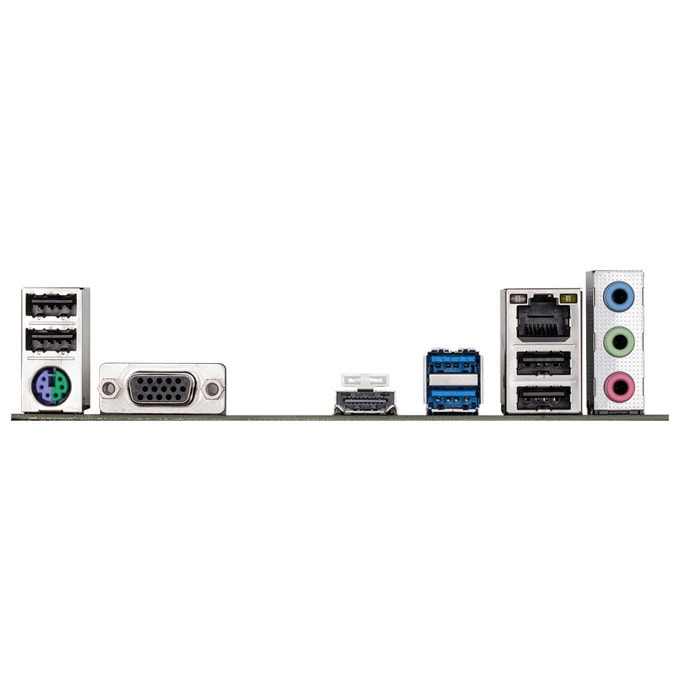

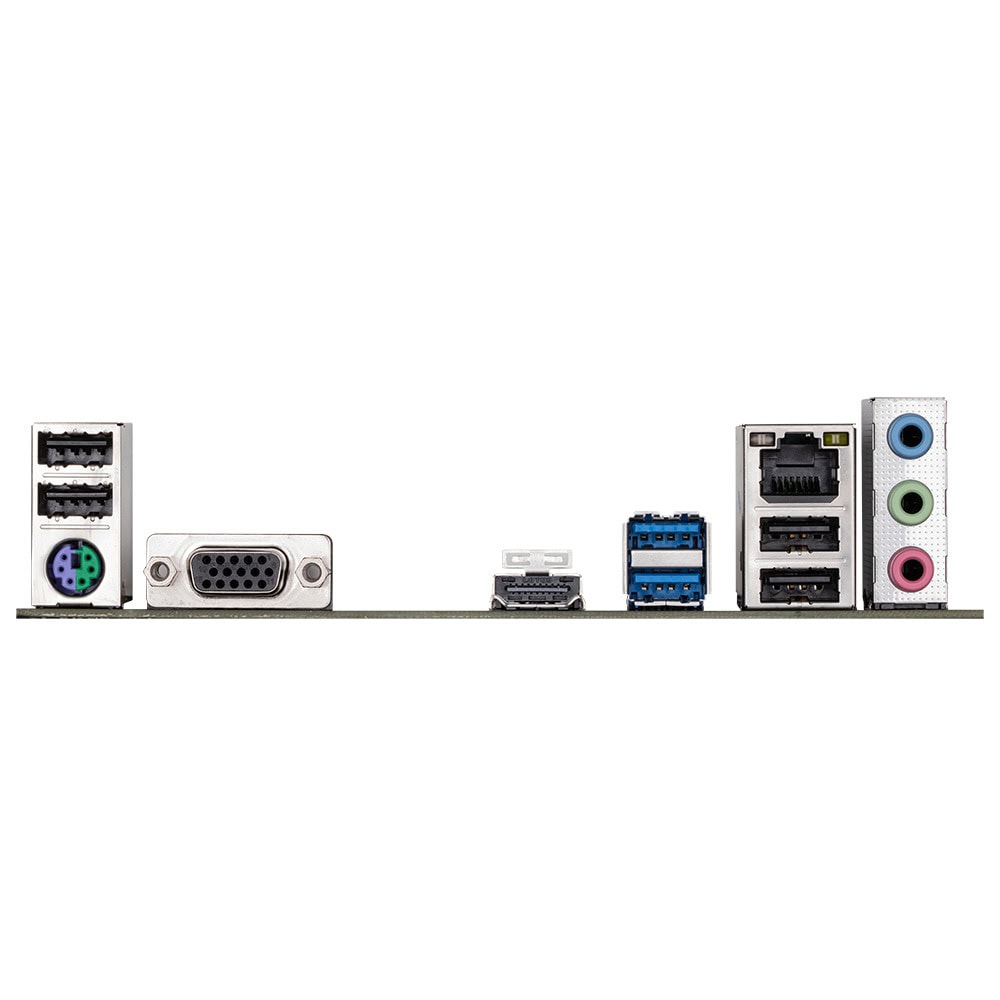

| 1x chassis intrusion header | Back Panel Connectors |
| 1x PS/2 keyboard/mouse port | 1x D-Sub port |
| 1x HDMI port | 2x USB 3.2 Gen 1 ports |
| 4x USB 2.0/1.1 ports | 1x RJ-45 port |
| 3x audio jacks | I/O Controller |
| iTE I/O Controller Chip | BIOS |
| 1x 128 Mbit flash | Use of licensed AMI UEFI BIOS |
