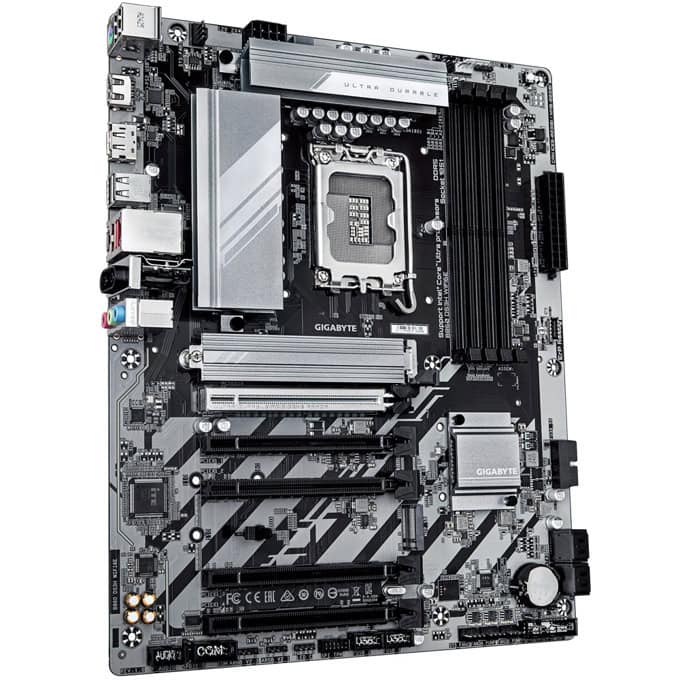

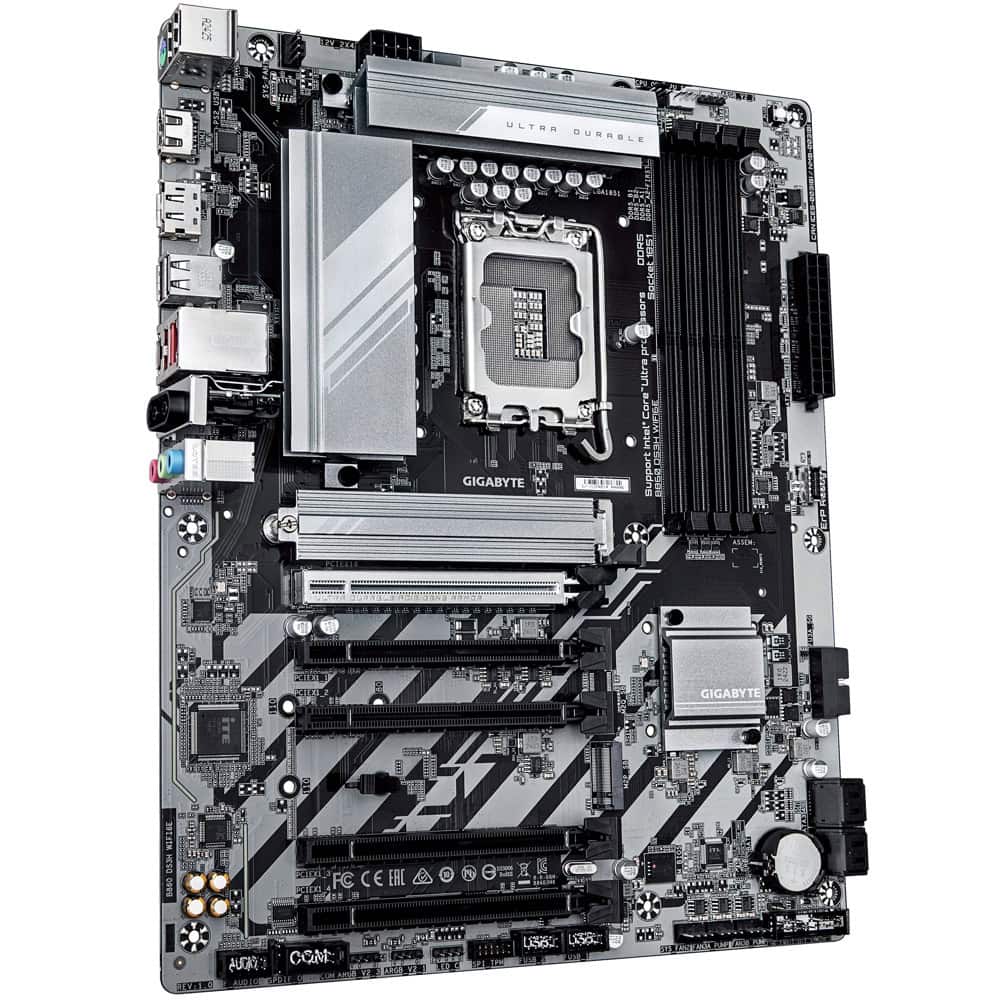

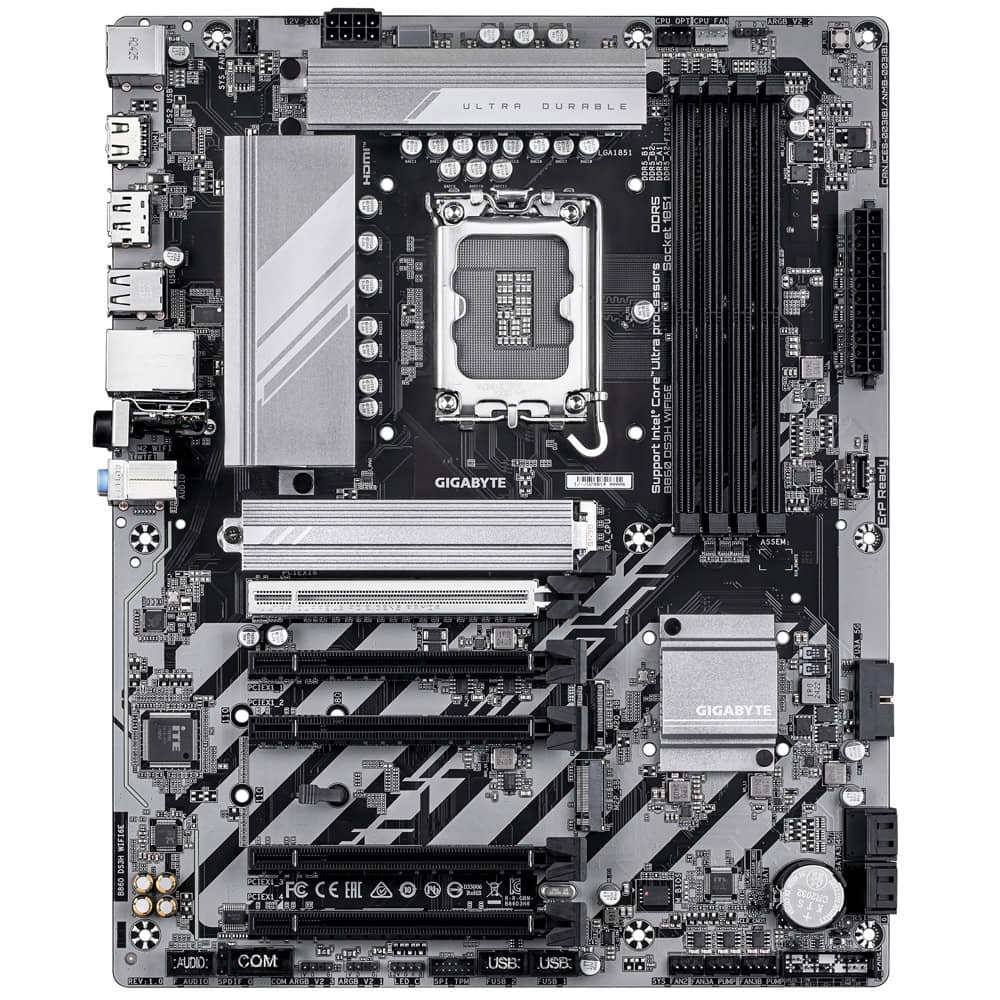

Дънна платка Gigabyte B860 DS3H WIFI6E

Gigabyte B860 DS3H WIFI6E

CPU

LGA1851 socket: Support for Intel Core Ultra Processors

L3 cache varies with CPU

Chipset

Intel B860 Express Chipset

Memory

Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules

4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:

- 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

- 1x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 2.1 version.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

Wi-Fi 6E 802.11ax

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:

- 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 4x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4)

Storage Interface

CPU:

- 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

- 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

Chipset:

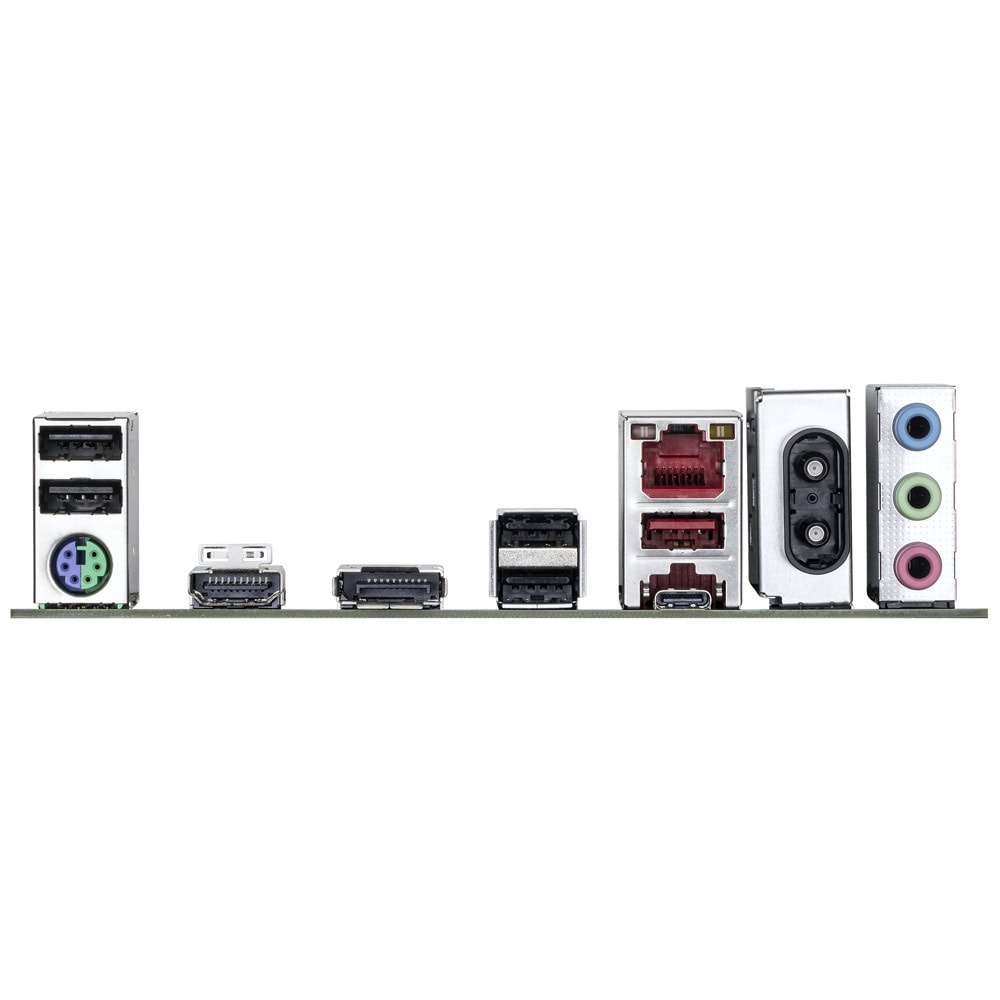

- 1x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

- 1x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 1x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2x USB 3.2 Gen 1 ports available through the internal USB header

- 4x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1x 24-pin ATX main power connector

1x 8-pin ATX 12V power connector

1x CPU fan header

1x CPU fan/water cooling pump header

2x system fan headers

2x system fan/water cooling pump headers

3x addressable RGB Gen2 LED strip headers

1x RGB LED strip header

2x M.2 Socket 3 connectors

4x SATA 6Gb/s connectors

1x front panel header

1x front panel audio header

1x S/PDIF Out header

1x USB Type-C header, with USB 3.2 Gen 1 support

1x USB 3.2 Gen 1 header
