Gigabyte

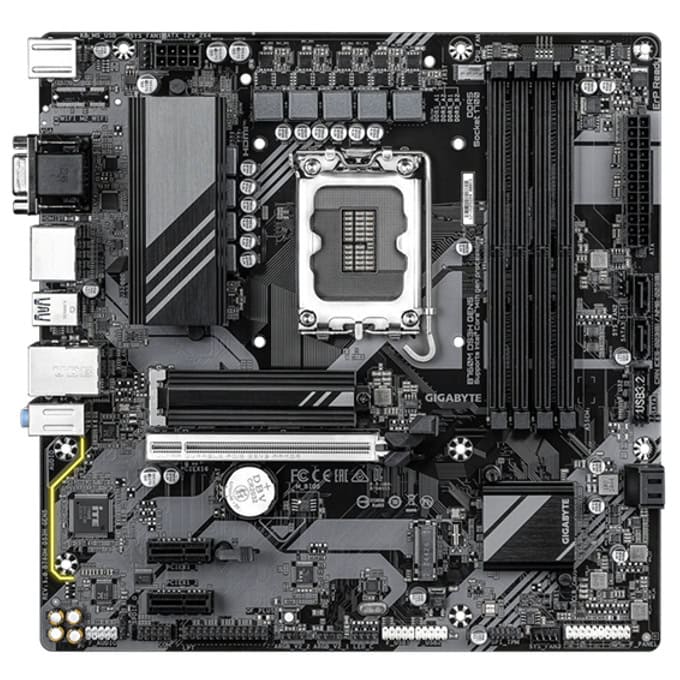

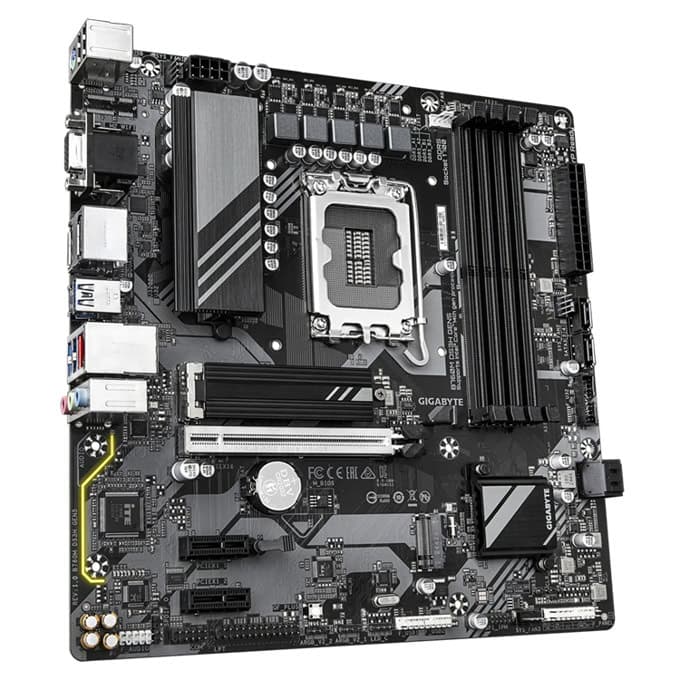

Дънна платка Gigabyte B760M DS3H GEN5
Артикул №: 1000143619
Категория:
Компютърни компоненти
132,99 €
✓ Налично във външен склад
Характеристики
| PCIe Gen5 Performance | Perfect Sync to Win |
| Supports Intel® Core™ | 14th/ 13th /12th processors |
| EZ-Latch | PCIe 5.0x16 Slot with Quick Release Design |
| PCIe UD Slot | SMD PCIe 5.0 Armor for enhanced graphics card support |
| Unparalleled Performance | Hybrid 6+2+1 Phases VRM Solution |
| Dual Channel DDR5 | 4*DIMMs XMP Memory Module Support |
| Fast Networks | 2.5 GbE LAN |
| Next Generation Storage | 2*PCIe 4.0 x4 M.2 Connectors |

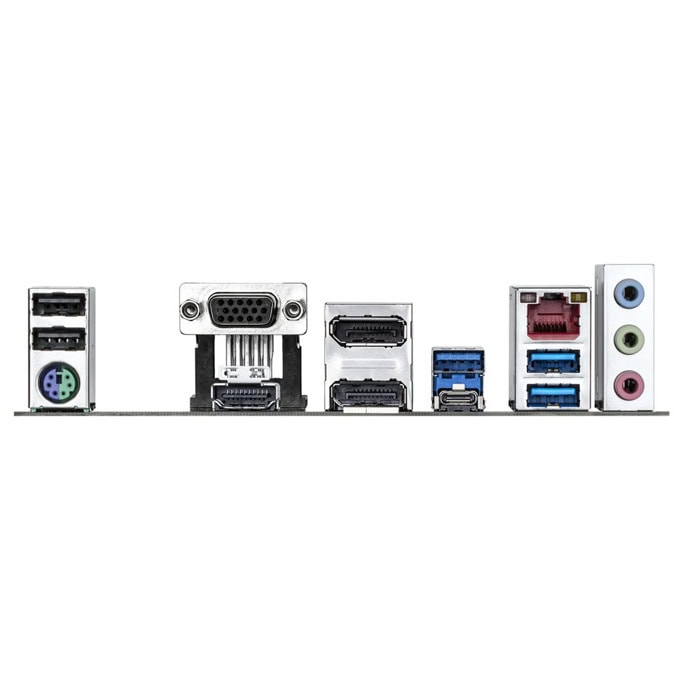

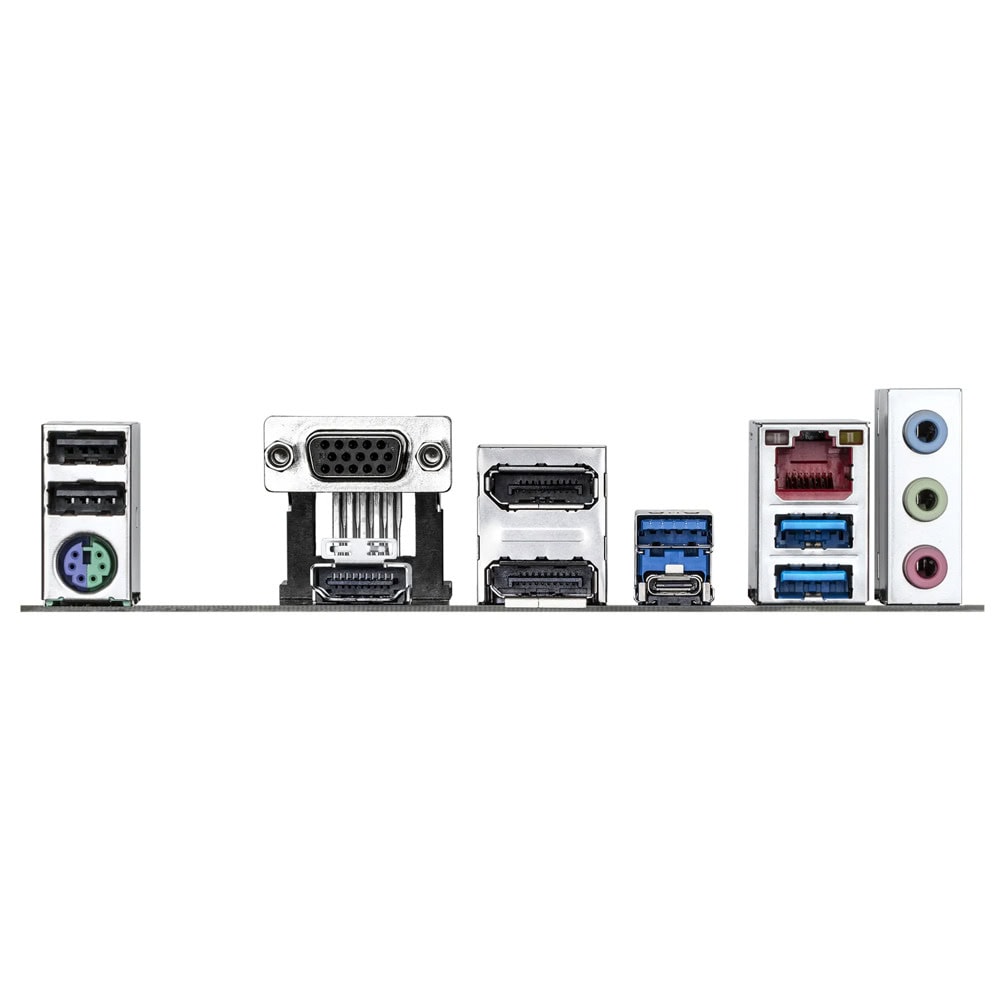

| Extended Connectivity | Rear USB-C® 10Gb/s, DP, HDMI, D-Sub |
| Smart Fan 6 | Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP |
| Q-Flash Plus | Update BIOS Without Installing the CPU, Memory and Graphics Card |
| CPU LGA1700 socket | Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| Chipset Intel® B760 Express Chipset | Да |
| LAN Realtek® | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots CPU | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
| Storage Interface CPU | - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| USB Chipset | - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
| I/O Controller iTE® I/O Controller Chip | Да |
| Form Factor Micro ATX Form Factor; | 24.4cm x 24.4cm |
