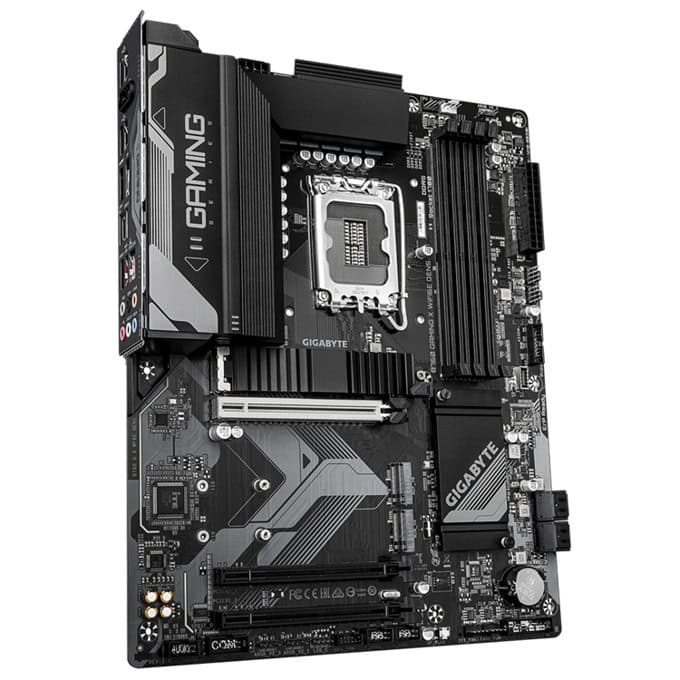

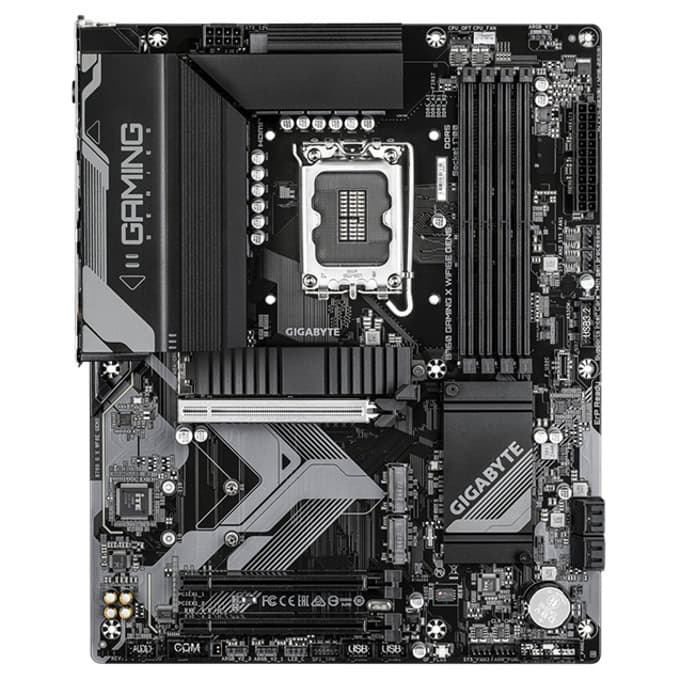

Дънна платка Gigabyte B760 GAMING X WIFI6E GEN5
- WIFI Compass : Auto detects the best antenna position for strongest Wi-Fi signal
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
.png)
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™,
Pentium® Gold and Celeron® Processors
L3 cache varies with CPUMemory
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Характеристики
| PCIe Gen5 Performance | Perfect Sync to Win |
| Supports Intel® Core™ | 14th/ 13th/12 processors |
| Efficient Thermal | VRM Thermal Armor Advanced & M.2 Thermal Guard |
| WIFI EZ-Plug | Quick and easy design for Wi-Fi antenna installation |
| WIFI Compass | Auto detects the best antenna position for strongest Wi-Fi signal |
| EZ-Latch | PCIe 5.0x16 Slot with Quick Release Design |
| PCIe UD Slot | SMD PCIe 5.0 Armor for enhanced graphics card support |
| Unparalleled Performance | Hybrid 8+1+1 Phases VRM Solution |
| Dual Channel DDR5 | 4*DIMMs with XMP Memory Module Support |
| Fast Networks | 2.5GbE LAN & Wi-Fi 6E 802.11ax |
| Extended Connectivity | Front USB-C® 10Gb/s, DP, HDMI |
| Next Generation Storage | 3*PCIe 4.0 x4 M.2 Connectors |
| Smart Fan 6 | Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP |
| Q-Flash Plus | Update BIOS Without Installing the CPU, Memory and Graphics Card |
| CPU LGA1700 socket | Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU |
| LAN Realtek® | 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots CPU | - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
| Storage Interface CPU | - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |

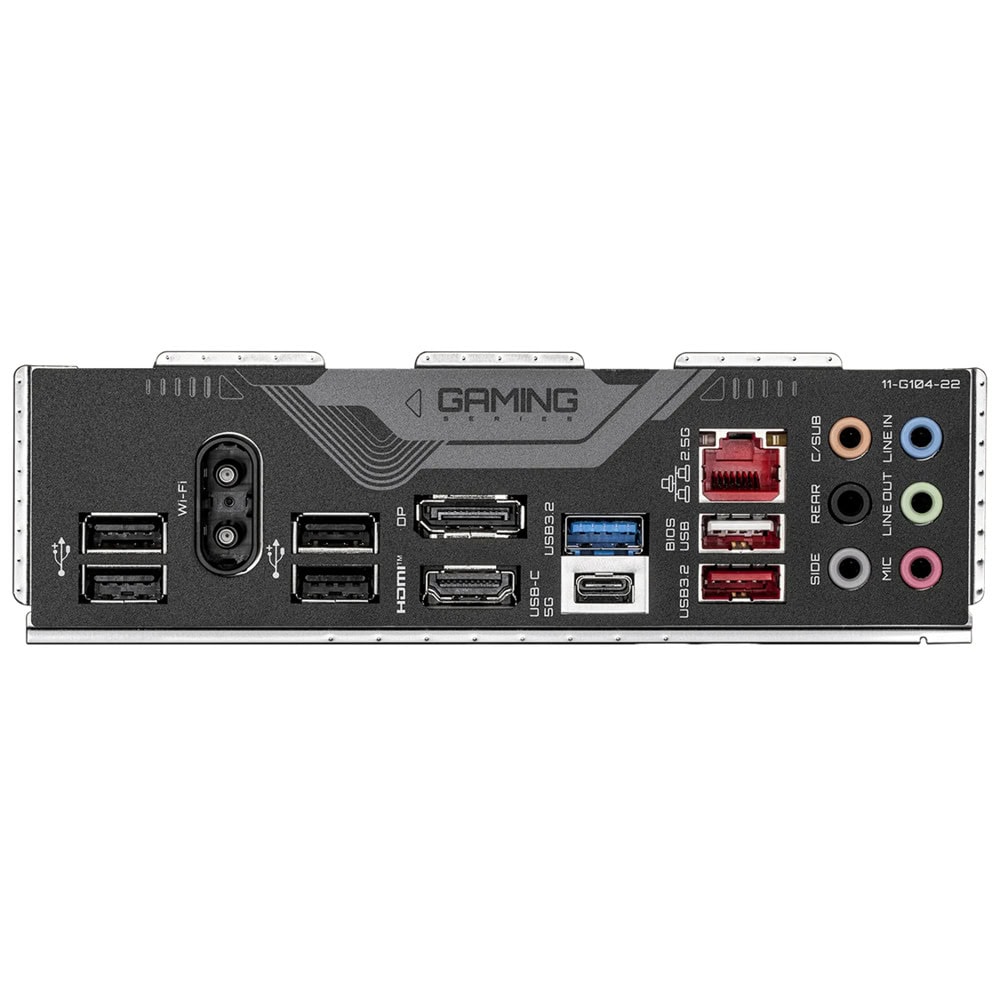

| USB Chipset | - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
| Form Factor ATX Form Factor; | 30.5cm x 24.4cm |
