Gigabyte
Дънна платка Gigabyte B650M S2H
Артикул №: 1000130048
Категория:
Компютърни компоненти
115,99 €
✓ Налично във външен склад

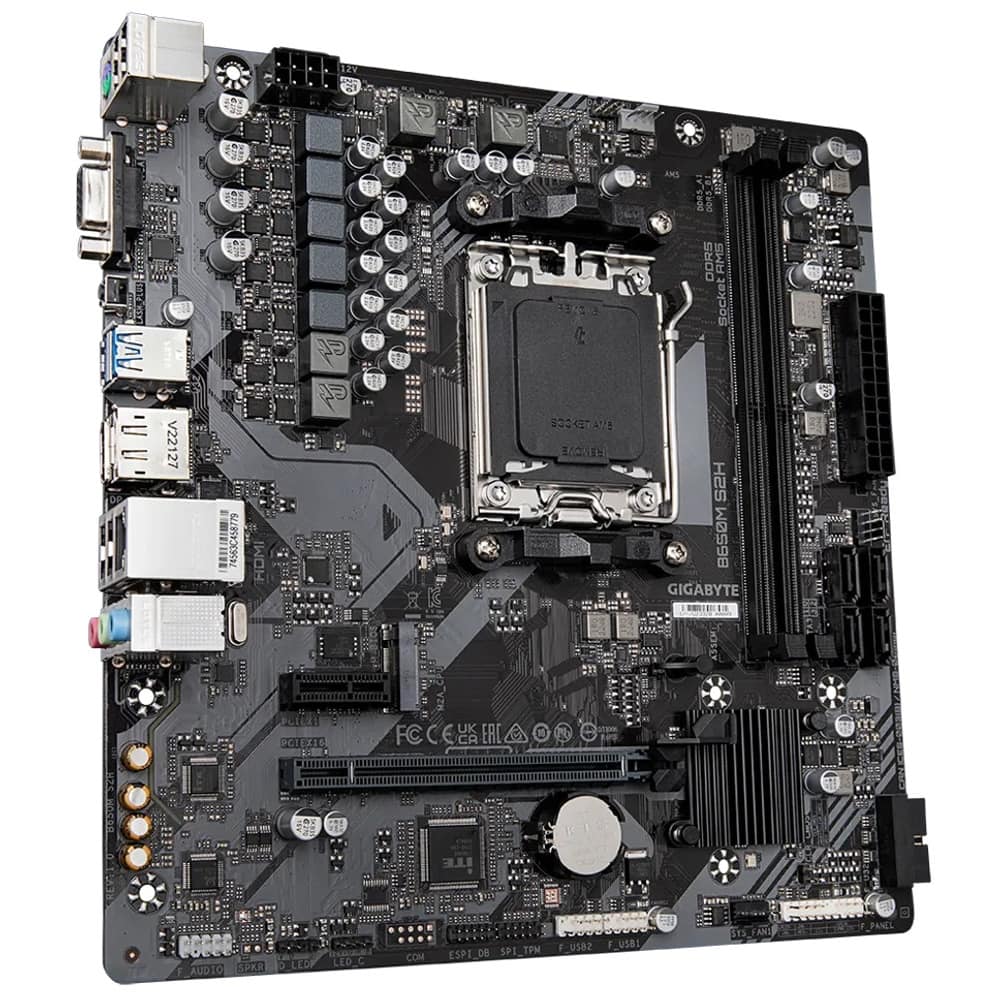

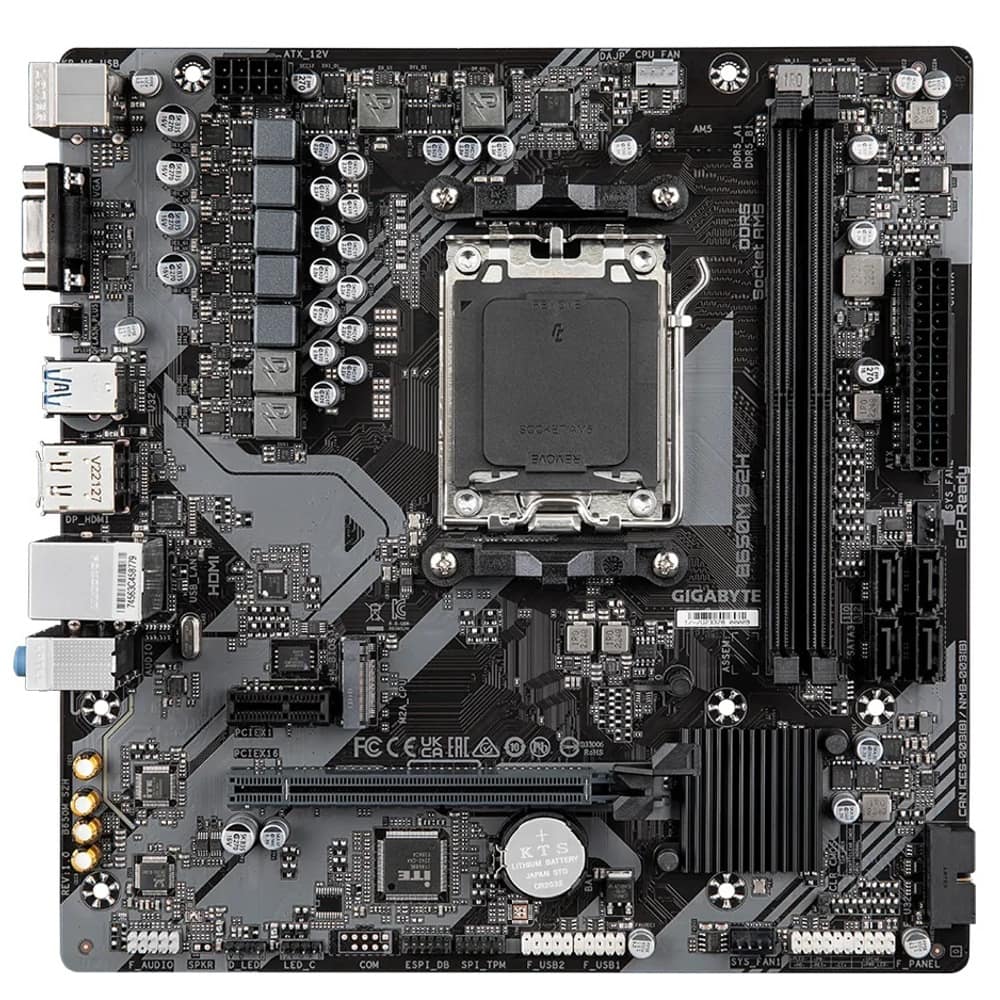

Gigabyte B650M S2H
- AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：GbE LAN

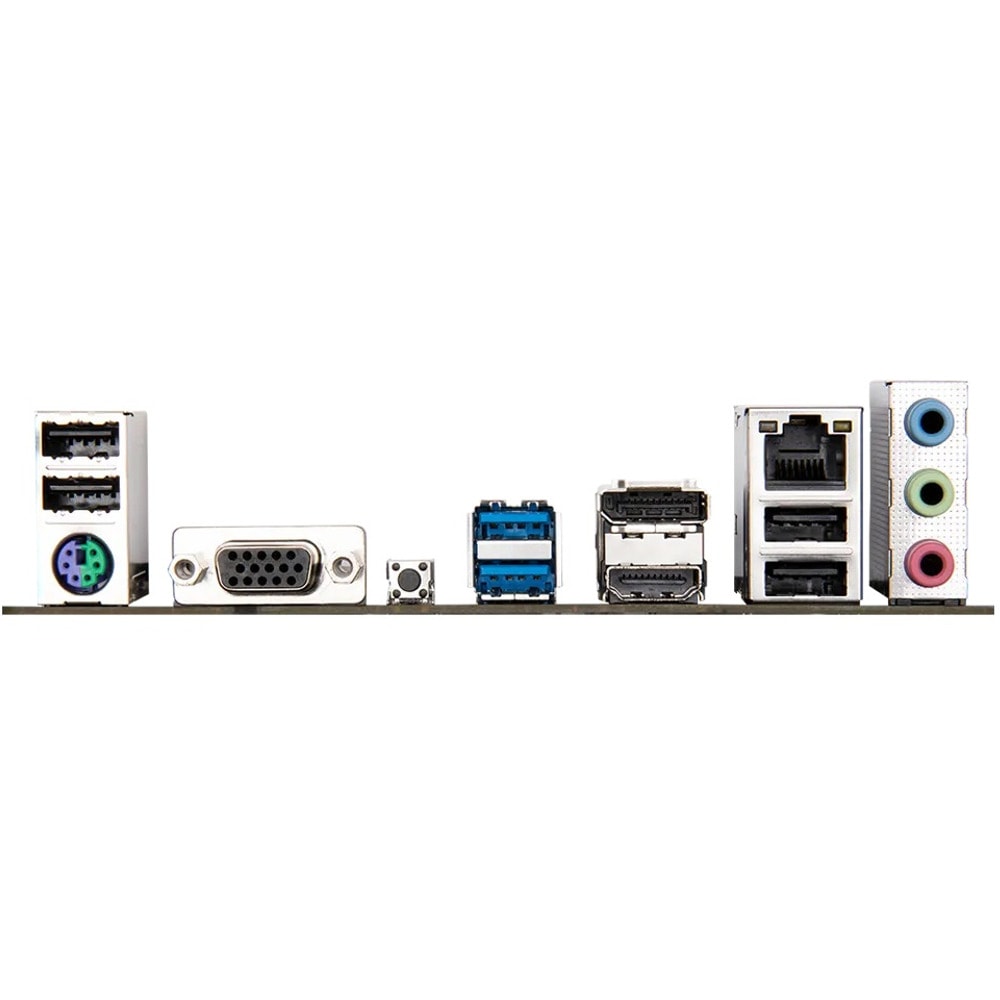

- Extended Connectivity：DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Характеристики
| CPU AMD Socket AM5, support for | AMD Ryzen 7000 Series Processors |
| Chipset AMD B650 | Да |
| Onboard Graphics Integrated Graphics Processor | - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) Support for up to 3 displays at the same time |
| LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | Да |
| Expansion Slots CPU | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Storage Interface CPU | - 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB CPU | - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| I/O Controller iTE I/O Controller Chip | Да |
| Form Factor Micro ATX Form Factor; | 23.0cm x 22.5cm |
