Asus
Дънна платка Asus TUF GAMING B860M-PLUS WIFI
Артикул №: 1000140600
Категория:
Компютърни компоненти
288,99 €
✓ Налично във външен склад
Asus TUF GAMING B860M-PLUS WIFI
ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Характеристики
| Support Intel® Core™ Ultra Processors (Series | 2) ,LGA1851* |
| Refer to https | //www.asus.com/support/download-center/ for CPU support list. |
| Чипсет | Да |
| Intel® B860 Chipset | Да |
| Памет | Да |
| X DIMM slots, max. 256GB, DDR5 | 4 |
| Dual Channel Memory Architecture | Да |
| DIMM Fit | Да |
| Supports Intel® Extreme Memory Profile (XMP) memory module | Да |
| ASUS Enhanced Memory Profile III(AEMPIII) | Да |
| Графика | Да |
| X DisplayPort** | 1 |
| X HDMI™ port*** | 1 |
| Supports max. | 4K@60Hz as specified in DisplayPort 1.4 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Слотове за разширение | Да |
| Intel® CoreTM Ultra Processors(Series | 2)* |
| 1 x PCIe 5.0 | x16 slot |
| Intel® B860 Chipset | Да |
| 1 x PCIe 4.0 | x4 slot |
| Капацитет за съхранение | Да |
| Supports | 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| Intel® Core™ Ultra Processors(Series | 2)* |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 | x4 mode) |
| Intel® B860 Chipset | Да |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
| Intel® Rapid Storage Technology supports SATA RAID | 0/1/5/10 |
| Ethernet | Да |
| X Realtek 2.5Gb Ethernet | 1 |
| TUF LANGuard | Да |
| Wireless & Bluetooth | Да |
| Wi-Fi | 7* |
| 2x2 Wi-Fi 7 (802.11be) | Да |
| Supports | 2.4/5/6GHz frequency band** |
| Bluetooth® v5.4*** | Да |
| Wi-Fi features may vary depending on the operating system | Да |
| USB | Да |
| Rear USB (Total | 8 ports) |
| X USB 20Gbps port (1 x USB Type-C®) | 1 |
| X USB 10Gbps port (2 x Type-A) | 2 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| X USB 2.0 ports (1x Type-A) | 1 |
| Front USB (Total | 5 ports) |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps header supports 2 additional USB 5Gbps ports | 1 |
| X USB 2.0 headers support 2 additional USB 2.0 ports | 1 |
| USB Type-C® power delivery output | max. 5V/3A |
| Аудио | Да |
| Realtek | 7.1 Surround Sound High Definition Audio CODEC |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 24-Bit/192 kHz playback |
| Audio Features | Да |
| Audio Shielding | Да |
| Rear optical S/PDIF out port | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |

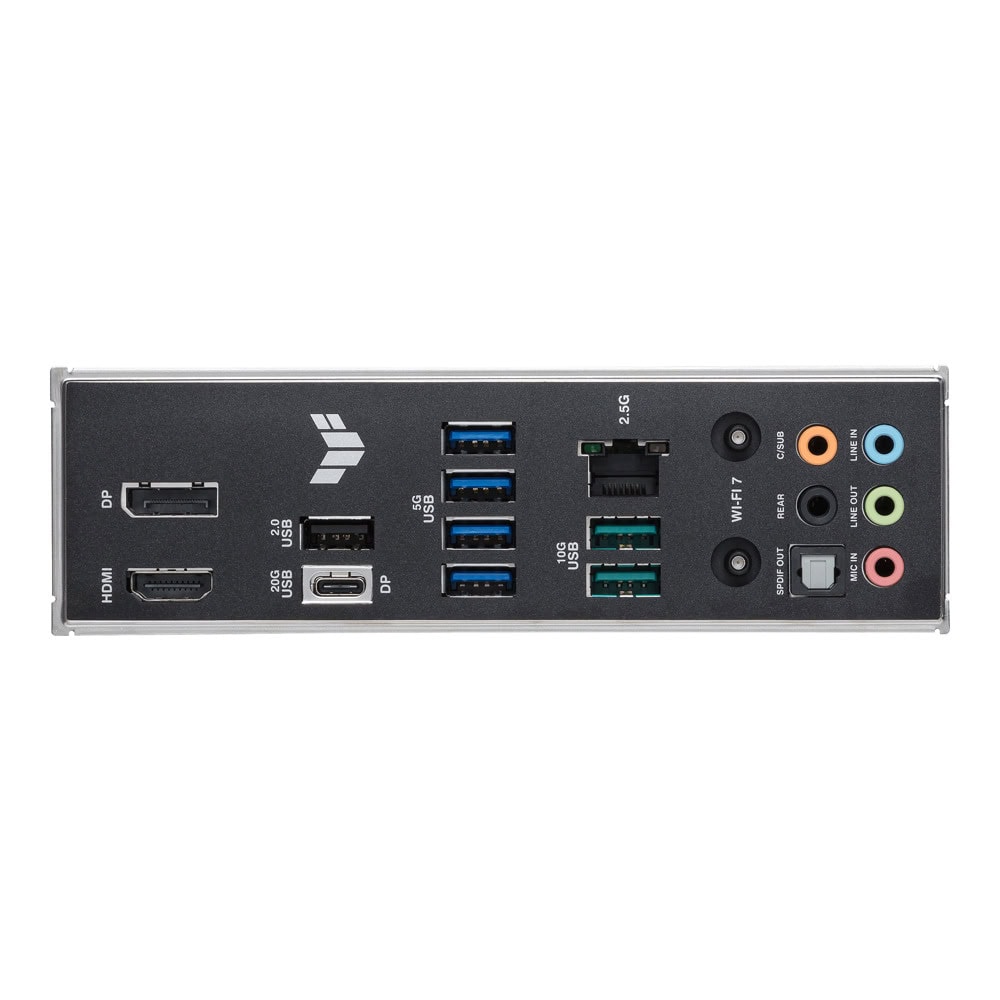

| Back Panel I/O Ports | Да |
| X USB 20Gbps port (1 x USB Type-C® with DP Alt mode) | 1 |
| X USB 10Gbps port (2 x Type-A) | 2 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| X USB 2.0 port (1 x Type-A) | 1 |
| X DisplayPort | 1 |
| X HDMI™ port | 1 |
| X Wi-Fi Module | 1 |
| X Realtek 2.5Gb Ethernet port | 1 |
| X Audio jacks | 5 |
| X Optical S/PDIF out port | 1 |
| Internal I/O Connectors | Да |
| I/O Connectors Fan and Cooling related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 3 |
| Power related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V Power connectors | 2 |
| Storage related | Да |
| X M.2 slots (Key M) | 3 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 10Gbps connector (supports USB Type-C® ) | 1 |
| X USB 5Gbps header supports 2 additional USB 5Gbps ports | 1 |
| X USB 2.0 header supports 2 additional USB 2.0 ports | 1 |
| Miscellaneous | Да |
| X Addressable Gen 2 headers | 3 |
| X Clear CMOS header | 1 |
| X Chassis Intrusion header | 1 |
| X Front panel audio header (F_AUDIO) | 1 |
| X 10-1 pin Front System Panel header | 1 |
| X Thunderbolt™ (USB4®) header | 1 |
| Special Features | Да |
| ASUS TUF PROTECTION | Да |
| DIGI+ VRM (- Digital power design with DrMOS) | Да |
| ESD Guards | Да |
| TUF LANGuard | Да |
| Overvoltage Protection | Да |
| SafeSlot | Да |
| Stainless-Steel Back I/O | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| PCIe Slot Q-Release | Да |
| Q-Antenna | Да |
| Q-Dashboard | Да |
| Q-DIMM | Да |
| ASUS Thermal Solution | Да |
| M.2 heatsinks | Да |
| VRM heatsink design | Да |
| ASUS EZ DIY | Да |
| CPU Socket lever protector | Да |
| ProCool | Да |
| Pre-mounted I/O shield | Да |
| SafeDIMM | Да |
| AURA Sync | Да |
| Addressable Gen | 2 headers |
| Software Features | Да |
| ASUS Exclusive Software | Да |
| Armoury Crate | Да |
| AURA Creator | Да |
| AURA Sync | Да |
| Fan Xpert | 2+ |
| Power Saving | Да |
| ASUS DriverHub | Да |
| ASUS GlideX | Да |
| TurboV Core | Да |
| TUF GAMING CPU-Z | Да |
| DTS Audio Processing | Да |
| Norton | 360 for Gamers (60 Days Free Trial) |
| WinRAR (40 Days Free Trial) | Да |
| UEFI BIOS | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | Да |
| ASUS UEFI BIOS EZ Mode | Да |
| ASUS MyHotkey | Да |
| NPU Boost | Да |
| BIOS | Да |
| X 128 Mb Flash ROM, UEFI AMI BIOS | 2 |
| Manageability | Да |
| WOL by PME, PXE | Да |
| Операционна система | Да |
| Windows | 11 (22H2 & later) |
| Форм фактор | Да |
| mATX Form Factor | Да |
| 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) | Да |
