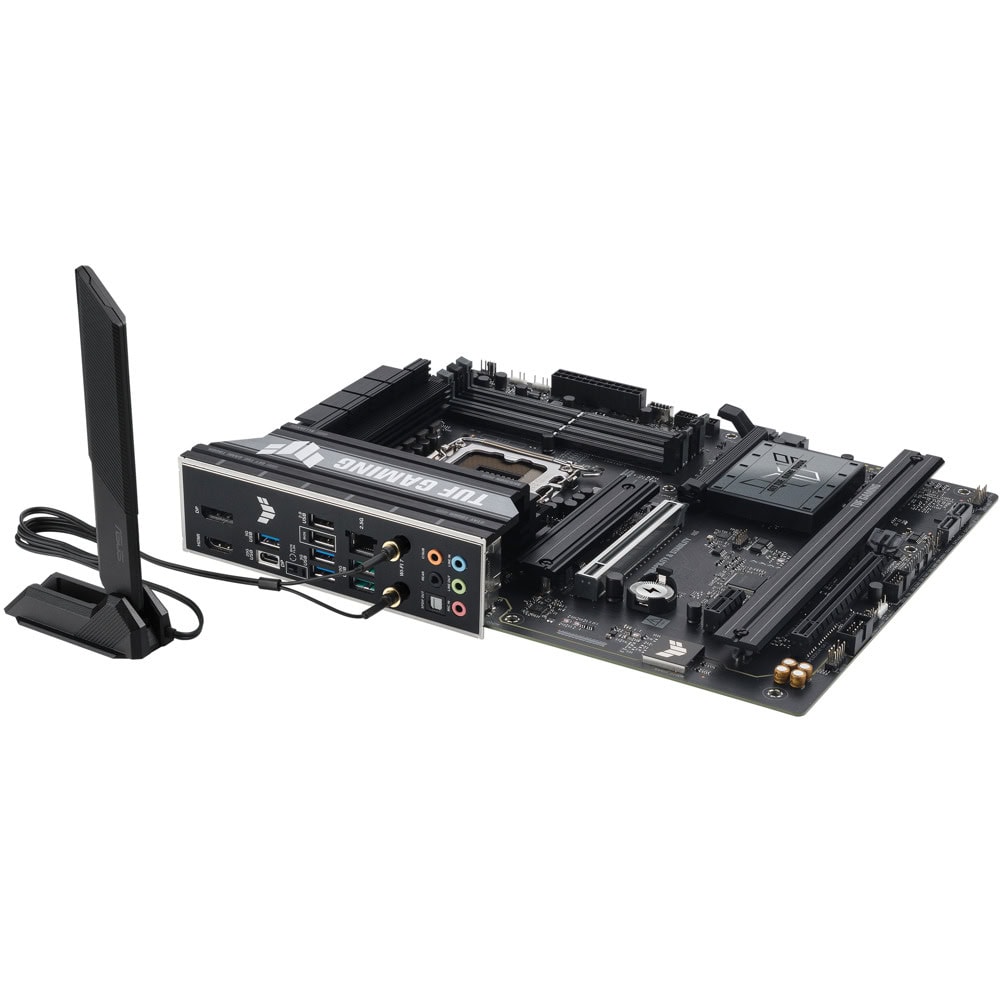

Дънна платка Asus TUF GAMING B860-PLUS WIFI

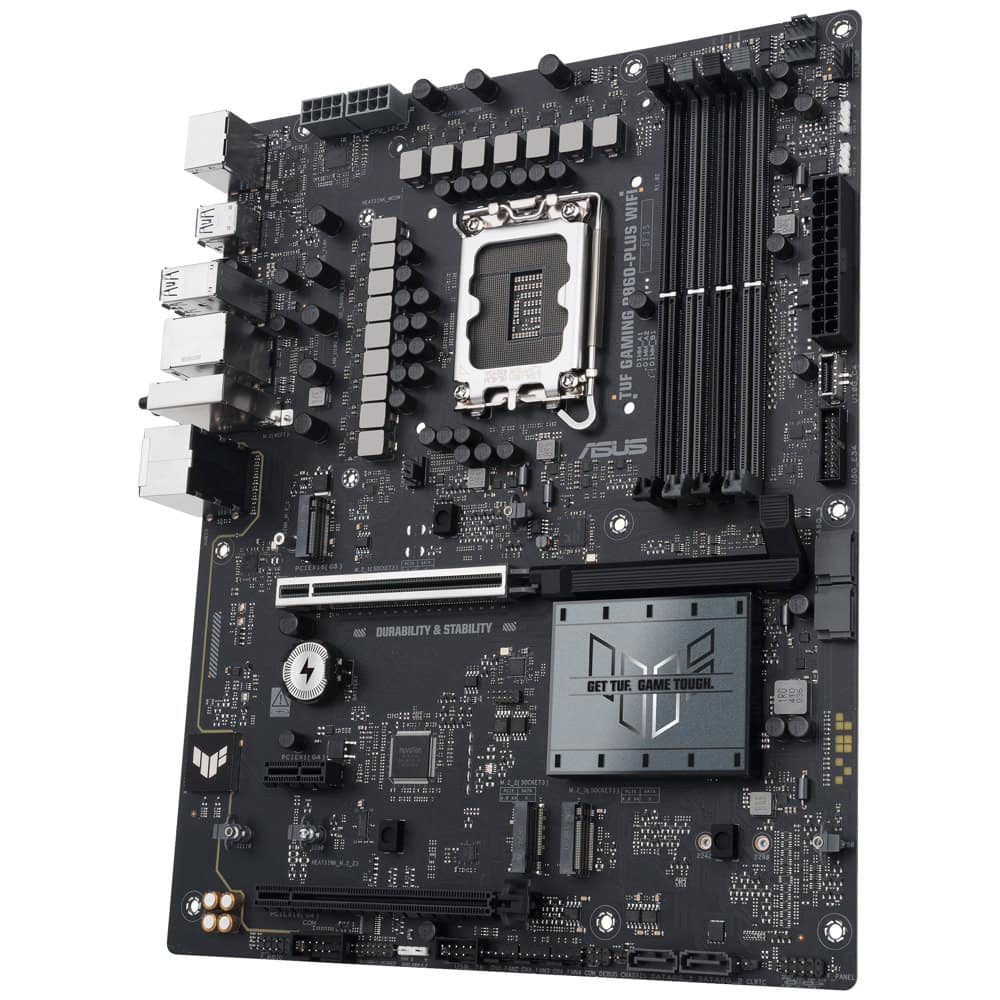

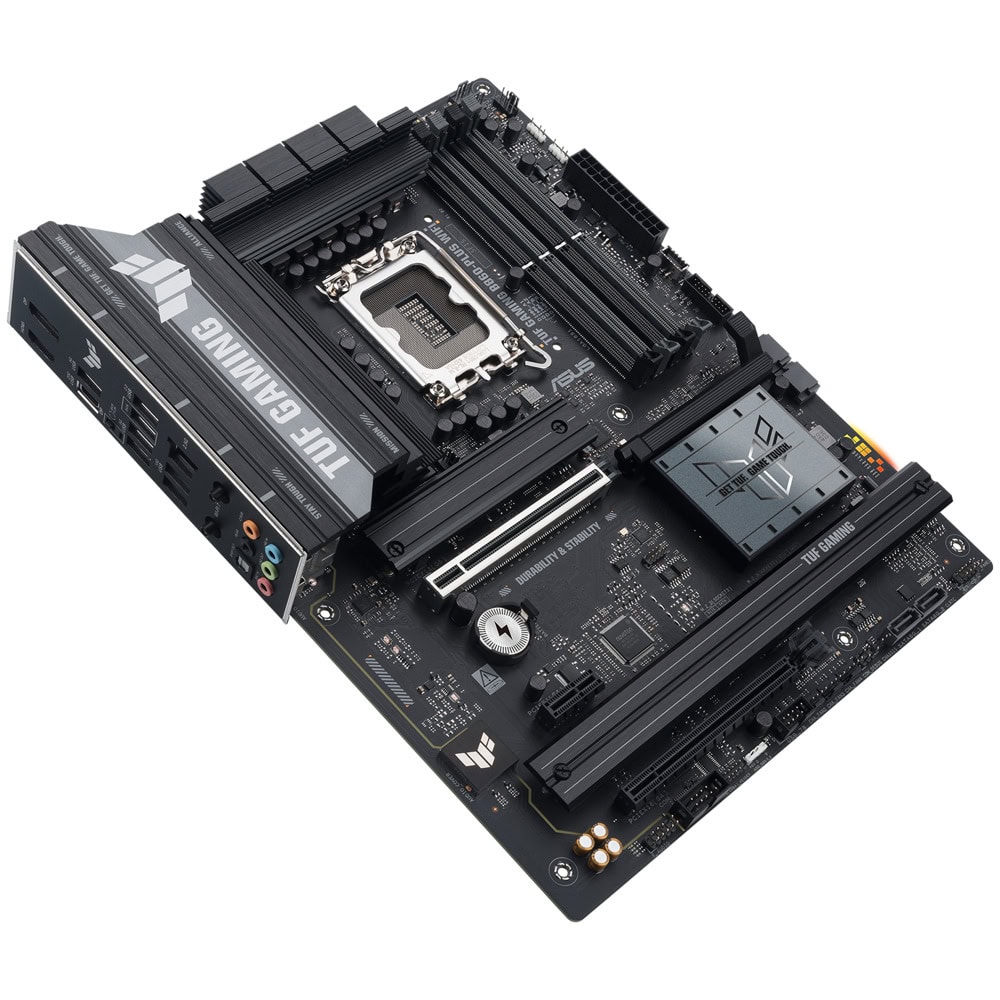

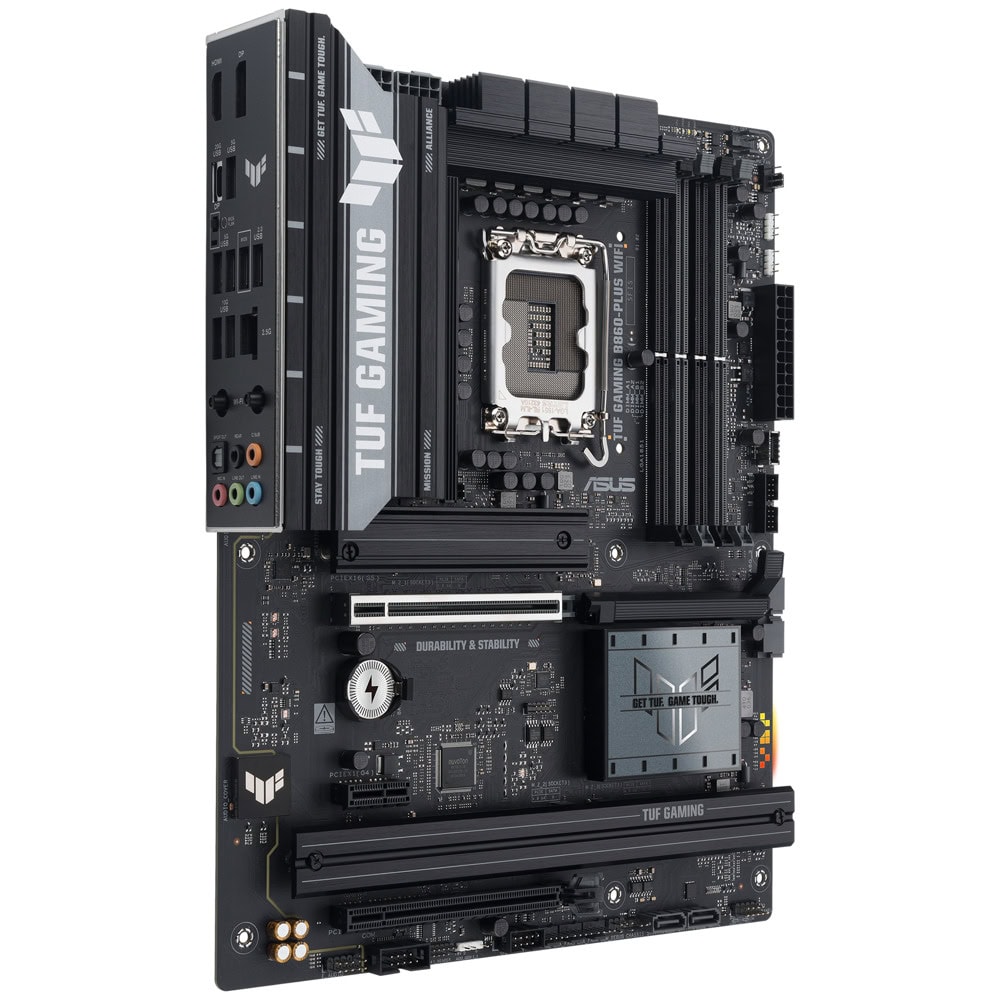

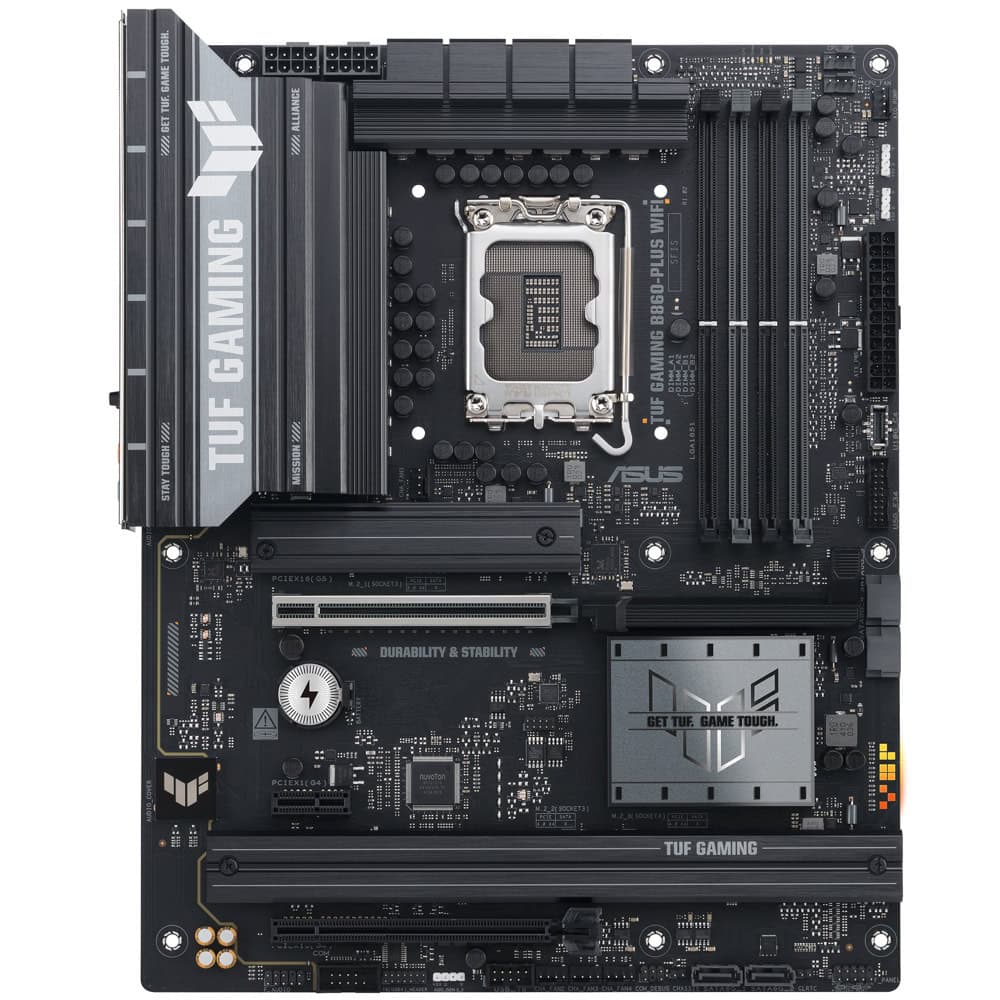

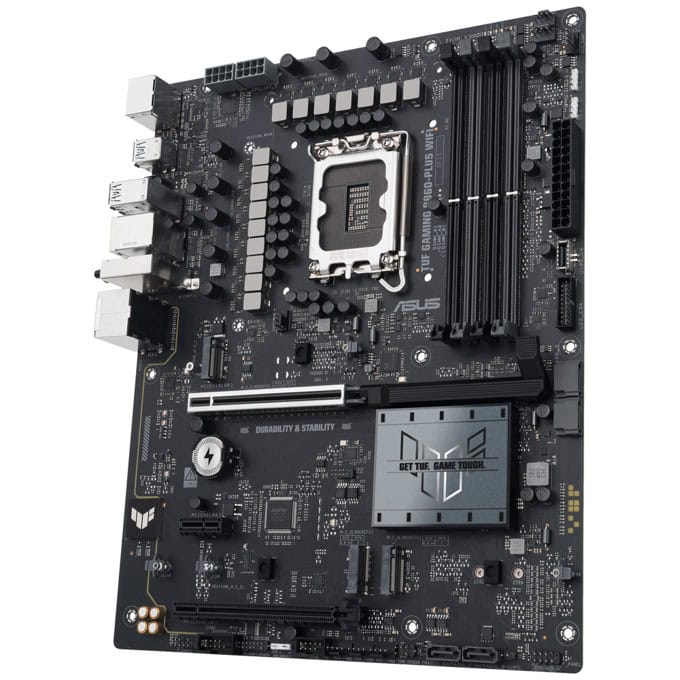

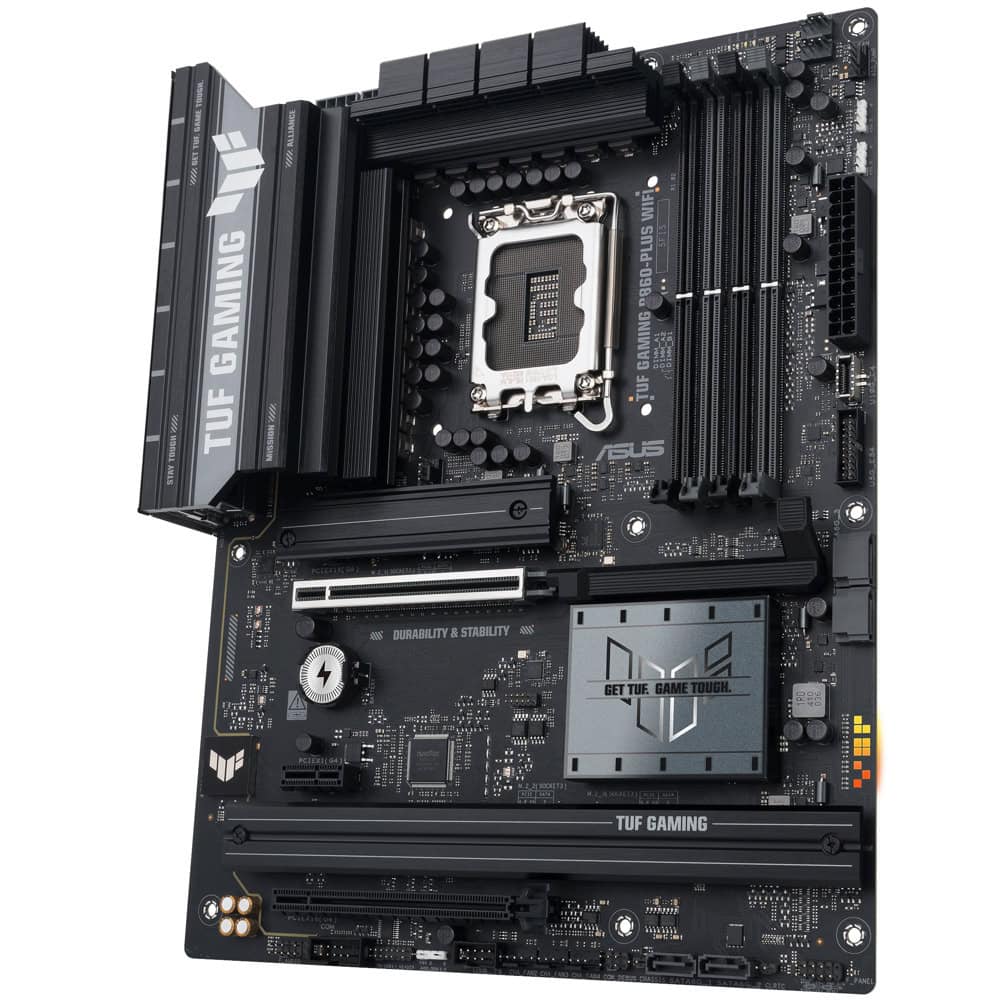

Asus TUF GAMING B860-PLUS WIFI

90MB1JL0-M0EAY0

CPU

Support Intel Core Ultra Processors(Series 2), LGA1851*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel B860 Chipset

Memory

4x DIMM slots, max. 256GB, DDR5

Support up to 8666+ MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*"

Dual channel memory architecture

Supports Intel Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI port***

1x USB 20Gbps port (USB Type-C) supports DisplayPort video output****

* Graphics specifications may vary between CPU types.

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

****Supports max. 4K@60Hz as specified in DisplayPort 1.4.

***** VGA resolution support depends on processors' or graphic cards' resolution.

******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

Intel Core Ultra Processors(Series 2)

1x PCIe 5.0 x16 slot

Intel B860 Chipset

1x PCIe 4.0 x16 slot (supports x4 mode)*

1x PCIe 4.0 x1 slot*

* PCIEX16(G4) shares bandwidth with PCIEX1(G4). When PCIEX1(G4) runs at PCIe x1 mode, PCIEX16(G4) will only run at PCIe x2 mode.

Storage

Total supports 3x M.2 slots and 4x SATA 6Gb/s ports*

Intel Core Ultra Processors(Series 2)*

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

Intel B860 Chipset

M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

1x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)

1x USB 20Gbps port (1x USB Type-C®)

2x USB 10Gbps ports (2x Type-A)

3x USB 5Gbps ports (3x Type-A)

2x USB 2.0 ports (2x Type-A)

Front USB (Total 5 ports)

1x USB USB 10Gbps connector (supports USB Type-C)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

1x USB 2.0 header supports 2 additional USB 2.0 ports

USB Type-C power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Rear optical S/PDIF out port

- Premium audio capacitors

- Dedicated audio PCB layers

- Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

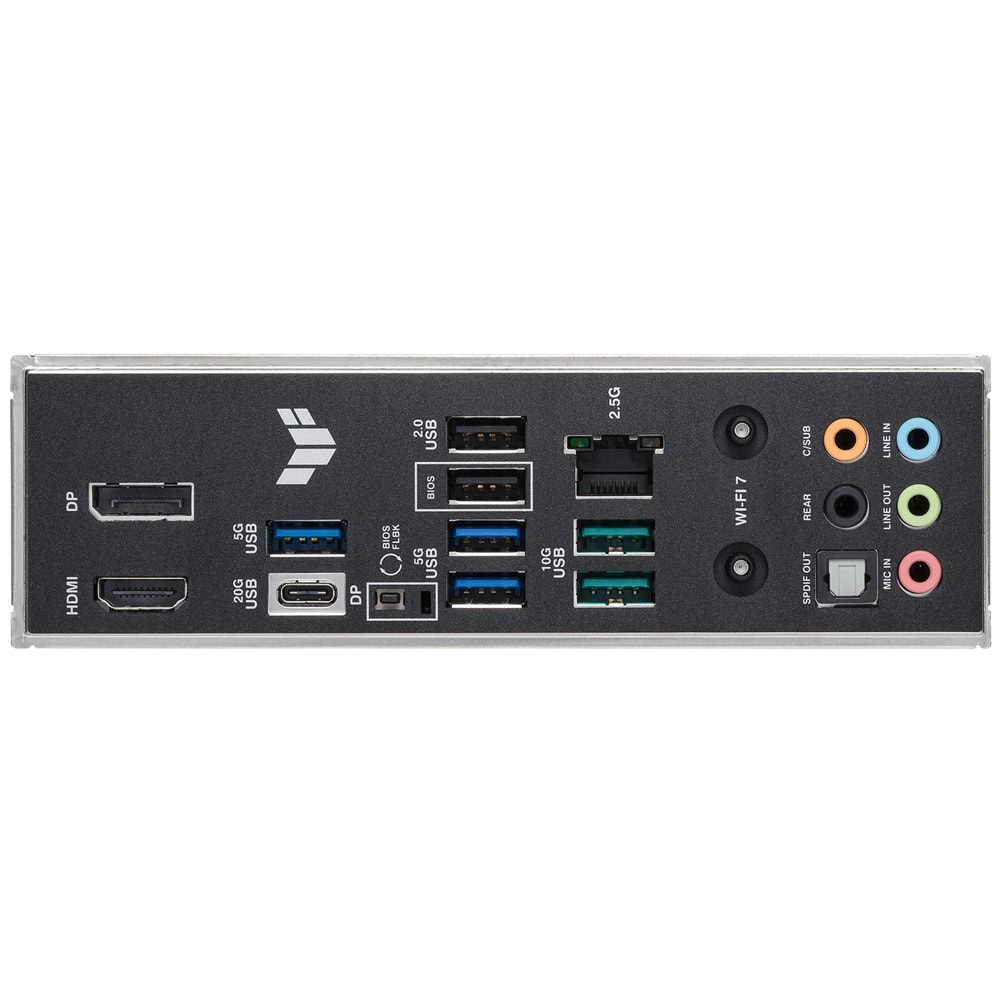

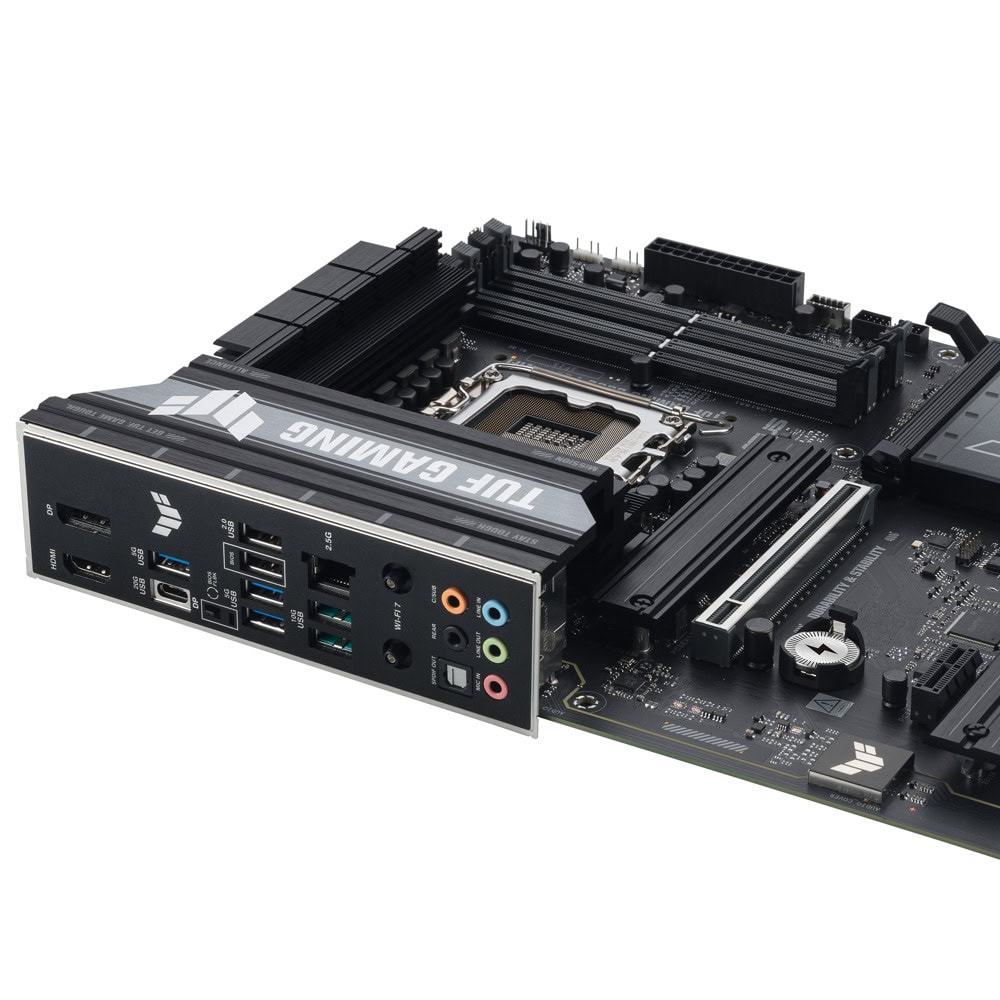

Back Panel I/O Ports

1x USB 3.2 Gen 2x2 20Gbps port (1x USB Type-C with DP Alt mode)

2x USB 10Gbps ports (2x USB Type-A)

3x USB 5Gbps ports (3x Type-A)

2x USB 2.0 ports (2x Type-A)

1x DisplayPort

1x HDMI port

1x Wi-Fi module

1x Realtek 2.5Gb Ethernet port

5x Audio jacks

1x Optical S/PDIF out port

1x BIOS FlashBack button

Internal I/O Connectors

Fan and Cooling Related

1x 4-pin CPU Fan header

1x 4-pin CPU OPT Fan header

1x 4-pin AIO Pump header

4x 4-pin Chassis Fan headers

Power Related

1x 24-pin Main Power connector

2x 8-pin +12V CPU Power connectors

Storage Related

3x M.2 slots (Key M)

4x SATA 6Gb/s ports

USB

1x USB 10Gbps connector (supports USB Type-C)

1x USB 5Gbps header supports 2 additional USB 5Gbps ports

1x USB 2.0 header supports 2 additional USB 2.0 ports

Miscellaneous

3x Addressable Gen 2 headers

1x Clear CMOS header

1x Chassis Intrusion header

1x COM Port header

1x Front Panel Audio header (F_AUDIO)

1x 10-1 pin Front System Panel header
