Asus
Дънна платка Asus TUF Gaming B850M-PLUS Wi-Fi
Артикул №: 1000140390
Категория:
Компютърни компоненти
312,99 €
✓ Налично във външен склад

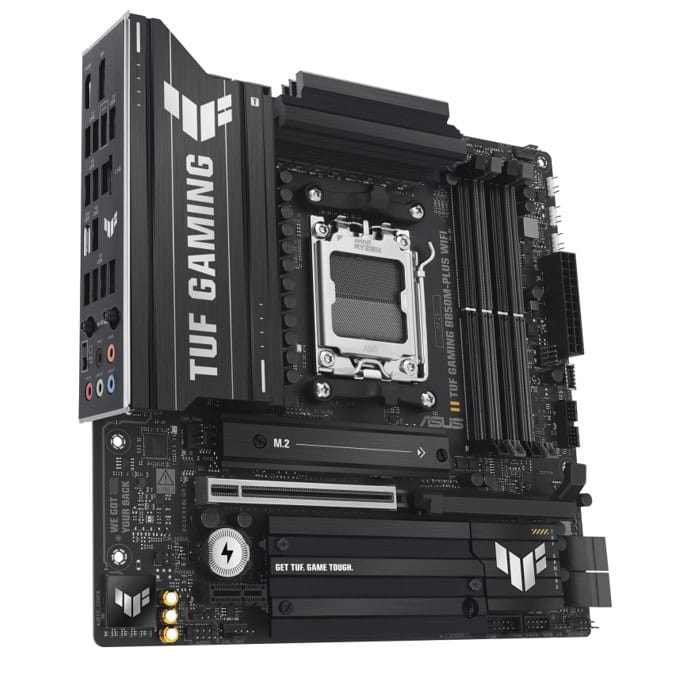

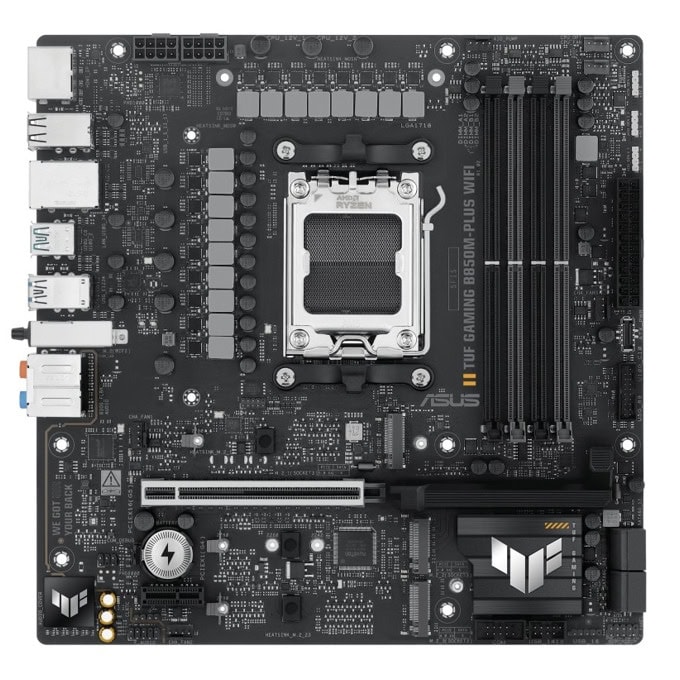

TUF GAMING B850M-PLUS WIFI
- TUF GAMING B850M-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability.
- AI Advisor For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning.
- UEFI BIOS The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
- ASUS DriverHUB Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
- Power Saving Leverage all-around energy efficiency settings to optimize power consumption.
- Armoury Crate Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
- VRM Heatsinks The extensive surface area of this heatsink covers the MOSFETs and chokes to improve thermal performance.
- Incredible DDR5 Performance For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support.
- AEMP automatically detects the memory chips on your kit and then presents optimised frequency, timing and voltage profiles that you can quickly apply.
Характеристики
| Чипсет | Да |
| AMD B850 Chipset | Да |
| Памет | Да |
| X DIMM slots, max. 256GB, DDR5 | 4 |
| Dual channel memory architecture | Да |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | Да |
| ASUS Enhanced Memory Profile (AEMP) | Да |
| Графика | Да |
| X DisplayPort** | 1 |
| X HDMI™ port*** | 1 |
| Supports max. | 8K@30Hz as specified in DisplayPort 1.4 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Слотове за разширение | Да |
| AMD Ryzen™ | 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 | x16 slot (supports x16 mode) |
| AMD Ryzen™ | 8000 Series Desktop Processors |
| 1 x PCIe 4.0 | x16 slot (supports x8/x4 mode)** |
| AMD B850 Chipset | Да |
| 1 x PCIe 4.0 | x1 slot |
| Specifications vary by CPU types | Да |
| Капацитет за съхранение | Да |
| Total supports | 3 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen™ | 9000 & 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 | x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| AMD Ryzen™ | 8000 Series Desktop ProcessorsSATA |
| M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| AMD B850 Chipset | Да |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
| Specifications vary by CPU types | Да |
| AMD RAIDXpert2 Technology | Да |
| Ryzen™ 9000 Series Processors | RAID 0/1/5/10 |
| Ryzen™ 8000 Series Processors | RAID 0/1 |
| Ryzen™ 7000 Series Processors | RAID 0/1/10 |
| Ethernet | Да |
| X Realtek 2.5Gb Ethernet | 1 |
| TUF LANGuard | Да |
| Wireless & Bluetooth | Да |
| Wi-Fi | 6E |
| 2x2 Wi-Fi 6E (802.11ax) | Да |
| Supports | 2.4/5/6GHz frequency band* |
| Bluetooth® v5.3** | Да |
| USB | Да |
| Rear USB (Total | 12 ports) |
| X USB 20Gbps port (1 x USB Type-C®) | 1 |
| X USB 10Gbps ports (3 x Type-A) | 3 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| X USB 2.0 ports (4 x Type-A)Wi-Fi | 4 |
| Front USB (Total | 6 ports) |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps header supports 2 additional USB 5Gbps ports | 1 |
| X USB 2.0 headers support 3 additional USB 2.0 portsWi-Fi | 2 |
| USB Type-C® power delivery output | max. 5V/3A. |
| Аудио | Да |
| Impedance sense for front and rear headphone outputs | Да |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 32-Bit/192 kHz playback* |
| Audio Features | Да |
| Audio Shielding | Да |
| Premium audio capacitors | Да |
| Dedicated audio PCB layers | Да |
| Audio cover | Да |
| Unique de-pop circuit | Да |

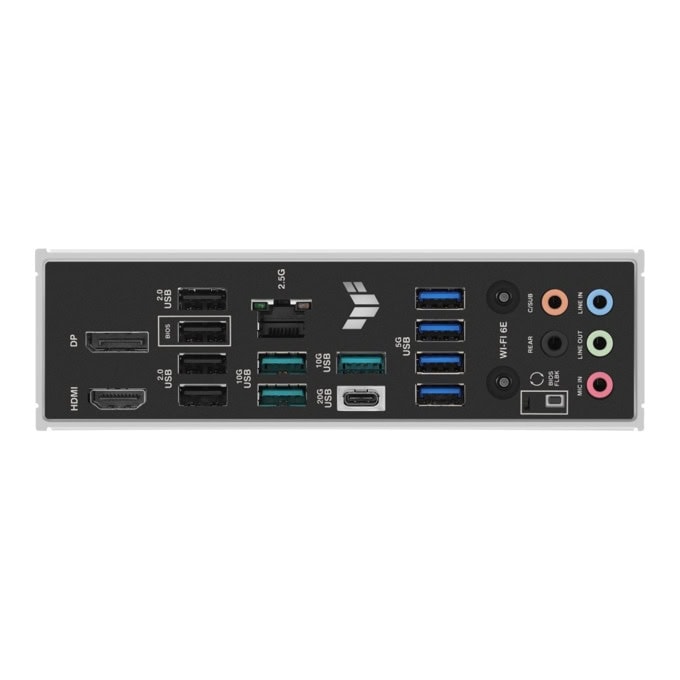

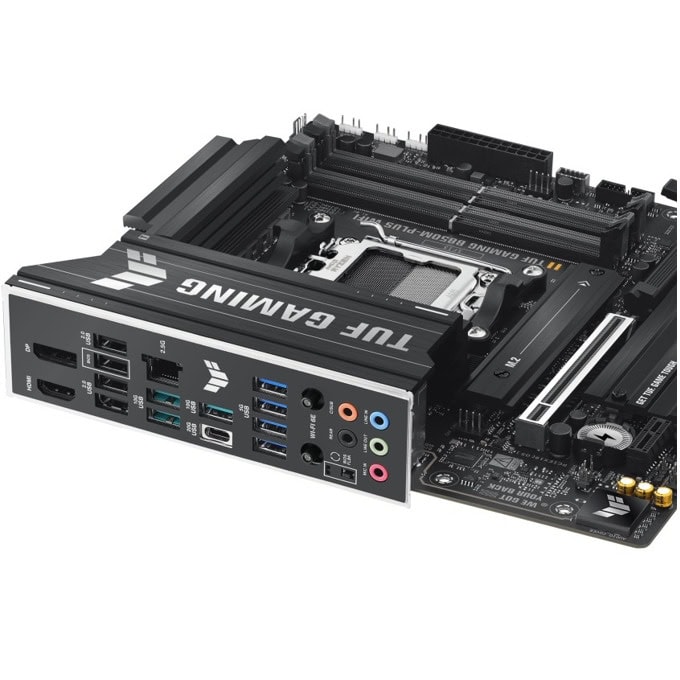

| Back Panel I/O Ports | Да |
| X USB 20Gbps port (1 x USB Type-C®) | 1 |
| X USB 10Gbps ports (3 x Type-A) | 3 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| X DisplayPort | 1 |
| X HDMI™ port | 1 |
| X Wi-Fi module | 1 |
| X Realtek 2.5Gb Ethernet port | 1 |
| X Audio jacks | 5 |
| X BIOS FlashBack™ button | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling Related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 3 |
| Power Related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V CPU Power connectors | 2 |
| Storage Related | Да |
| X M.2 slots (Key M) | 3 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 10Gbps connector (supports USB Type-C® ) | 1 |
| X USB 5Gbps header supports 2 additional USB 5Gbps ports | 1 |
| X USB 2.0 headers support 3 additional USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen 2 headers | 3 |
| X Clear CMOS header | 1 |
| X Chassis Intrusion header | 1 |
| X COM Port header | 1 |
| X Front Panel Audio header (F_AUDIO) | 1 |
| X 10-1 pin Front Panel System header | 1 |
| Special Features | Да |
| ASUS TUF PROTECTION | Да |
| DIGI+ VRM (- Digital power design with DrMOS) | Да |
| ESD Guards | Да |
| TUF LANGuard | Да |
| Overvoltage protection | Да |
| SafeSlot | Да |
| Stainless-steel back I/O | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| PCIe Slot Q-Release | Да |
| Q-Antenna | Да |
| Q-Dashboard | Да |
| Q-DIMM | Да |
| ASUS Thermal Solution | Да |
| M.2 heatsink | Да |
| VRM heatsink design | Да |
| ASUS EZ DIY | Да |
| BIOS FlashBack™ button | Да |
| BIOS FlashBack™ LED | Да |
| ProCool | Да |
| Pre-mounted I/O shield | Да |
| SafeDIMM | Да |
| Aura Sync | Да |
| Addressable Gen2 headers | Да |
| Software Features | Да |
| ASUS Exclusive Software | Да |
| Armoury Crate | Да |
| Aura Creator | Да |
| Aura Sync | Да |
| Fan Xpert | 4 |
| Power Saving | Да |
| ASUS DriverHub | Да |
| ASUS GlideX | Да |
| TurboV Core | Да |
| TUF GAMING CPU-Z | Да |
| DTS Audio Processing | Да |
| Adobe Creative Cloud (Free Trial) | Да |
| Norton | 360 for Gamers (60 Days Free Trial) |
| WinRAR (40 Days Free Trial) | Да |
| UEFI BIOS | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | 3 |
| ASUS UEFI BIOS EZ Mode | Да |
| ASUS MyHotkey | Да |
| BIOS | Да |
| Mb Flash ROM, UEFI AMI BIOS | 256 |
| Manageability | Да |
| WOL by PME, PXE | Да |
| Операционна система | Да |
| Windows | 11, Windows 10 64-bit |
| Форм фактор | Да |
| micro-ATX Form Factor | Да |
| Inch x 9.6 inch (24.4 cm x 24.4 cm) | 9.6 |
