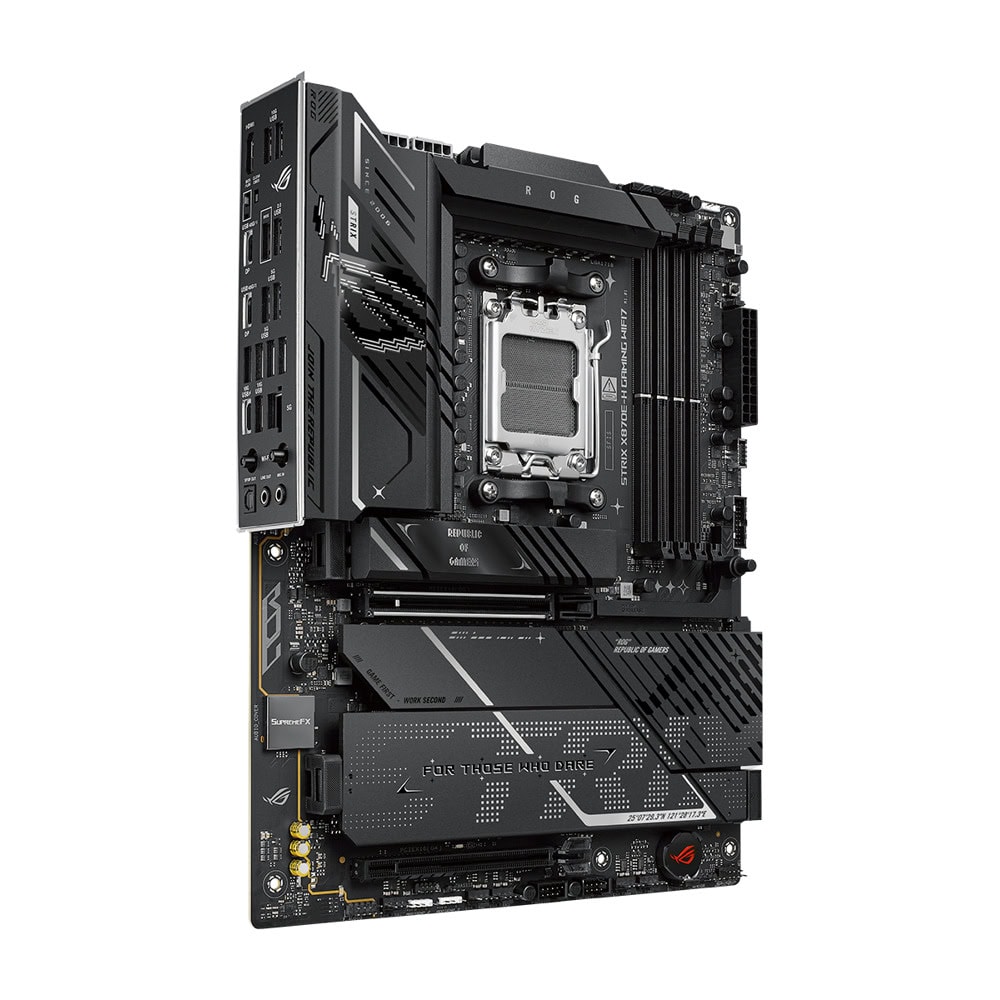

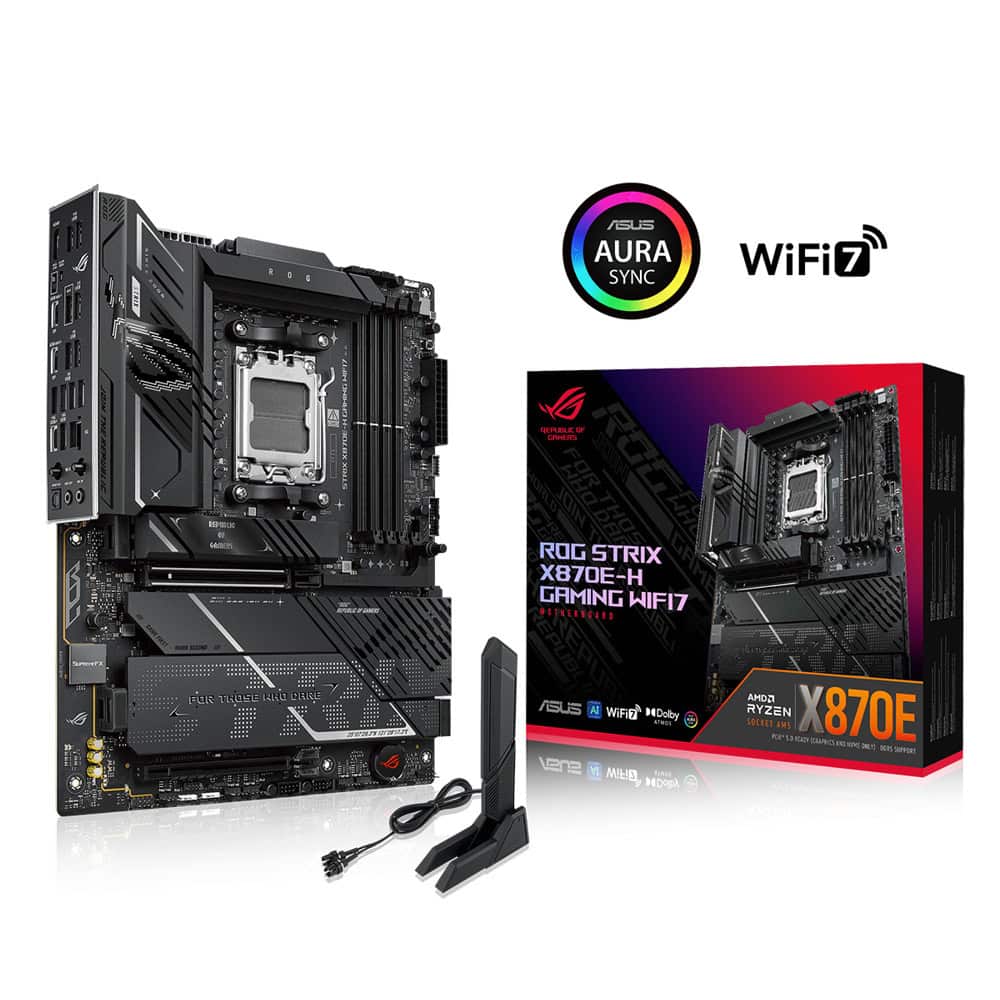

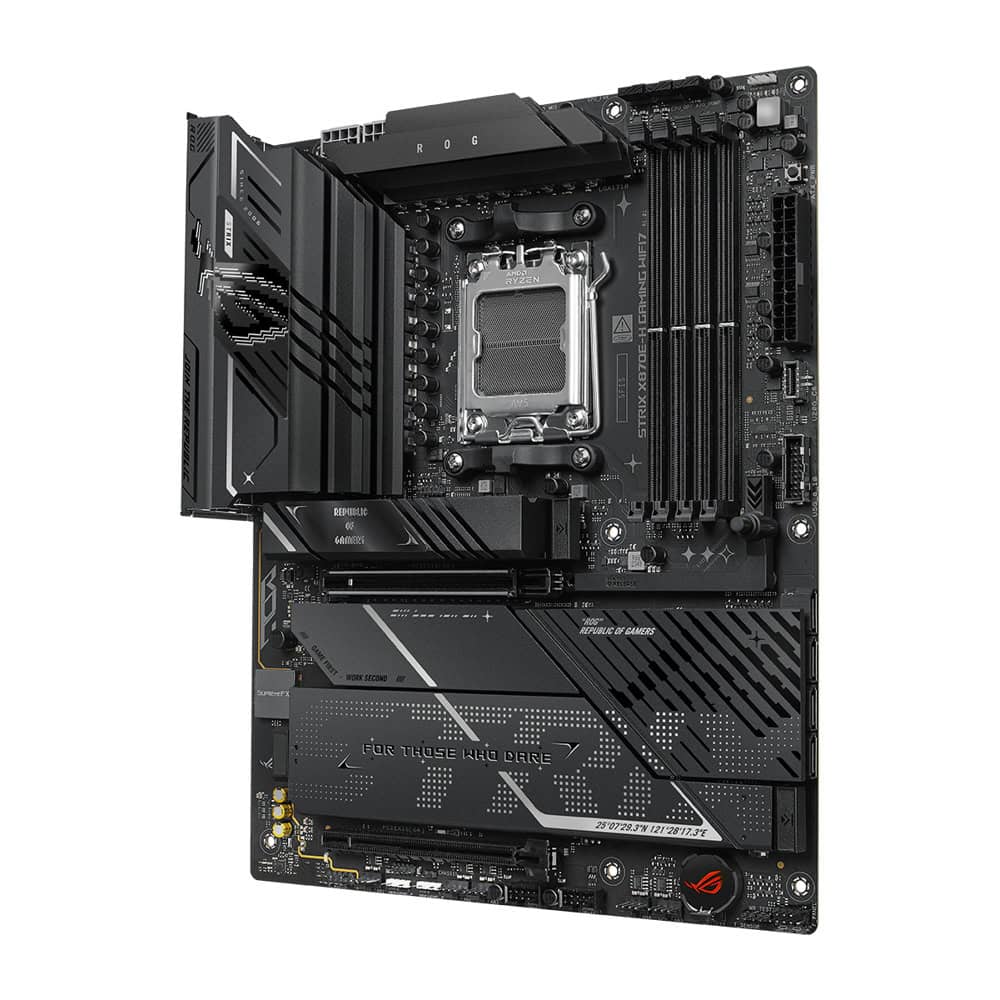

Дънна платка Asus ROG STRIX X870E-H Gaming WIFI7

ROG STRIX X870E-H

GAMING WIFI7

Transform your gaming experience with the ROG STRIX X870E-H GAMING WIFI7 motherboard. Engineered to dominate with AMD Ryzen™ 9000 Series Desktop Processors, this ATX powerhouse features cutting-edge power design and AI-enhanced solutions. With PCIe 5.0 x16 slots, dual USB4® Type-C ports, and WiFi 7, it delivers advanced connectivity. DIY-friendly features like M.2 Q-Release on all four M.2 slots and PCIe Slot Q-Release make building and upgrades effortless. Unleash your system's full potential with the ROG STRIX X870E-H GAMING WIFI7.

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 &

8000 & 7000 Series Desktop Processors*

Chipset

AMD X870E

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™

9000 & 8000 & 7000 Series Processors

Dual channel memory architecture

Supports AMD Extended Profiles for

Overclocking (EXPO™)

Supports DIMM Fit / DIMM Fit Pro

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate

(speed), and number of DRAM modules vary depending on the CPU and memory

configuration, for more information please refer to CPU/Memory Support list

under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

Adjustments will be made based on the specifications of mass-produced memory

products available on the market.

** Non-ECC, un-buffered DDR5 memory

supports On-Die ECC function.

Graphics

1 x HDMI™ port**

2 x USB4® (40Gbps) ports support USB

Type-C® display outputs***

* Graphics specifications may vary between

CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI

2.1.

*** Supports max. 4K@60Hz as specified in

DisplayPort 1.4a

**** VGA resolution support depends on

processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop

Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x8/x4

mode)**

AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table

on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

- To ensure compatibility of the device

installed, please refer to https://www.asus.com/support/download-center/ for

the list of supported peripherals.

Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s

ports

AMD Ryzen™ 9000 & 7000 Series Desktop

Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280/22110

(supports PCIe 5.0 x4 mode)*

AMD Ryzen™ 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2280/22110 (Not

supports)**

AMD X870E Chipset

M.2_3 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* M.2_2 shares bandwidth with PCIEX16(G5).

When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.

** M.2_2 will be disabled when using AMD

Ryzen™ 8000 Series Desktop Processors.

RAID Support

AMD RAIDXpert2 Technology*

Ryzen™ 9000 Series Processors: RAID

0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

* Specifications vary by CPU types.

Ethernet

1 x Realtek 5Gb Ethernet

ASUS LANGuard

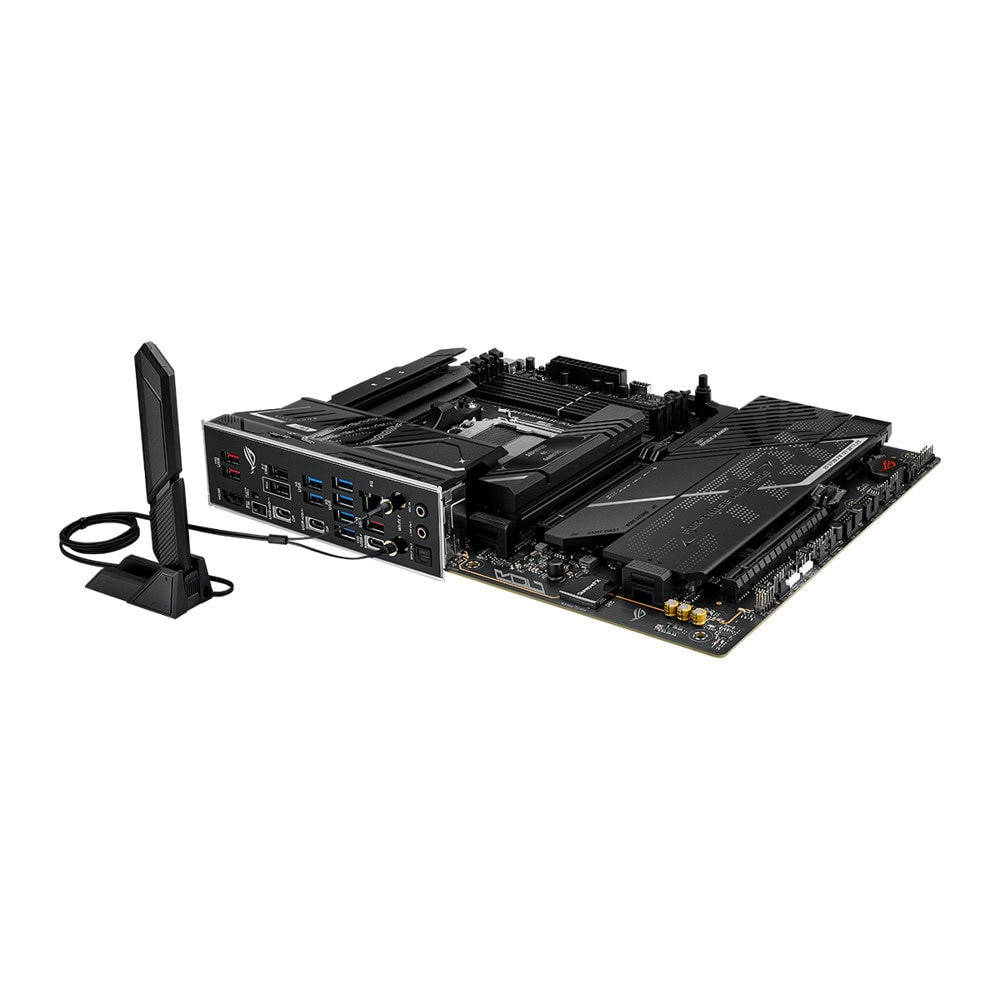

Wireless & Bluetooth

Wi-Fi 7 (Realtek® RTL8922AE)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the

operating system

For

Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,

Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For

Windows 10, only Wi-Fi 6 is supported.

** Wi-Fi 6GHz frequency band and bandwidth

regulatory may vary between countries.

*** The Bluetooth® version may vary, please

refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 14 ports)

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C® with up to 30W PD/PPS Fast-charge)**

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB

Type-C®)

1 x USB 5Gbps header supports 2 additional

USB 5Gbps ports

2 x USB 2.0 headers support 4 additional

USB 2.0 ports

* USB Type-C® power delivery output: max.

5V/3A

** USB Type-C® power delivery output: 5V/9V

max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

Realtek ALC1220P 7.1 Surround Sound

High Definition Audio CODEC*

- Impedance sense for front and rear

headphone outputs

- Internal audio Amplifier to enhance the

highest quality sound for headphone and speakers

- Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz

playback*

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* The LINE OUT port on the rear panel does

not support spatial audio. If you wish to use spatial audio, make sure to

connect your audio output device to the audio jack on the front panel of your

chassis or use a USB interface audio device.

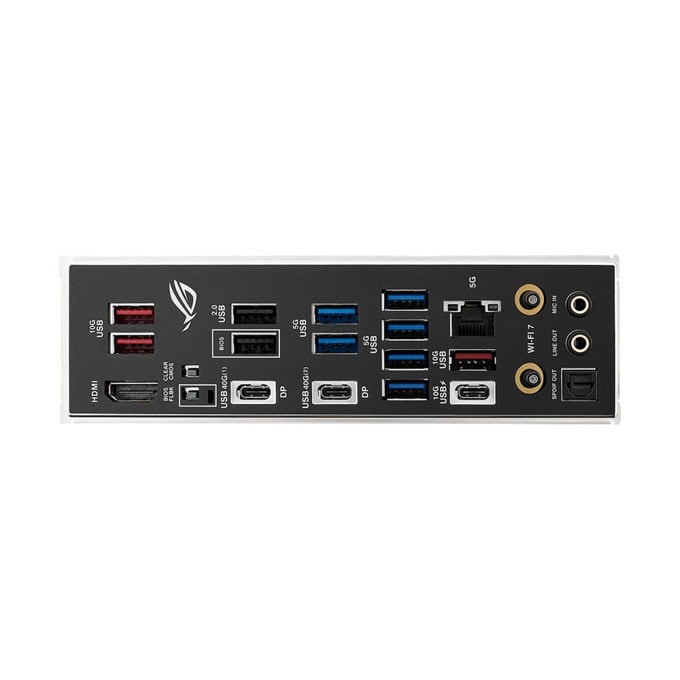

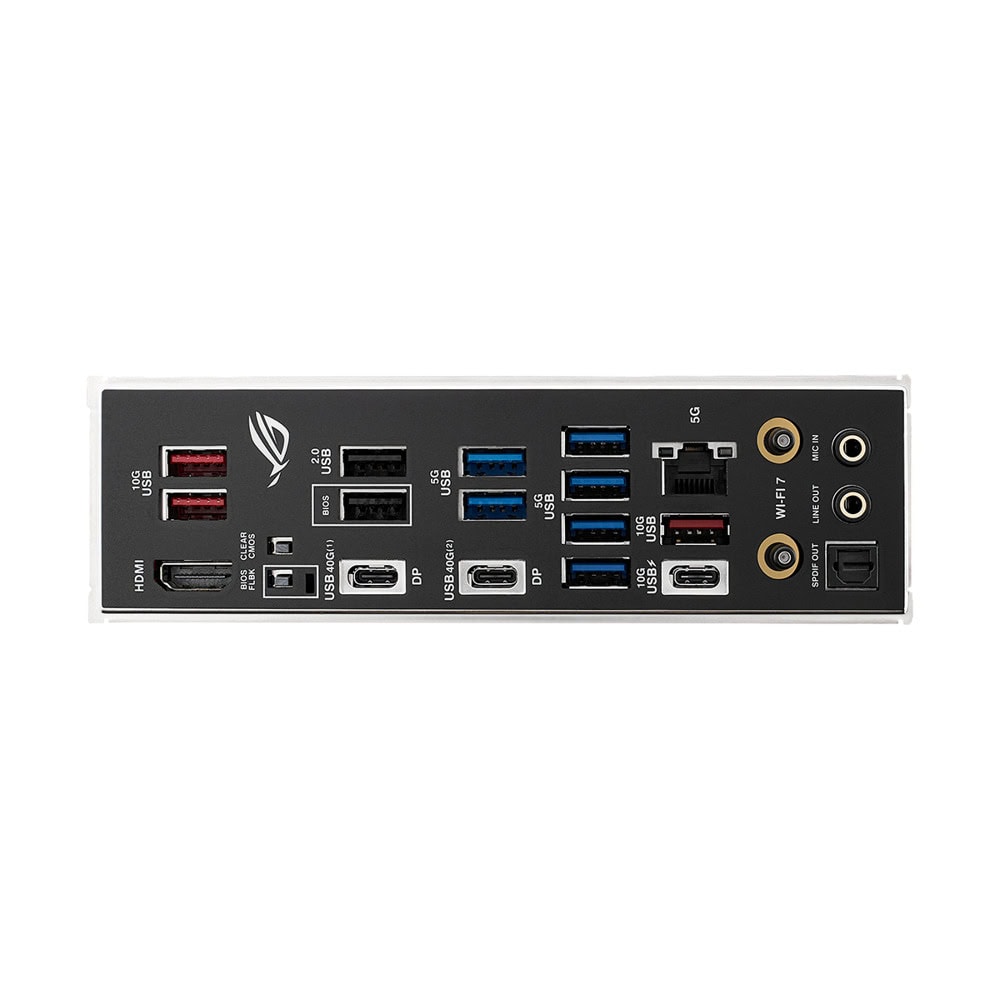

Back Panel I/O Ports

2 x USB4® (40Gbps) ports(2 x USB Type-C®)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C® with up to 30W PD/PPS Fast-charge)**
