Asus

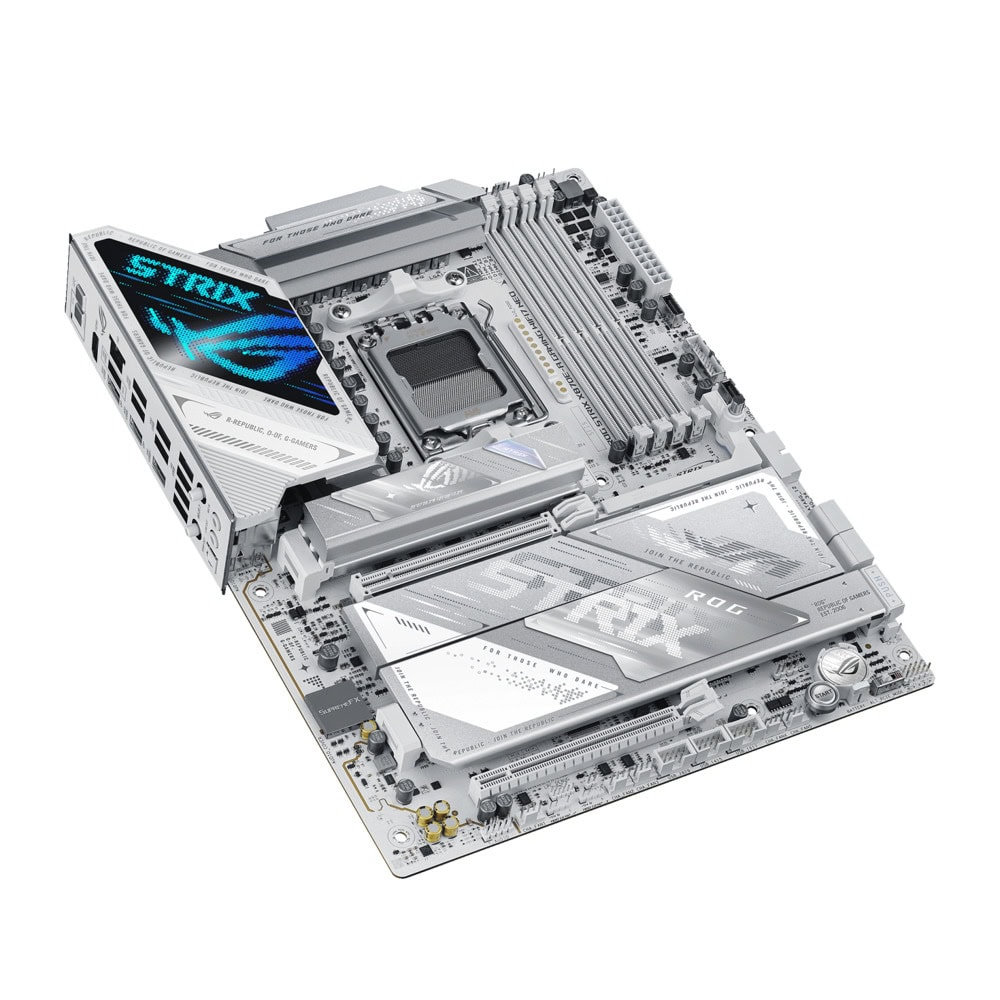

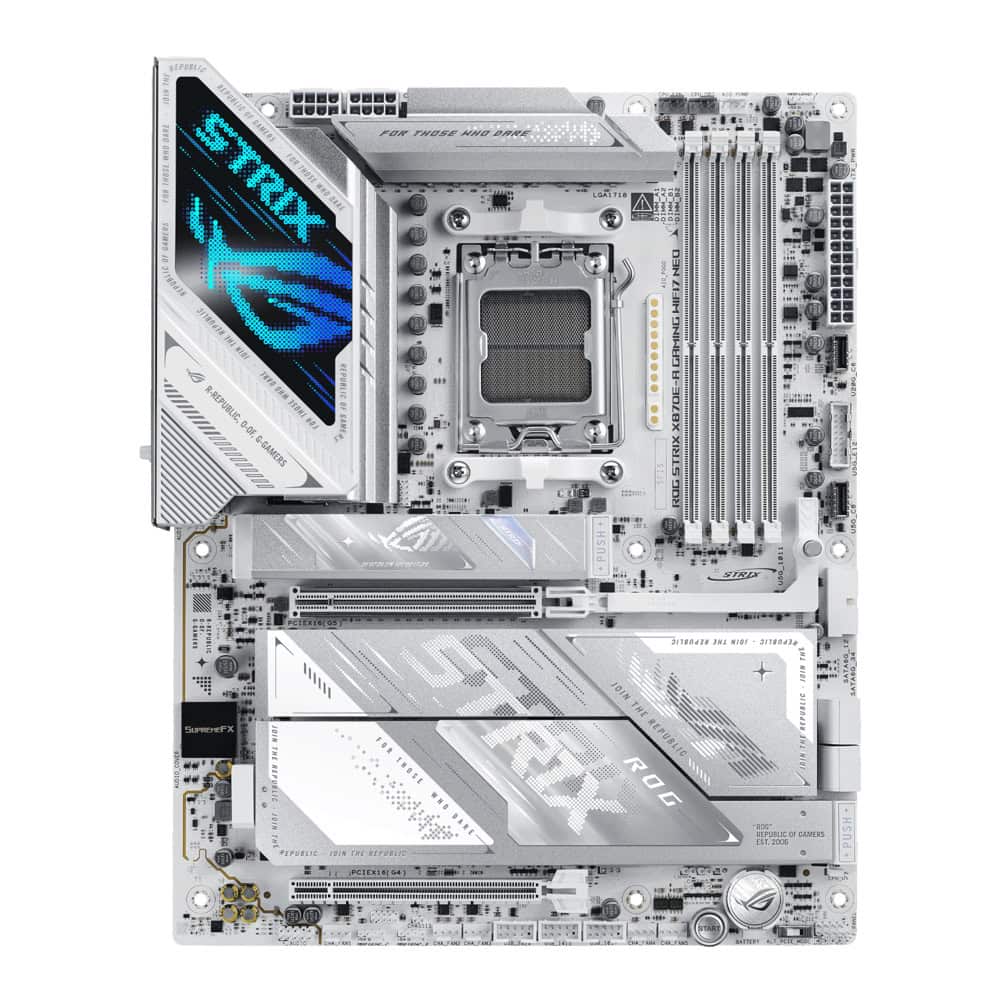

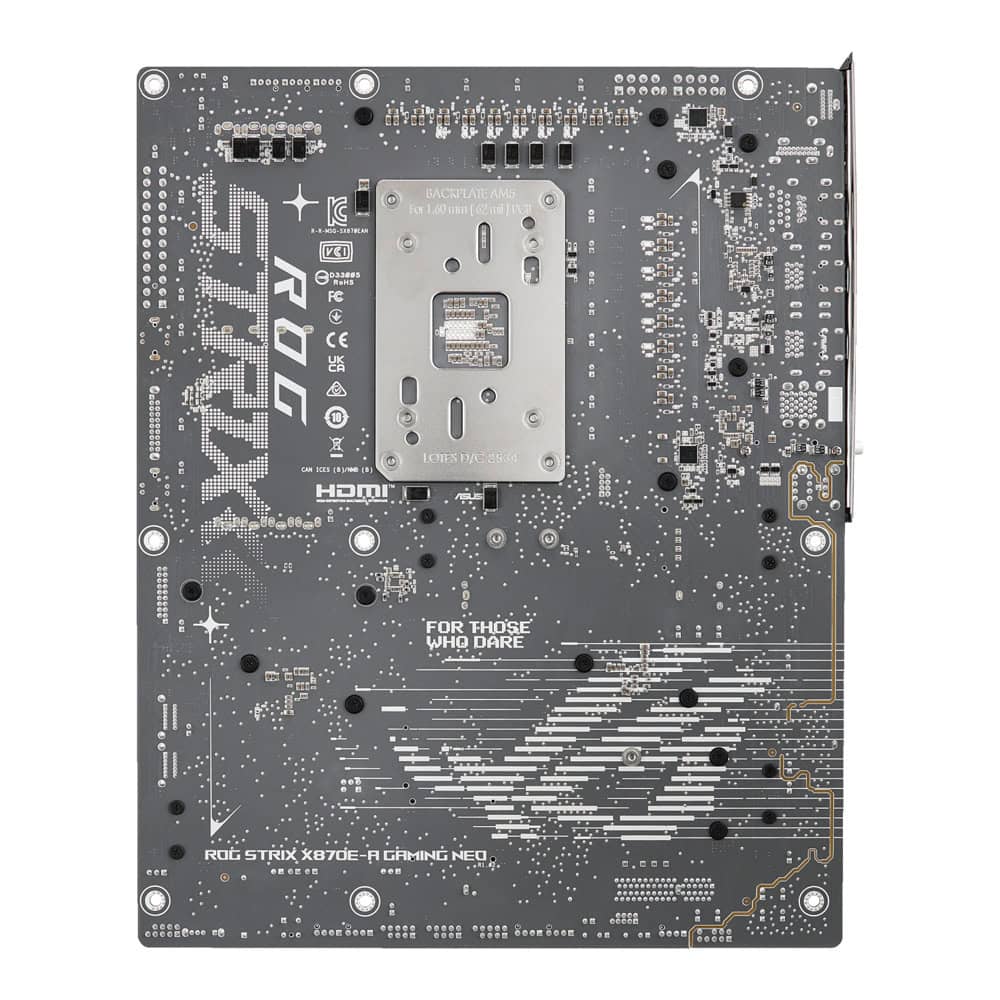

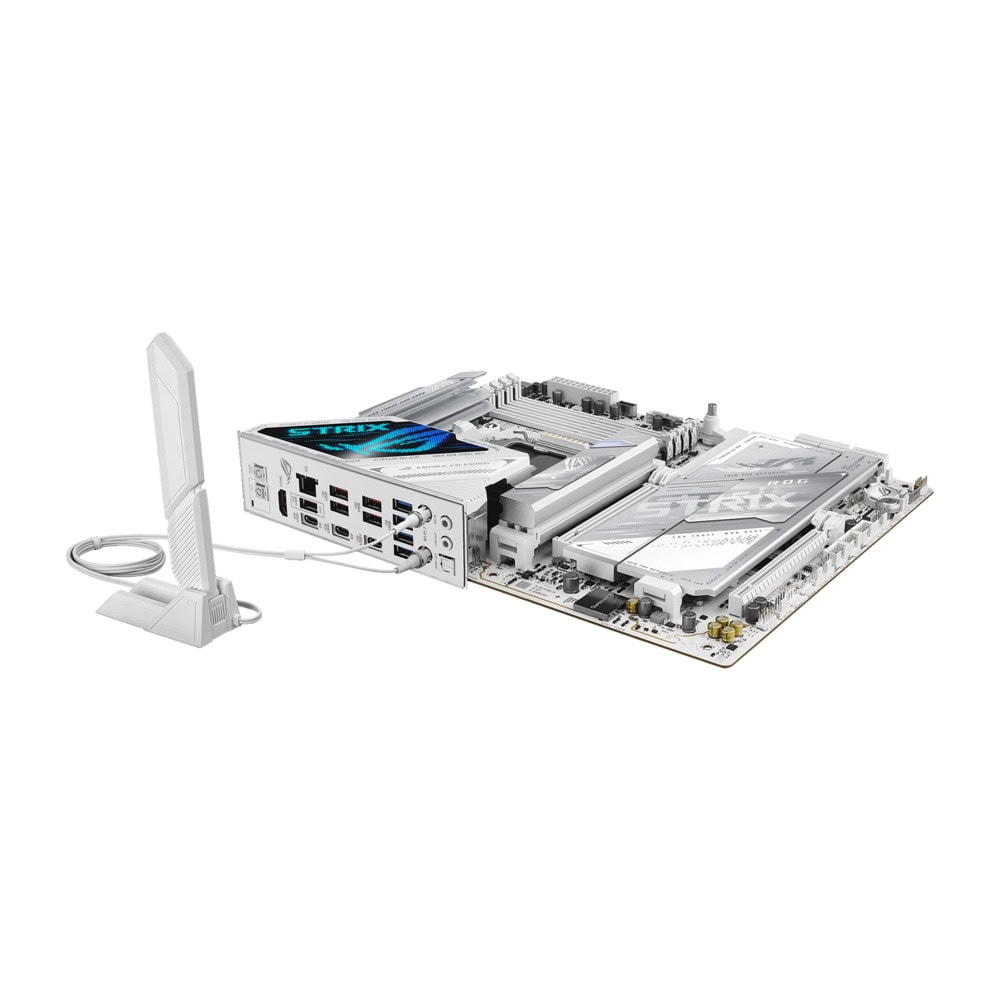

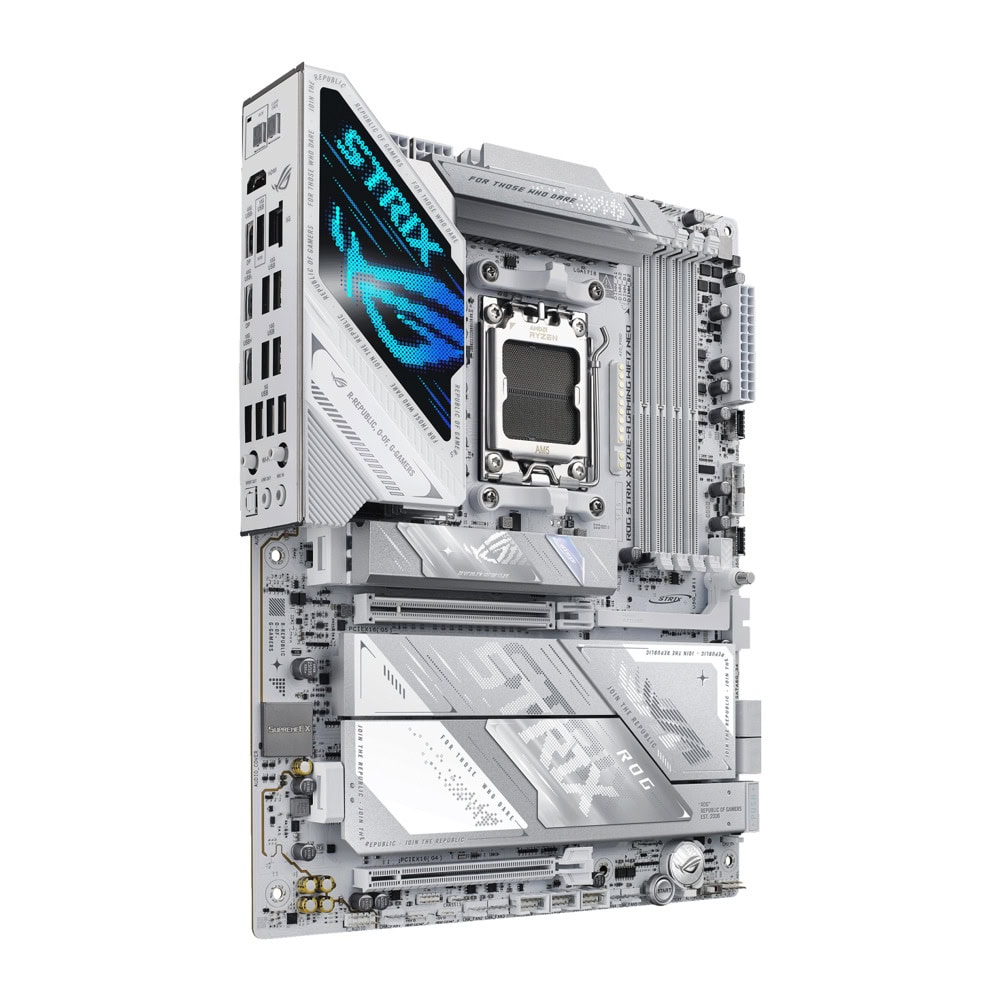

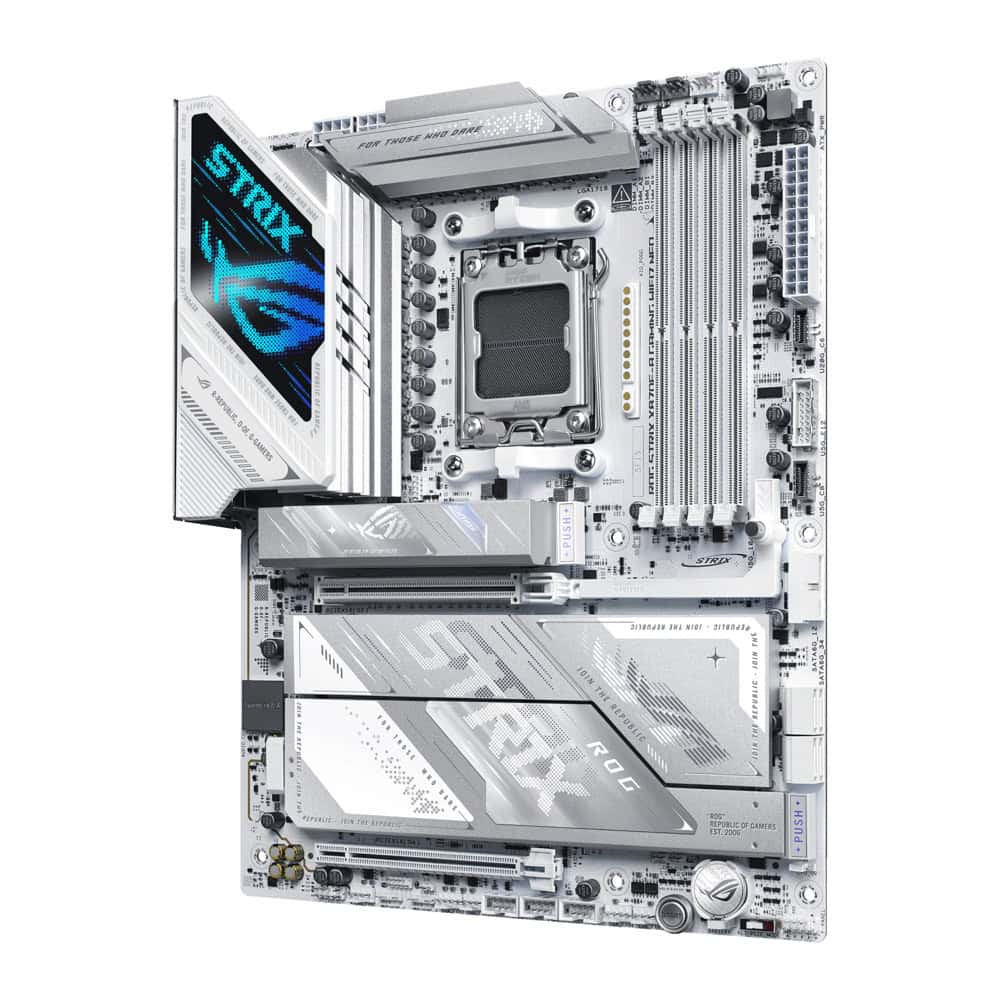

Дънна платка Asus ROG STRIX X870E-A GAMING WIFI7 NEO
Артикул №: 1000148473
Категория:
Компютърни компоненти
564,99 €
✓ Ограничена наличност
Asus ROG STRIX X870E-A GAMING WIFI7 NEO
ai OVERCLOCKINGASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.
ai COOLING IIBalance the thermals and acoustics of any build with a single click.
AI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*. *Features may vary by model.
Характеристики
| Чипсет | Да |
| AMD X870E | Да |
| Памет | Да |
| X DIMM slots, max. 256GB, DDR5 | 4 |
| Supports up to | Да |
| ECC and Non-ECC, Un-buffered DIMM* | Да |
| Dual channel memory architecture | Да |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | Да |
| Supports DIMM Fit and DIMM Fit Pro | Да |
| NitroPath DRAM Technology | Да |
| ASUS Enhanced Memory Profile (AEMP) | Да |
| Max Manual Overclocking | Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components. |
| XMP/EXPO/AEMP Profiles | Rated memory module speeds require setting the BIOS performance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. |
| Графика | Да |
| X HDMI™ port** | 1 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
| Supports max. | 4K@60Hz as specified in DisplayPort 1.4a |
| Слотове за разширение | Да |
| AMD Ryzen | 9000 & 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 | x16 slot (supports x16 mode) |
| AMD Ryzen | 8700 & 8600 & 8400 Series Desktop Processors* |
| 1 x PCIe 4.0 | x16 slots (supports x8 mode) |
| AMD Ryzen | 8500 & 8300 Series Desktop Processors* |
| 1 x PCIe 4.0 | x16 slots (supports x4 mode) |
| AMD X870E Chipset | Да |
| 1 x PCIe 4.0 | x16 slot (supports x4 mode) |
| Specifications vary by CPU types | Да |
| Капацитет за съхранение | Да |
| Total supports | 4 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen™ | 9000 & 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode) |
| M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 | x4 mode)** |
| AMD Ryzen™ | 8700 & 8600 & 8400 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_2 slot (Key M), type 2280/22110 (supports PCIe 4.0 | x4 mode)** |
| AMD Ryzen™ | 8500 & 8300 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_2 slot (Key M), type | 2280/22110 (Not supports) |
| AMD X870E Chipset | Да |
| M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
| Specifications vary by CPU types | Да |
| RAID Support | Да |
| AMD RAIDXpert2 Technology | Да |
| Ryzen 9000 & 8000 & 7000 Series Processors | RAID 0/1/5/10 |
| Ethernet | Да |
| X Realtek 5Gb Ethernet | 1 |
| ASUS LANGuard | Да |
| Wireless & Bluetooth | Да |
| Wi-Fi | 7 (MediaTek MT7925) |
| 2x2 Wi-Fi 7* (802.11be) | Да |
| Supports | 2.4/5/6GHz frequency band** |
| Supports Wi-Fi | 7 160MHz bandwidth |
| Bluetooth® v5.4 (support LE Audio)*** | Да |
| Wi-Fi features may vary depending on the operating system | Да |
| USB | Да |
| Rear USB (Total | 12 ports) |
| X USB4® (40Gbps) ports (2 x USB Type-C®with DP Alt mode) | 2 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| Front USB (Total | 12 ports) |
| X USB 20Gbps connector (1 x USB Type-C®) | 1 |
| X USB 5Gbps connector (1 x USB Type-C®) | 1 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 6 additional USB 2.0 ports | 3 |
| USB Type-C® output (USB Type-C Current) | max. 5V/3A. |
| USB Type-C® power delivery output | 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. |
| Аудио | Да |
| Impedance sense for front and rear headphone outputs | Да |
| Supports | Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
| Supports up to | 32-Bit/384 kHz playback on front panel |
| Audio Features | Да |
| SupremeFX Shielding Technology | Да |
| Savitech SV3H712 AMP | Да |
| Rear optical S/PDIF out port | Да |
| Premium audio capacitors | Да |
| Audio cover | Да |

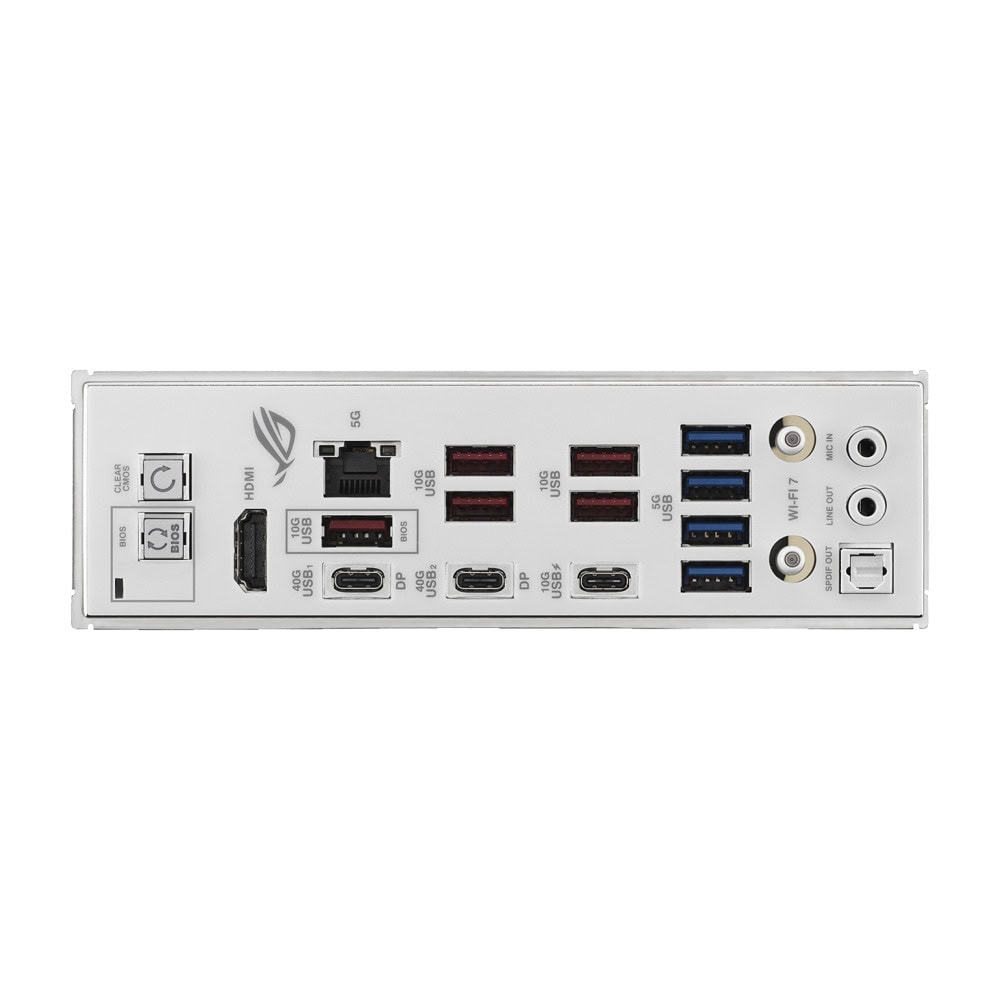

| Back Panel I/O Ports | Да |
| X USB4 (40Gbps) ports (2 x USB Type-C with DP Alt mode) | 2 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| X HDMI port | 1 |
| X Wi-Fi module | 1 |
| X Realtek 5Gb Ethernet port | 1 |
| X Audio jacks | 2 |
| X Optical S/PDIF out port | 1 |
| X BIOS FlashBack button | 1 |
| X Clear CMOS button | 1 |
| Internal I/O Connectors | Да |
| Fan and Cooling Related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 5 |
| X AIO Q-Connector | 1 |
| Power Related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V CPU Power connector | 2 |
| Storage Related | Да |
| X M.2 slots (Key M) | 4 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 20Gbps connector (supports USB Type-C® ) | 1 |
| X USB 5Gbps port (1 x USB Type-C®) | 1 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 6 additional USB 2.0 ports | 3 |
| Miscellaneous | Да |
| X Addressable RGB Gen 2 headers | 3 |
| X Alteration PCIe mode switch | 1 |
| X Chassis Intrusion header | 1 |
| X CPU Over voltage jumper | 1 |
| X Front Panel Audio header (F_AUDIO) | 1 |
| X Start button | 1 |
| X 10-1 pin Front Panel System header | 1 |
| X Thermal Sensor header | 1 |
| Special Features | Да |
| Asynchronous Clock | Да |
| Extreme Engine Digi+ | Да |
| 5K Black metallic capacitors | Да |
| ASUS Q-Design | Да |
| M.2 Q-Latch | Да |
| M.2 Q-Release | Да |
| M.2 Q-Slide | Да |
| PCIe Slot Q-Release | Да |
| Q-Antenna | Да |
| Q-Dashboard | Да |
| ASUS Thermal Solution | Да |
| M.2 heatsink backplate | Да |
| M.2 heatsink | Да |
| VRM heatsink design | Да |
| ASUS EZ DIY | Да |
| BIOS FlashBack™ button | Да |
| BIOS FlashBack™ LED | Да |
| Clear CMOS button | Да |
| Dual DIMM clips | Да |
| ProCool II | Да |
| Pre-mounted I/O shield | Да |
| SafeSlot | Да |
| Aura Sync | Да |
| Addressable RGB Gen | 2 headers |
| Software Features | Да |
| ROG Exclusive Software | Да |
| ROG CPU-Z | Да |
| Dolby Atmos | Да |
| ASUS Exclusive Software | Да |
| Armoury Crate | Да |
| Aura Creator | Да |
| Aura Sync | Да |
| Fan Xpert | 4 (with AI Cooling II) |
| GameFirst | Да |
| WiFi Q-Antenna | Да |
| MLO Wizard | Да |
| ASUS DriverHub | Да |
| ASUS MB Manager | Да |
| ASUS AI Advisor | Да |
| AIDA64 Extreme (60 days free trial) | Да |
| HWiNFO | Да |
| ASUS GlideX | Да |
| USB Wattage Watcher | Да |
| TurboV Core | Да |
| Adobe Creative Cloud (Free Trial)** | Да |
| Norton | 360 for Gamers (60 Days Free Trial) |
| WinRAR (40 Days Free Trial) | Да |
| UEFI BIOS | Да |
| Integrated WiFi Driver Support | Да |
| AI Overclocking Guide | Да |
| AI Cache Boost | Да |
| ASUS EZ DIY | Да |
| ASUS CrashFree BIOS | 3 |
| ASUS EZ Flash | Да |
| ASUS UEFI BIOS EZ Mode | Да |
| ASUS MyHotkey | Да |
| FlexKey | Да |
| BIOS | Да |
| MB (512Mb) Flash ROM, UEFI AMI BIOS | 64 |
| Manageability | Да |
| WOL by PME, PXE | Да |
| Операционна система | Да |
| Windows | 11 (22H2 & later) |
| Форм фактор | Да |
| ATX Form Factor | Да |
| Inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | 12 |
