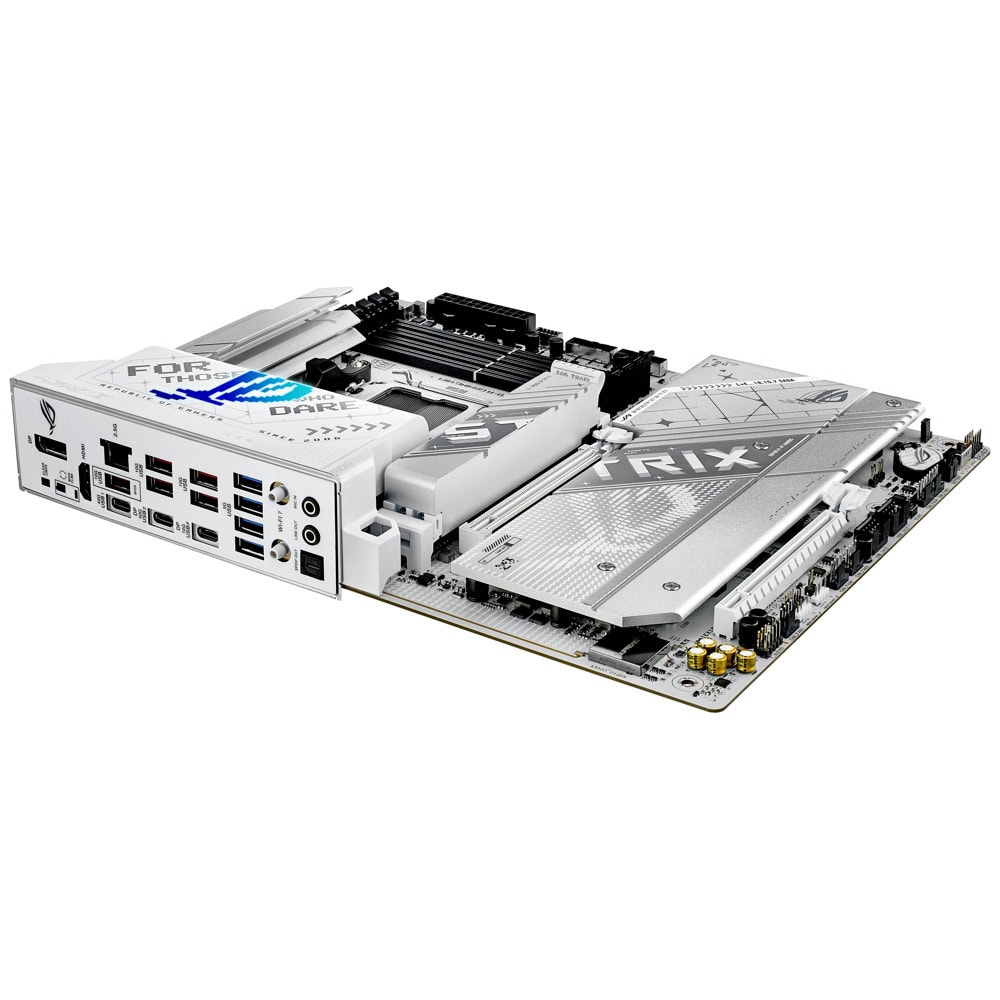

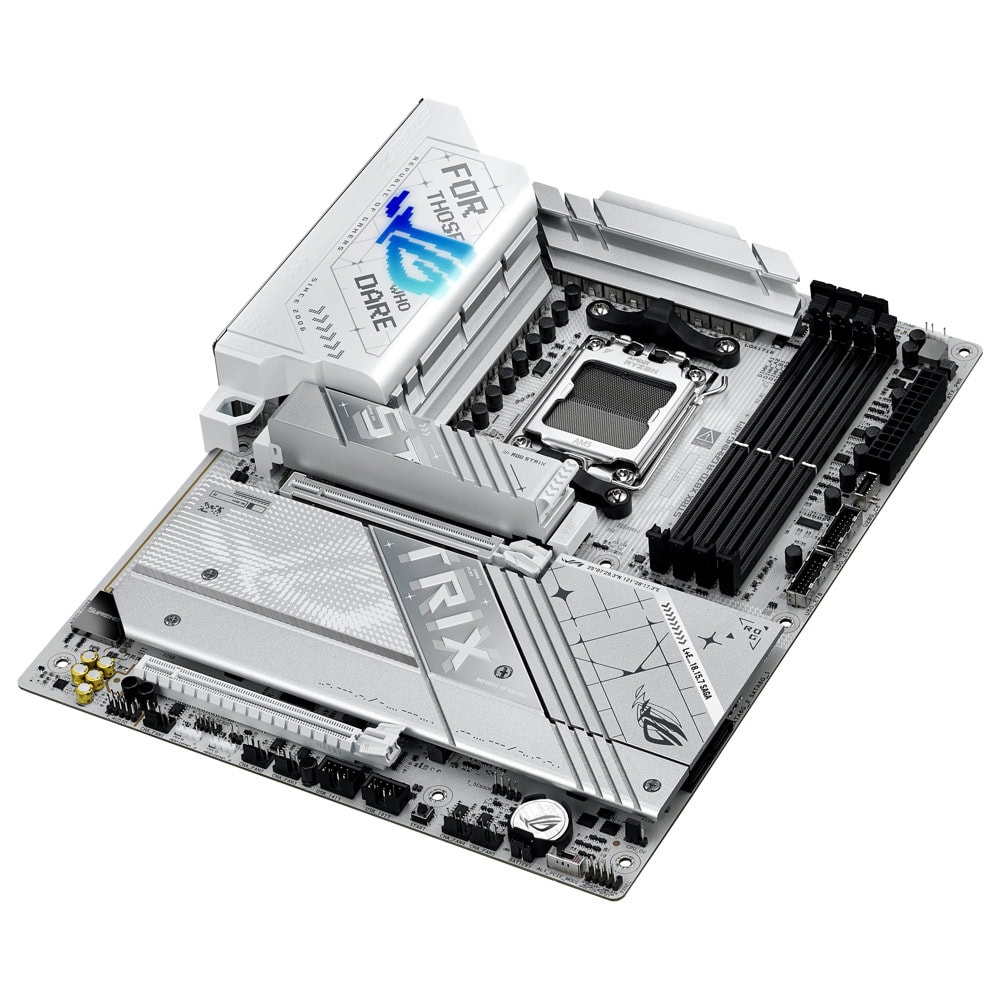

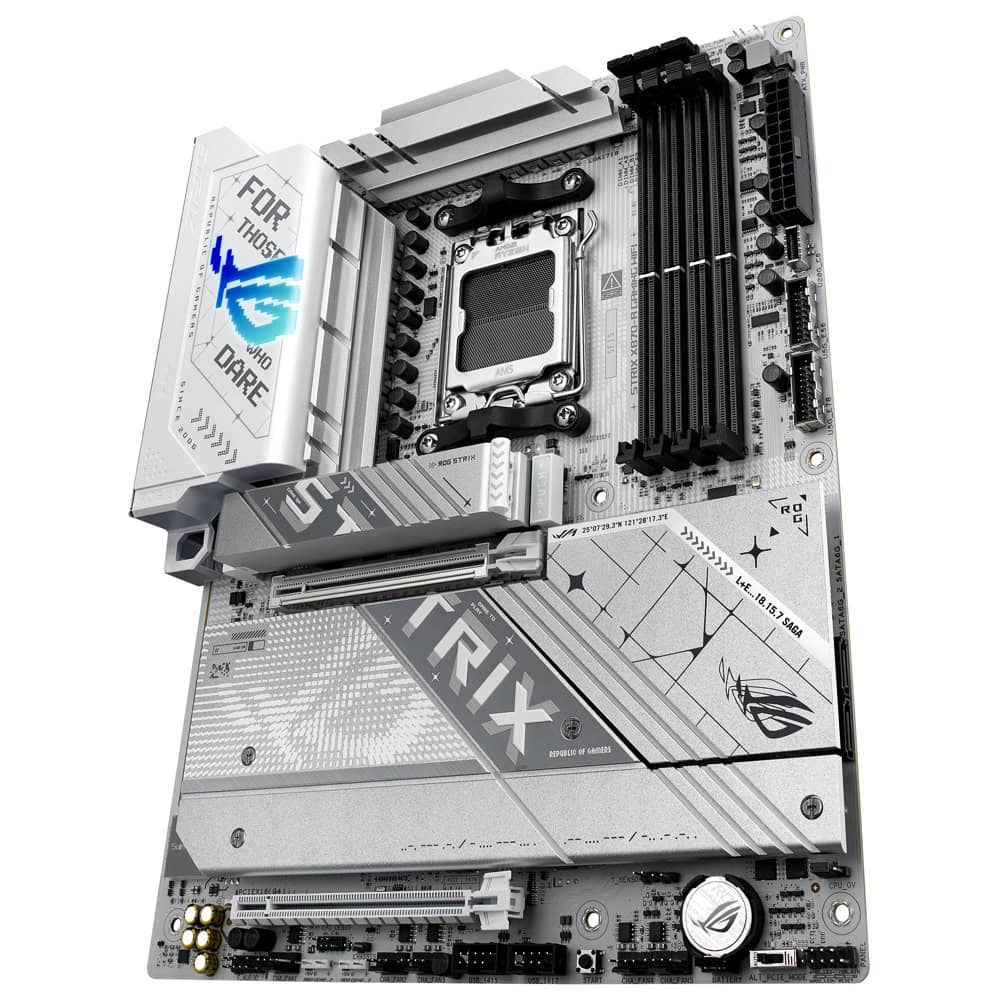

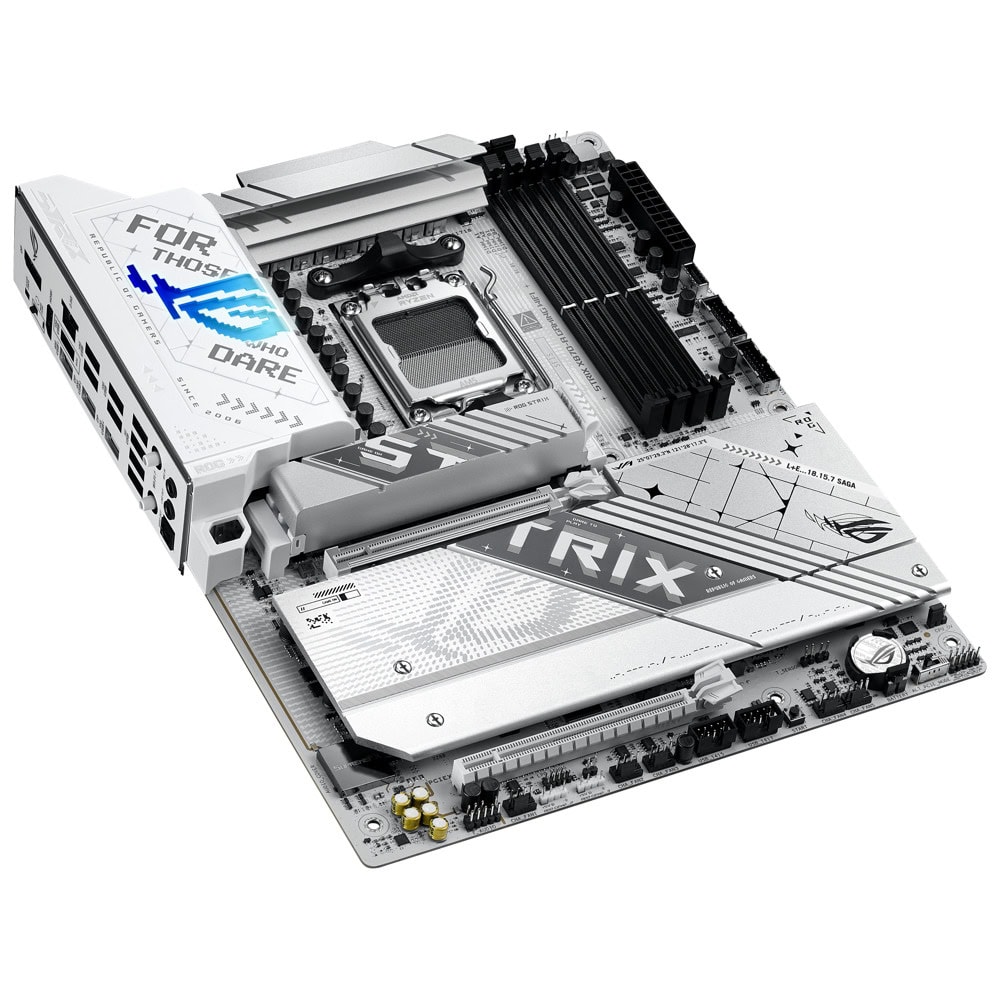

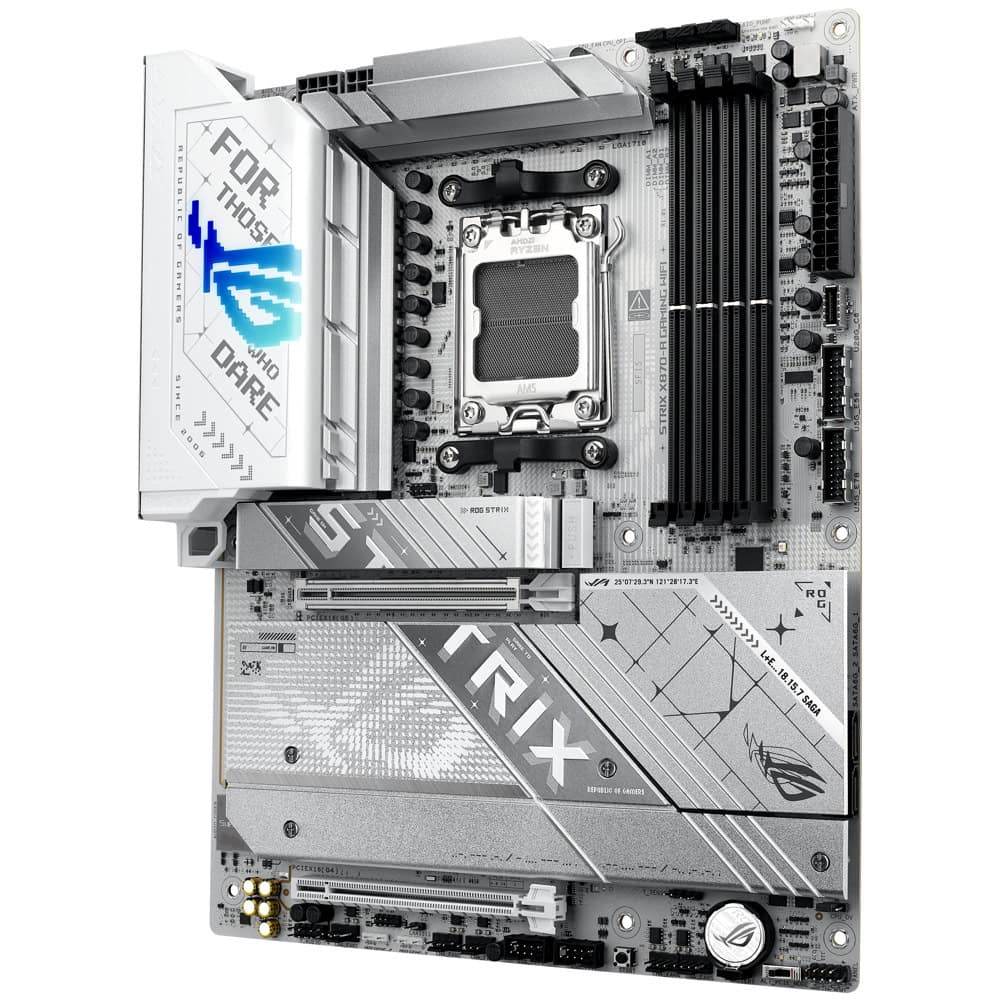

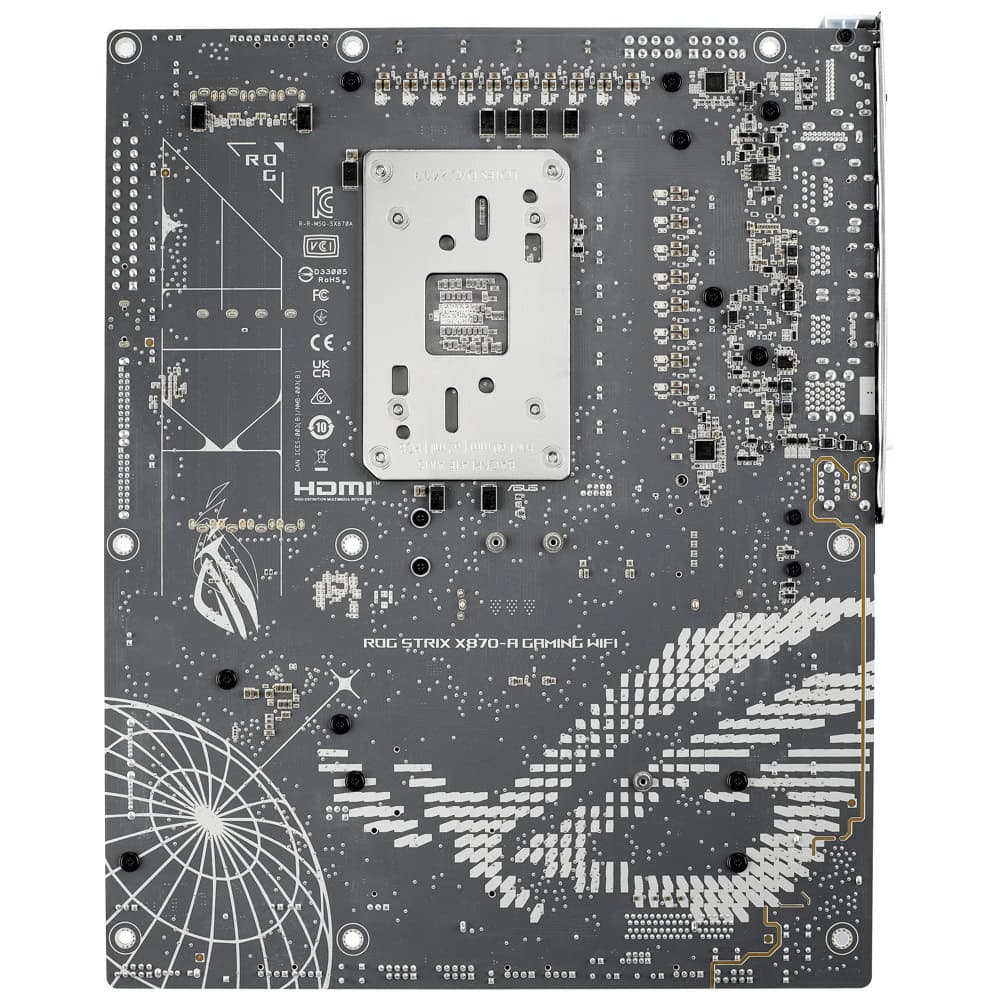

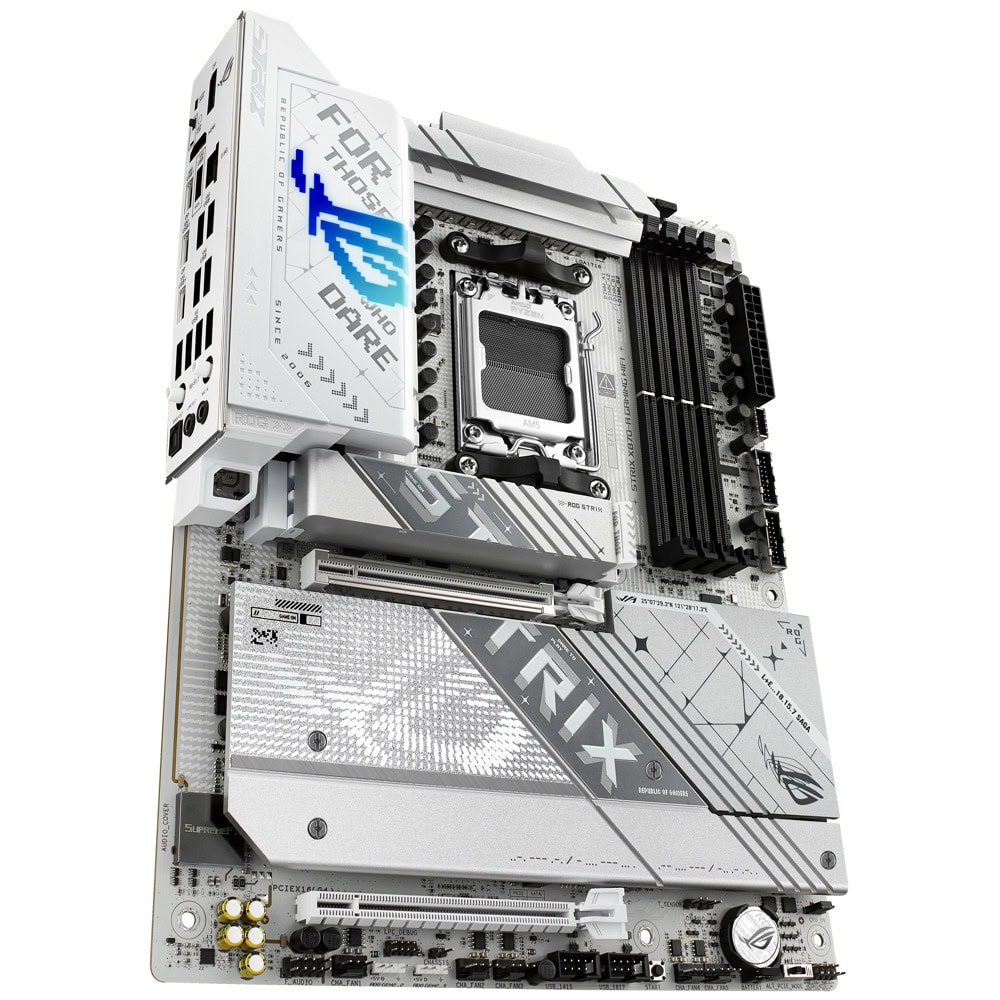

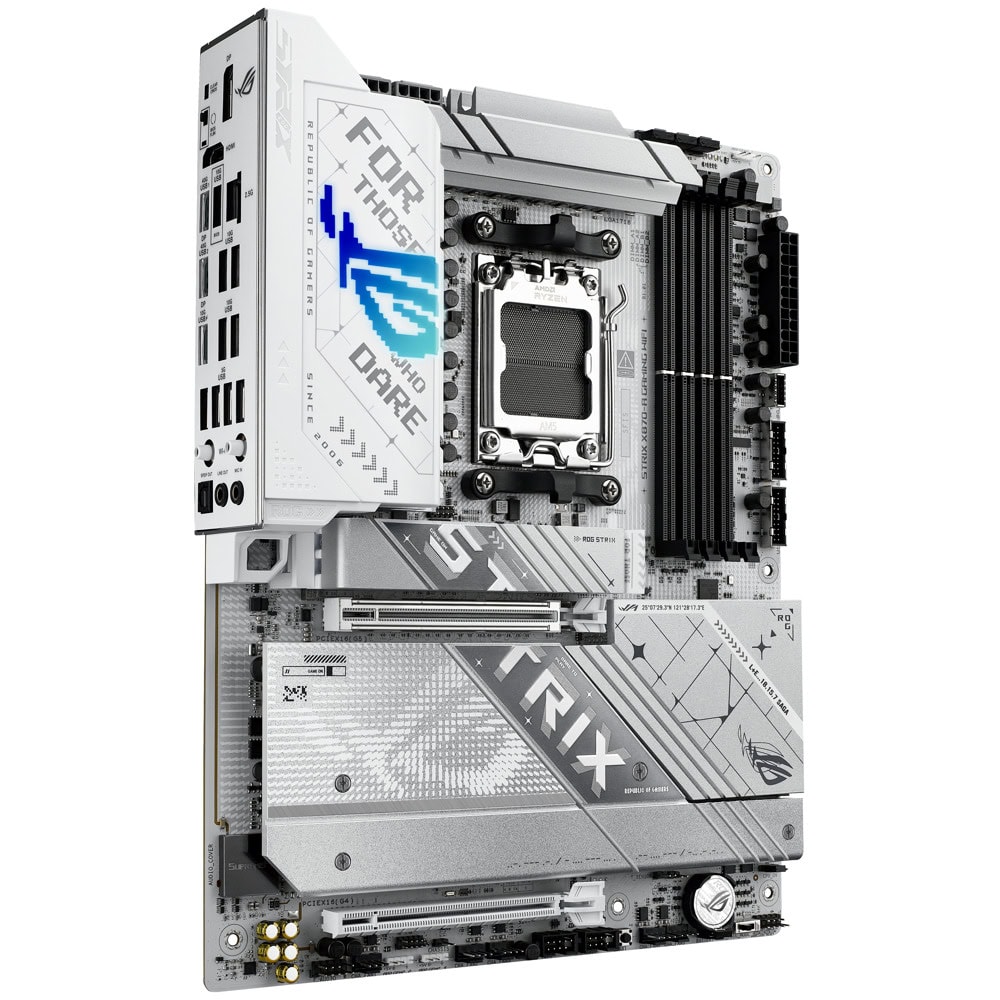

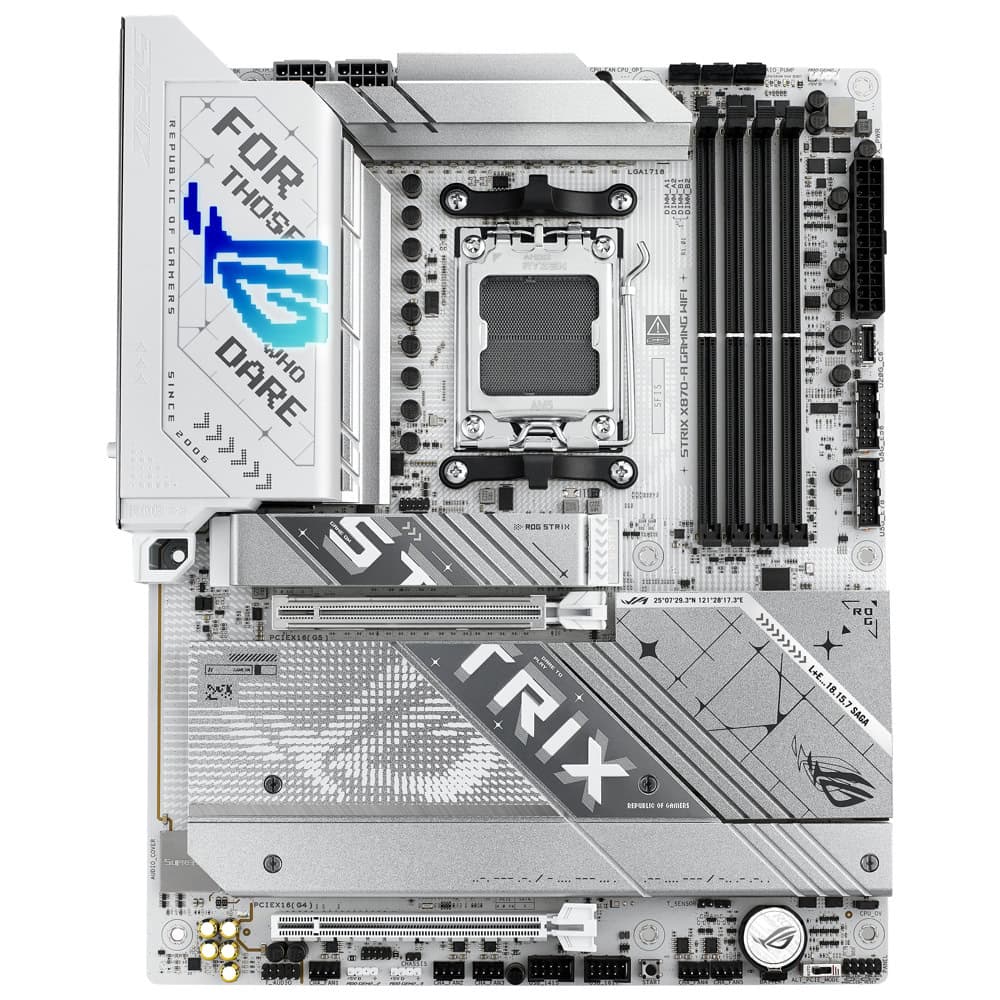

Дънна платка Asus ROG STRIX X870-A GAMING WIFI

Asus ROG STRIX X870-A GAMING WIFI

90MB1IF0-M0EAY0

Specs:

CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870

Memory

4x DIMM slots, max. 192GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen

9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory*"

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

* Non-ECC, un-buffered DDR5 memory supports

On-Die ECC function.

Graphics

1x DisplayPort**

1x HDMI port***

2x USB4 (40Gbps) ports support USB

Type-C display outputs****

* Please refer to AMD CPU specifications.

** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI 2.1.

****Supports max. 4K@60Hz as specified in DisplayPort 1.4a

**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors

1x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1x PCIe 4.0 x16 slot (supports x8/x4 mode)**

AMD X870 Chipset

1x PCIe 4.0 x16 slot (supports x4 mode)

** Specifications vary by CPU types.

Storage

Supports 4x M.2 slots and 2x SATA 6Gb/s ports*

AMD Ryzen 9000 & 7000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**

AMD Ryzen™ 8000 Series Desktop Processors**

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****

AMD X870 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

2x SATA 6Gb/s ports

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen 9000 series CPU.

** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.

*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled.

**** M.2_2 will be disabled when using AMD Ryzen 8000 Series Desktop Processors.

Ethernet

1x Intel 2.5Gb Ethernet

ASUS LANGuard

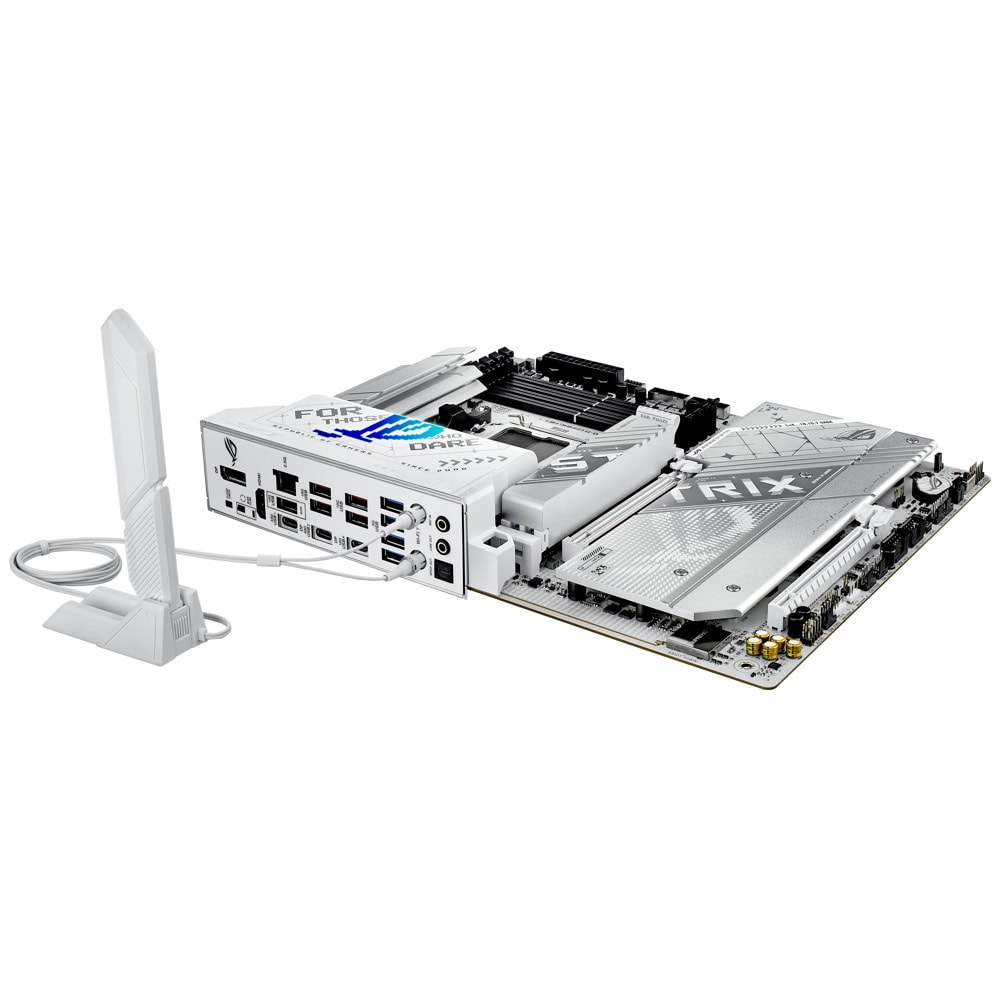

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth v5.4***

*Wi-Fi features may vary depending on the operating system

For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

For Windows 10, please note that no driver is available.

** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

USB

Rear USB (Total 12 ports)

2x USB4® (40Gbps) ports(2x USB Type-C with DP Alt mode)*

6x USB 10Gbps ports (5x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge)**

4x USB 5Gbps ports (4x Type-A)

Front USB (Total 9 ports)

1x USB 20Gbps connector (supports USB Type-C)

2x USB 5Gbps headers support 4 additional USB 5Gbps ports

2x USB 2.0 headers support 4 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A

** USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback on front panel"

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

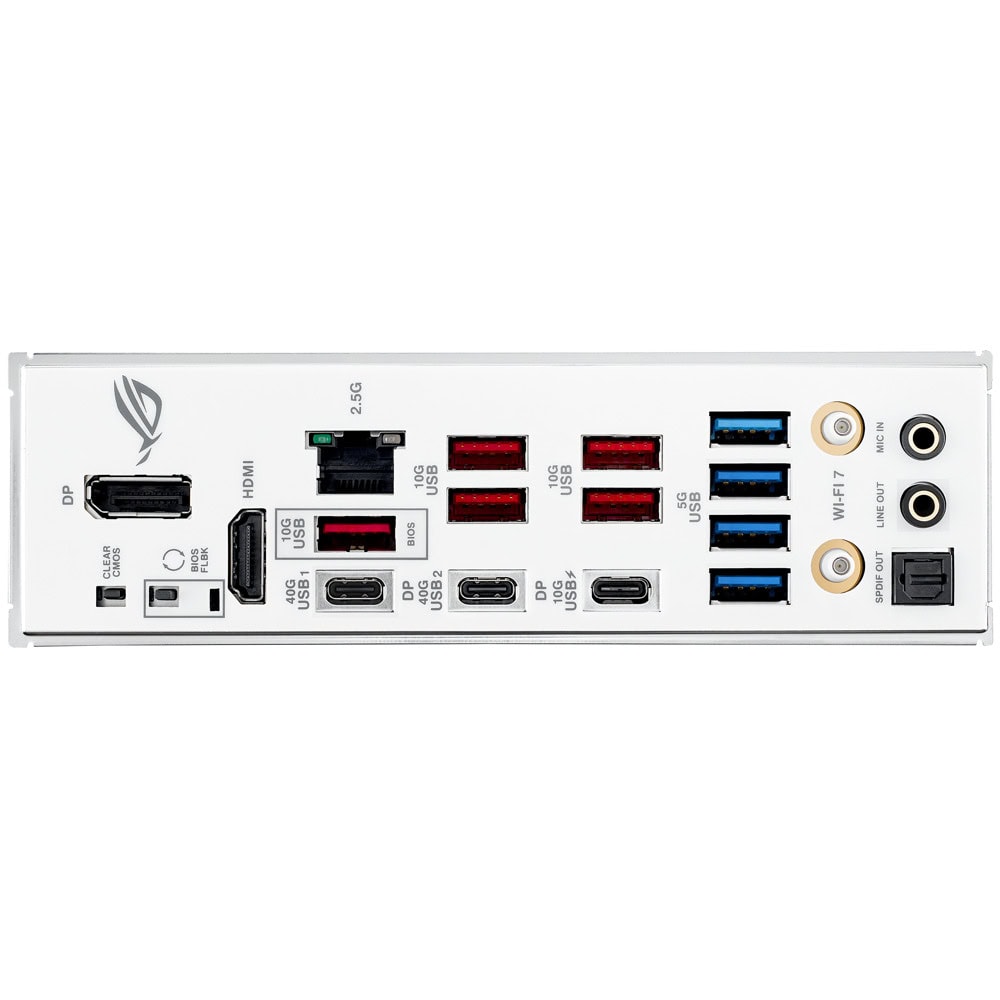

Back Panel I/O Ports

2x USB4 (40Gbps) ports (2x USB Type-C with DP Alt mode)

6x USB 10Gbps ports (5x Type-A + 1x USB Type-C with up to 30W PD Fast-charge)**
