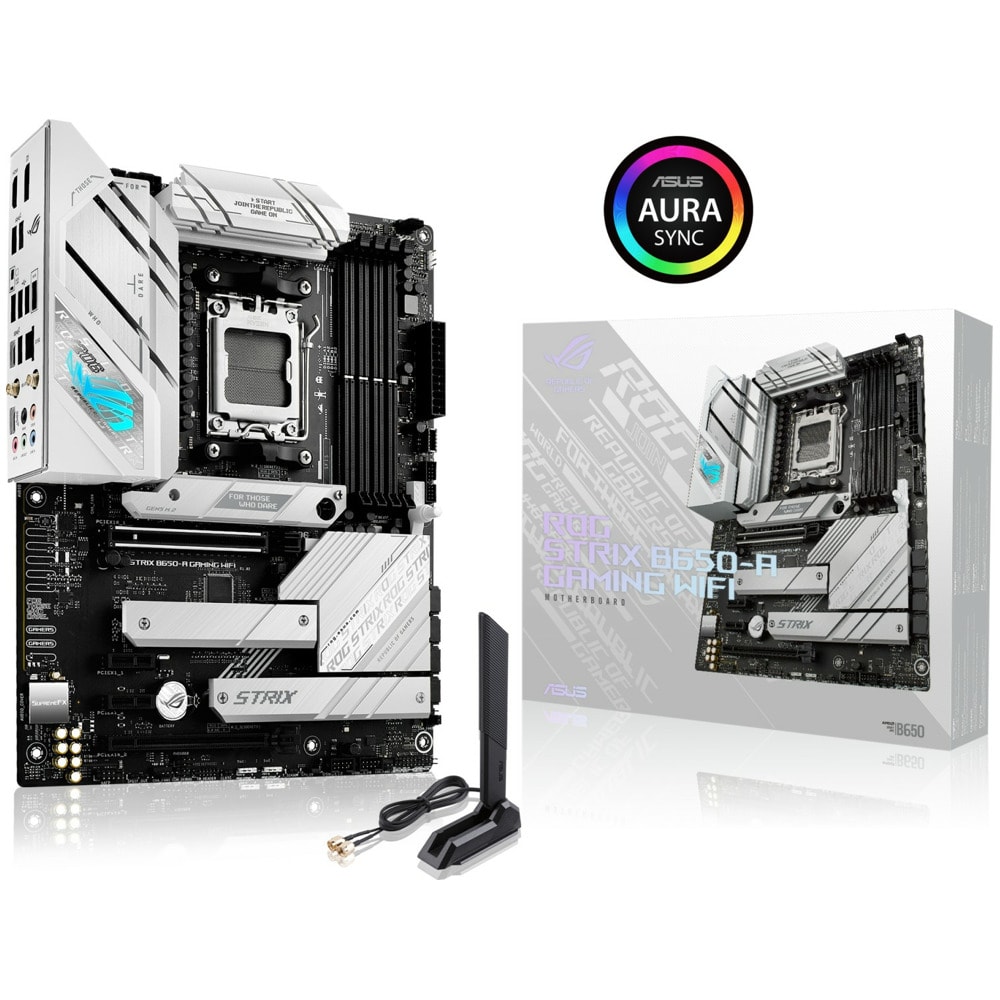

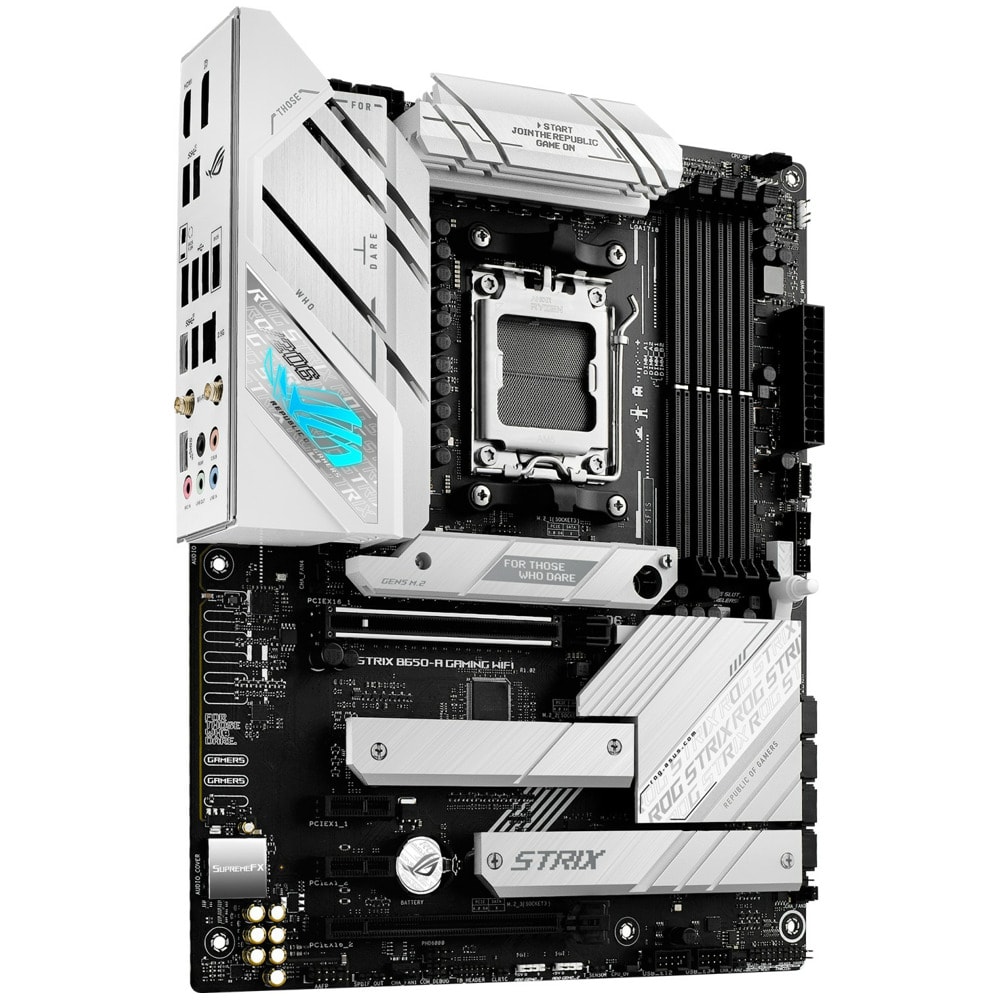

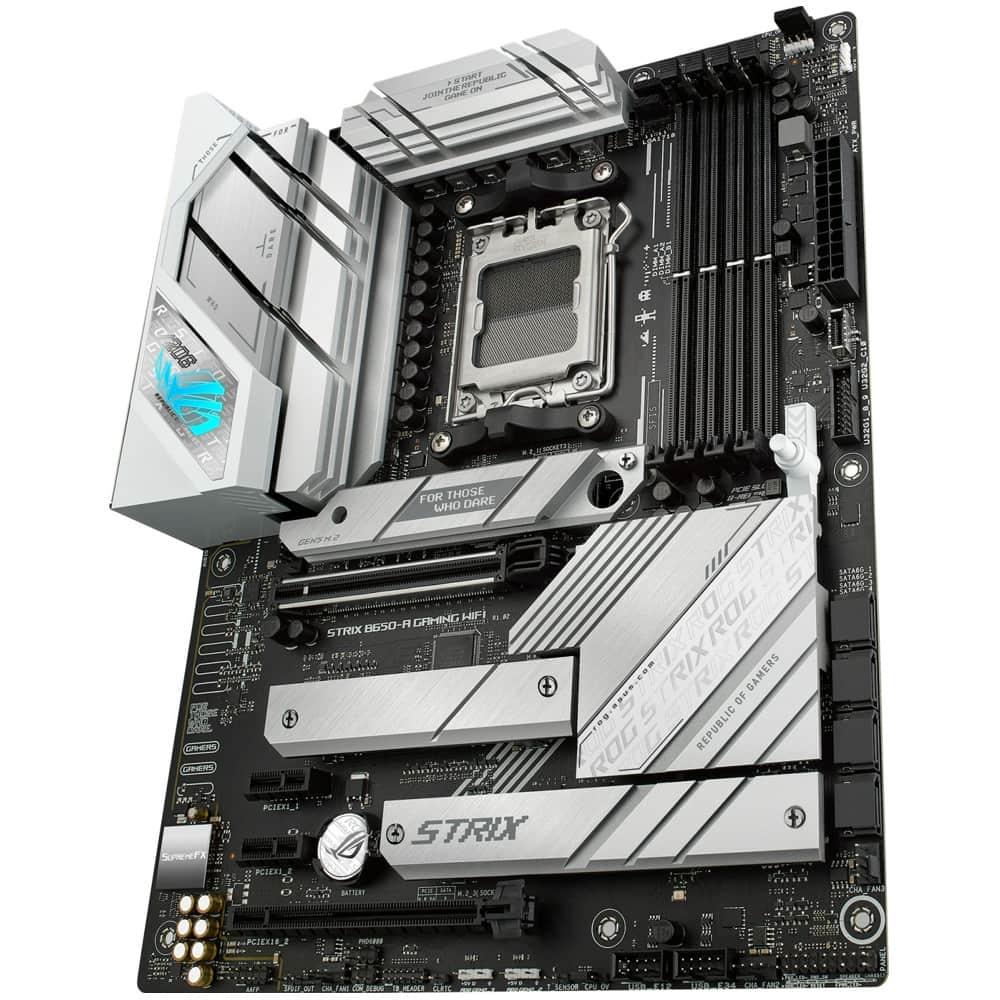

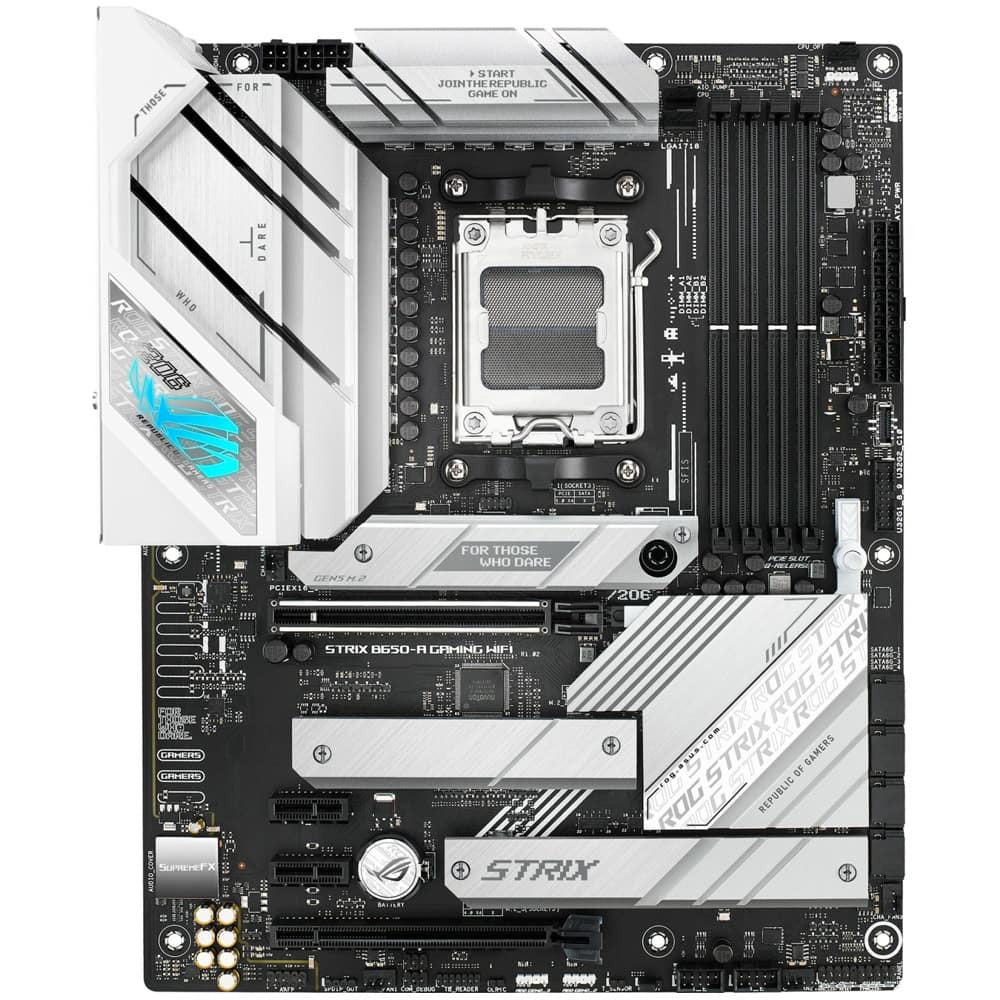

Дънна платка Asus ROG STRIX B650-A GAMING WIFI
Asus ROG STRIX B650-A GAMING WIFI

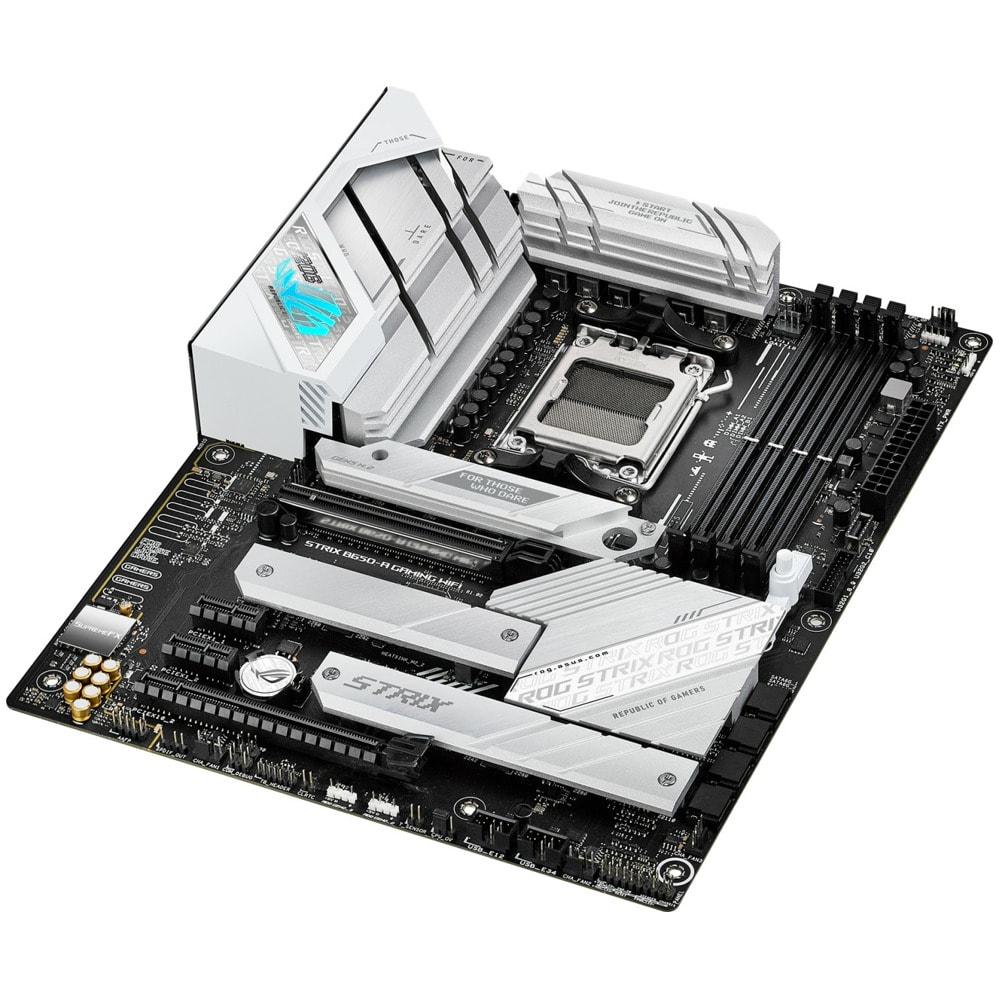

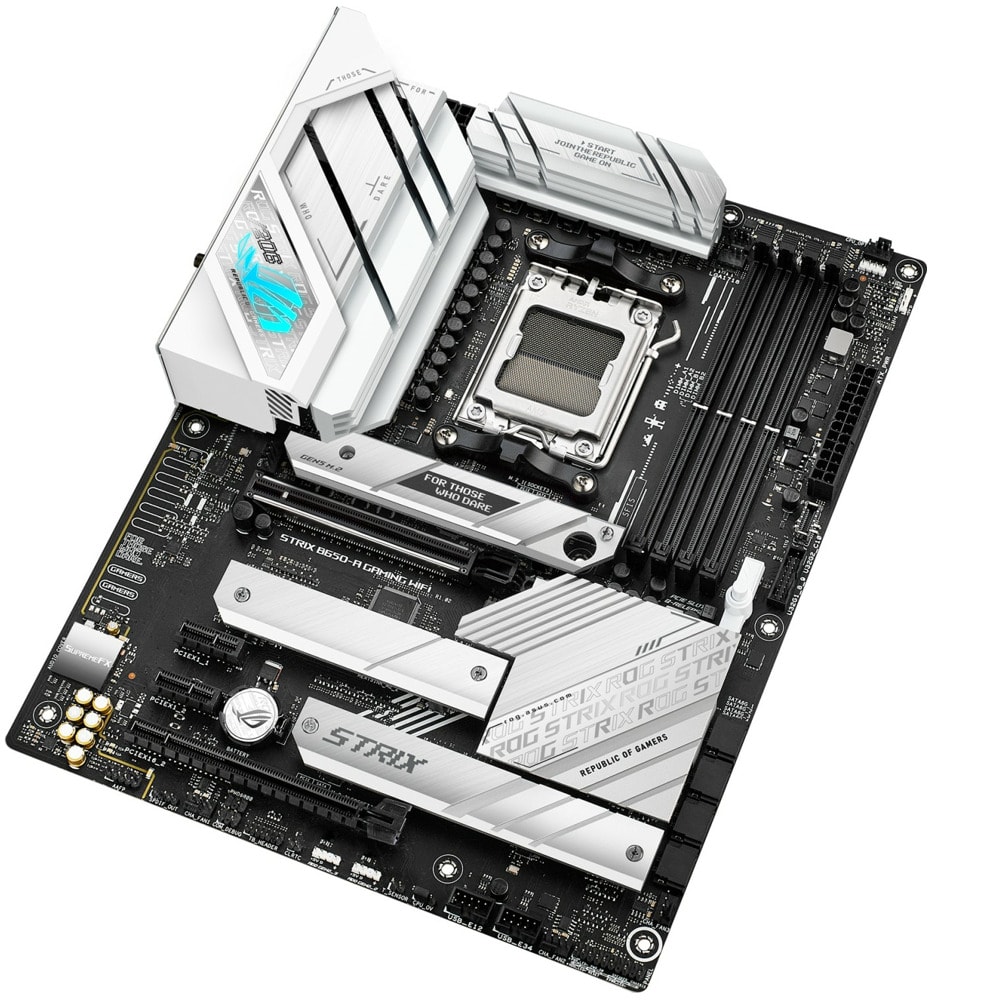

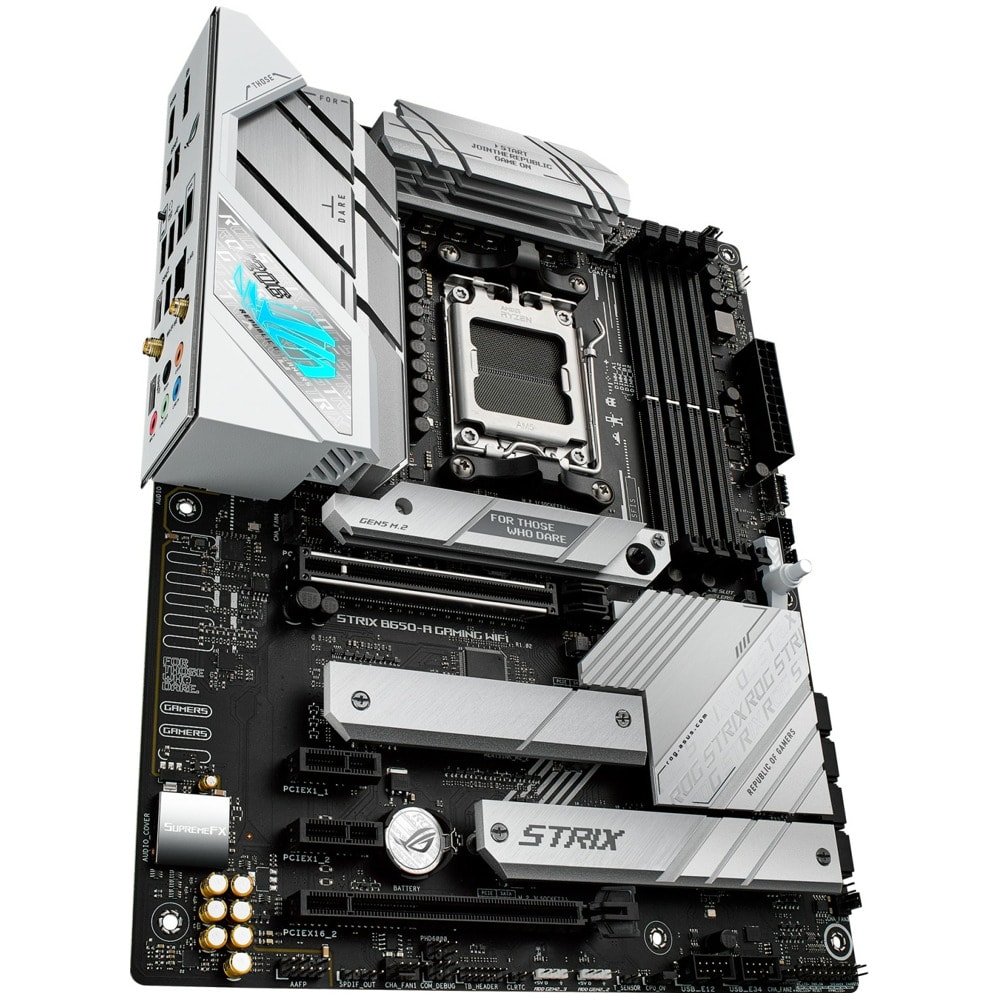

The ROG Strix B650-A Gaming WiFi comes equipped with potent performance and thermal prowess in a fresh-looking package. Robust power delivery designed to handle the latest AMD Ryzen™ 7000 Series processors is cooled with thick metal heatsinks that stand out against a black PCB. A PCIe 5.0 M.2 slot, speedy DDR5 memory support, and the latest WiFi 6E networking fleshes out the futuristic feature set.
ALL-ROUND PERFORMANCE
Robust power delivery, speedy storage and RAM, and comprehensive cooling controls are core fundamentals of the ROG Strix B650-A, thoroughly preparing you for the future of gaming.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Чипсет
| AMD B650 | Да |
Памет
| Dual Channel Memory Architecture | Да |
| Supports AMD EXTended Profiles for Overclocking (EXPO™) | Да |
| OptiMem II | Да |
Графика
| X DisplayPort* | 1 |
| X HDMI® port** | 1 |
| Supports max. | 8K@60Hz as specified in DisplayPort 1.4 |
| Supports | 4K@60Hz as specified in HDMI 2.1 |
Разширителни слотове
| AMD Ryzen™ | 7000 Series Desktop Processors |
| 1 x PCIe 4.0 | x16 slot |
| AMD B650 Chipset | Да |
| 1 x PCIe 4.0 | x16 slot (supports x4 mode)* |
| 2 x PCIe 4.0/3.0 | x1 slots |
| PCIe 4.0 | x16 slot (supports x4 mode) from AMD B650 Chipset shares bandwidth with M.2_3. |
Съхранение
| Total supports | 3 x M.2 slots and 4 x SATA 6Gb/s ports* |
| AMD Ryzen™ | 7000 Series Desktop Processors |
| M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 | x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| AMD B650 Chipset | Да |
| X SATA 6Gb/s port | 4 |
| M.2_3 slot shares bandwidth with PCIe 4.0 | x16 slot (supports x4 mode) When M.2_3 slot is operating in PCIe mode, M.2_3 will be disabled. |
Ethernet
| X Intel® 2.5Gb Ethernet | 1 |
| ASUS LANGuard | Да |

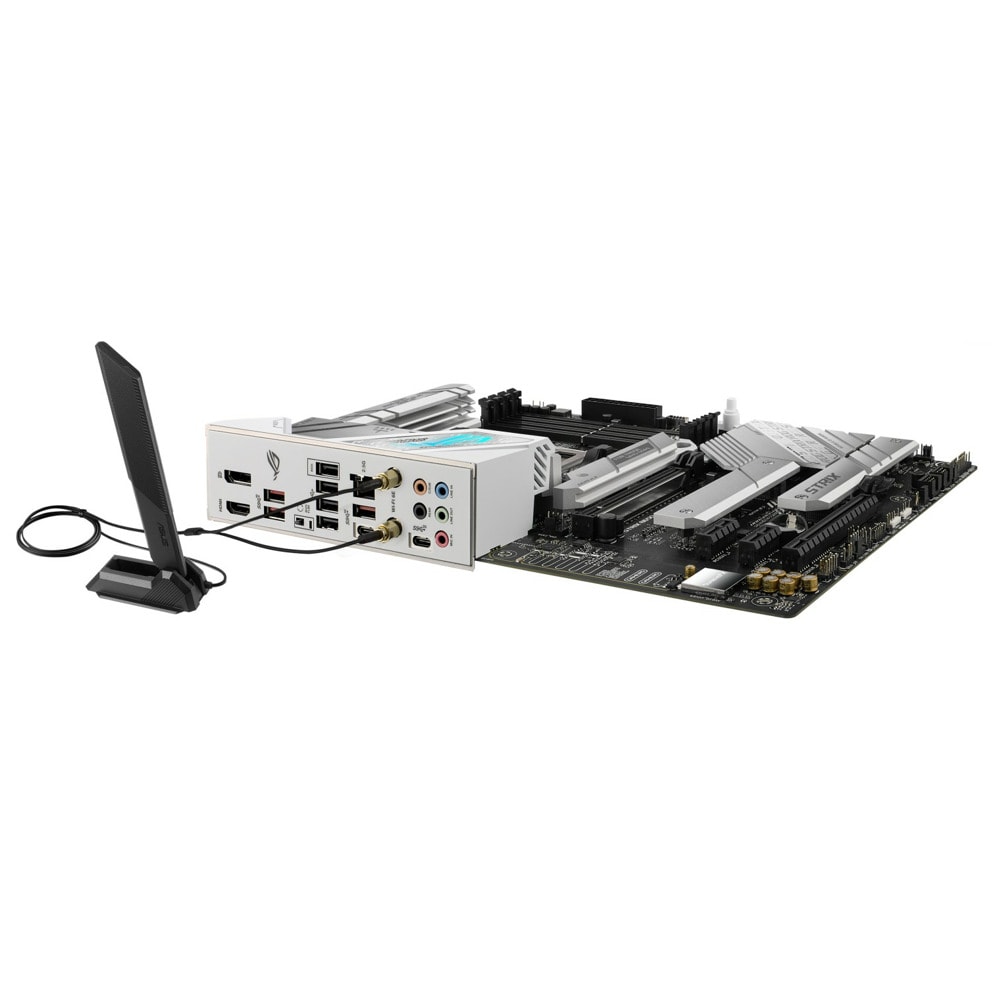

Wireless & Bluetooth
| Wi-Fi | 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | Да |
| Supports | 2.4/5GHz frequency band |
| Bluetooth v5.2 | Да |
| ready in Windows | 11 or later |
USB
| Rear USB (Total | 9 ports) |
| X USB 3.2 Gen 2x2 port (1 x USB Type-C®) | 1 |
| X USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) | 4 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| Front USB (Total | 7 ports) |
| X USB 3.2 Gen 2 connector (supports USB Type-C®) | 1 |
| X USB 2.0 headers supports additional 4 USB 2.0 ports | 2 |
Звук
| Impedance sense for front and rear headphone outputs | Да |
| Supports | Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| Supports up to | 32-Bit/384 kHz playback |
| Audio Features | Да |
| SupremeFX Shielding Technology | Да |
| Savitech SV3H712 AMP | Да |
| Rear optical S/PDIF out port | Да |
| Premium audio capacitors | Да |
| Audio cover | Да |

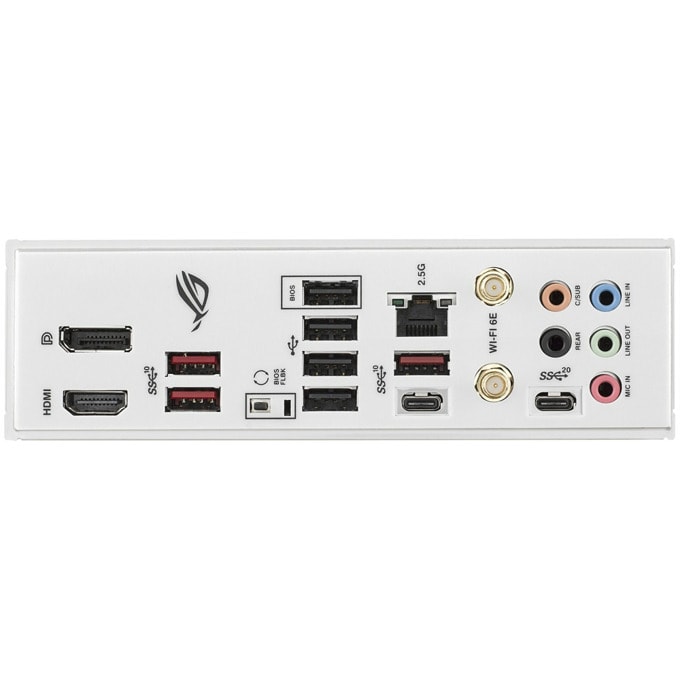

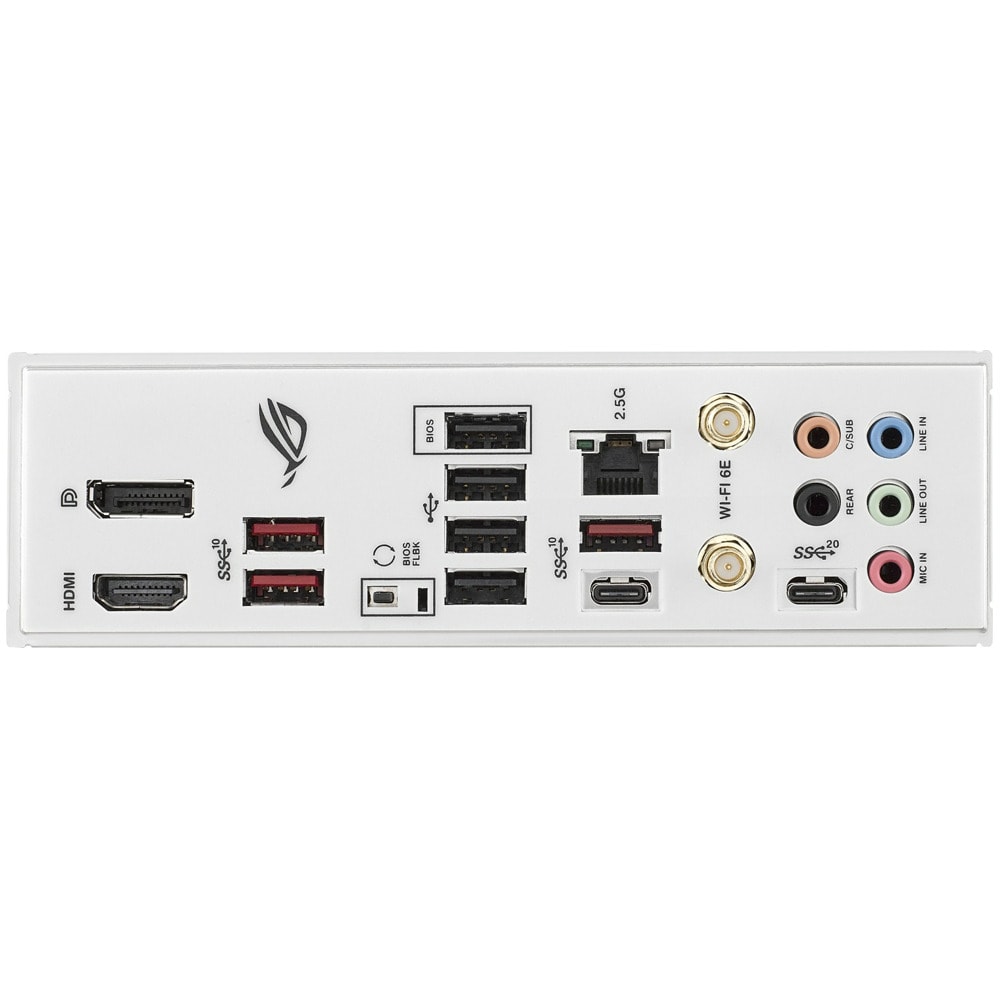

Back Panel I/O Ports
| X USB 3.2 Gen 2x2 port (1 x USB Type-C®) | 1 |
| X USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®) | 4 |
| X USB 2.0 ports (4 x Type-A) | 4 |
| X DisplayPort | 1 |
| X HDMI® port | 1 |
| X Wi-Fi Module | 1 |
| X Intel® 2.5Gb Ethernet port | 1 |
| X Audio jacks | 5 |
| X BIOS FlashBack™ button | 1 |
Internal I/O Connectors
| Fan and Cooling related | Да |
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 4 |
| Power related | Да |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V Power connector | 1 |
| X 4-pin +12V Power connector | 1 |
| Storage related | Да |
| X M.2 slots (Key M) | 3 |
| X SATA 6Gb/s ports | 4 |
| USB | Да |
| X USB 3.2 Gen 2 connector (supports USB Type-C®) | 1 |
| X USB 2.0 headers supports additional 4 USB 2.0 ports | 2 |
| Miscellaneous | Да |
| X Addressable Gen 2 headers | 3 |
| X AURA RGB header | 1 |
| X Clear CMOS header | 1 |
| X CPU Over Voltage jumper | 1 |
| X Front Panel Audio header (AAFP) | 1 |
| X S/PDIF Out header | 1 |
| X Thermal Sensor header | 1 |
| X Thunderbolt™header | 1 |
| X COM_DEBUGheader | 1 |
