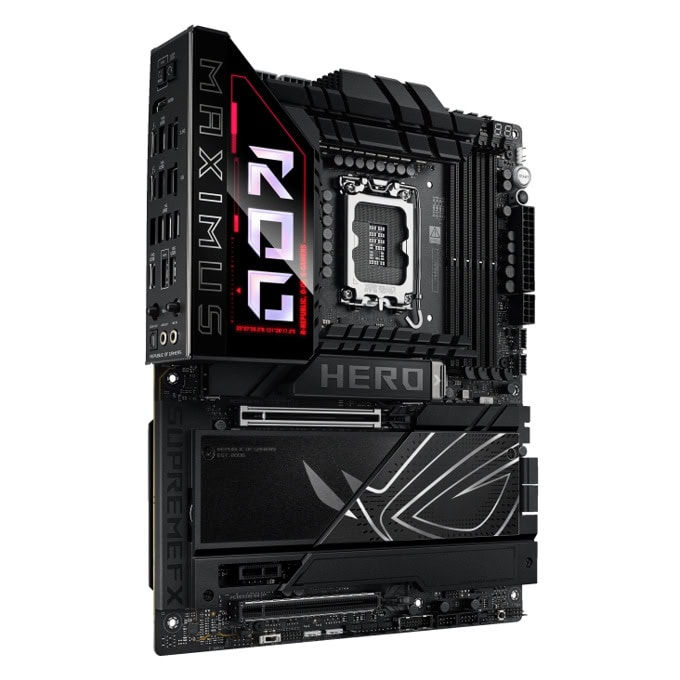

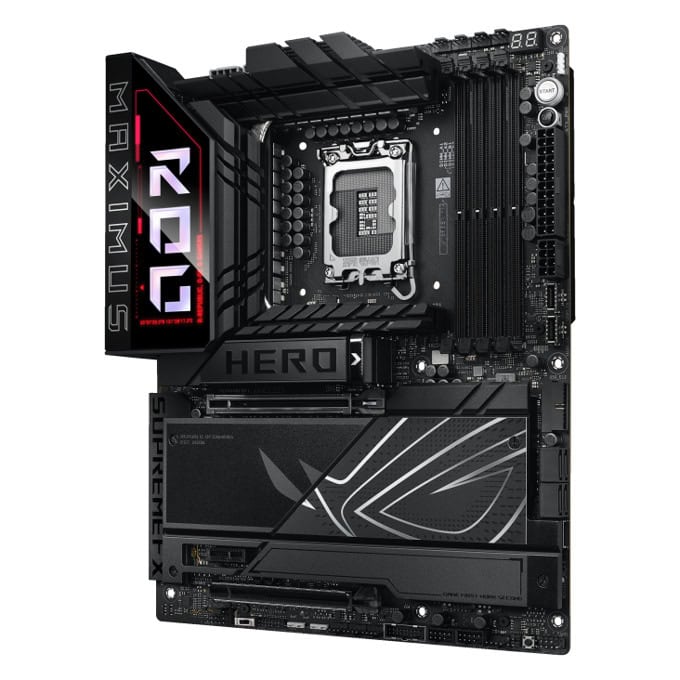

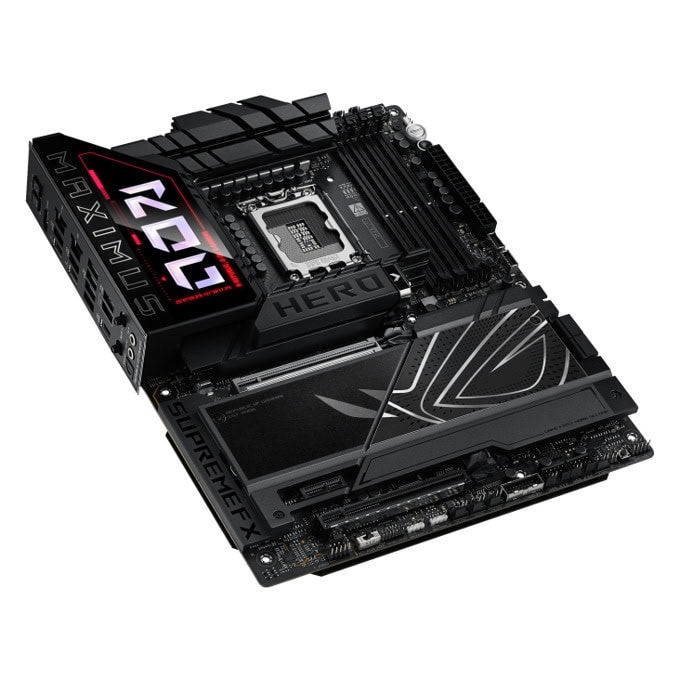

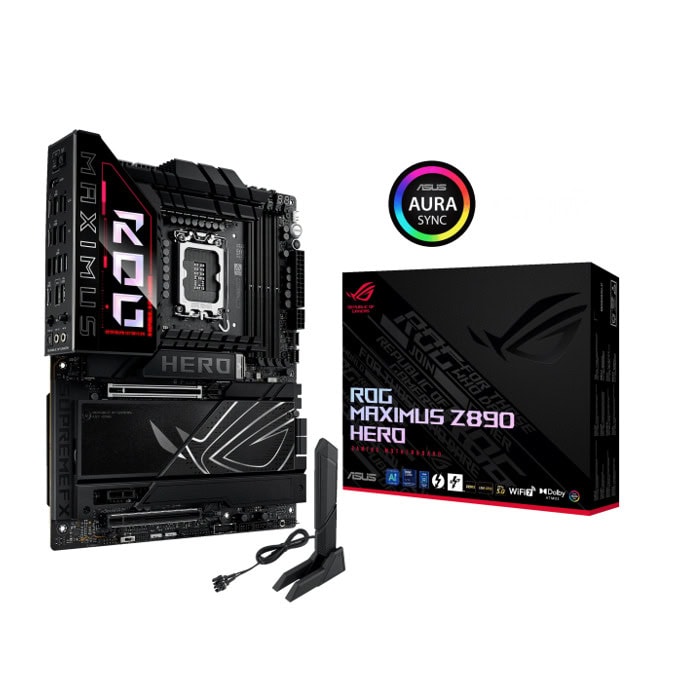

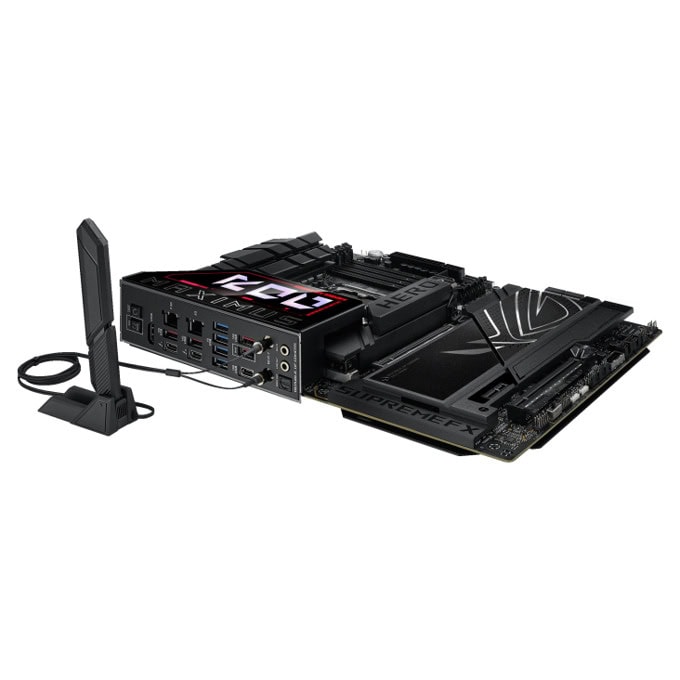

Дънна платка Asus ROG MAXIMUS Z890 HERO
Asus ROG MAXIMUS Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
NPU BOOST
The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
* The overclocking performance may vary depending on the CPU series and motherboard used.
** Testing was conducted with an Intel® Core™ Ultra 9 285K processor, ROG Maximus Z890 Extreme motherboard, GeForce RTX™ 4090 24GB graphics card, and XPG Lancer DDR5 memory modules (model AX5U6000C4016G).
DIFFERENTIAL SENSING
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. The ROG Maximus Z890 Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
CPU
| Support Intel® Core™ Ultra Processors (Series | 2) , LGA1851 |
Памет
| X DIMM slots, max. 192GB, DDR5 | 4 |
Графика
| X HDMI™ port** | 1 |
| Supports max. | 8K@60Hz with DSC as specified in HDMI 2.1 |
| In Thunderbolt™ 4 mode, supports up to 8K@60Hz | x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. |
Слотове за разширение
| Intel® Core™ Ultra Processors (Series | 2)* |
| 1 x PCIe 5.0 | x16 slot (supports x16 or x8/x4/x4 modes)** |
| 1 x PCIe 4.0 | x16 slot (supports x4 mode) |
| 1 x PCIe 4.0 | x1 slot |
Капацитет за съхранение
| Intel® Core™ Ultra Processors (Series | 2) * |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode)** |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 | x4 mode) |
| M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| M.2_6 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 | x4 mode) |
| X SATA 6Gb/s ports | 4 |
| SlimSAS connector supports PCIe 4.0 | x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately. |
| When M.2_3 or M.2_4 is enabled, PCIEX16(G5) will run | x8 only. |
Ethernet
| X Intel® 2.5Gb Ethernet | 1 |
| X Realtek 5Gb Ethernet | 1 |
Wireless & Bluetooth
| Wi-Fi | 7* |
| Supports | 2.4/5/6GHz frequency band** |
| For Windows | 10, only Wi-Fi 6 is supported |
USB
| Rear USB (Total | 11 ports) |
| X Thunderbolt™ 4 ports (2 x USB Type-C®) | 2 |
| X USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) | 5 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| Front USB (Total | 10 ports) |
| X USB 10Gbps connector (supports USB Type-C®) | 1 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| USB Type-C® power delivery output | max. 5V/3A |
| USB Type-C® power delivery output | 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
Аудио
| Supports | Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking |
| Supports up to | 32-Bit/384 kHz playback on front panel" |

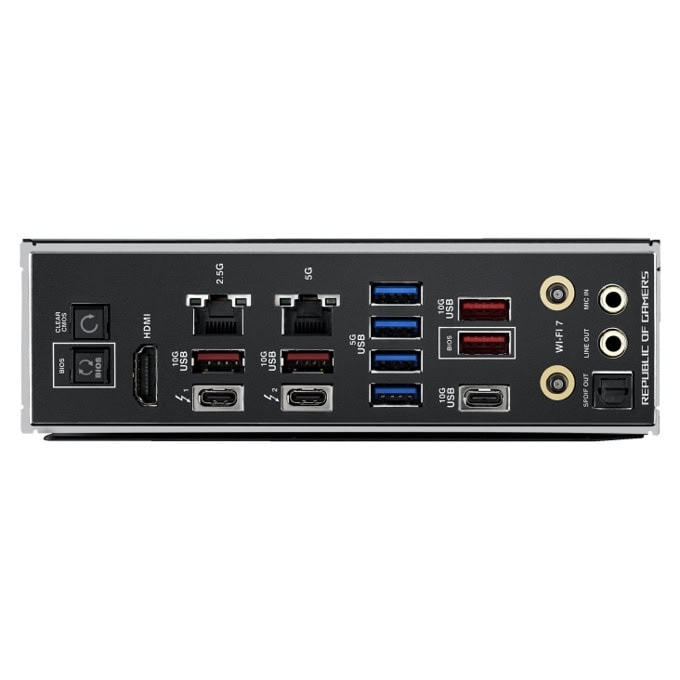

Back Panel I/O Ports
| X Thunderbolt™ 4 USB Type-C® ports | 2 |
| X USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®) | 5 |
| X USB 5Gbps ports (4 x Type-A) | 4 |
| X HDMI™ port | 1 |
| X Wi-Fi module | 1 |
| X Intel® 2.5Gb Ethernet port | 1 |
| X Realtek 5Gb Ethernet port | 1 |
| X Gold-plated audio jacks | 2 |
| X Optical S/PDIF out port | 1 |
| X BIOS FlashBack™ button | 1 |
| X Clear CMOS button | 1 |
Internal I/O Connectors
| X 4-pin CPU Fan header | 1 |
| X 4-pin CPU OPT Fan header | 1 |
| X 4-pin AIO Pump header | 1 |
| X 4-pin Chassis Fan headers | 4 |
| X W_PUMP+ headers | 1 |
| X 24-pin Main Power connector | 1 |
| X 8-pin +12V CPU Power connectors | 2 |
| X 8-pin PCIe Power connector | 1 |
| X M.2 slots (Key M) | 6 |
| X SATA 6Gb/s ports | 4 |
| X SlimSAS connector | 1 |
| X USB 20Gbps connector (supports USB Type-C® ) | 1 |
| X USB 10Gps connector (supports USB Type-C® ) | 1 |
| X USB 5Gbps headers support 4 additional USB 5Gbps ports | 2 |
| X USB 2.0 headers support 4 additional USB 2.0 ports | 2 |
| X Addressable Gen 2 headers | 3 |
| X Alteration PCIe mode switch | 1 |
| X FlexKey button | 1 |
| X Front Panel Audio header (F_AUDIO) | 1 |
| X ReTry button | 1 |
| X Start button | 1 |
| X 10-1 pin System Panel header | 1 |
| X Thermal Sensor header | 1 |
| X Thunderbolt™ (USB4®) header* | 1 |
Special Features
| Addressable Gen | 2 header(s) |
| Front Panel USB | 20Gbps with Quick Charge 4+ Support |
| Поддръжка | up to 60W fast charging and USB Wattage Watcher* |
| Output | 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
Software Features
| Fan Xpert | 4 (with AI Cooling II) |
| ASUS CrashFree BIOS | 3 |
BIOS
| Mb Flash ROM, UEFI AMI BIOS | 256 |
Операционна система
| Windows | 11 (22H2 & later) |
Form Factor
| Inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | 12 |
